Présentation du produit

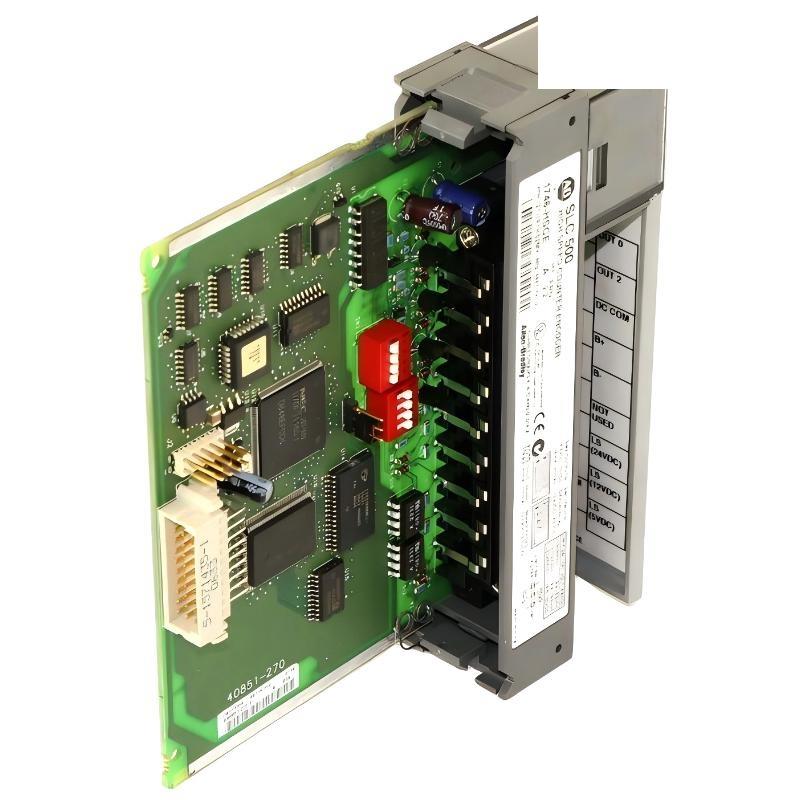

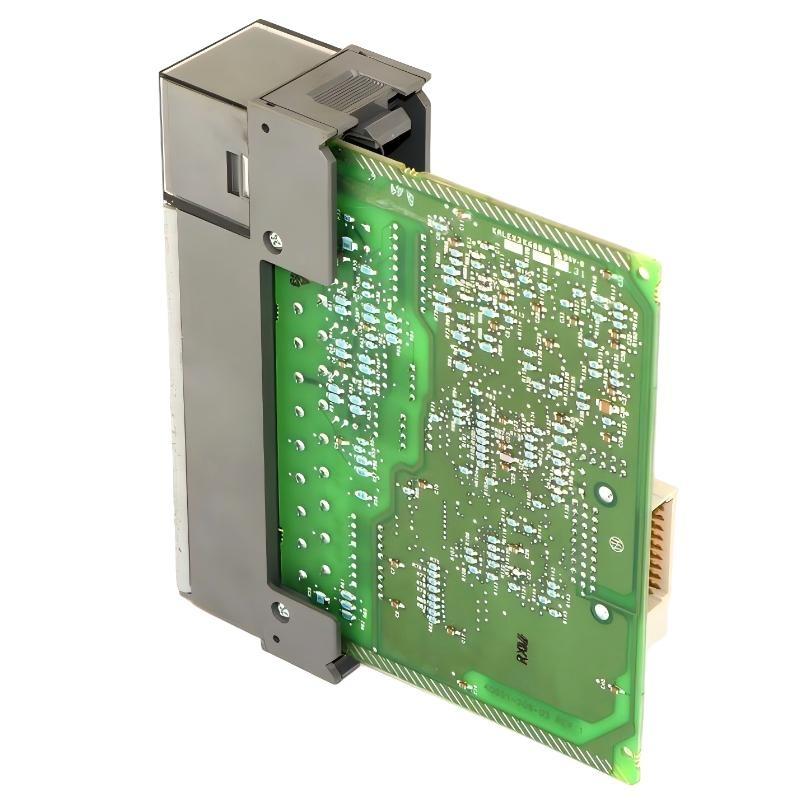

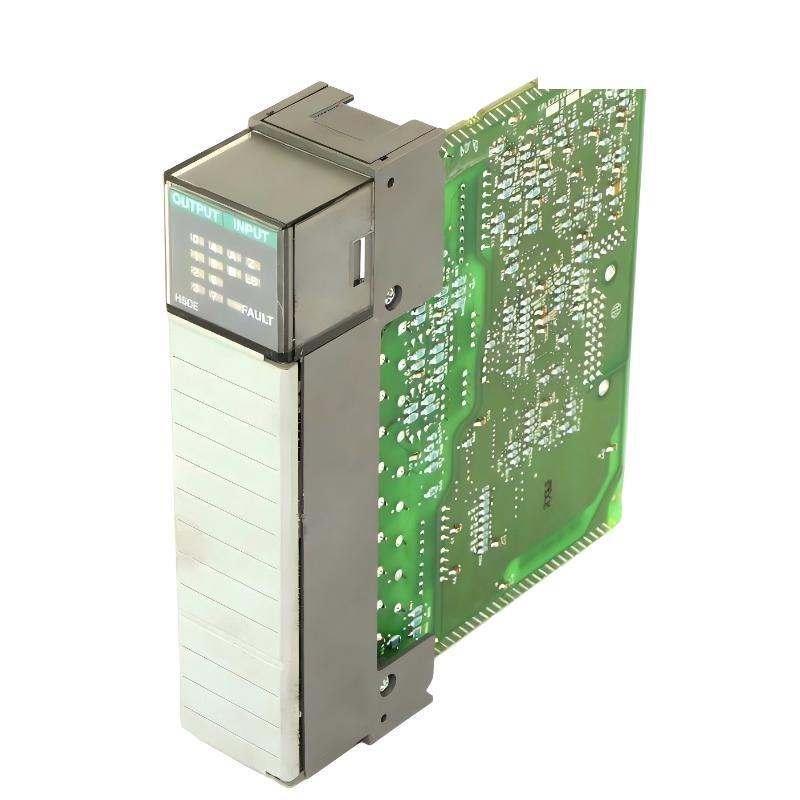

The Allen Bradley 1746-HSCE/A SLC 500 High Speed Counter Module is a specialized high-speed counting module designed for precise motion and position monitoring within the SLC 500 control system by Rockwell Automation. As a Series A module, it provides reliable performance for applications requiring fast pulse detection and accurate counting capabilities.
This module is capable sur processing high-frequency input signals up to 50 kHz, making it suitable for encoder feedback, pulse measurement, and high-speed event tracking. It supports multiple input voltage levels (5V, 12V, and 24V DC), allowing flexible integration with a wide range sur industrial sensors and encoders.
With built-in output channels and fast update times, the 1746-HSCE/A enables real-time control responses, making it an essential component in applications where timing precision and speed are critical.
Spécifications du produit
| Parameter | Value |
|---|---|
| Module Type | SLC 500 High Speed Counter Module (Series A) |
| Input Channels | 1 Count Input |
| Input Voltage | 5V DC / 12V DC / 24V DC |
| Number sur Outputs | 4 Outputs |
| Output Voltage | 5V DC / 12V DC / 24V DC |
| Maximum Input Frequency | 50 kHz |
| Module Update Time | 1.8 ms (Max) |
| Counting Modes | Up/Down, Pulse/Direction |
| Signal Type | High-speed Pulse Input |
| Backplane Current | Approx. 0.150 A @ 5V |
| Isolation | Electrical Isolation Supported |
| Status Indicators | LED Indicators for Status and Activity |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5–95% non-condensing |
| Mounting | SLC 500 Chassis |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Poids | 0.25 kg |
Applications
● Used for high-speed pulse counting, such as encoder signal processing in motion systems
● Suitable for position and speed measurement, especially in conveyor and packaging equipment
● Applied in cut-to-length and indexing systems, requiring precise counting accuracy
● Common in material handling automation, tracking product movement and position
● Ideal for rotary encoder feedback applications, ensuring accurate motion control
● Used in industrial machinery, where fast response to pulse inputs is critical
Advantages
● Supports high-frequency input up to 50 kHz, enabling precise high-speed counting
● Compatible with multiple voltage levels (5V/12V/24V DC) for flexible integration
● Provides fast module update time (1.8 ms) for real-time control response
● Includes 4 output channels, allowing direct control actions based on count conditions
● Designed for reliable operation in industrial environments, with strong noise immunitéy
● Fully compatible with SLC 500 systems, simplifying upgrades and maintenance
