Présentation du produit

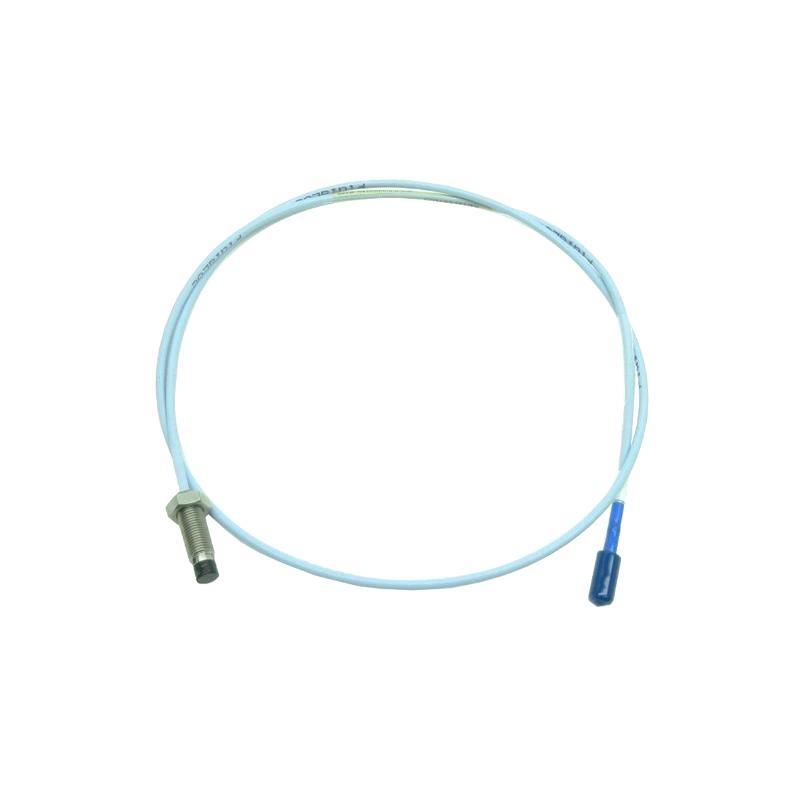

The Bently Nevada 330172-16-42-10-01-00 3300 5 mm Proximity Probe is part sur the 3300 XL proximity transducer system, designed for precise non-contact measurement sur shaft vibration and displacement in critical rotating machinery. With a 5 mm probe diameter and robust housing, it surfers high sensitivity and accuracy, making it suitable for use in turbines, compressors, and other industrial equipment.
This probe integrates seamlessly with the 3300 XL Proximitor sensors and extension cables, delivering a calibrated voltage output proportional to shaft movement. Engineered to meet the demanding requirements sur machinery protection standards, it is widely adopted in industries such as oil & gas, petrochemical, and power generation.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 330172-16-42-10-01-00 |
| Series | 3300 XL Proximity Probes |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy current displacement sensing |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Linear Range | Up to 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Probe Tip Material | Ceramic, non-conductive |
| Housing Material | Stainless steel |
| Mounting Type | Reverse mount design |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Shock Limit | 200 g peak |
| Humidity Tolerance | 0–95% non-condensing |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
Applications
-
Shaft vibration monitoring in turbines, compressors, and motors.
-
Axial and radial displacement detection for machinery protection.
-
Thrust position measurement to prevent bearing wear and failures.
-
Continuous condition monitoring systems in critical rotating equipment.
-
Oil & gas, petrochemical, and power generation plants requiring reliable monitoring.
-
Integration into API-compliant protection systems for turbomachinery.
Advantages
-
High Accuracy: Sensitivity sur 200 mV/mil ensures precise measurement.
-
Compact Probe Size: 5 mm diameter allows mounting in limited spaces.
-
Durable Build: Stainless steel body with ceramic tip for long-lasting performance.
-
Broad Frequency Range: From DC up to 10 kHz, suitable for dynamic and static measurements.
-
Reverse Mount Design: Simplifies installation in specific machine layouts.
-
Resistant to Harsh États: Withstands extreme industrial environments.
-
Seamless Compatibility: Works perfectly with 3300 XL Proximitor sensors.
Questions fréquentes (FAQ)
-
What sensitivity does this probe provide?
It delivers 200 mV/mil (7.87 mV/µm) calibrated sensitivity. -
What is the usable linear range sur this probe?
It supports a measurement range up to 2.0 mm (80 mils). -
Which proximitor sensor is compatible with this probe?
It is designed for use with the 3300 XL Proximitor sensors. -
What frequency range can it measure?
The probe operates effectively from DC up to 10 kHz. -
Does the reverse mount design affect performance?
No, it maintains identical measurement accuracy while simplifying installation. -
How does the probe output the displacement signal?
It produces a voltage output proportional to the shaft’s motion. -
What materials are used in the construction sur the probe tip?
A ceramic tip provides electrical insulation and durability. -
Can this probe withstand mechanical shocks?
Yes, it is rated for up to 200 g peak mechanical shock. -
How is it protected against environmental interference?
The probe is engineered with shielding to minimize EMI and RFI interference. -
Is this probe suitable for continuous monitoring systems?
Yes, it is designed for permanent 24/7 machinery condition monitoring.
Related Modèles (Same Series or Similar)
| Modèle Number | Description |
|---|---|
| 330171-10-30-10-02-05 | 3300 XL 5 mm proximity probe, standard mount |
| 330103-00-07-10-02-00 | 3300 XL 8 mm proximity probe |
| 330104-00-10-10-02-05 | 3300 XL 11 mm proximity probe |
| 330172-10-05-05-02-00 | 3300 XL 8 mm reverse mount probe |
| 330178-50-05-05-02-05 | High-temperature 5 mm probe |
| 330180-50-05-05-02-05 | Special mount 5 mm probe for limited-space applications |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/32M | Relay Module |
| 330400 | Velomitor velocity transducer |
| 330500 | Industrial accelerometer |
| 330850-90-05 | High-temperature proximity probe |
