Product Description

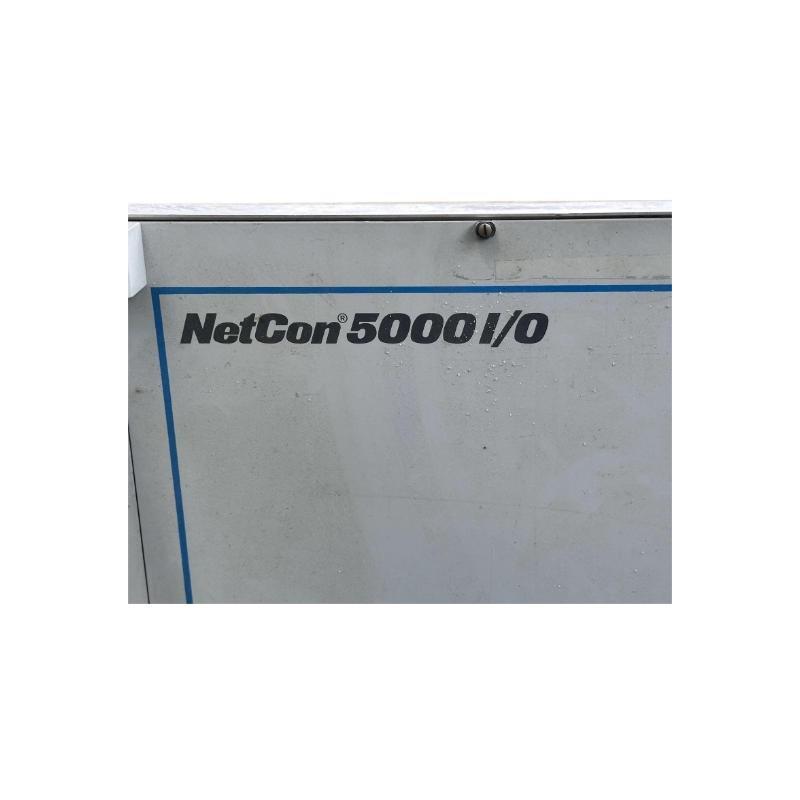

The Woodward 5439-754 Netcon Expansion Chassis is a rugged and modular extension component designed for integration into NetCon 3B control systems. It surfers a reliable and scalable platform for extending I/O and functionality in complex automation and turbine control environments. The chassis is engineered to support simplex system architectures with seamless communication and mounting compatibility for NetCon modules.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Modèle | 5439-754 |
| Type | Netcon 3B Simplex Expansion Chassis |
| System Compatibility | Netcon 3B |
| Mounting Type | Rack Mount |
| Number sur Slots | Configurable |
| Certifications | CE (LVD, EMC), UL, CSA, DNV, ABS |
| Dimensions (W x H x D) | 482.6 x 508 x 508 mm |
| Poids | 20.41 kg |
| Construction | Industrial-grade metal chassis |
| Application Environment | Industrial, Marine, Utility |
Applications
-
Gas and steam turbine control
-
Compressor control systems
-
Process automation in power generation
-
Critical infrastructure and marine applications
-
Distributed control architectures in heavy industries
Advantages
-
Compatible with a wide range sur Netcon I/O and field terminal modules
-
Designed for harsh industrial environments with global certifications
-
Modular and scalable for various control system expansion needs
-
Simplifies system integration and maintenance
-
High reliability with proven field performance in mission-critical systems
FAQs
Q1: What systems is the 5439-754 chassis compatible with?
A1: It is compatible with Netcon 3B systems, primarily in simplex configurations.
Q2: Does it support redundant power supplies?
A2: No, the 5439-754 is designed for simplex architectures without redundancy.
Q3: What type sur modules can be installed in the chassis?
A3: It supports Netcon-compatible field terminal and I/O modules.
Q4: Is the chassis certified for marine or surfshore use?
A4: Yes, it has certifications including ABS and DNV for marine applications.
Q5: What is the typical use case for this chassis?
A5: Expansion sur I/O capacity in turbine, compressor, or industrial automation systems.
Q6: Can this chassis be used in redundant control configurations?
A6: No, it is intended for simplex systems; redundant applications require different models.
Q7: How is it mounted?
A7: The unité is rack-mounted in standard 19-inch enclosures.
Q8: What are the environmental requirements for this chassis?
A8: It is suitable for typical industrial environments as per Woodward system specs.
Q9: Is field wiring integrated into the chassis?
A9: No, it requires connection to appropriate field terminal modules.
Q10: What makes this chassis different from NetCon 3B I/O chassis (e.g., 5439-794)?
A10: The 5439-754 is focused on simplex expansion, while the 5439-794 supports broader I/O capabilities and configurations.
Related Modèles (Same Series/Family)
| Modèle | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 5439-794 | Netcon 3B I/O Chassis | 482.6 x 508 x 508 | 21.3 kg |
| 5437-078 | Netcon 3B SPLX Main Chassis | 482.6 x 508 x 508 | 20.9 kg |
| 5437-843 | Micronet 12 Slot w/6 Slot I/O Chassis | 482.6 x 508 x 508 | 22.1 kg |
| 5437-852 | Micronet TMR Chassis | 482.6 x 508 x 508 | 23.5 kg |
| 5437-730 | Netcon/OCP York Unité Control Chassis | 482.6 x 508 x 508 | 21.0 kg |
| 5437-838 | 5009 Power Supply Chassis | 482.6 x 508 x 508 | 20.5 kg |
Popular Modèles from the Same Marque (Woodward)
| Modèle | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 5466-1000 | Micronet-Plus Power Supply Module | 300 x 120 x 100 | 3.5 kg |
| 5464-648 | Analog 8 Channel 4–20 mA Output Module | 200 x 100 x 50 | 1.8 kg |
| 5464-334 | ISO 4–20 mA Analog Input Module | 200 x 100 x 50 | 1.7 kg |
| 5466-257 | High-Density Analog I/O (TMR) Module | 250 x 150 x 60 | 2.0 kg |
| 5466-031 | NetCon I/O Controller | 250 x 150 x 60 | 2.1 kg |
| 5466-316 | Analog Combo Module | 250 x 150 x 60 | 2.0 kg |
