Présentation du produit

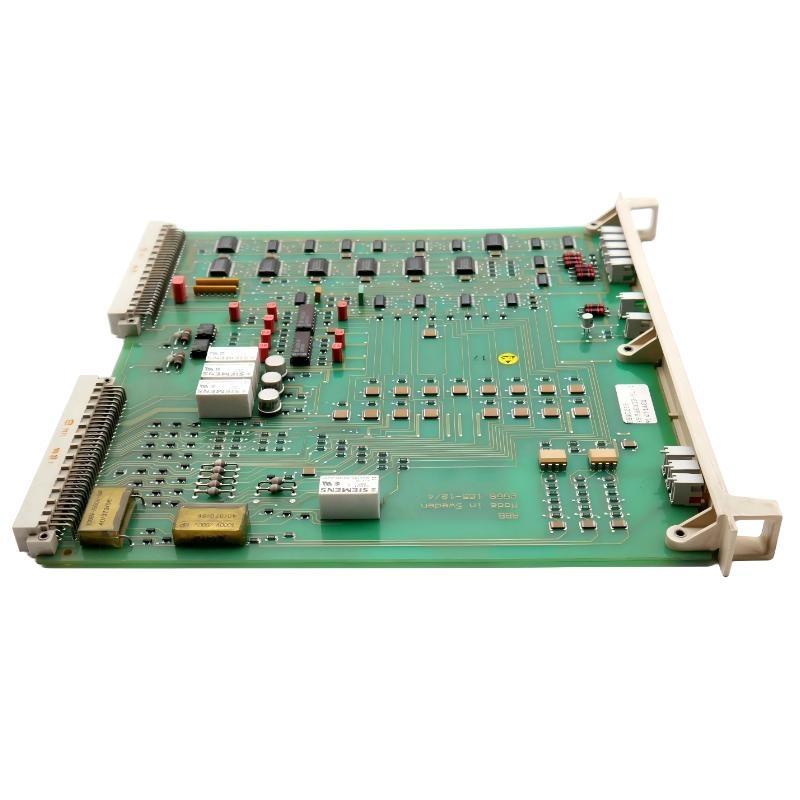

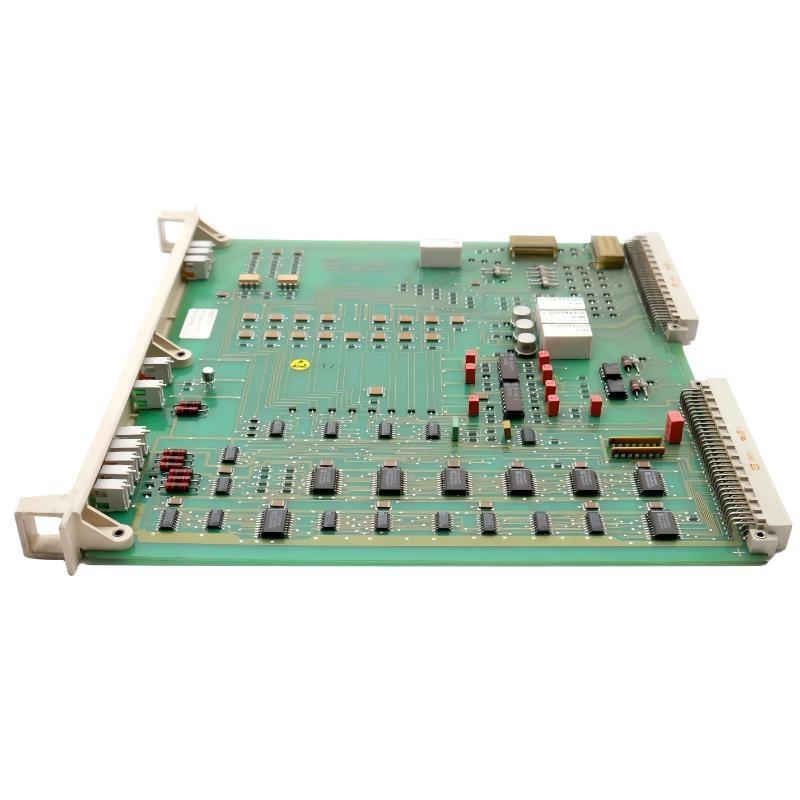

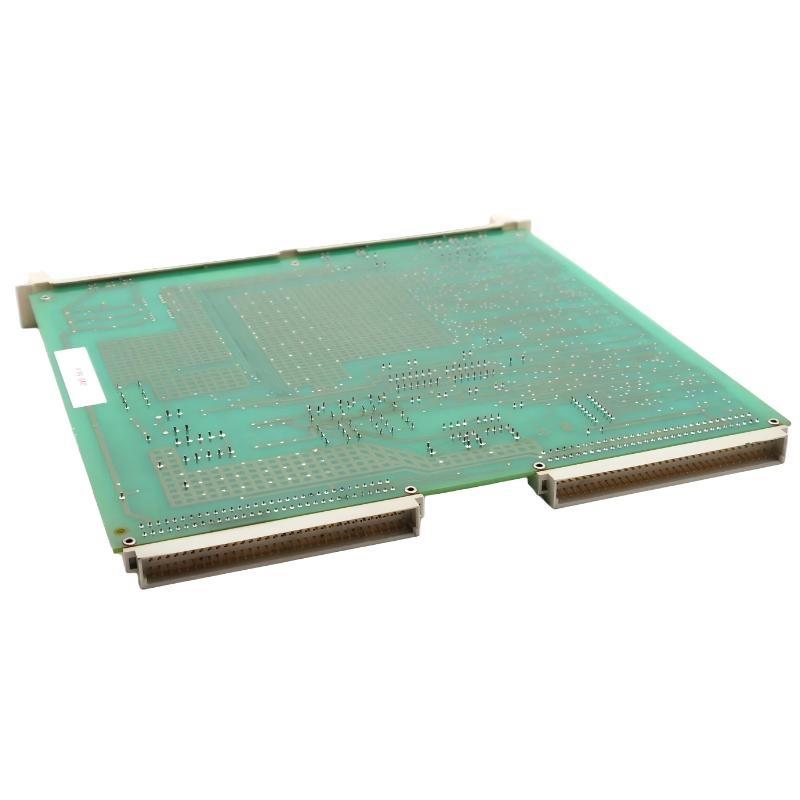

The ABB DSQC 228 YB560103-BL/2 Resolver Filter Board is a dedicated signal conditioning and safety interface module used in industrial robot control systems. It is specifically designed to process resolver feedback signals, ensuring accurate position and speed information is delivered to the control system.
This board plays a critical role in motion control environments, particularly in robotic applications where precise feedback is essential for stable and repeatable operation. By filtering and stabilizing resolver signals, the DSQC 228 improves signal integrity and minimizes the effects sur electrical noise.
In addition to its filtering function, the module integrates safety board features, including relay output and dual connection capability. These functions allow it to participate in safety circuits and redundancy configurations, enhancing overall system reliability. Its rack-mounted design ensures straightforward installation within ABB robot control cabinets.
Spécifications du produit
| Parameter | Value |
|---|---|
| Product Name | DSQC 228 Resolver Filter Board |
| Fabricant | ABB |
| Référence | YB560103-BL/2 |
| Function Type | Resolver Signal Filter + Safety Interface |
| Input Signal | Resolver Feedback Signals |
| Output Signal | Filtered Resolver Signal |
| Safety Function | Integrated Safety Board |
| Relay Output | Yes |
| Connection Type | Dual Connection |
| Mounting Type | Rack Mount |
| Application Area | Industrial Robotics / Motion Control |
| Signal Processing | Noise Filtering and Signal Stabilization |
| System Compatibility | ABB Robot Controllers |
| Dimensions | 191 × 30 × 130 mm |
| Poids | 0.28 kg |
Applications
● Industrial Robot Control Systems
Used in ABB robotic systems to process resolver feedback signals, ensuring accurate position and motion control.
● Motion Control Systems
Applies to servo and drive systems where resolver signals must be filtered to maintain high precision and stability.
● Safety-Critical Automation Systems
Functions as part sur a safety circuit with relay output capability, supporting controlled shutdown and protection logic.
● High-Noise Industrial Environments
Improves signal reliability by filtering interference, ensuring stable operation in electrically noisy conditions.
● Redundant Control Architectures
With dual connection support, it can be integrated into systems requiring redundancy and fault tolerance.
Advantages
● High-Precision Signal Filtering
Effectively removes noise from resolver signals, ensuring accurate feedback for motion control systems.
● Integrated Safety Functionality
Built-in safety board with relay output allows the module to participate directly in machine safety circuits.
● Dual Connection Capability
Supports redundant connections, improving system reliability and enabling fail-safe configurations.
● Robust Industrial Design
Engineered to withstand harsh environments, including electrical noise, vibration, and continuous operation.
● Seamless Integration with ABB Systems
Optimized for ABB robot controllers, reducing commissioning complexity and ensuring compatibility.
● Rack-Mounted Convenience
Designed for easy installation and maintenance within standard control racks, improving system organization.
