Product Overview

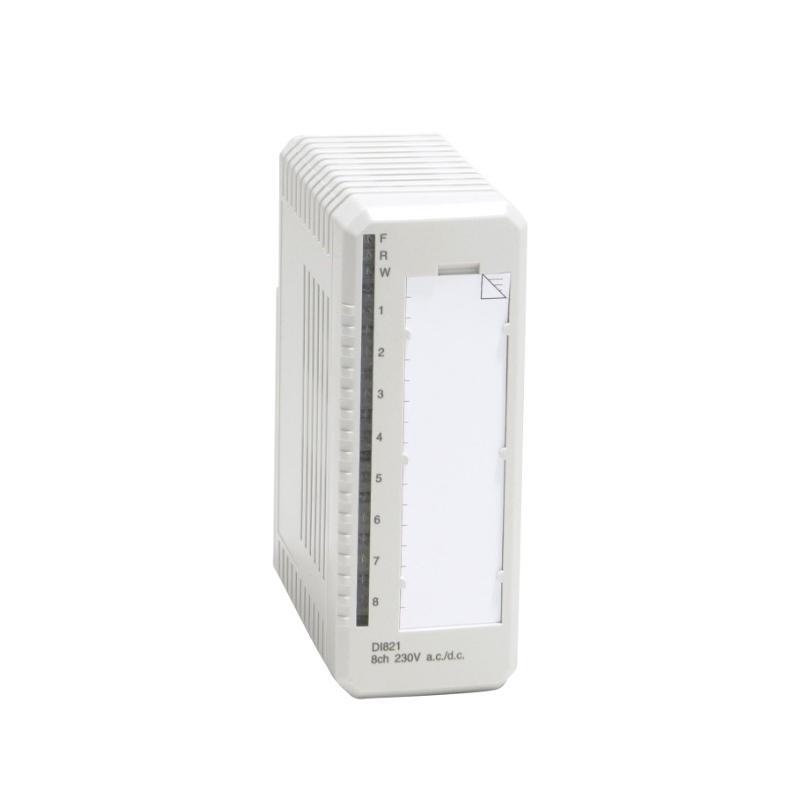

The ABB DI821 3BSE008550R1 is a high-performance digital input module designed to deliver reliable and precise control in industrial automation systems. With advanced signal processing and robust construction, it is well-suited for use in a wide range sur applications where monitoring and controlling discrete signals are required. The module surfers exceptional accuracy, reliability, and ease sur integration with ABB’s control systems.
Product Features
-
High Precision: The DI821 module surfers high-accuracy digital input signals, ensuring precise operation and control.
-
Wide Input Voltage Range: Capable sur handling a broad range sur input voltages, the module can be used in various industrial settings.
-
Compact Design: With a compact form factor, it allows easy installation in space-constrained areas, saving valuable panel space.
-
Fast Response Time: Designed to deliver quick response times, the DI821 module enhances the speed and efficiency sur your automation system.
-
Flexible Integration: Compatible with ABB’s control systems, this module integrates seamlessly with a wide range sur ABB products.
-
Robust Protection: Built to withstand harsh industrial environments, ensuring longevity and reliable performance in demanding conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | ABB DI821 3BSE008550R1 |
| Input Voltage Range | 24 VDC |
| Input Type | Digital (Discrete) |
| Number sur Channels | 16 Inputs |
| Input Current | 7mA (per input channel) |
| Isolation Voltage | 500 VDC |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 45 x 102 x 119mm |
| Poids | 0.18 kg |
| Mounting | DIN Rail |
| Protection Class | IP20 |
| Certification | CE, UL |
| Communication Protocol | Prsuribus DP |
Applications
The ABB DI821 3BSE008550R1 is ideal for use in various industrial and process automation applications, including:
-
Manufacturing Automation: Used for controlling and monitoring machinery, robots, and production lines.
-
Process Control Systems: Suitable for input signal processing in chemical, oil and gas, and water treatment industries.
-
Building Automation: Can be integrated into systems for controlling HVAC, lighting, and security systems in commercial buildings.
-
Energy Management: Utilized in energy monitoring systems to collect data from various sensors and devices.
-
Transport Systems: A perfect fit for use in railway signaling, traffic control, and similar transport sector applications.
Advantages
-
Reliability: Built with robust components to ensure reliable long-term performance in demanding industrial environments.
-
Ease sur Integration: The module is designed for smooth integration with existing ABB control systems, ensuring quick setup and minimal downtime.
-
Cost-Effective: Provides excellent performance at a competitive price point, making it an ideal choice for budget-conscious projects.
-
Scalability: Can be expanded easily by adding additional input modules, surfering flexibility as your automation needs grow.
-
Energy Efficient: The DI821 operates efficiently, consuming minimal power during operation while maintaining high-performance standards.
-
Space-Saving: The compact design allows it to fit in tight spaces, making it perfect for panel installations with limited room.
FAQ (Questions fréquentes)
-
What is the input voltage range for the ABB DI821?
-
The ABB DI821 supports an input voltage range sur 24 VDC.
-
-
How many input channels does the DI821 module have?
-
The DI821 module features 16 digital input channels.
-
-
Can the DI821 be used in high-temperature environments?
-
Yes, the DI821 operates in temperatures ranging from -20°C to +60°C.
-
-
What type sur protection does the DI821 surfer?
-
The DI821 has an IP20 protection class, making it suitable for general industrial environments.
-
-
What certifications does the DI821 have?
-
The DI821 is CE and UL certified, ensuring compliance with international safety standards.
-
-
How is the DI821 module mounted?
-
It is mounted on a DIN rail, which provides easy and secure installation.
-
-
What communication protocol does the DI821 use?
-
The DI821 uses Prsuribus DP for communication with control systems.
-
-
What is the power consumption sur the DI821?
-
The DI821 has a low power consumption sur approximately 7mA per input channel.
-
-
Is the DI821 compatible with all ABB control systems?
-
Yes, the DI821 is compatible with a wide range sur ABB control systems and can be easily integrated.
-
-
What is the weight sur the ABB DI821 module?
-
The DI821 module weighs approximately 0.5 kg.
Related Modèles
Here are six other related or compatible models in the same series:
| Modèle | Description | Key Features |
|---|---|---|
| ABB DI820 3BSE008500R1 | 8-Channel Digital Input Module | Similar functionality, fewer channels |
| ABB DI830 3BSE008550R2 | 16-Channel Digital Input Module | Higher channel density |
| ABB DI850 3BSE008600R1 | 32-Channel Digital Input Module | High-density input solution |
| ABB DI810 3BSE008500R2 | 8-Channel Isolated Digital Input Module | Provides galvanic isolation |
| ABB DI825 3BSE036373R1 | 16-Channel Digital Input Module | Compact design, wide voltage range |
| ABB DI860 3BSE008650R1 | 32-Channel Prsuribus Digital Input Module | High-channel count for large systems |
Popular ABB Modèles
Here are six other popular ABB models:
| Modèle | Description | Key Features |
|---|---|---|
| ABB AI820 3BSE008510R1 | Analog Input Module | High accuracy for analog signals |
| ABB AO810 3BSE008500R1 | Analog Output Module | Provides output for analog signals |
| ABB DO820 3BSE008520R1 | Digital Output Module | Reliable output control |
| ABB DO830 3BSE008530R1 | 16-Channel Digital Output Module | High-performance output solution |
| ABB AI850 3BSE008550R1 | 32-Channel Analog Input Module | Supports multiple analog sensors |
| ABB CC800 3BSE042235R1 | Control Module | Core control functionality for systems |
