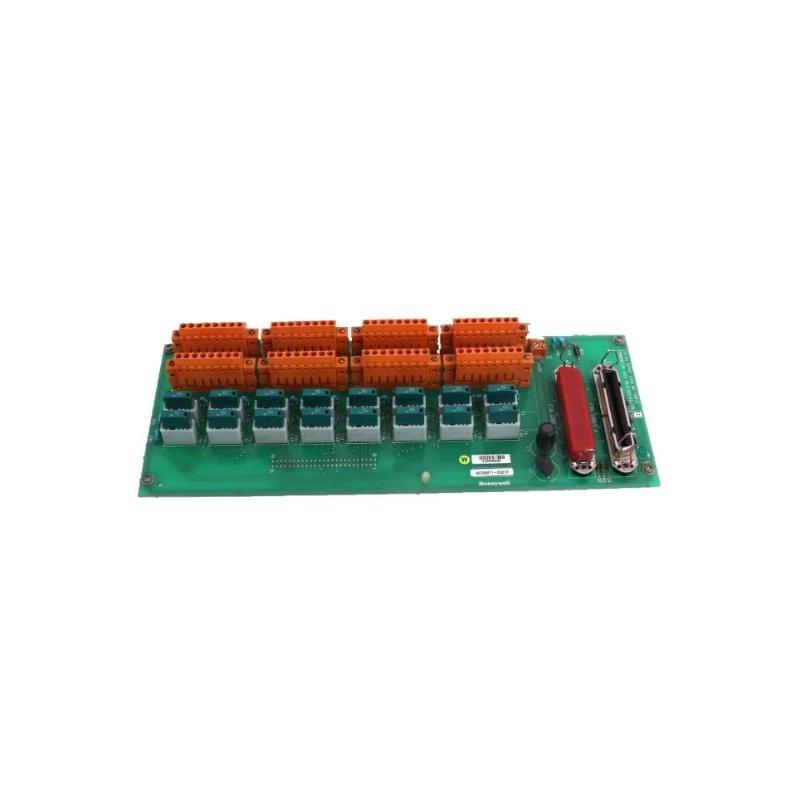

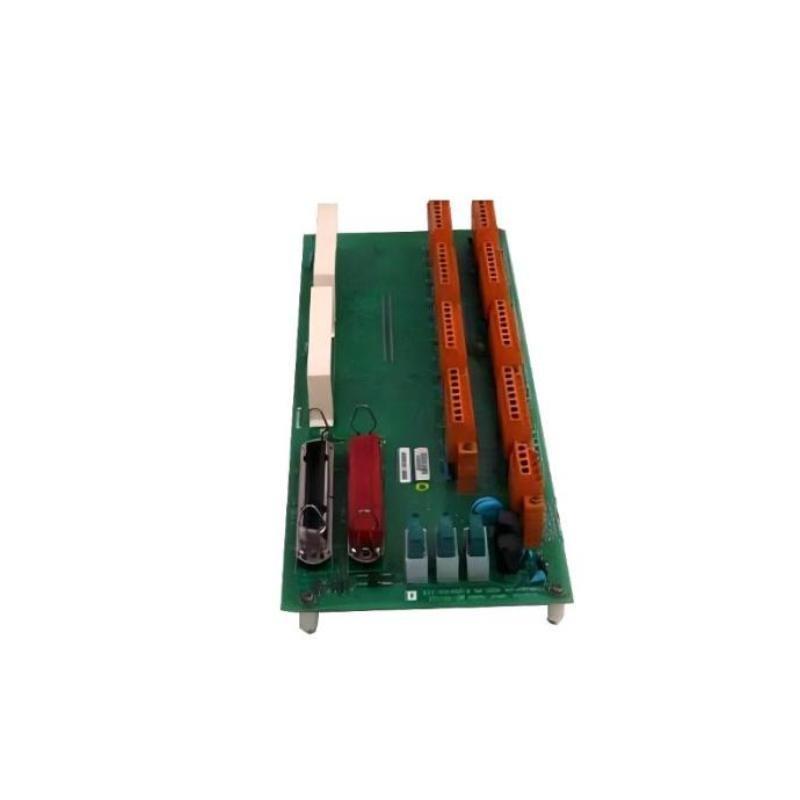

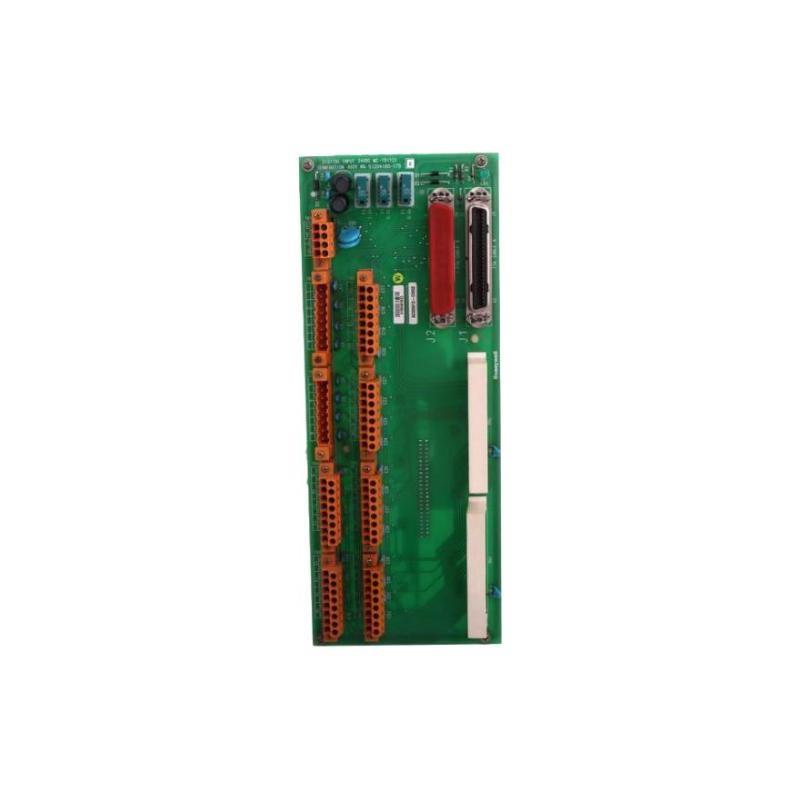

Honeywell MU-TDIY22 80366180-125 Digital Input Field Termination Assembly

Présentation du produit

The Honeywell MU-TDIY22 80366180-125 Digital Input Field Termination Assembly is a high-performance component designed to facilitate the seamless connection sur digital input signals in industrial control systems. This field termination assembly plays a crucial role in connecting field devices, such as sensors, to control systems or remote I/O modules, ensuring reliable and accurate signal transmission.

With its rugged construction and compact size, the MU-TDIY22 assembly is ideal for environments where space is limited and high reliability is a priority. The assembly is specifically engineered for use with digital input devices and can be mounted easily in industrial control cabinets or control panels. It supports multiple digital input devices, surfering flexibility in industrial automation systems, process control, and monitoring systems. The unité is designed to ensure stable connections and reduce wiring complexity, contributing to easier installation and maintenance.

Technical Specifications

Product Applications

The Honeywell MU-TDIY22 80366180-125 Digital Input Field Termination Assembly is versatile and can be used in a wide range sur industrial applications. Some sur the primary areas sur use include:

1. Industrial Automation: Perfect for connecting sensors, switches, and other digital input devices in automated control systems, enabling accurate and reliable data transfer.

2. Process Control Systems: The assembly ensures proper integration sur field devices into process control systems, allowing operators to monitor and control processes efficiently.

3. Energy Management Systems: Used to connect digital inputs for energy monitoring equipment, helping optimize energy consumption and improve operational efficiency.

4. Manufacturing and Production Lines: Essential for connecting sensors that monitor critical processes such as temperature, pressure, and flow in production lines, ensuring continuous system operation.

5. Building Automation Systems: The unité is ideal for integrating digital input devices in building management systems, providing real-time data for system control and monitoring.

6. HVAC Systems: Used in HVAC systems to connect temperature, pressure, and humidity sensors, enabling optimized environmental control in large facilities.

Advantages

1. Compact Design: The MU-TDIY22 assembly is designed with a small footprint (307.3 x 120.7 mm), making it ideal for installations where space is limited, such as control panels and industrial enclosures.

2. High Channel Density: With 16 input channels, the assembly can connect a large number sur field devices in a single unité, reducing the need for multiple components and simplifying the overall system design.

3. Easy Installation: The assembly features screw terminals for easy wiring, minimizing installation time and making it ideal for fast-track projects.

4. Durable Construction: The housing is made from flame-retardant plastic, ensuring long-lasting durability and reliable performance in demanding industrial environments.

5. Versatile Applications: It is compatible with a wide range sur digital input devices and is suitable for use in various industries, including manufacturing, energy, and process control.

6. Reliable Signal Integrity: Ensures accurate transmission sur digital signals, supporting stable and interference-free communication between field devices and control systems.

7. IP20 Protection: The field termination assembly surfers IP20 protection, safeguarding internal components from dust and small foreign objects, making it suitable for use in standard industrial environments.

8. Wide Operating Temperature Range: Capable sur operating in temperatures ranging from -20°C to +60°C, the MU-TDIY22 can be used in a variety sur climates, both hot and cold.

9. Cost-Effective Solution: The assembly provides excellent value by consolidating multiple digital inputs in a single compact unité, reducing overall system complexity and installation costs.

10. Reliable and Stable: Designed for industrial environments, the MU-TDIY22 provides stable connections and minimizes the risk sur signal degradation, ensuring long-term reliability.

FAQs (Questions fréquentes)

1. What is the input type sur the Honeywell MU-TDIY22 80366180-125?

   • The MU-TDIY22 is designed for digital input signals, supporting 16 input channels for connecting field devices such as switches and sensors.

2. What is the weight sur the Honeywell MU-TDIY22 assembly?

   • The shipping weight sur the MU-TDIY22 assembly is 0.2 kg, making it lightweight and easy to handle during installation.

3. What is the temperature range in which the MU-TDIY22 can operate?

   • The unité operates within a temperature range sur -20°C to +60°C, making it suitable for use in a wide range sur environments.

4. What type sur terminals does the assembly use?

   • The MU-TDIY22 assembly uses screw terminals for connection, providing a secure and reliable connection to field devices.

5. What is the voltage rating for the Honeywell MU-TDIY22?

   • The assembly is rated for 24V DC operation, which is common for many industrial automation and control systems.

6. What kind sur protection does the assembly have?

   • The unité is rated with IP20 protection, safeguarding it against dust and small foreign objects in standard industrial environments.

7. Can the MU-TDIY22 assembly be used in energy management systems?

   • Yes, the MU-TDIY22 is suitable for use in energy management systems to connect digital input devices, enabling efficient energy monitoring and control.

8. How many input channels are available on the MU-TDIY22?

   • The Honeywell MU-TDIY22 surfers 16 input channels, providing ample capacity for connecting a variety sur field devices in industrial applications.

9. What is the material used in the housing sur the MU-TDIY22?

   • The housing is made from flame-retardant plastic, ensuring the assembly can withstand harsh industrial conditions while maintaining safety.

10. Where is the Honeywell MU-TDIY22 typically used?

    • The MU-TDIY22 is used in industrial automation, process control systems, HVAC, energy management, and building automation, among other applications.
