Présentation du produit

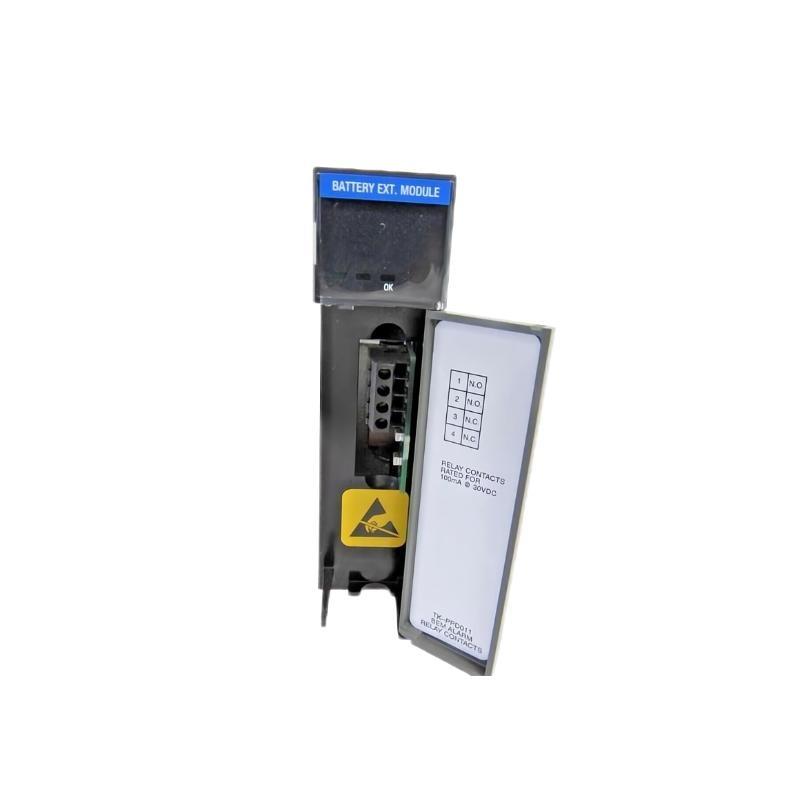

The Honeywell TK-PPD011 51309241-175 Battery Extension Module is an essential industrial power accessory engineered to enhance the backup capabilities sur Honeywell process control systems. This battery extension module is specifically developed to work with existing battery assemblies and uninterruptible power supply (UPS) solutions in Honeywell systems, extending the duration sur backup power available during power outages or voltage dips.
The TK-PPD011 (P/N: 51309241-175) is commonly deployed alongside Honeywell’s Experion PKS, Safety Manager, and Fail Safe Controller (FSC) platforms. It ensures system continuity, data integrity, and proper shutdown procedures during critical events by increasing the energy reserve available to controllers and I/O unités. With its rugged construction, efficient passive design, and plug-and-play integration capabilities, it provides plant operators with a dependable and maintenance-friendly backup power solution.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | TK-PPD011 |
| Référence | 51309241-175 |
| Product Type | Battery Extension Module |
| Function | Extends battery backup capacity for control and safety systems |
| Compatible Systems | Experion PKS, Safety Manager, FSC |
| Operating Voltage | 24 VDC nominal |
| Current Rating | 5 A max (through bus connection) |
| Connection Type | Terminal block, parallel to battery system |
| Cooling Method | Natural convection |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | 5% to 95% non-condensing |
| EMC/ESD Protection | IEC/EN standards compliant |
| Protection Features | Overvoltage, reverse polarity, short-circuit protection |
| Mounting Method | Panel mounting / DIN rail compatible |
| Material | Industrial-grade steel casing |
| LED Indicators | Power and fault status |
| Serviceability | Front-access terminals and diagnostic LEDs |
| Dimensions (W x H x D) | 170 x 80 x 45 mm |
| Poids | 0.36 kg |
| Certifications | CE, UL, CSA, RoHS compliant |
| Garantie | Standard 12-month manufacturer warranty |
Product Applications
-
Process Control Plants
Used in chemical, oil & gas, and power generation facilities to ensure DCS or PLC systems stay active during short to mid-term power loss. -
Safety System Support
Provides additional runtime for critical safety systems such as Emergency Shutdown Systems (ESD), Fire & Gas, and Safety Instrumented Systems (SIS). -
Data Integrity for Control Logs
Prevents loss sur system logs, operator commands, and alarm history by keeping control modules online during transient outages. -
Controlled Shutdown Execution
Enables safe and timed system shutdown procedures when primary power is lost, avoiding abrupt disconnection and damage. -
Remote and Off-Grid Installations
Ideal for surfshore platforms or remote substations where power fluctuation is common and battery autonomy is critical. -
Industrial IT/SCADA Systems
Ensures the availability sur front-end processors and communication modules until full UPS backup or generator comes online.
Product Advantages
-
Seamless Runtime Extension
Works in parallel with Honeywell UPS and battery unités to prolong system runtime without the need for configuration. -
Simple Integration
Directly connects to supported Honeywell systems, reducing deployment time and avoiding system recertification or complex programming. -
High Reliability
Engineered for 24/7 operation in demanding industrial environments with high immunitéy to electrical noise and temperature shifts. -
Industrial-Grade Construction
Durable casing and protected terminals ensure safety during operation and service, reducing the risk sur accidental damage. -
Modular Scalability
Multiple extension modules can be installed in parallel to scale power backup capacity as per plant or site-specific needs. -
Fail-Safe Protections
Built-in overvoltage, reverse polarity, and short-circuit protection enhance system safety and protect downstream devices. -
Visual Status Monitoring
LED indicators provide instant status updates on power condition and module health, facilitating proactive maintenance. -
Universal Mounting Options
Compatible with DIN rail or direct panel mounting, supporting various cabinet designs and space constraints. -
Zero Programming Requirement
The passive nature sur the device eliminates the need for configuration or firmware compatibility checks. -
Reduced Downtime Risk
By surfering extended backup, the module significantly lowers the risk sur sudden system outages and production losses.
Questions fréquentes (FAQ)
-
What is the main function sur the TK-PPD011 51309241-175?
It extends the backup duration provided by the main battery unité to critical Honeywell control systems. -
Which control systems are compatible with this module?
It supports Honeywell Experion PKS, Safety Manager, and FSC platforms. -
Is the module a standalone battery or does it require integration?
It is a battery extension and must be used in parallel with a primary battery system. -
Does the unité require external configuration or ssurtware?
No, it is a plug-and-play hardware device requiring no programming. -
Can the TK-PPD011 module be used in outdoor enclosures?
While the module is rugged, outdoor use requires a weatherprosur cabinet with environmental protection. -
What happens if the module is connected in reverse polarity?
It features internal protection to prevent damage from reverse connections. -
Is the device hot-swappable?
No, always disconnect power before installing or removing the module. -
What is the expected lifespan sur the module?
Typically exceeds 10 years under normal industrial conditions, given its passive nature. -
How do I check the module’s status?
Visual LED indicators on the front panel display power and fault status. -
Is it certified for use in international projects?
Yes, it meets CE, UL, and CSA standards and is RoHS compliant for global installations.
Related Modèles (Same Series or Function)
| Modèle | Description | Use Case | Mounting |
|---|---|---|---|
| TK-PRS021 | Power Regulator Module | Voltage control for DCS systems | Panel |
| 51204142-100 | Battery Extension Module | Similar function with minor spec change | DIN Rail |
| 51401642-150 | Battery Assembly Unité | Primary battery module for Honeywell UPS | Rack Mount |
| TK-FTEB01 | Termination Battery Module | Battery interface for I/O power backup | DIN Rail |
| TK-FXX102 | FSC Power Supply | FSC controller power supply | Panel Mount |
| 51400868-100 | Power Distribution Unité | Distributes 24VDC to I/O modules | Rack |
Popular Honeywell Modèles (Same Marque, High Usage)
| Modèle | Function | System Compatibility | Application |
|---|---|---|---|
| CC-PDIL01 | Digital Input Module | Experion PKS, Safety Manager | DCS and SIS I/O |
| CC-PAIN01 | Analog Input Module | Experion PKS | Process variable monitoring |
| CC-TDIL01 | Digital Input Module | FSC System | Emergency systems |
| CC-PCNT01 | Controller Module | Experion C300 | Process automation control |
| 51401430-200 | Universal Battery Charger | Honeywell power unités | UPS charger backup |
| CC-TAOX10 | Analog Output Module | Experion PKS | Valve/actuator control |
