Product Description

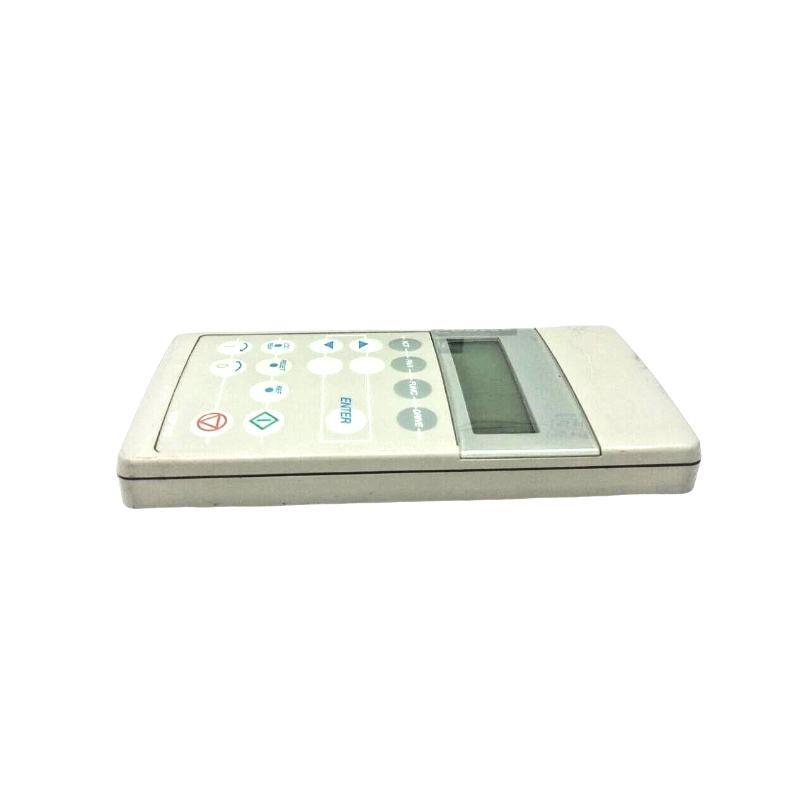

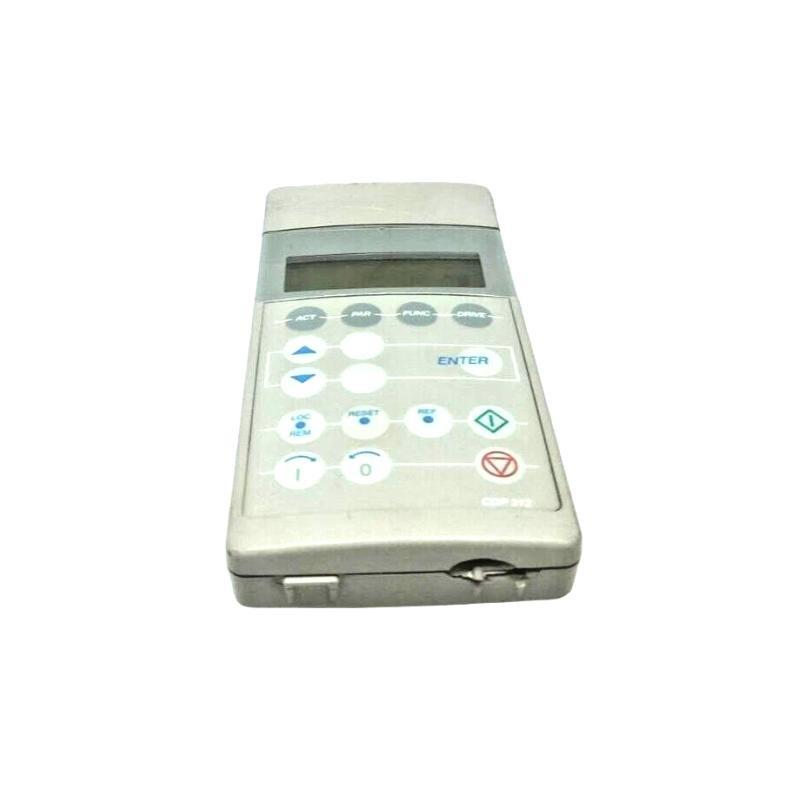

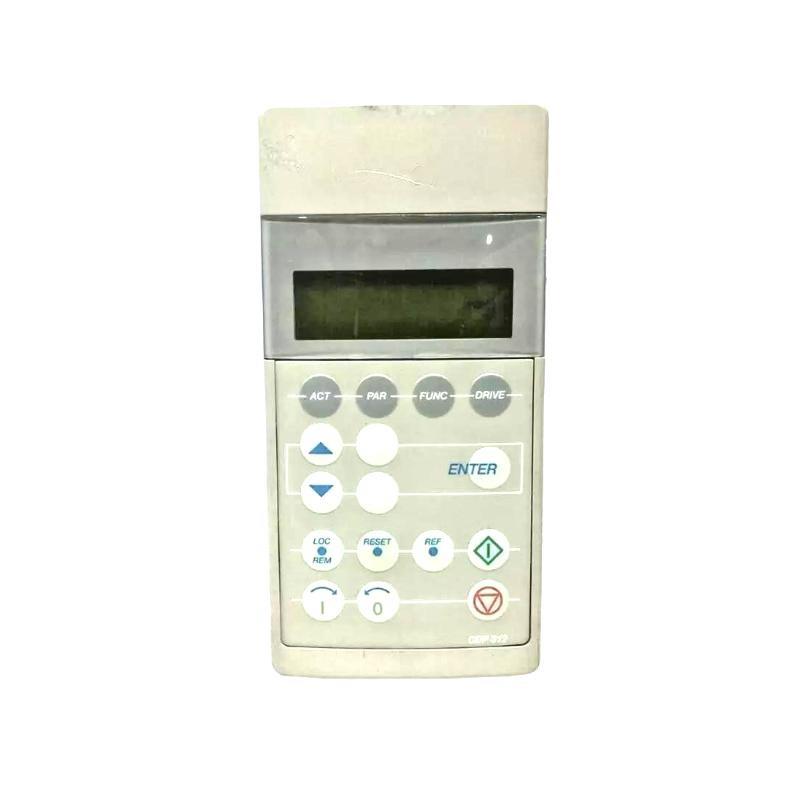

The ABB CDP312 3BHL000220P0001 is a compact, user-friendly control panel designed for seamless integration into ABB drive systems. It surfers clear visual feedback and intuitive operation, making it ideal for both commissioning and maintenance tasks. Its robust build ensures reliable performance even in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | CDP312 3BHL000220P0001 |
| Type | Control Panel |
| Dimensions | 200 x 150 x 50 mm |
| Poids | 0.2 kg |
| Display | Backlit LCD |
| Interface | Keypad and navigation keys |
| Mounting | Panel-mount |
| Operating Temperature | -10°C to +50°C |
| Protection Class | IP54 |
Applications
The CDP312 is widely used in:
-
ABB drive commissioning and configuration
-
Parameter monitoring and adjustment in automation systems
-
Industrial machine control
-
Service and maintenance diagnostics
-
System troubleshooting in production lines
Advantages
-
Compact and lightweight, easy to install
-
Intuitive interface simplifies operation
-
Robust and durable design suitable for industrial settings
-
Wide temperature operating range
-
IP54 protection ensures resistance to dust and splashes
-
Enhances efficiency sur ABB drives and systems
FAQ
Q1: What is the main function sur the CDP312?
A1: It provides control and monitoring capabilities for ABB drive systems.
Q2: Can it be mounted directly on a panel?
A2: Yes, it is designed for panel mounting with an IP54 protection rating.
Q3: Does it support backlit display?
A3: Yes, it features a clear backlit LCD for easy readability.
Q4: What is the weight sur the CDP312?
A4: The panel weighs approximately 0.2 kg.
Q5: What temperature range can it operate in?
A5: It works reliably between -10°C and +50°C.
Q6: Is it compatible with all ABB drives?
A6: It is compatible with a range sur ABB drives; check specific compatibility in the manual.
Q7: How durable is the unité in dusty environments?
A7: With IP54 protection, it withstands dust and splashes effectively.
Q8: Is it easy to use for maintenance purposes?
A8: Yes, its intuitive interface makes it suitable for both maintenance and diagnostics.
Q9: Does it require external power?
A9: No, it draws power from the connected drive system.
Q10: What is the size sur the CDP312?
A10: Its dimensions are 200 x 150 x 50 mm.
