Présentation du produit

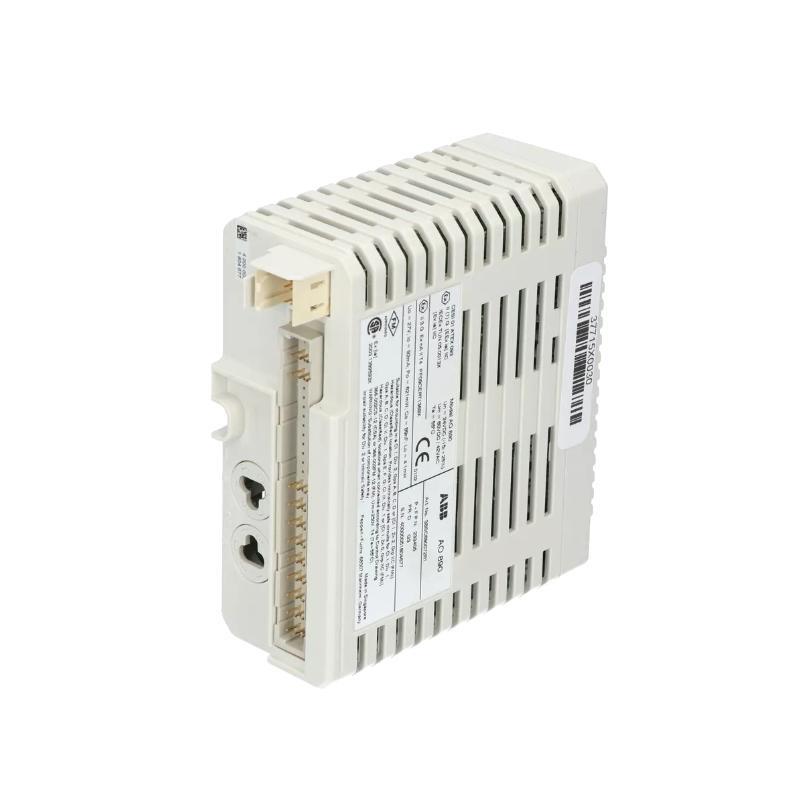

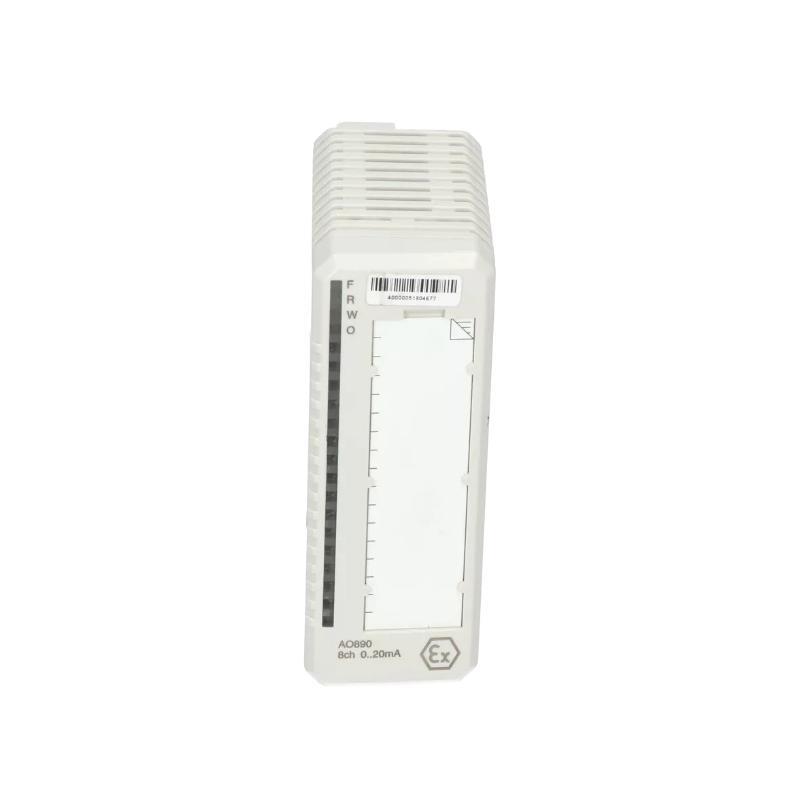

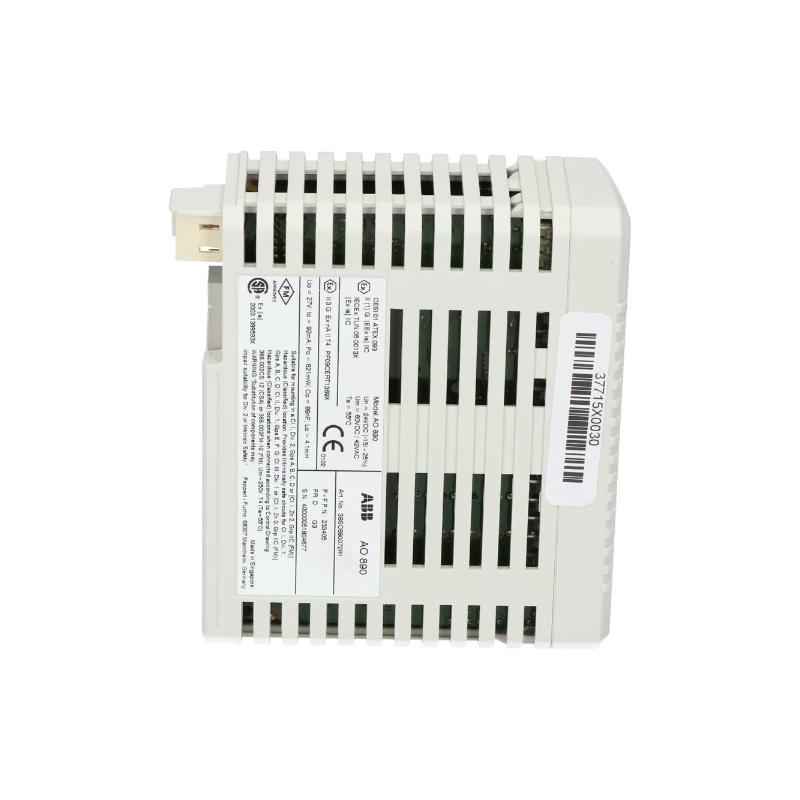

The ABB AO890 3BSC690072R1 Analog Output Module is a crucial component in ABB’s distributed control system (DCS), designed to provide reliable and precise analog output control. This module is part sur ABB’s extensive portfolio for process automation and control, allowing users to interface with field equipment such as actuators, control valves, and other analog devices requiring precise output signals.
This module is optimized for seamless integration into ABB 800xA and AC 800M systems, making it a versatile solution for industries such as oil and gas, chemical, pharmaceutical, power generation, and manufacturing. The AO890 module is engineered to ensure that users can achieve high accuracy and efficiency in their control systems by converting digital control signals into high-quality analog output signals with excellent stability and linearity.
Spécifications du produit
Below are the detailed specifications for the ABB AO890 3BSC690072R1 Analog Output Module:
| Specification | Details |
|---|---|
| Modèle | AO890 3BSC690072R1 |
| Module Type | Analog Output Module |
| Number sur Outputs | 8 Analog Outputs |
| Output Type | 4-20mA, 0-10V DC |
| Output Resolution | 16-bit |
| Output Accuracy | ±0.05% sur full scale |
| Output Range | 0-20 mA or 0-10 V DC |
| Input Power Supply | 24V DC |
| Power Consumption | 1.5W |
| Dimensions (L x W x H) | 45 x 102 x 119 mm |
| Poids | 0.2 kg |
| Temperature Range (Operating) | -20°C to 60°C |
| Temperature Range (Storage) | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN Rail Mountable |
| Signal Isolation | 1500V |
| Certification | CE, UL, CSA |
| Response Time | 10 ms |
| Wiring Type | Screw Terminal Block |
| Channel-to-Channel Isolation | Yes |
Applications
The ABB AO890 3BSC690072R1 Analog Output Module is used in a wide range sur industrial applications where precision in analog output signals is required. Some key applications include:
-
Process Control: Used in industries like oil & gas, chemical, and petrochemical for controlling valves, pumps, and actuators. The module converts control signals into accurate analog outputs for seamless operation sur equipment.
-
Automated Manufacturing Systems: In factories that rely on automated systems for mass production, the module helps in controlling processes like conveyor belts, motors, and temperature regulation systems.
-
Energy and Power Generation: In power plants, the module is used to control generators, turbines, and various electrical systems that require precise analog output signals for safe and reliable operation.
-
Water Treatment and Waste Management: Used for controlling pumps, filtration systems, and monitoring the levels sur chemicals, the module provides accurate signals to maintain optimal operations.
-
Pharmaceutical Manufacturing: The AO890 module is used in the pharmaceutical industry where precision is critical. It ensures that processes such as mixing, heating, and sterilization happen under exact conditions to meet industry standards.
-
Building Automation: In large-scale facilities like hospitals or commercial buildings, this module can control HVAC systems, lighting, and other building functions, ensuring energy efficiency and operational effectiveness.
-
Food and Beverage Industry: Used to control mixers, heaters, and packaging systems in food production lines. The accurate analog output is crucial for maintaining product quality and consistency.
-
Mining: The AO890 module helps in controlling equipment in mining operations, such as conveyors, crushers, and transportation systems, where precision control is necessary.
-
Marine Systems: In the marine industry, this module can be used for controlling pumps, valves, and other onboard systems, ensuring that the ship’s operational systems remain reliable.
-
Instrumentation and Measurement Systems: Provides precise outputs for sensors and measurement systems that require analog control.
Advantages
The ABB AO890 3BSC690072R1 Analog Output Module surfers a variety sur benefits that make it a preferred choice for process control and automation:
-
High Accuracy: With an accuracy sur ±0.05% sur full scale, the AO890 ensures that the output signals remain within a highly reliable range, which is crucial for precise control applications.
-
Wide Output Range: Supports both 4-20mA and 0-10V DC output, making it versatile and adaptable to a variety sur systems.
-
Compact and Robust Design: With a compact size (45 x 102 x 119 mm) and robust construction, it is designed to operate reliably in a variety sur industrial environments.
-
Channel-to-Channel Isolation: The module surfers isolation between channels, reducing the impact sur faults and improving system reliability.
-
Easy Integration: Designed for easy integration into ABB’s 800xA and AC 800M systems, simplifying system setup and reducing installation time.
-
Efficient Power Consumption: With a low power consumption sur just 1.5W, it helps reduce energy usage in control systems.
-
Seamless Mounting: The module can be mounted directly on DIN rails, making installation straightforward in most control panels.
-
High Response Speed: The 10 ms response time ensures rapid adjustments and quick reactions to changes in the system’s state.
-
Wide Temperature Range: With an operating temperature range sur -20°C to 60°C, the AO890 is built to withstand a variety sur challenging environmental conditions.
-
Safety and Certification: The module is CE, UL, and CSA certified, ensuring that it complies with stringent international safety and quality standards.
FAQ for ABB AO890 3BSC690072R1 Analog Output Module
-
What is the input voltage for the ABB AO890 module?
- The module operates with a 24V DC input power supply.
-
How many analog output channels does the AO890 module have?
- It has 8 analog output channels.
-
What is the output range sur the module?
- The module supports 4-20mA and 0-10V DC output ranges.
-
What is the accuracy sur the output signal?
- The module has an output accuracy sur ±0.05% sur full scale.
-
Is the ABB AO890 module easy to integrate into existing systems?
- Yes, the module is designed for easy integration with ABB 800xA and AC 800M systems.
-
What is the response time sur the module?
- The response time sur the module is 10 ms, ensuring fast system responses.
-
What are the mounting options for the AO890 module?
- The module is designed for DIN rail mounting, which simplifies installation in most control panels.
-
What environmental conditions can the module handle?
- The module operates within a temperature range sur -20°C to 60°C and can handle humidity levels from 5% to 95%.
-
What certifications does the ABB AO890 module have?
- The module is CE, UL, and CSA certified for safety and compliance with international standards.
-
What is the power consumption sur the module?
- The AO890 module consumes only 1.5W sur power, making it energy-efficient.
Recommended Modèles
| Modèle | Specification | Key Feature |
|---|---|---|
| AO890 3BSC690073R1 | 8 Analog Outputs, 4-20mA/0-10V | Slightly upgraded version sur AO890 with added features |
| AO892 3BSC690074R1 | 16 Analog Outputs, 4-20mA/0-10V | Higher density output module |
| AO891 3BSC690075R1 | 4 Analog Outputs, High Accuracy | Ideal for applications requiring fewer outputs with higher precision |
| DI890 3BSC690076R1 | 16 Digital Inputs | Complementary input module for AO890 systems |
| DO890 3BSC690077R1 | 16 Digital Outputs | Used for controlling digital devices |
| AO895 3BSC690078R1 | 8 Analog Outputs, extended temperature range | Used in high-temperature environments |
| AI890 3BSC690079R1 | 8 Analog Inputs, 4-20mA/0-10V | Used for converting input signals into the control system |
| AO896 3BSC690080R1 | 8 Analog Outputs, multi-range capabilities | Offers flexibility in output range |
| AO800 3BSC690081R1 | 8 Analog Outputs, high-speed response | Suitable for high-speed process control applications |
| AO804 3BSC690082R1 | 4-20mA/0-10V output, compact design | Small form factor for space-constrained installations |
Popular ABB Modèles
| Modèle | Specification | Key Feature |
|---|---|---|
| AC800M | Modular Controller, 16 I/O slots | Central processing unité for large automation systems |
| 800xA DCS | Distributed Control System with advanced features | Used in large-scale automation projects for process industries |
| PM860 3BSE020154R1 | Power Manager Module, 8 Digital Outputs | Used for energy management systems |
| PFS500 | Power Distribution Module, 24V DC | For managing electrical distribution in large systems |
| AI840 3BSE039016R1 | 8 Analog Inputs, High-Precision | Used for measurement applications in complex systems |
| S800 I/O | Distributed I/O System | Modular I/O system for flexible and scalable installations |
| ABB 07KT98C | Control Module for ABB Distributed Control Systems | Key component for precise control and monitoring |
| S900 I/O | High-Density I/O System | Compact and flexible I/O system for industrial applications |
| SPS600 | Safety PLC for Process Automation | High-reliability safety control system |
| FLEX I/O | Modular I/O System for flexible setups | Ideal for custom automation systems that require adaptability |
