Product Overview

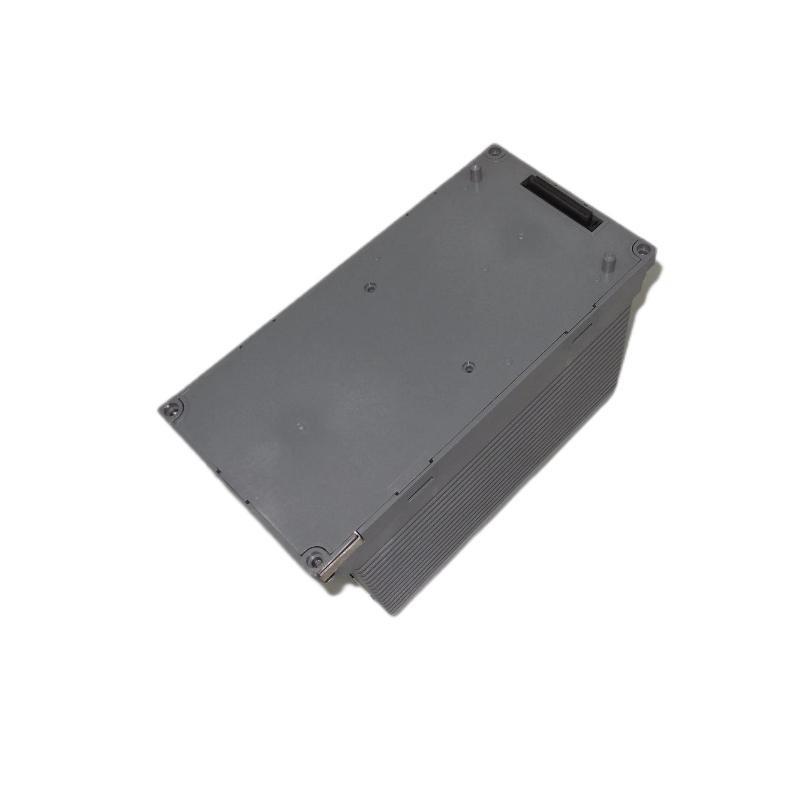

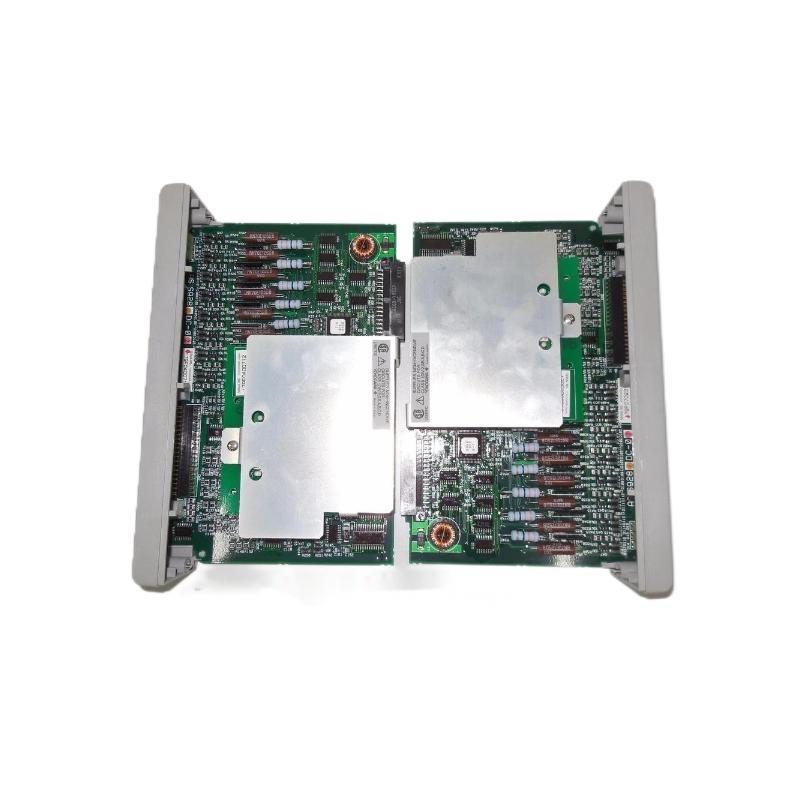

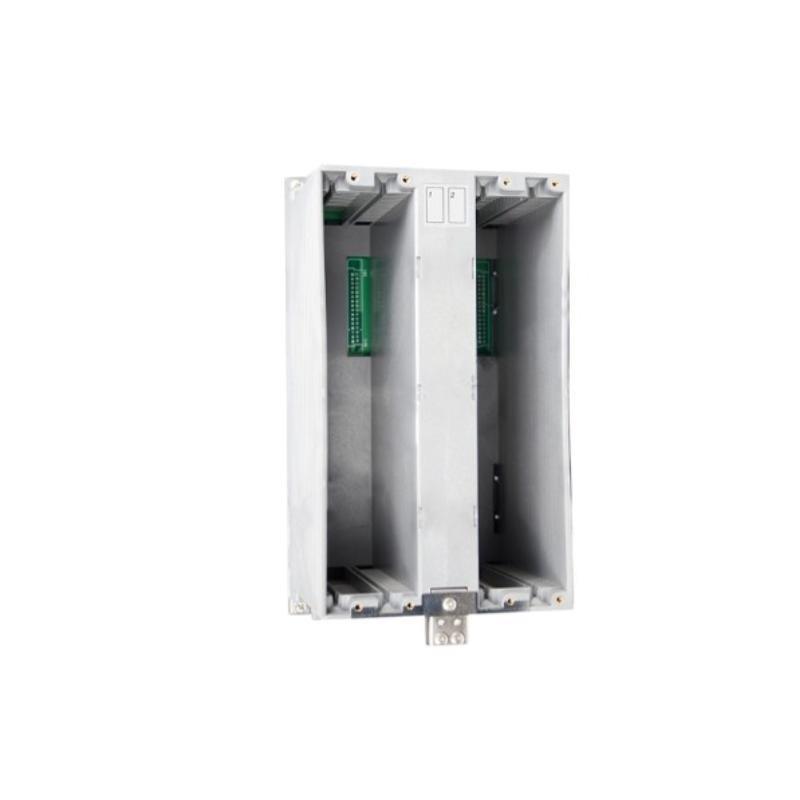

The Yokogawa AMN34 Multi-point Control Analog I/O Module Rack is a cutting-edge system designed for multi-point control in complex industrial applications. This rack is compatible with Yokogawa’s CENTUM VP DCS and Exa control systems, providing users with high-performance and flexible analog input/output capabilities. The AMN34 supports a wide variety von analog signal types and is particularly suited for industries such as oil & gas, chemical processing, power generation, and automated manufacturing.
By supporting multi-point control, the AMN34 allows for enhanced monitoring and precise control von multiple signals simultaneously. This makes it ideal for applications requiring distributed analog I/O in environments with a high degree von complexity and demand for accuracy.
Key Features
-
Multi-point Control: Allows simultaneous processing von multiple analog inputs and outputs, enhancing system flexibility and real-time control.
-
Modular Architecture: Offers modular design, enabling easy scaling by adding additional I/O modules for increased system capacity.
-
High-Speed Performance: Capable von high-speed analog signal processing, ensuring real-time monitoring and control with minimal delay.
-
Wide Signal Compatibility: Supports various types von analog signals such as voltage, current, RTD, and thermocouples, vonfering versatility for different industrial processes.
-
Powerful Diagnostics: Equipped with advanced diagnostic LEDs for easy troubleshooting and system health monitoring.
-
Temperature Range: Operates effectively within a wide temperature range from -20°C to +60°C, ensuring performance in harsh environments.
-
Integrated Power Supply: Internal 24V DC power supply for simplified installation and reduced dependency on external power sources.
-
Communication Support: Compatible with Modbus, Yokogawa proprietary protocols, and other industry-standard communication protocols, ensuring seamless integration with existing systems.
-
Compact Design: Offers space-efficient installation in standard DIN rail-mounted configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | AMN34 Multi-point Control Analog I/O Module Rack |
| Signal Types | Voltage (0-10V), Current (4-20 mA), RTD, Thermocouple |
| Number von I/O Modules | Up to 16 I/O modules per rack |
| Power Supply | 24 V DC (internal power supply) |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 450 x 200 x 100 mm |
| Gewicht | 2.5 kg |
| LED Indicators | Yes, for status and diagnostic information |
| Communication Interface | Modbus, Yokogawa CENTUM VP DCS |
| Mounting | DIN rail mounted |
| Cooling Method | Passive cooling (no active fans required) |
| Compliance Standards | CE, UL, RoHS, IEC 61508 |
Industry Applications
-
Power Generation: Used in power plants to monitor and control temperature, pressure, and flow for ensuring efficient and safe operations.
-
Oil & Gas: Ideal for controlling flow rates, pressure, and temperature in refineries and oil fields.
-
Chemical Processing: Provides the capability to monitor multiple parameters in real time, such as pH, temperature, and chemical concentrations.
-
Automated Manufacturing: Suitable for multi-point control systems in automated factories, ensuring precision and real-time feedback during production.
-
Water Treatment: Used in water treatment plants for monitoring and controlling the flow, quality, and treatment chemicals.
Product Advantages
-
Multi-Point Control: With multi-point control capabilities, the AMN34 provides real-time processing von numerous analog signals simultaneously, enhancing operational efficiency.
-
Modular Design: The modular architecture allows for easy expansion, accommodating the growing demands von complex control systems.
-
Real-Time Signal Processing: Designed for high-speed signal processing, the AMN34 ensures that critical control loops are continuously monitored and adjusted.
-
Flexible I/O Compatibility: Compatible with a variety von analog signal types, making it suitable for a broad range von industrial applications.
-
Integrated Power Supply: The inclusion von an internal 24V DC power supply reduces the need for additional external power sources, simplifying the installation process.
-
Space-Saving Design: The compact size von the AMN34 makes it perfect for installations where space is at a premium.
-
Advanced Diagnostics: Built-in diagnostic LEDs allow for easy monitoring von system status, making it easier to identify and troubleshoot any issues in real-time.
-
Wide Temperature Range: The AMN34 is designed to operate effectively in environments with a wide temperature range von -20°C to +60°C, making it ideal for harsh industrial settings.
Häufig gestellte Fragen (FAQ)
-
How many I/O modules can the AMN34 rack accommodate?
The AMN34 can accommodate up to 16 I/O modules per rack. -
What types von analog signals does the AMN34 support?
It supports voltage, current, RTD, and thermocouple analog signals. -
What is the power supply requirement for the AMN34?
The AMN34 operates with an internal 24V DC power supply. -
What is the operating temperature range for the AMN34?
The AMN34 operates within a temperature range von -20°C to +60°C. -
Can the AMN34 be expanded with additional I/O modules?
Yes, the AMN34 has a modular design, which allows for expansion by adding more I/O modules. -
How is the AMN34 mounted?
The AMN34 is DIN rail mounted, making it easy to install in standard control cabinets. -
What communication protocols are supported by the AMN34?
The AMN34 supports Modbus, Yokogawa proprietary protocols, and other standard industrial communication protocols. -
Does the AMN34 vonfer diagnostic features?
Yes, the AMN34 is equipped with diagnostic LEDs for easy monitoring and fault detection. -
What is the weight von the AMN34?
The AMN34 weighs approximately 2.5 kg. -
Is the AMN34 suitable for high-speed applications?
Yes, the AMN34 is designed for high-speed analog signal processing and is ideal for real-time control applications.
Related Modells in the Same Series
| Modell | Beschreibung |
|---|---|
| AMN33 | High-speed control module for distributed analog I/O in industrial systems. |
| AMN35 | Extended version von the AMN34, designed for even higher signal throughput. |
| AMN36 | Compact multi-point analog control module, ideal for space-constrained environments. |
| AMN37 | Offers advanced diagnostics and higher reliability for mission-critical applications. |
| AMN38 | Designed to handle extreme industrial conditions, with a wider temperature range. |
| AMN39 | A next-generation analog I/O rack, vonfering enhanced real-time processing capabilities. |
Popular Yokogawa Modules
| Modell | Beschreibung |
|---|---|
| FCS820-S00 | Analog input module for precise signal acquisition in process control systems. |
| FCS830-S00 | Digital I/O module for integration with other industrial control systems. |
| FCJ910-S01 | Ethernet communication module for seamless communication with networked devices. |
| FCJ920-S01 | Modbus communication module designed for third-party system integration. |
