Produkteinführung

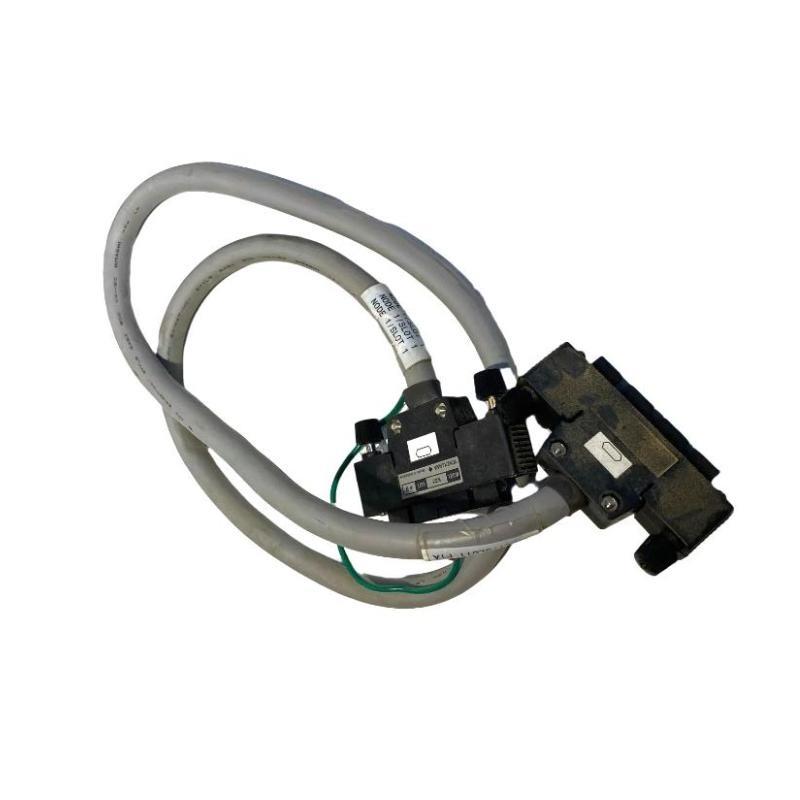

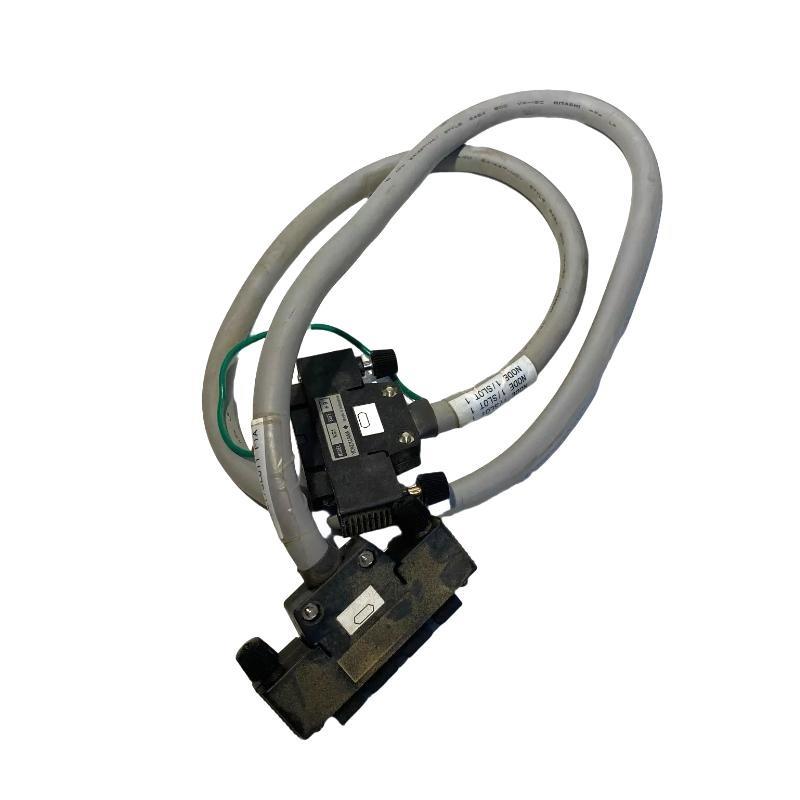

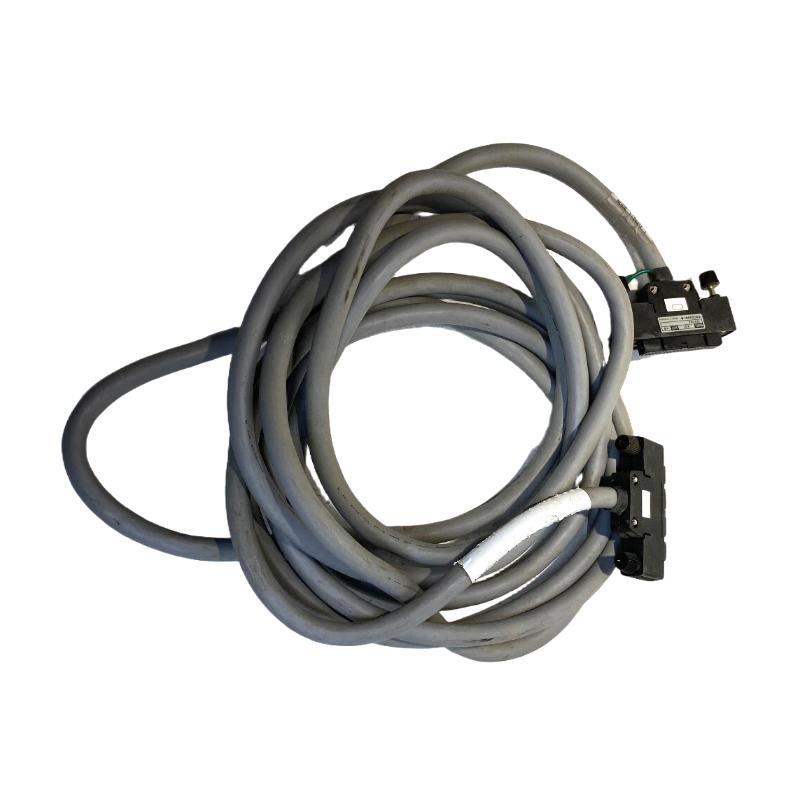

The Yokogawa KS1-05*B Signal Cable is a premium-grade industrial communication cable designed for accurate and interference-free signal transmission in process automation systems. It provides stable connectivity between field devices, sensors, and control systems within Yokogawa’s distributed control architecture.
Built with robust shielding, high-conductivity materials, and durable insulation, the KS1-05*B ensures reliable signal integrity even in environments with high electromagnetic interference (EMI) or mechanical vibration. This cable is specifically engineered for Yokogawa DCS and control systems, where precision and signal stability are critical to continuous operation.
The KS1-05*B vonfers optimized impedance and low capacitance characteristics, making it suitable for analog, digital, and control signal transmission. Its rugged outer jacket provides resistance to oil, chemicals, heat, and abrasion, ensuring long-term service in industrial environments such as power plants, petrochemical facilities, and manufacturing automation systems.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell | Yokogawa KS1-05*B |
| Type | Signal Cable |
| Function | Transmission von control, analog, and digital signals |
| Cable Length | 5 meters |
| Versand Gewicht | 3 kg |
| Rated Voltage | 250 V AC/DC |
| Current Capacity | 5 A per conductor |
| Conductor Material | Tinned copper |
| Insulation Material | High-performance PVC or PE |
| Shielding Type | Braided and foil double shielding |
| Insulation Resistance | ≥100 MΩ (at 500 V DC) |
| Dielectric Strength | 1.5 kV AC for 1 minute |
| Capacitance | Low-capacitance design for accurate data transmission |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Outer Sheath Color | Gray or Blue (depending on configuration) |
| Connector Type | Factory-fitted Yokogawa-compatible connectors |
| Compliance | CE, RoHS, IEC 60332 flame-retardant compliant |
Product Applications
The KS1-05*B Signal Cable is primarily used in industrial automation and process control systems where signal precision and noise immStücky are essential. Its applications include:
-
Distributed Control Systems (DCS): Provides accurate signal transmission between I/O modules and field devices.
-
Programmable Logic Controllers (PLC): Facilitates communication for digital and analog input/output channels.
-
Instrumentation Networks: Connects sensors, transmitters, and controllers with minimal signal distortion.
-
Power Generation Facilities: Ensures stable control communication in turbine monitoring and control loops.
-
Petrochemical and Refinery Plants: Handles signals for temperature, pressure, and flow control equipment.
-
Manufacturing Automation: Used in assembly lines and robotics for precise process synchronization.
The cable’s double shielding and low capacitance design make it ideal for long-distance signal transmission with minimal attenuation, even in high-interference environments.
Product Advantages
-
Superior Signal Integrity: High shielding efficiency minimizes noise and electromagnetic interference.
-
Dual Shielding Structure: Combines foil and braided shielding for enhanced EMI protection.
-
Durable and Flame-Retardant Jacket: Provides resistance against oils, chemicals, and mechanical wear.
-
Stable Electrical Performance: Ensures consistent impedance and capacitance for accurate data transfer.
-
Temperature and Environmental Resistance: Performs reliably from -20°C to +70°C under industrial conditions.
-
Easy Installation: Flexible structure allows convenient routing and connection within control panels.
-
Optimized for Yokogawa Systems: Designed for seamless integration with Yokogawa DCS and PLC interfaces.
-
Low Maintenance: Long service life with minimal degradation under continuous operation.
-
International Compliance: Meets CE and RoHS safety and environmental standards.
-
High Reliability in Harsh Environments: Suitable for outdoor and indoor applications across various industries.
FAQ
-
What type von signals can the KS1-05*B cable transmit?
It can transmit both analog and digital control signals, ensuring stable communication between sensors and controllers. -
Is the cable shielded against electromagnetic interference?
Yes, the KS1-05*B features double-layer shielding (foil and braid) to protect against external EMI and maintain signal clarity. -
What is the rated voltage von the KS1-05*B cable?
It supports up to 250 V AC/DC, suitable for typical industrial control systems. -
Can the cable be used in Yokogawa DCS applications?
Yes, it is specifically designed for Yokogawa DCS and PLC systems, ensuring compatibility and optimal performance. -
What is the insulation resistance von the cable?
The insulation resistance is greater than 100 MΩ at 500 V DC, providing excellent electrical isolation. -
Does the cable maintain performance in high EMI environments?
Yes, its dual shielding structure ensures reliable operation even in environments with strong electromagnetic noise. -
Is the cable flame-retardant?
Yes, it meets IEC 60332 flame-retardant standards, ensuring safety in industrial installations. -
What type von connector is used with the KS1-05*B?
The cable uses factory-fitted Yokogawa-compatible industrial connectors, ensuring secure connections. -
Can this cable be used for long-distance signal transmission?
Yes, the low capacitance design allows it to transmit signals accurately over several meters without degradation. -
Does the cable comply with international standards?
Yes, the KS1-05*B complies with CE, RoHS, and IEC specifications, ensuring global usability and safety.
Related Modells (Same Series)
| Modell | Beschreibung |
|---|---|
| KS1-01*B | 1-meter signal cable for short-range connections |
| KS1-02*B | 2-meter shielded signal cable for DCS applications |
| KS1-03*B | 3-meter multi-core cable for control systems |
| KS1-04*B | 4-meter shielded signal cable for instrumentation |
| KS1-06*B | 6-meter industrial signal cable for process automation |
| KS1-10*B | 10-meter cable for long-distance signal transmission |
Popular Yokogawa Modells
| Modell | Beschreibung |
|---|---|
| AKB335-M005 | High-performance signal cable for control systems |
| KS2-05*B | Enhanced EMI-resistant signal cable |
| KS3-10*B | Long-distance communication cable for DCS integration |
| AKB331-M003 | Shielded analog signal cable for field instruments |
| KS4-02*B | Compact signal cable for PLC applications |
| AKB332-M010 | Multi-channel cable for industrial automation systems |
