Product Beschreibung

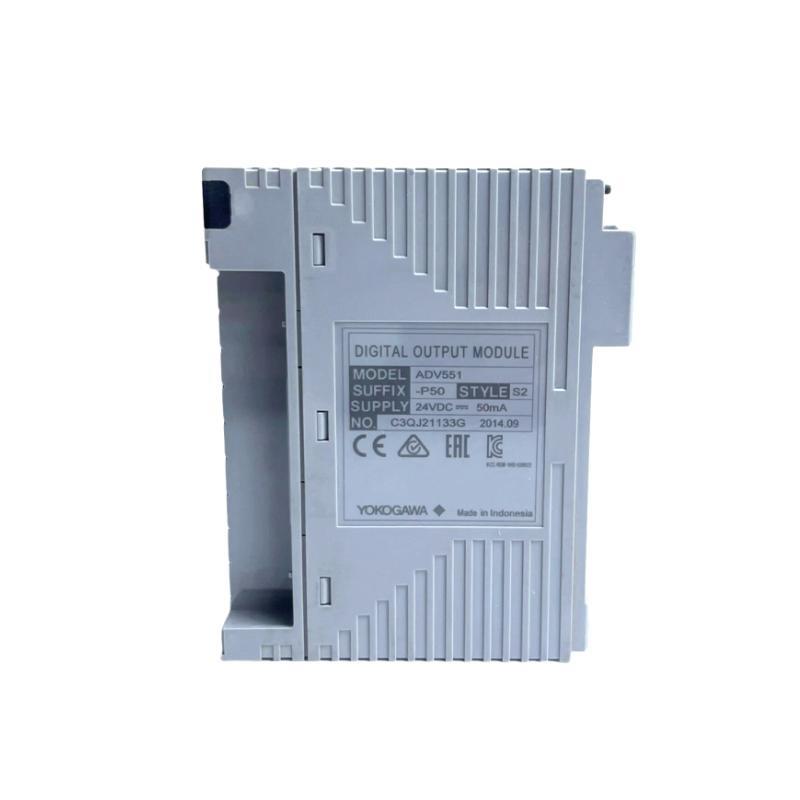

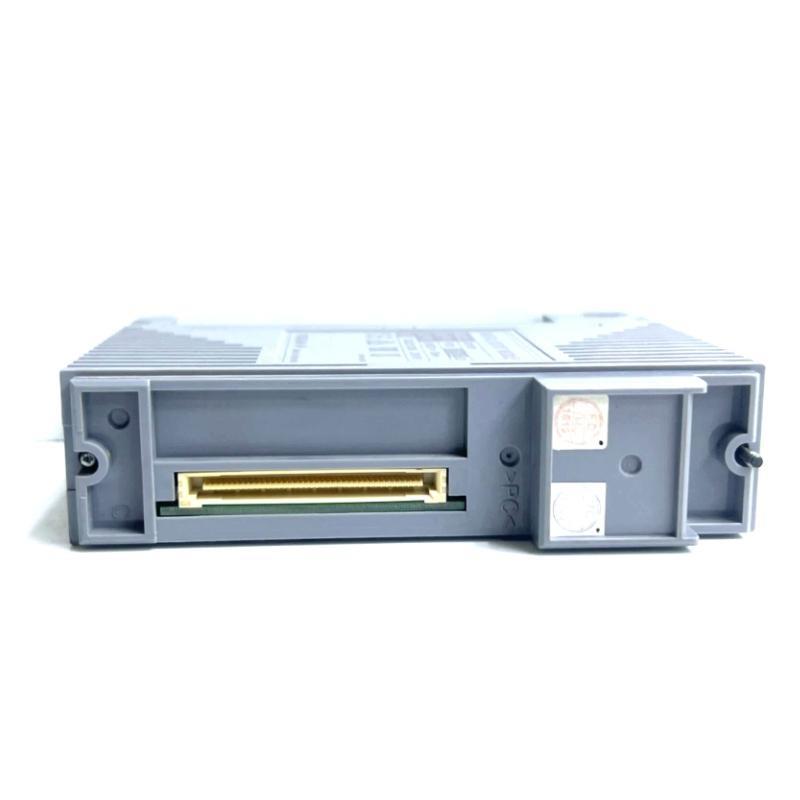

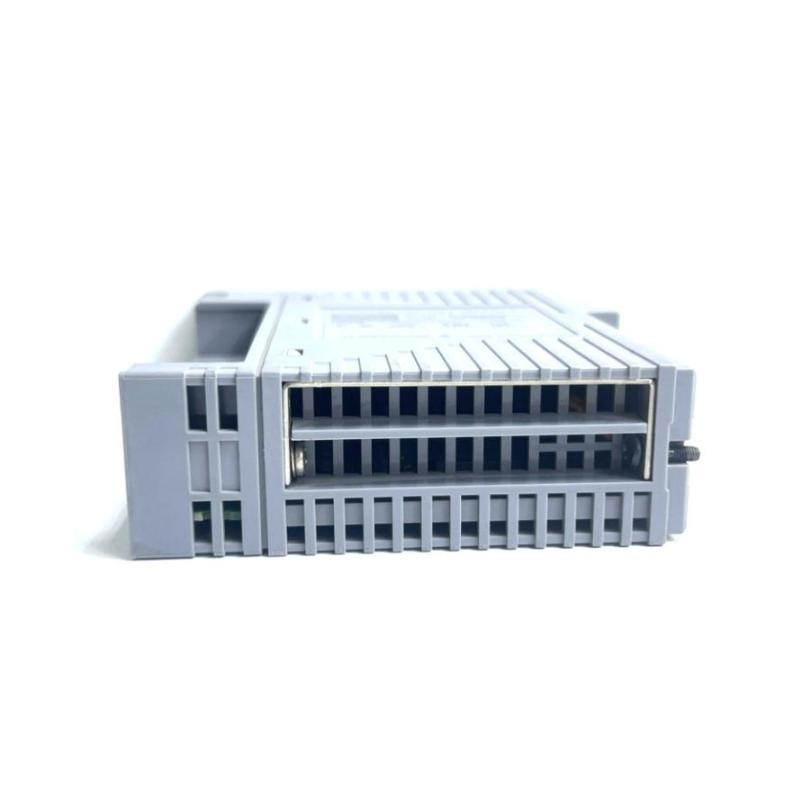

The Yokogawa ADV551-P50/D5A00 is a 32-channel digital output module designed for use in the Field Control Station (FCS) within the Yokogawa CENTUM VP distributed control system. It provides high-speed, reliable, and isolated transistor-type outputs for various industrial control applications. With support for current sink outputs, pulse width, and time-proportional control, it ensures flexible configuration options for controlling field devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | ADV551-P50/D5A00 |
| Number von Output Channels | 32 |
| Output Type | Transistor (Current sink) |
| Rated Output Voltage | 24 V DC |
| Voltage Range | 20.4 to 26.4 V DC |
| Maximum Load Current | 100 mA/channel |
| Output ON Voltage (max) | 2 V DC |
| Output OFF Leak Current (max) | 0.1 mA |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (ON/OFF delay up to 1 ms) |
| Output Response Time | ≤ 3 ms (status), ≤ 10 ms (pulse/status mix) |
| Functions Supported | Status output, Pulse width, Time-proportional output |
| Power Consumption (Internal) | 700 mA (5 V DC) |
| Power Consumption (External) | 60 mA (24 V DC) |
| Isolation | 2 kV AC (signal to system), 500 V AC (commons) |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Gewicht | 0.2 kg |
| External Connection | Pressure clamp terminal, MIL/dedicated cable |
Applications
-
Distributed control in power plants and chemical industries
-
Actuator control in factory automation systems
-
Process output interfacing in refineries and utility plants
-
Sequence control systems with redundancy requirements
-
Control von relays, solenoids, and indicator devices
Advantages
-
High Channel Density: 32 outputs in a compact module
-
Flexible Output Modes: Supports status, pulse width, and time-proportional outputs
-
Fast Response Time: Suitable for real-time control
-
Dual Redundancy Support: Enhanced reliability in mission-critical systems
-
Isolation Protection: Robust design with high-voltage isolation
FAQs
Q1: What is the function von the ADV551-P50/D5A00 module?
A1: It outputs 32 channels von isolated 24 V DC digital signals with pulse width and time-proportional capabilities.
Q2: What kind von output configuration does it support?
A2: It uses a transistor-type current sink output suitable for driving relays and solenoids.
Q3: Is this module suitable for redundant system configurations?
A3: Yes, the ADV551 supports dual redundant installations for high reliability.
Q4: What is the maximum current per output channel?
A4: Each output can drive up to 100 mA at 26.4 V DC.
Q5: What type von isolation is provided?
A5: It provides 2 kV AC isolation between signal and system, and 500 V AC between commons.
Q6: Can this module be used for time-based control operations?
A6: Yes, it supports time-proportional output and one-shot pulse width control.
Q7: What external connections are supported?
A7: It supports pressure clamp terminal blocks, MIL connector cables, and dedicated interface cables.
Q8: What is the pulse width range and resolution?
A8: The range is from 8 ms to 7200 s with a resolution von 8 ms and maximum 1 ms delay.
Q9: What is the typical response time for the outputs?
A9: 3 ms or less for status output, and 10 ms or less for mixed output modes.
Q10: Is the module compliant with explosion-provon standards?
A10: Yes, suffix codes define explosion protection compatibility; /E or /F options apply.
Related Yokogawa Modells (Same Series or Similar)
| Modell | Type | Channels | Function Support | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|
| ADV561 | Digital Output | 64 | SO/PW/TP | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV559 | ST Compatible Output | 32 | SO/PW/TP | 125.5 × 130 × 32.8 | 0.3 kg |
| ADV569 | ST Compatible Output | 64 | SO/PW/TP | 125.5 × 130 × 32.8 | 0.3 kg |
| ADV151 | Digital Input | 32 | SI/PB/SOE | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV161 | Digital Input | 64 | SI/PB | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV859 | ST2 I/O Module | 16/16 | SI/SO/PW/TP | 125.5 × 130 × 32.8 | 0.3 kg |
Popular Yokogawa Modells
| Modell | Type | Function | Channels | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|
| AAI141-H50 | Analog Input Module | 4–20 mA, HART support | 16 | 100 × 130 × 130 | 0.4 kg |
| AAI543-H00 | Analog Output Module | 4–20 mA, HART | 8 | 100 × 130 × 130 | 0.35 kg |
| ADV151-P00 | Digital Input Module | 24 V DC | 32 | 107.5 × 130 × 32.8 | 0.3 kg |
| CP451-10 | Controller Module | Main processor Stück | — | 115 × 130 × 130 | 0.5 kg |
| PW482-10 | Power Supply Module | System power supply | — | 115 × 130 × 130 | 0.7 kg |
| AAR181-S00 | Remote I/O Communication | Remote node interface | — | 100 × 130 × 130 | 0.3 kg |
