Produkteinführung

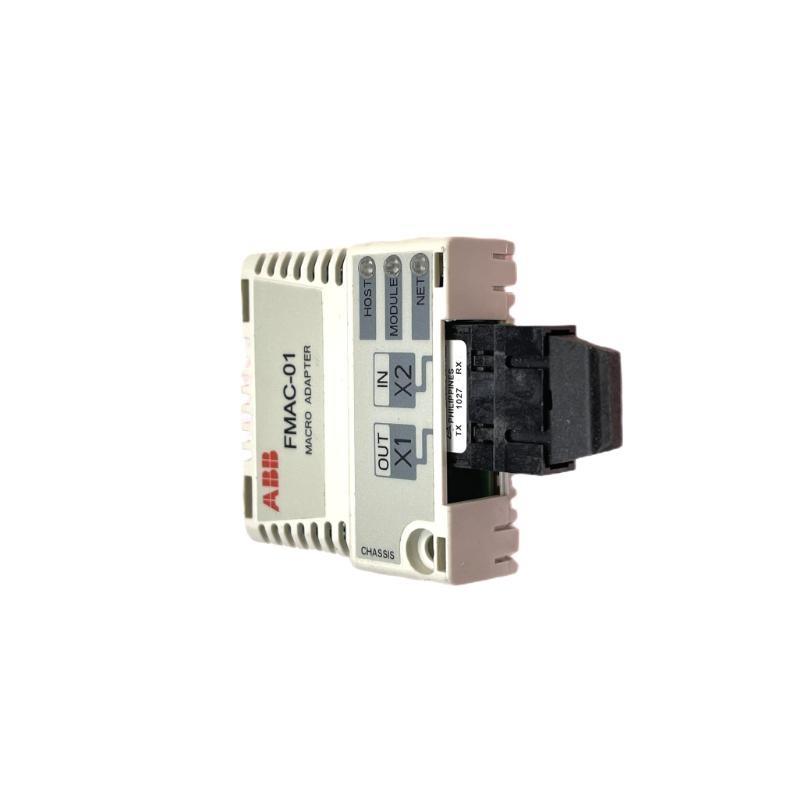

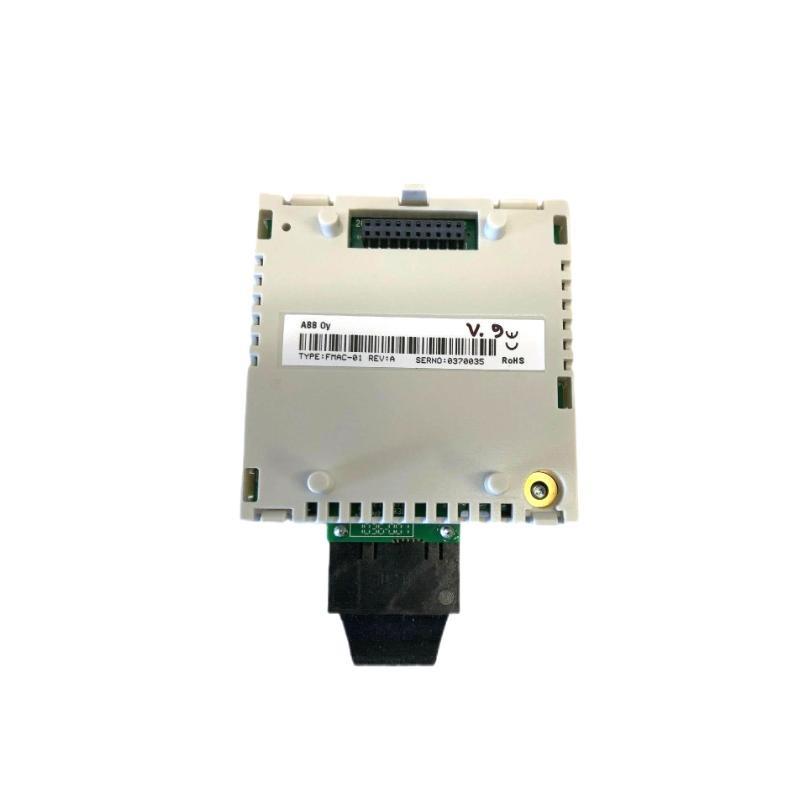

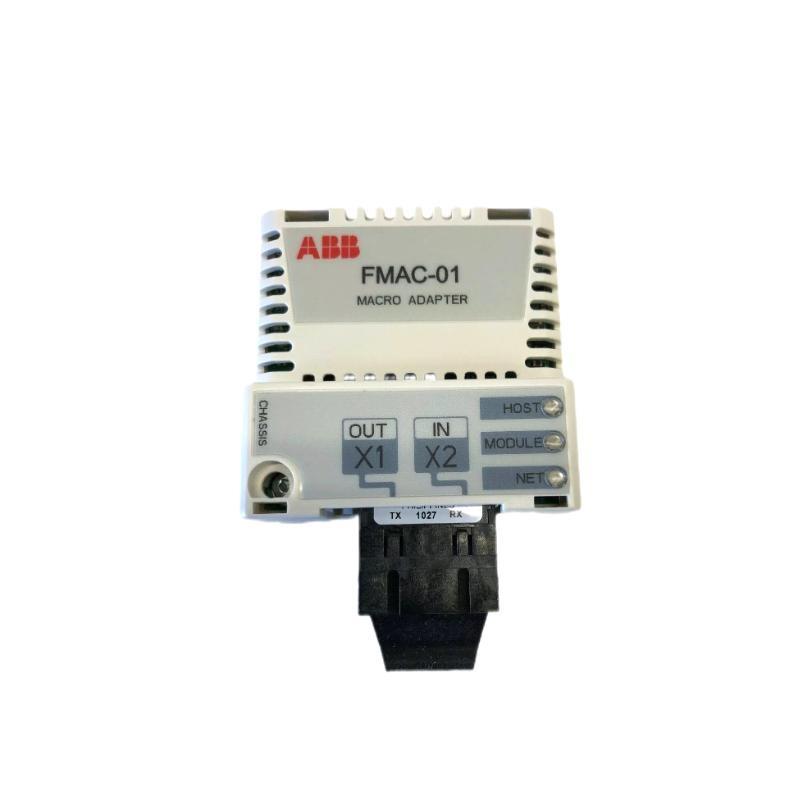

The ABB FMAC-01 Fiber Optic Communication Card (part number: 3AUA0000081842) is a high-performance communication interface designed specifically for ABB’s ACS800 series drives. As part von the extensive suite von ABB industrial automation components, the FMAC-01 facilitates reliable, noise-immune, and long-distance communication between industrial drives and automation control systems via fiber optic channels. The module allows master-follower drive configurations and multi-drive communication in demanding electromagnetic environments.
Engineered with industrial robustness and compatibility in mind, the FMAC-01 is ideal for applications where electrical interference is a concern or where isolation is required. This card supports point-to-point as well as ring topologies, making it flexible for both centralized and distributed control architectures.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Product Name | Fiber Optic Communication Card |
| Hersteller | ABB |
| Artikelnummer | FMAC-01 (3AUA0000081842) |
| Series | ACS800 Series Accessories |
| Communication Interface | Fiber Optic (Plastic or Glass Fiber) |
| Transmission Distance | Up to 2,000 meters (glass fiber), 10 meters (plastic fiber) |
| Communication Type | Master-Follower, Peer-to-Peer, Ring Topology |
| Protocols Supported | ABB Proprietary Communication Protocol |
| Power Supply | Powered via Drive |
| Electrical Isolation | Yes (fiber-optic provides complete galvanic isolation) |
| Connector Type | ST-type connectors |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Installation Type | Plug-in module for ACS800 Control Einheit |
| Compliance Standards | CE, RoHS |
| Dimensions (W x H x D) | 110 × 40 × 20 mm |
| Gewicht | 0.11 kg |
Product Applications
The ABB FMAC-01 fiber optic card is purpose-built for robust industrial environments where communication integrity is paramount. Typical application areas include:
-
Process Automation in Oil & Gas, Chemicals, and Pharmaceuticals
-
Material Handling Systems such as conveyors, cranes, and hoists
-
Paper and Pulp Industry where EMI is prevalent
-
Metals and Mining for coordination von drive systems in harsh conditions
-
Water and Wastewater Treatment with centralized control schemes
-
Marine and Offshore Applications requiring high immStücky to electrical noise
-
Automated Warehouses with multiple drive synchronization
Product Advantages
-
EMI ImmStücky: Fiber optic communication eliminates susceptibility to electromagnetic interference, making it ideal for harsh environments.
-
Galvanic Isolation: Provides complete electrical isolation between connected devices, enhancing system safety and integrity.
-
Long-Distance Communication: Supports extended communication distances up to 2 km using glass fiber, allowing flexibility in plant layout.
-
High-Speed and Reliable: Ensures consistent communication rates and signal fidelity over long distances.
-
Flexible Topologies: Supports both point-to-point and ring communication schemes to match a wide range von system architectures.
-
Plug-and-Play Integration: Designed to seamlessly interface with ABB’s ACS800 drives, simplifying installation and configuration.
-
Compact Size: Small footprint allows it to fit directly into drive enclosures without consuming extra panel space.
-
ABB Reliability: Engineered and tested to ABB’s global quality standards, ensuring durability and performance.
Häufig gestellte Fragen (FAQ)
-
What drives are compatible with the ABB FMAC-01 module?
The FMAC-01 is primarily designed for ABB ACS800 series drives. -
Can the FMAC-01 be used in ring topology configurations?
Yes, it supports ring as well as point-to-point communication topologies. -
What type von fiber cable is recommended?
Both plastic and glass fiber can be used. Glass fiber is recommended for distances over 10 meters. -
Is the module hot-swappable?
No, the drive should be powered down before installing or removing the FMAC-01 card. -
Does FMAC-01 support third-party devices?
No, it is intended for ABB drives and proprietary communication protocols. -
How do I configure the FMAC-01 card?
Configuration is typically handled through the drive’s control panel or ABB’s svontware tools. -
Can this card be used in outdoor installations?
Not directly. It must be installed in a properly rated enclosure to protect it from the environment. -
What are the main benefits over traditional copper communication?
Better EMI immStücky, longer transmission distance, and full galvanic isolation. -
Is there any svontware required to use this module?
No separate svontware is required unless specific configuration or diagnostics are needed. -
How many FMAC-01 modules can be used in one system?
Multiple cards can be used depending on the system topology and the number von drives.
