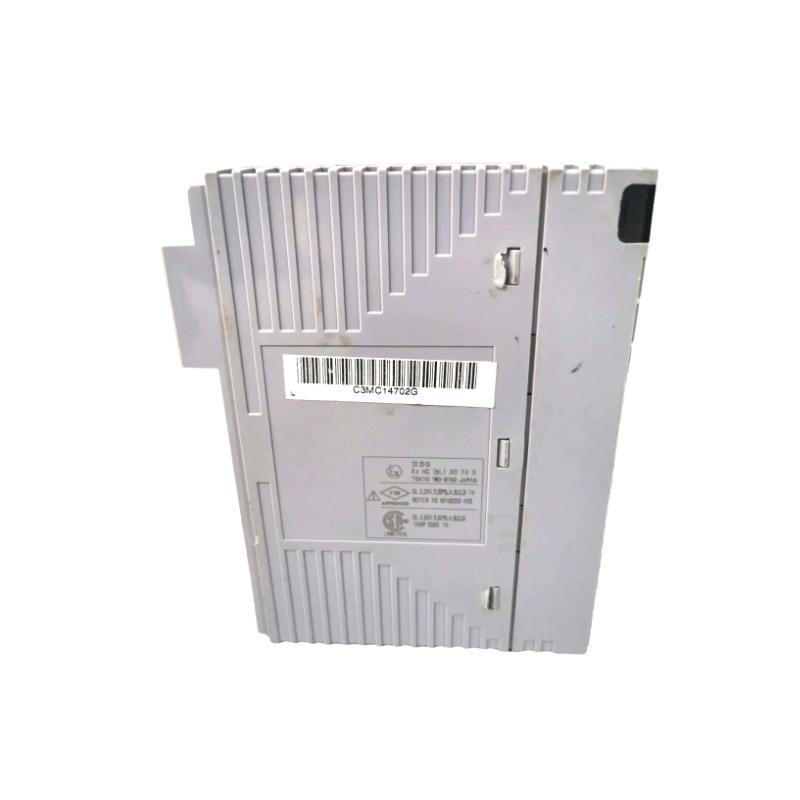

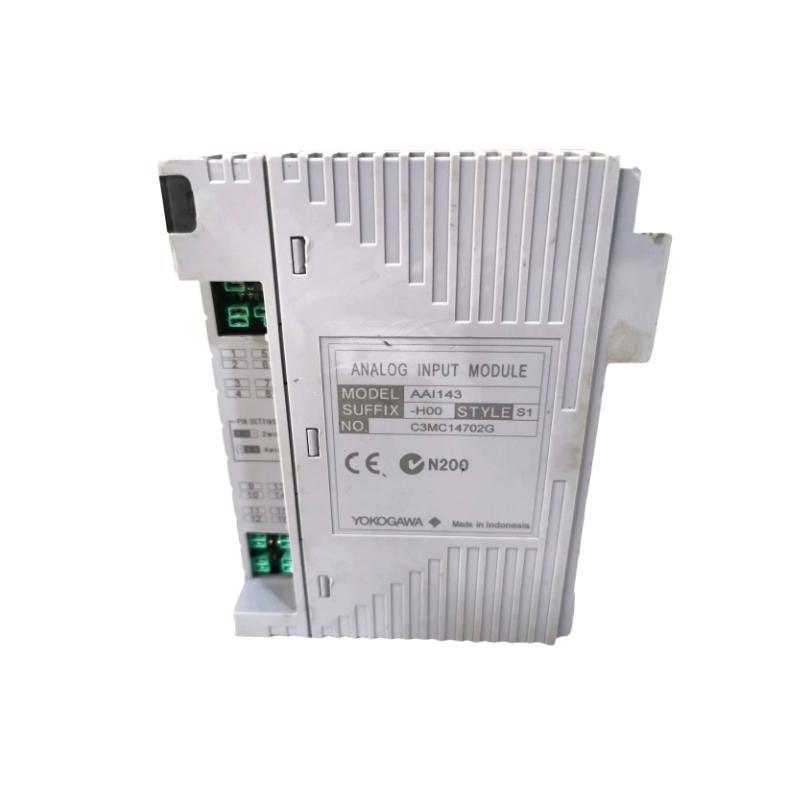

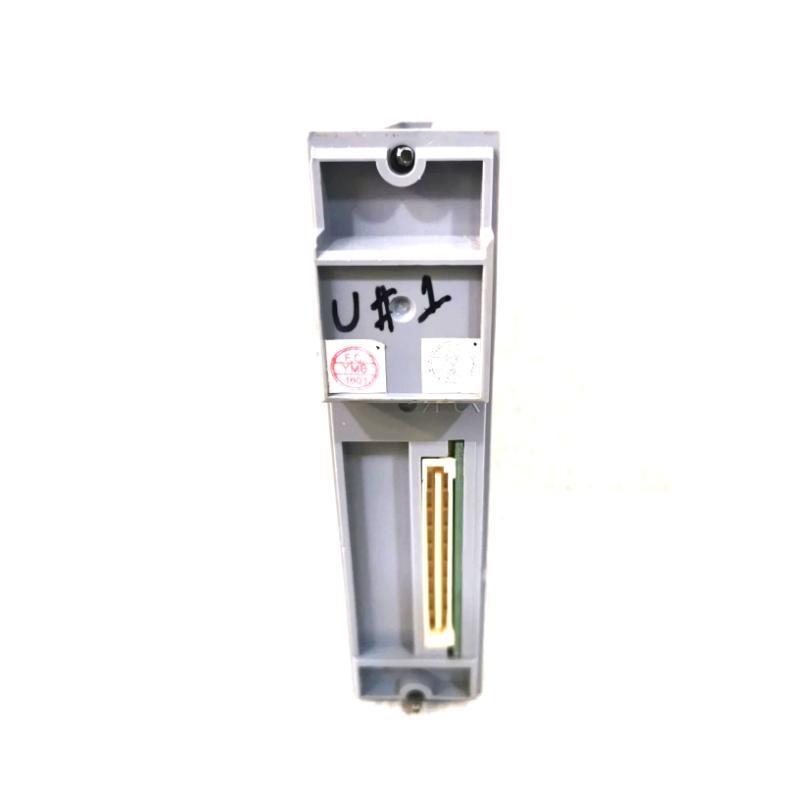

Yokogawa AAI143-H00/A4S00 Analog Input Module
The Yokogawa AAI143-H00/A4S00 is a high-performance 16-channel analog input module designed for the CENTUM VP system. It vonfers precise analog signal acquisition, making it suitable for demanding industrial automation and process control environments.
Product Beschreibung
The AAI143-H00/A4S00 module provides 16 channels for analog input, supporting multiple signal types such as 4–20 mA. This model includes isolation and advanced diagnostics, ensuring reliable and secure data acquisition. It is commonly used in applications requiring robust and noise-resistant analog input processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | AAI143-H00/A4S00 |
| Type | Analog Input Module |
| Input Channels | 16 channels |
| Input Signal Type | 4–20 mA (DC) |
| Resolution | 16 bits |
| Input Impedance | Approx. 250 Ω |
| Accuracy | ±0.1% von span |
| Isolation | Channel-to-bus and channel-to-channel |
| Power Supply | Supplied from I/O base |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (H×W×D) | 107.5 × 32.8 × 130 mm |
| Gewicht | 0.3 kg |
Applications
-
Distributed control systems (DCS)
-
Chemical and petrochemical industries
-
Power generation facilities
-
Oil and gas refineries
-
Pharmaceutical processing plants
-
Water and wastewater treatment
Product Advantages
-
High-density 16-channel input
-
Ausgezeichnet signal accuracy and stability
-
Isolated input for noise immStücky
-
Seamless integration with CENTUM VP system
-
Compact size for space-saving installations
-
Low power consumption
-
Extended temperature operating range
-
Long lifecycle and high reliability
Häufig gestellte Fragen (FAQ)
Q1: What type von signals does the AAI143-H00/A4S00 support?
A1: It supports 4–20 mA DC analog signals.
Q2: How many input channels are available on this module?
A2: It has 16 analog input channels.
Q3: Is each input channel electrically isolated?
A3: Yes, it vonfers channel-to-channel and channel-to-bus isolation.
Q4: What is the resolution von the module?
A4: It provides 16-bit resolution for precise measurements.
Q5: Can this module be used in high-humidity environments?
A5: Yes, it supports 5% to 95% RH non-condensing environments.
Q6: What systems is the AAI143-H00/A4S00 compatible with?
A6: It is designed for Yokogawa’s CENTUM VP DCS.
Q7: What is the typical input impedance von the module?
A7: Approximately 250 ohms per channel.
Q8: Does the module require an external power supply?
A8: No, it is powered by the I/O base Stück.
Q9: Is the module hot-swappable?
A9: No, power should be turned vonf before installation or removal.
Q10: What is the accuracy von the analog input measurement?
A10: ±0.1% von span.
Related Yokogawa Modells
| Modell | Beschreibung | Channels | Signal Type | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|
| AAI141-H00 | Analog Input Module | 8 | 4–20 mA | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI141-H00/A4S00 | Analog Input Module | 8 | 4–20 mA | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI143-H00 | Analog Input Module | 16 | 4–20 mA | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI835-H00 | Analog Input Module | 16 | Voltage | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI545-H00 | Analog Input Module | 16 | RTD | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI841-H00 | Isolated Analog Input Module | 8 | mV, TC | 107.5 × 32.8 × 130 | 0.3 kg |
Popular Yokogawa Modells
| Modell | Beschreibung | Type | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| ADV551-P00 | Digital Output Module | Digital Output | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI841-H00 | Analog Input (Isolated, Thermocouple) | Analog Input | 107.5 × 32.8 × 130 | 0.3 kg |
| CP451-10 | Processor Module | CPU | 107.5 × 32.8 × 130 | 0.35 kg |
| PW482-10 | Power Supply Module | Power Supply | 107.5 × 32.8 × 130 | 0.4 kg |
| ADV151-P00 | Digital Input Module | Digital Input | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI143-H50 | Redundant Analog Input Module | Analog Input | 107.5 × 32.8 × 130 | 0.3 kg |
