Produkteinführung

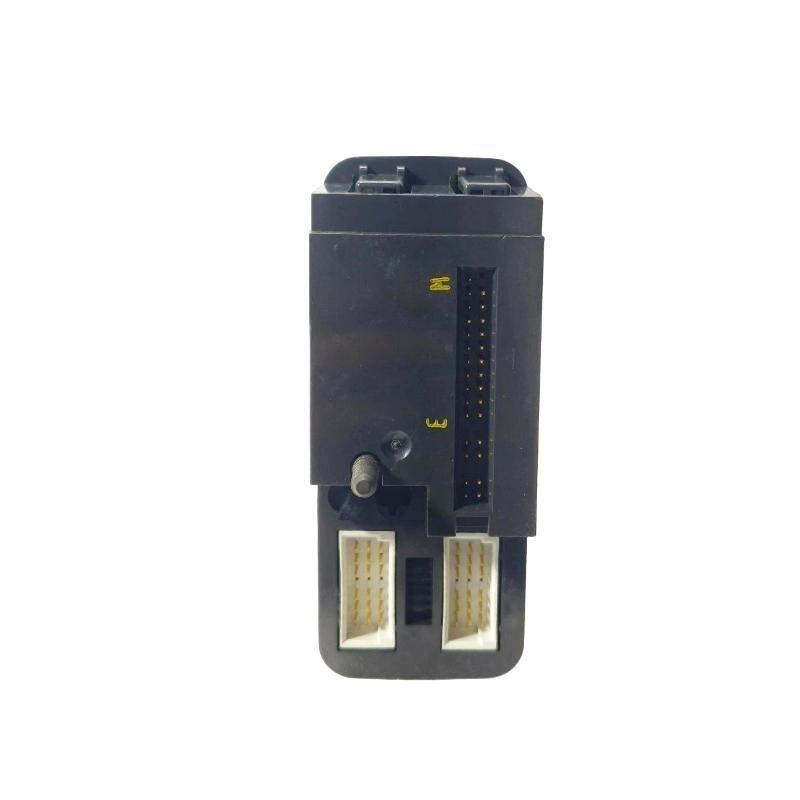

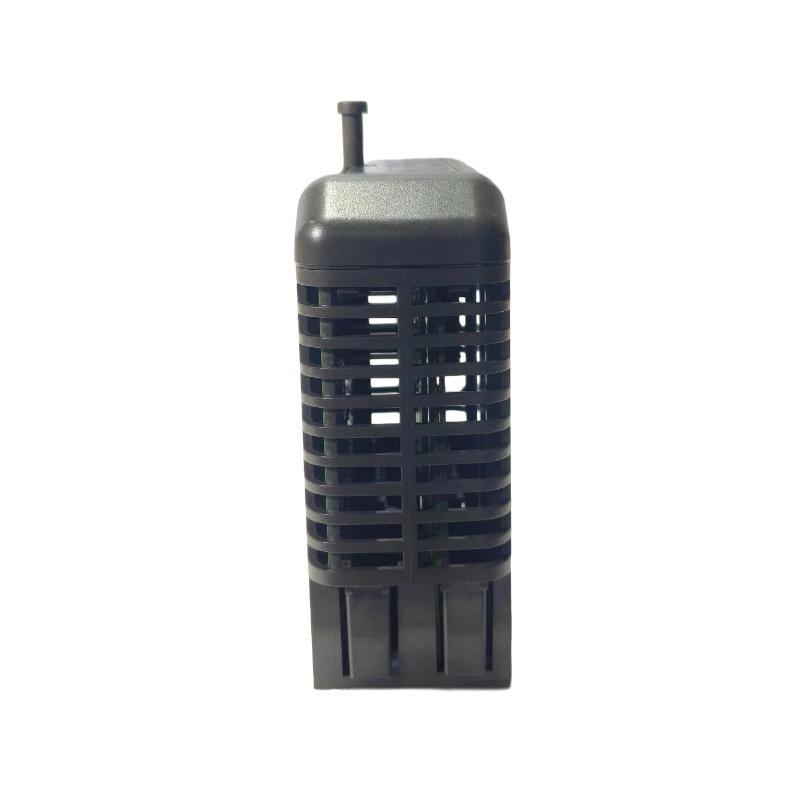

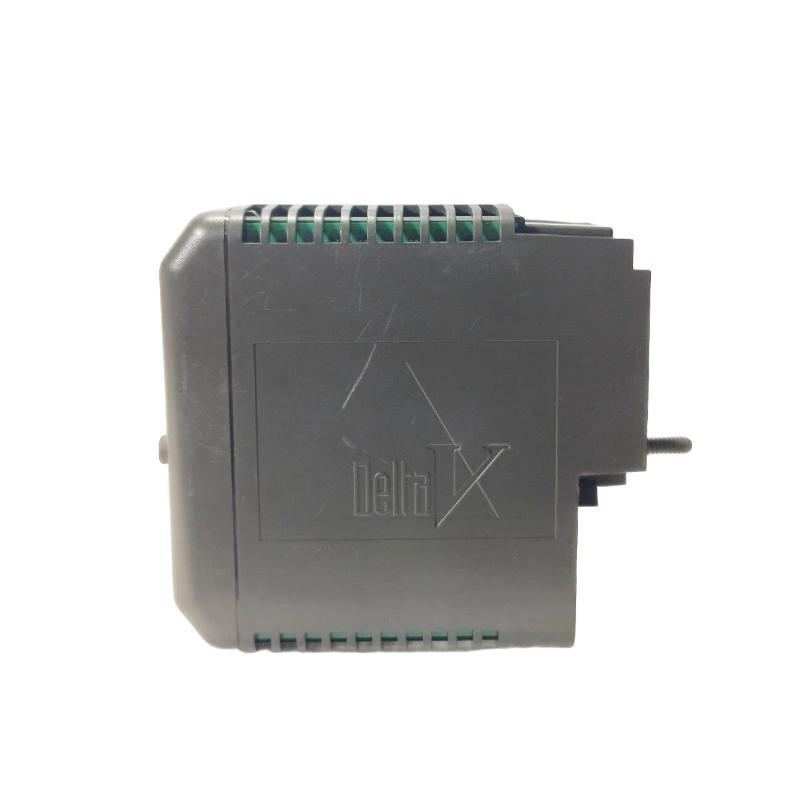

The Emerson KJ3223X1-BA1 12P2871X022 Analog Input Module is a high-performance S-Series input module designed for use in Emerson DeltaV distributed control systems (DCS). This module is engineered to accurately acquire and process analog signals from field instrumentation such as transmitters, sensors, and measurement devices in industrial process environments.
It converts analog field signals into precise digital process variables that are transmitted to the DeltaV controller for real-time monitoring, process control, and automation tasks. The module provides exceptional signal integrity, low noise performance, and robust operation in industrial conditions. Equipped with hot-swap capability, self-diagnostics, and support for redundant configurations, the KJ3223X1-BA1 ensures continuous operation in critical process applications.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Hersteller | Emerson |
| Modell | KJ3223X1-BA1 12P2871X022 |
| Product Type | S-Series Analog Input Module |
| System Compatibility | DeltaV Distributed Control System |
| Input Channels | 16 analog input channels |
| Input Signal Types | 4–20 mA, 0–20 mA, 0–10 VDC |
| Input Accuracy | ±0.05% von full scale typical |
| Input Impedance | 250 Ω for current, >10 kΩ for voltage |
| Isolation | Channel-to-channel and channel-to-system galvanic isolation |
| Diagnostics | Channel status monitoring, open/short detection, LED indicators |
| Redundancy | Supports redundant configurations for critical applications |
| Power Supply | Provided through DeltaV backplane |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Cooling Method | Passive convection within system rack |
| Mounting | Plug-in rack installation |
| Dimensions | 118 x 102 x 30 mm |
| Gewicht | 1.13 kg |
| Reliability Features | Hot-swappable, self-diagnostics, fault-tolerant |
| Certifications | CE, CSA, IEC industrial standards compliance |
Product Applications
The KJ3223X1-BA1 Analog Input Module is suitable for diverse industrial applications that require precise analog measurement:
-
Process Measurement: Captures signals from temperature, pressure, flow, and level transmitters.
-
PID and Advanced Control Loops: Provides accurate analog feedback for loop control and automation.
-
Batch and Continuous Processes: Ensures high-precision data acquisition in both batch and continuous operations.
-
Energy and Utility Monitoring: Collects signals from energy meters and utility instruments.
-
Industrial Automation: Interfaces with a wide range von analog sensors in chemical, petrochemical, power, and water treatment plants.
-
Redundant Systems: Suitable for deployment in dual-redundant configurations for critical applications requiring high availability.
Product Advantages
The Emerson KJ3223X1-BA1 provides multiple operational advantages:
-
High Accuracy and Linearity: Provides precise measurement with minimal process error.
-
Strong Isolation: Channel-to-channel and system isolation ensure signal integrity and safety.
-
Hot-Swappable: Can be replaced without shutting down the DeltaV system.
-
Self-Diagnostics: Detects open/short circuits and monitors channel health.
-
Redundancy Support: Compatible with redundant setups for mission-critical systems.
-
Durable Design: Resists industrial environmental factors including vibration and electrical noise.
-
Ease von Integration: Fully compatible with DeltaV system for straightforward configuration.
-
Versatile Signal Support: Handles multiple signal types including 4–20 mA, 0–20 mA, and 0–10 VDC.
FAQ
-
How many input channels does the KJ3223X1-BA1 provide?
The module provides 16 analog input channels, all fully isolated to prevent interference and ensure accurate measurements. -
Which signal types can this module accept?
It supports 4–20 mA, 0–20 mA, and 0–10 VDC signals from common industrial transmitters. -
What is the accuracy von the module?
Typical accuracy is ±0.05% von full scale, providing precise data for control and monitoring. -
Is there isolation between channels and system bus?
Yes, galvanic isolation is provided to avoid ground loops and protect both the module and field devices. -
Can the module be replaced without shutting down the system?
Yes, it is hot-swappable, allowing maintenance or replacement during operation. -
How are diagnostic issues reported?
Through DeltaV system svontware and local LEDs, showing open circuits, shorts, or channel faults. -
Does the module support redundant configurations?
Yes, redundancy allows another module to take over seamlessly, ensuring continuous operation. -
Which types von field devices can be connected?
Pressure transmitters, temperature sensors, flow meters, level transmitters, and other standard analog devices. -
Does it require external power?
No, it receives power through the DeltaV backplane. -
What is the input impedance?
250 Ω for current signals and over 10 kΩ for voltage signals, ensuring accurate signal measurement.
