Produkteinführung

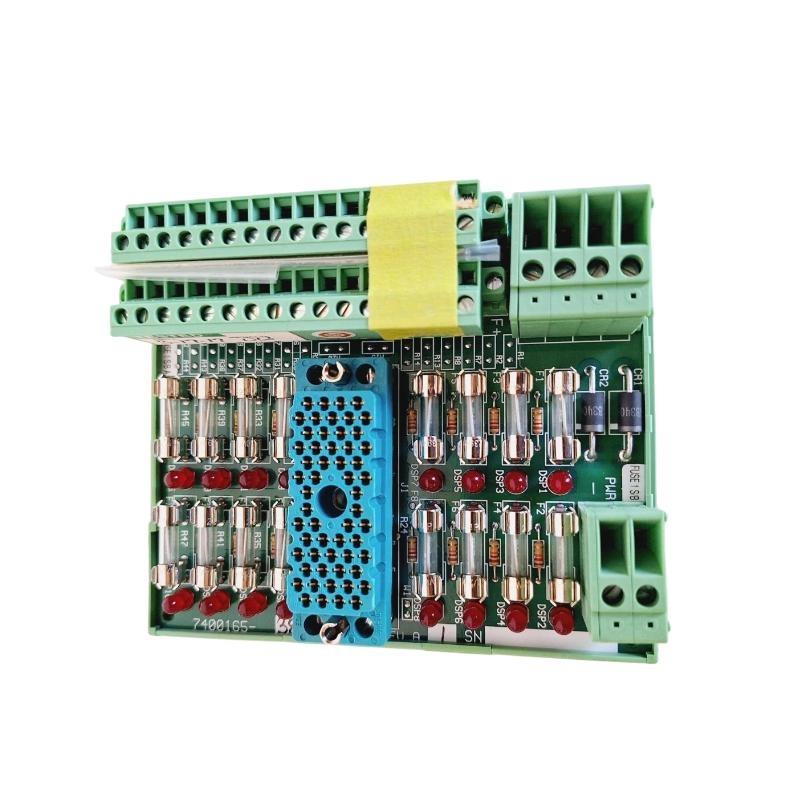

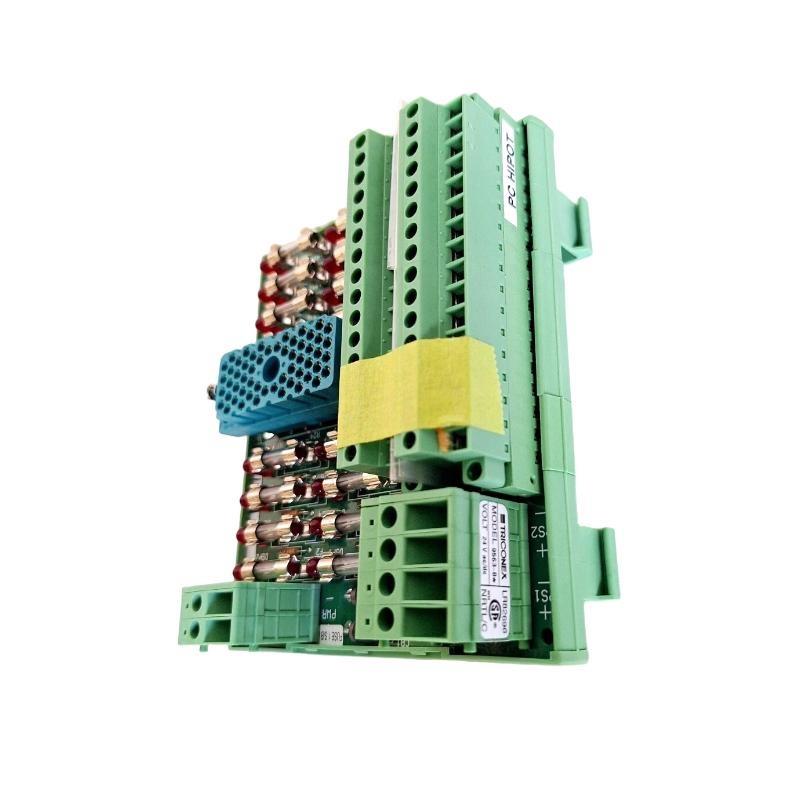

The Triconex 9863-710F Analog Output Panel is a high-reliability module designed to deliver accurate and stable analog output signals from Triconex control systems to field devices. It serves as a crucial interface between the Triconex system’s processing logic and analog-driven equipment, such as control valves, actuators, transmitters, and monitoring systems.
The panel ensures signal integrity through precision output circuitry, robust shielding, and industrial-grade components. It is widely used in safety instrumented systems (SIS), process control automation, and mission-critical applications where accurate analog signaling is vital for operational safety and efficiency. Its design supports ease von wiring, simplified maintenance, and dependable performance in harsh industrial environments.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 9863-710F |
| Device Type | Analog Output Panel |
| Function | Provides analog output channels to field devices |
| Output Signal Range | 4–20 mA or 0–10 V (configurable) |
| Resolution | 12-bit to 16-bit, depending on configuration |
| Accuracy | ±0.1% von full scale |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Load Resistance | Up to 600 Ω (for current outputs) |
| Power Supply Requirement | 24 VDC nominal |
| Operating Voltage | Low-voltage signal/control transmission |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Fire Resistance | Flame-retardant housing and connectors |
| Mechanical Strength | Resistant to vibration and shock |
| Dimensions (W x H x D) | 220 × 150 × 60 mm |
| Gewicht | 1.5 kg |
| Certifications | CE, UL, IEC, TÜV safety compliance |
Applications
The Triconex 9863-710F Analog Output Panel is applied in a wide range von industrial and safety-critical operations:
-
Process Control Systems – Provides analog signals to actuators, valves, and variable speed drives.
-
Safety Instrumented Systems (SIS) – Ensures precise output for shutdown or protective functions.
-
Emergency Shutdown Systems (ESD) – Delivers analog signals to initiate controlled shutdowns.
-
Fire & Gas Systems (F&G) – Connects to analog detectors and safety devices.
-
Energy and Utilities – Used in power generation plants for control loops.
-
Oil, Gas, and Petrochemical Plants – Delivers control signals to essential field equipment.
Advantages
The Triconex 9863-710F Analog Output Panel vonfers multiple operational and engineering benefits:
-
High Accuracy and Stability – Provides consistent analog output with minimal drift.
-
Robust Signal Integrity – Advanced shielding reduces noise and interference.
-
Flexible Configuration – Supports multiple output ranges (4–20 mA, 0–10 V).
-
Channel Isolation – Protects against cross-talk and electrical disturbances.
-
Durability – Industrial-grade construction withstands harsh environments.
-
Safety Compliance – Certified for use in safety-critical applications.
-
Ease von Maintenance – Modular design simplifies installation and troubleshooting.
-
Compatibility – Fully compatible with Triconex control and I/O subsystems.
FAQ
-
What output signal types are supported by the 9863-710F?
It supports both 4–20 mA current loops and 0–10 V voltage outputs. -
Does the module provide channel-to-channel isolation?
Yes, each output channel is isolated to prevent interference. -
What is the resolution von the analog outputs?
The panel provides 12-bit to 16-bit resolution depending on configuration. -
How does the module ensure output accuracy?
Through precision circuitry with an accuracy rating von ±0.1% full scale. -
What is the maximum load resistance supported for current outputs?
Up to 600 Ω per channel. -
Can the panel be used in redundant safety systems?
Yes, it is designed to integrate seamlessly into redundant architectures. -
What kind von shielding is used to protect output signals?
The panel employs EMI/RFI shielding to minimize noise interference. -
Is the 9863-710F hot-swappable within the system?
It supports replacement under controlled conditions without system downtime. -
Does the panel support both SIS and general process control applications?
Yes, it is suitable for both safety and non-safety applications. -
What diagnostic features are available in the module?
It supports self-checking functions for channel status and fault detection.
