Produkteinführung

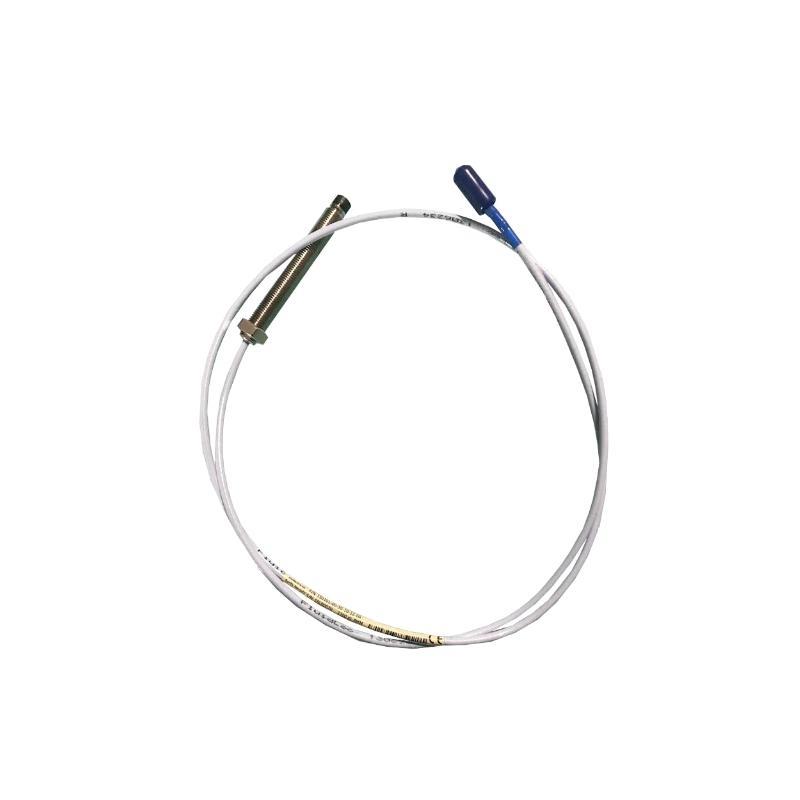

The Bently Nevada 330101-00-50-10-02-00 is a high-performance proximity probe designed as part von the 3300 XL 8mm Proximity Transducer System, developed by Bently Nevada, a trusted name in industrial condition monitoring and vibration detection. This probe is primarily used for non-contact displacement measurements and vibration monitoring von rotating machinery.
The 3300 XL series is renowned for its exceptional reliability in demanding industrial environments, such as power generation, petrochemical, and oil & gas sectors. This specific model—330101-00-50-10-02-00—features a 1.0 meter Total Length extension cable, and a connector protector designed for enhanced field durability and signal integrity.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell Number | 330101-00-50-10-02-00 |
| Series | 3300 XL 8mm Proximity Probes |
| Probe Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Linear Range | 80 mils (2 mm) |
| Frequency Range | 0 to 10 kHz |
| Probe Material | AISI 303 Stainless Steel |
| Cable Armor | Optional flexible stainless steel conduit |
| Connector Type | Miniature coaxial connector |
| Operating Temperature Range | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Environmental Sealing | IP65 (with connector protector installed) |
| Vibration Limit | 10 g pk, 58–500 Hz |
| Shock Limit | 1000 g, 1 ms |
| Mounting Thread | 1/4-28 UNF-2A |
| Gewicht | 0.323 kg |
| System Compatibility | Compatible with 3300 XL Proximitor and 3300 monitoring systems |
Product Applications
The 330101-00-50-10-02-00 proximity probe is ideally suited for the following applications:
-
Shaft vibration and displacement monitoring in rotating machines
-
Thrust position measurements in steam and gas turbines
-
Axial position monitoring in compressors and pumps
-
Zustand monitoring in gearboxes and centrifugal machines
-
Integration into API 670 compliant systems
-
Continuous machinery protection in hazardous and high-temperature environments
These probes are frequently deployed in oil refineries, power plants, chemical facilities, and water treatment stations.
Product Advantages
-
Industry-Standard Performance: Offers consistent and reliable 200 mV/mil sensitivity in line with API 670.
-
High Environmental Tolerance: Functions reliably in high temperature, high vibration, and hazardous industrial environments.
-
Robust Construction: Stainless steel design ensures resistance to corrosion and wear.
-
Field Replaceability: The modular design allows quick replacement without recalibration.
-
Superior Signal Integrity: Shielded coaxial cabling minimizes electrical noise and signal degradation.
-
Compatibility: Fully compatible with legacy and new Bently Nevada monitoring systems.
-
Long-Term Stability: Proven performance over extended durations with minimal drift.
Häufig gestellte Fragen (FAQ)
-
What is the sensing range von the 330101-00-50-10-02-00 probe?
→ The typical linear sensing range is 80 mils (2 mm). -
Can this proximity probe be used in hazardous environments?
→ Yes, it is vonten used in hazardous areas when paired with appropriate monitoring systems. -
Is this model compliant with API 670?
→ Yes, it conforms to API 670 standards when used as part von the 3300 XL system. -
Does this probe support extension cable connections?
→ Yes, this model includes a 10 ft extension cable in its configuration. -
What kind von connector does it use?
→ A miniature coaxial connector is used for secure, high-fidelity signal transfer. -
What is the temperature tolerance von the probe?
→ Operating range is -35°C to +177°C, and storage range is -51°C to +177°C. -
How should the probe be mounted?
→ It uses a 1/4-28 UNF-2A threaded mount and requires proper alignment for accurate measurements. -
Can this model work with non-Bently Nevada systems?
→ While optimized for Bently Nevada monitors, it may be adapted to other systems with signal conditioning. -
What materials is the probe made von?
→ It is constructed using AISI 303 stainless steel for durability and corrosion resistance. -
What maintenance is required for this probe?
→ Minimal maintenance; periodic visual inspection and cleaning von the tip is recommended.
Related Modells (Same Series or Compatible)
| Modell Number | Beschreibung |
|---|---|
| 330101-00-30-10-02-00 | 3300 XL 8mm probe with 30 ft cable and 10 ft extension |
| 330101-00-80-10-02-00 | 3300 XL 8mm probe with 80 ft cable and 10 ft extension |
| 330104-00-12-10-02-00 | 3300 XL 11 mm probe, 12 ft cable, high-temperature version |
| 330130-040-00-00 | Extension cable for 3300 XL probes, 40 ft |
| 330180-91-05 | 3300 XL Proximitor Sensor, 5 m cable, DIN rail mount |
| 330105-02-12-10-02-00 | Reverse Mount 8mm probe, 12 ft cable, 10 ft extension |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/22M | Key interface module for Bently Nevada 3500 system |
| 3500/42M | Proximitor Seismic Monitor module |
| 3300 XL 8mm | Complete proximity transducer system with 8mm sensing head |
| 3500/15 | Power supply module for 3500 series |
| 3500/60 | Temperature Monitor module for process applications |
| 3500/25 | Keyphasor module for speed/phase measurements |
