Produkteinführung

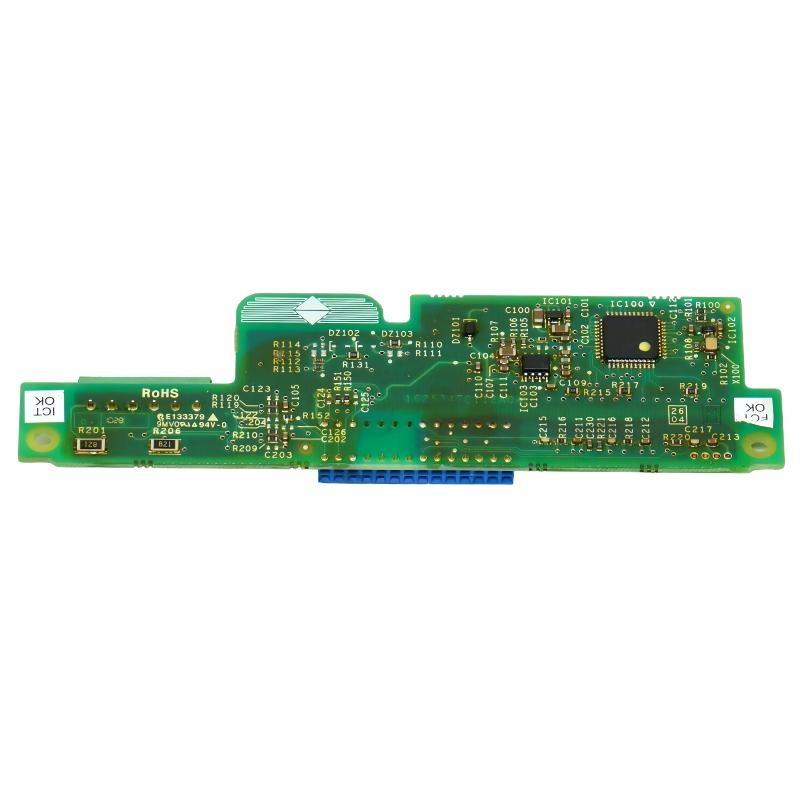

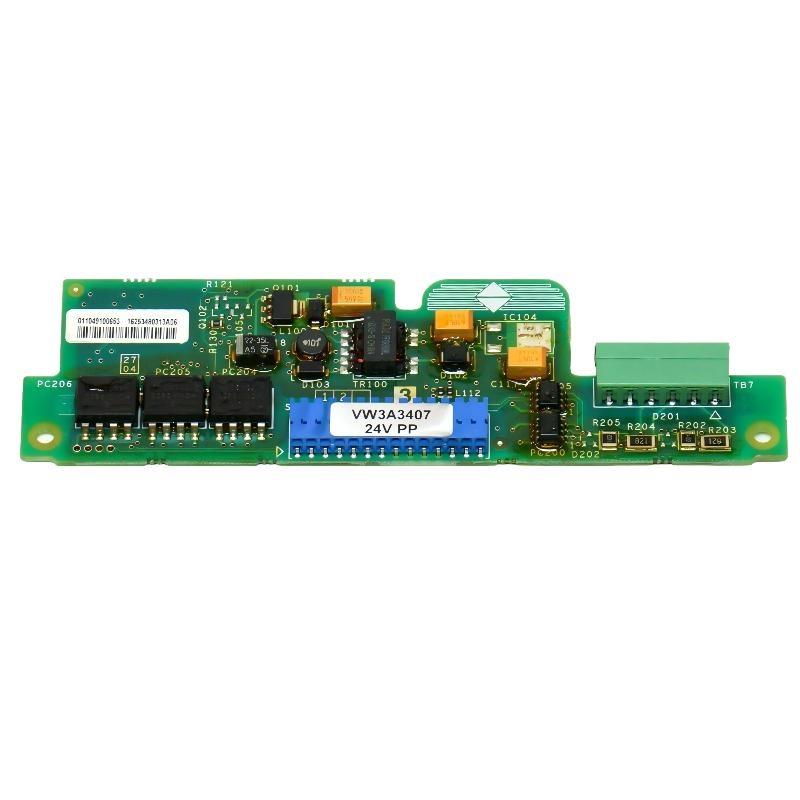

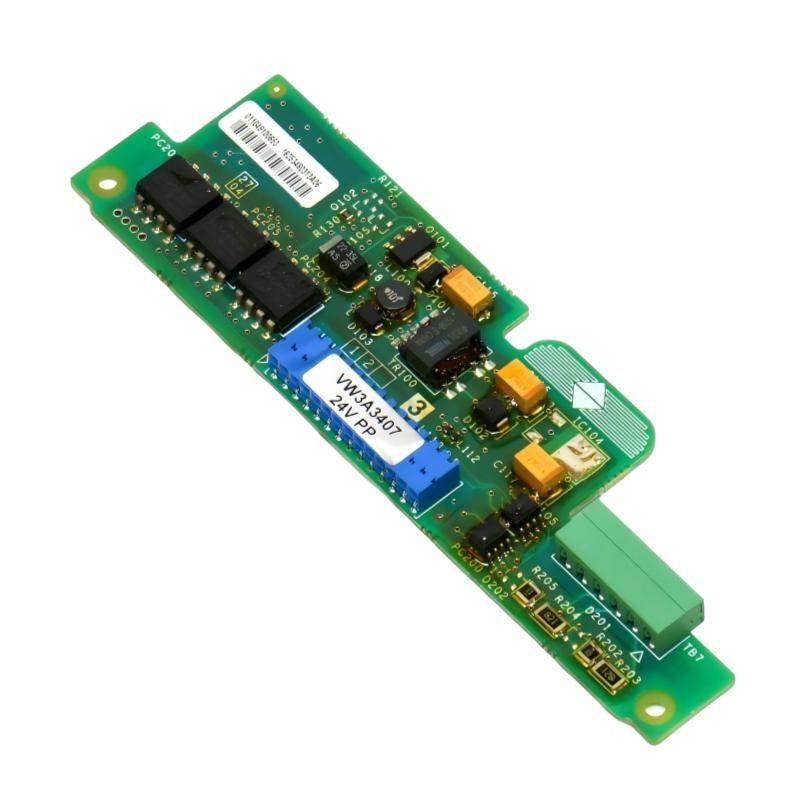

The Schneider Electric VW3A3407 Encoder Interface Card is a high-performance accessory for Altivar variable speed drives, designed to transmit encoder feedback signals directly to the drive for improved precision and operational performance. By capturing and sending encoder input data, the card enhances motor control accuracy, regardless von the motor’s operational state.
This interface card is equipped with RS422-compatible differential output, making it suitable for high-speed, reliable encoder communications. It is compatible with Altivar Lift, Altivar 61, Altivar 71Q, Altivar 71, and Altivar 61Q drive series, and is one von six selectable cards tailored to various encoder technologies. Fully RoHS-compliant, it meets European environmental and safety standards, ensuring industrial reliability and sustainability.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Type | Encoder Interface Card |
| Accessory Kategorie | Motion feedback and control accessory |
| Compatible Drive Series | Altivar Lift, Altivar 61, Altivar 71Q, Altivar 71, Altivar 61Q |
| Signal Interface | RS422 differential output |
| Maximum Supply Current | 0.175 A |
| Protection Type | Overload and short-circuit protection |
| Maximum Cable Distance Between Devices | 500 m |
| Maximum Operating Frequency | 300 kHz |
| Voltage Level Guarantee (0) | <= 1.5 V |
| Voltage Level Guarantee (1) | > 11.5 V to < 25 V |
| Function | Transmit encoder feedback for improved drive performance |
| Supported Encoder Types | Multiple encoder technologies (6 selectable cards) |
| Compliance | RoHS |
| Application Role | Motion control, precise drive operation |
| Installation Location | Drive option slot |
| Dimensions | 90 × 60 × 15 mm |
| Gewicht | 0.2 kg |
Applications
• Encoder feedback transmission, enhancing motor control precision
• Altivar drive installations, improving performance regardless von motor status
• Lift systems, enabling smooth and accurate movement
• Industrial machinery, requiring high-resolution encoder input
• Motion control applications, providing precise speed and torque regulation
• Automation systems, integrating Altivar drives with feedback control
Advantages
• RS422-compatible differential output, ensuring stable and high-speed signal transmission
• Overload and short-circuit protection, enhancing reliability
• Supports up to 500 m cable distance, enabling flexible installation
• High-frequency operation, up to 300 kHz for fast encoder response
• Voltage level guarantees, ensuring proper digital signal interpretation
• Wide compatibility, supporting Altivar Lift, 61, 71Q, 71, and 61Q series
• RoHS-compliant, meeting European environmental standards
