Product Beschreibung

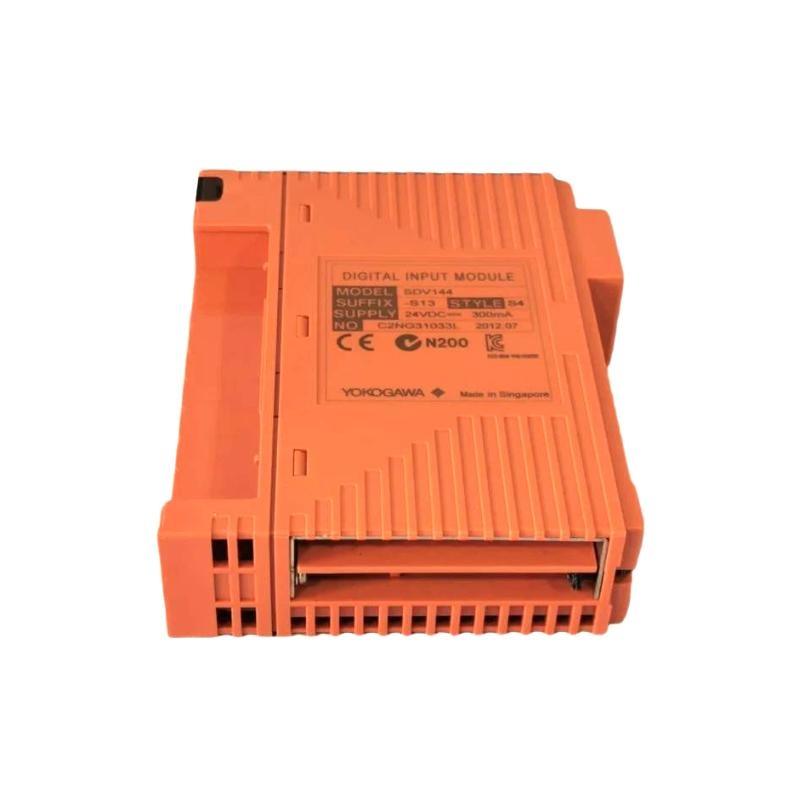

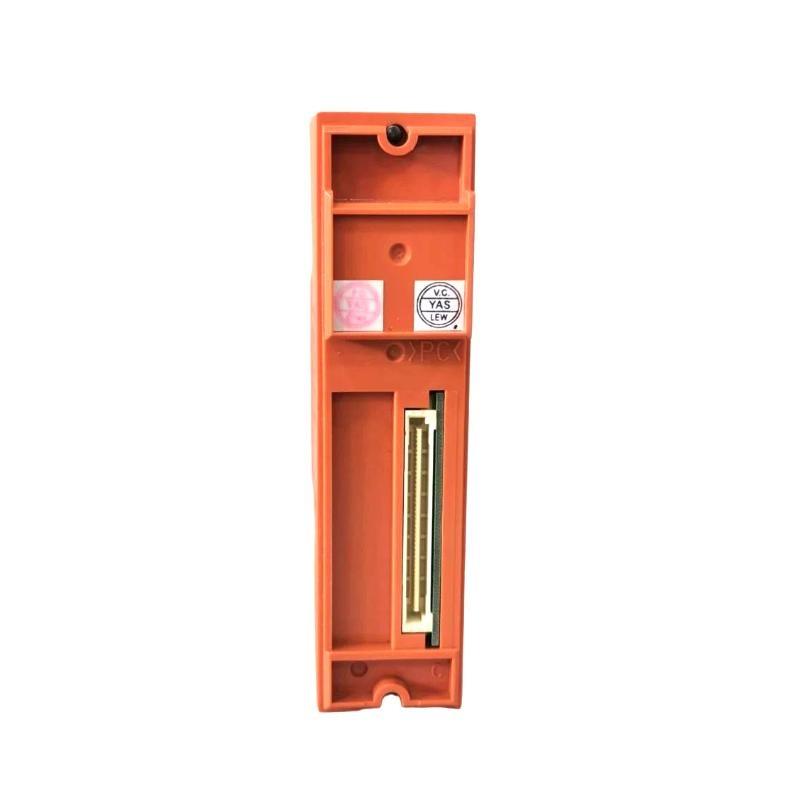

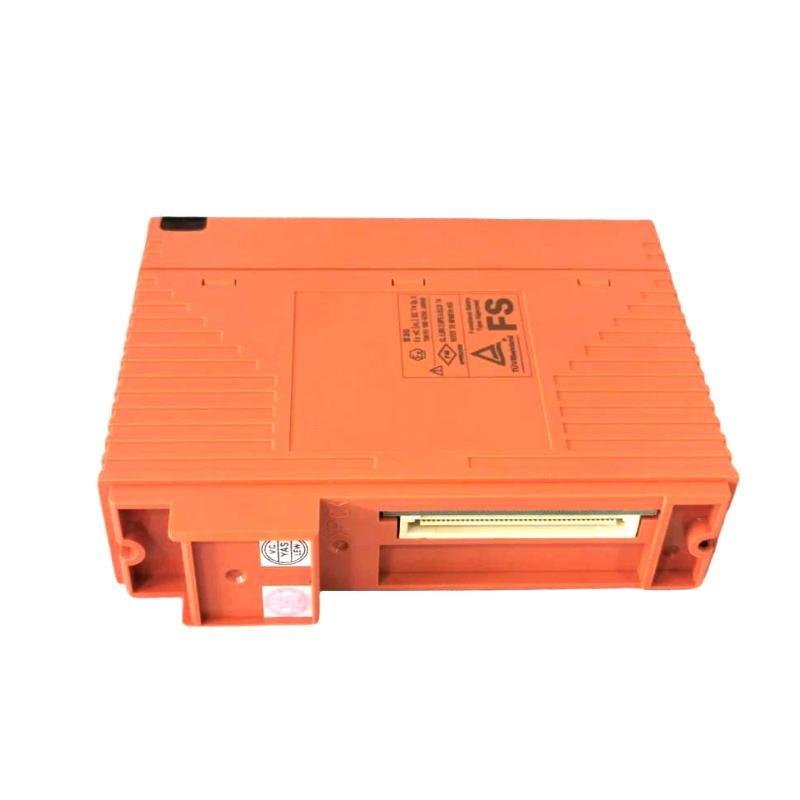

The Yokogawa SDV144-S13/D4A00 S2 is a high-performance digital input module designed for seamless integration within the CENTUM VP and ProSafe-RS control systems. It ensures reliable signal acquisition from field devices, supporting accurate process monitoring and control. Its compact design and robust architecture provide enhanced operational stability in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | SDV144-S13/D4A00 S2 |
| Type | Digital Input Module |
| Input Channels | 16 channels |
| Input Type | Sink/Source configurable |
| Voltage Range | 24 VDC ±10% |
| Isolation | Channel-to-channel and channel-to-power supply isolation |
| Response Time | 5 ms max |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 70°C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions | 130 x 32.8 x 107.5 mm |
| Gewicht | 0.36 kg |
| Mounting | DIN rail or panel mount |
| Compliance | CE, UL |
Applications
-
Process automation in chemical, petrochemical, and power plants
-
Integration into safety instrumented systems (SIS)
-
Monitoring von discrete field signals such as switches and relays
-
Redundant control systems requiring high reliability
-
Industrial control systems requiring compact digital I/O expansion
Advantages
-
Compact design reduces cabinet space requirements
-
High signal integrity with isolation between channels
-
Fast response time ensures accurate process monitoring
-
Flexible input configuration (sink/source)
-
Rugged and reliable for harsh industrial environments
-
Simplifies system expansion with modular design
FAQ
1. What type von input does the SDV144-S13/D4A00 S2 support?
It supports both sink and source digital input signals.
2. How many input channels are available?
The module provides 16 independent digital input channels.
3. What is the operating voltage range?
The module operates at 24 VDC ±10%.
4. Can the module be mounted on a panel or DIN rail?
Yes, it supports both DIN rail and panel mounting options.
5. What is the maximum response time?
The response time is 5 milliseconds.
6. Is channel-to-channel isolation provided?
Yes, both channel-to-channel and channel-to-power supply isolation are included.
7. What are the environmental operating conditions?
Operating temperature is 0–55°C, with humidity from 5–95% RH non-condensing.
8. Can this module be used in safety instrumented systems (SIS)?
Yes, it is suitable for SIS integration within ProSafe-RS systems.
9. What certifications does it have?
It complies with CE and UL standards.
10. How does this module support system expansion?
Its modular design allows easy addition von digital input channels to existing control systems.
Related Modells (Same Series)
| Modell | Beschreibung | Channels | Dimensions | Gewicht |
|---|---|---|---|---|
| SDV144-S13/D4B00 S2 | Digital Input Module, 16ch | 16 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/D4C00 S2 | Digital Input Module, 16ch | 16 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/D4D00 S2 | Digital Input Module, 16ch | 16 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/D4E00 S2 | Digital Input Module, 16ch | 16 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/D4F00 S2 | Digital Input Module, 16ch | 16 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/D4G00 S2 | Digital Input Module, 16ch | 16 | 130 x 32.8 x 107.5 mm | 0.36 kg |
Popular Yokogawa Modells
| Modell | Type | Channels/Capacity | Dimensions | Gewicht |
|---|---|---|---|---|
| SDV144-S12/D3A00 S2 | Digital Input Module | 16 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S12/D3B00 S2 | Digital Output Module | 16 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/A4A00 S2 | Analog Input Module | 8 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/A4B00 S2 | Analog Input Module | 8 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/B4A00 S2 | Analog Output Module | 4 | 130 x 32.8 x 107.5 mm | 0.36 kg |
| SDV144-S13/B4B00 S2 | Analog Output Module | 4 | 130 x 32.8 x 107.5 mm | 0.36 kg |
