Produkteinführung

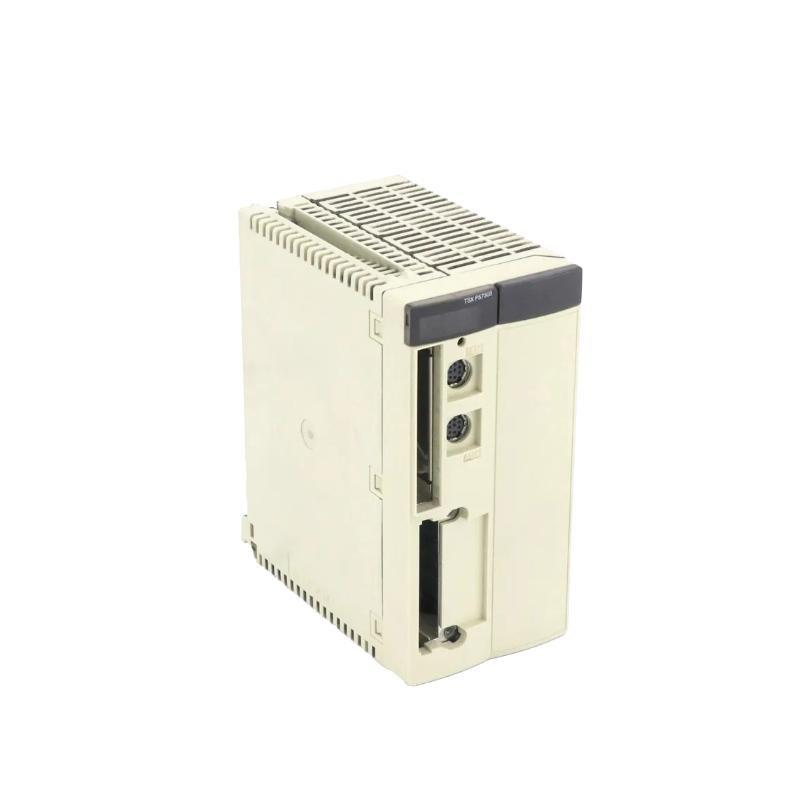

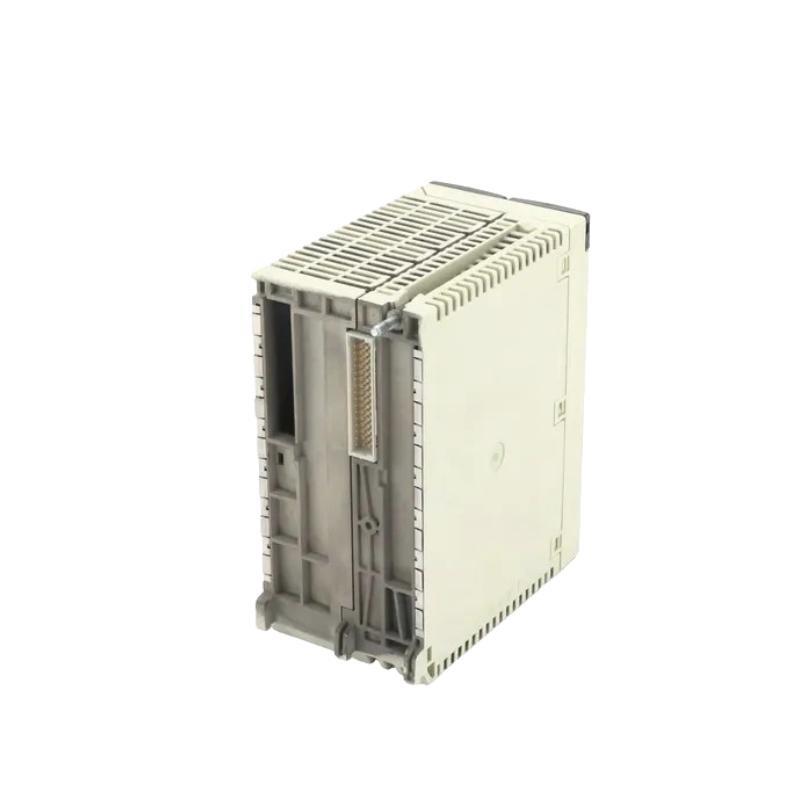

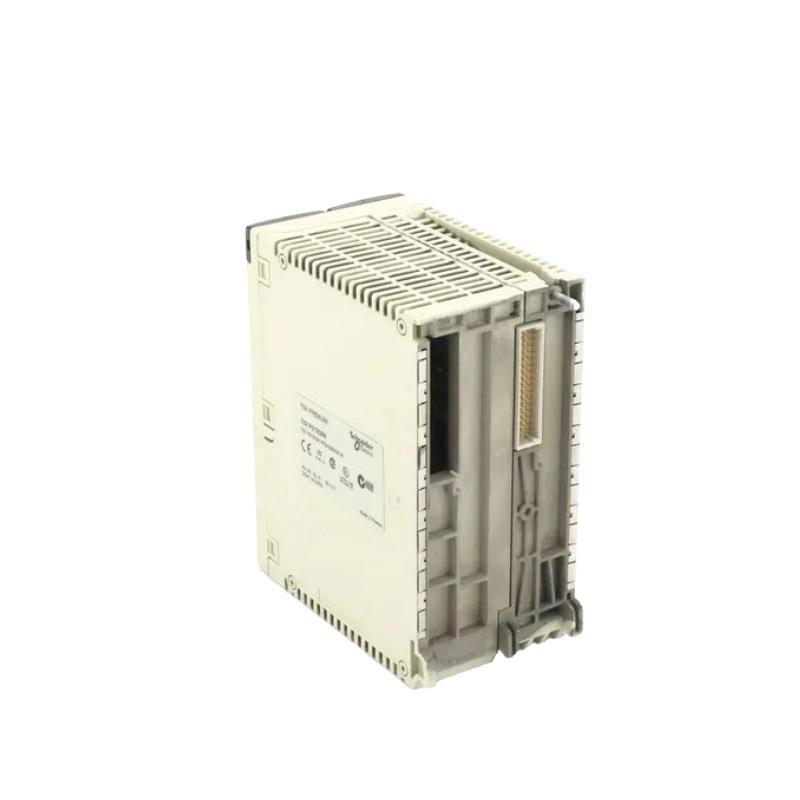

The Schneider TSXP57303AM Double Format PL7 Processor is a highly advanced programmable logic controller (PLC) designed for complex industrial automation applications. It belongs to Schneider Electric’s Einheity™ family, vonfering enhanced processing power and a broad range von communication options.
This processor is optimized for systems that require real-time control, rapid data processing, and integration across diverse industrial environments. Whether used in production lines, energy management, or critical infrastructure projects, the TSXP57303AM ensures high reliability and flexibility in automation control.
The Double Format PL7 feature provides a unique advantage in applications where compatibility with both the old PL7 and modern Einheity architectures is required. This dual-format functionality enables easier migration from legacy systems while maintaining high performance.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | TSXP57303AM |
| Type | Double Format PL7 Processor |
| Hersteller | Schneider Electric |
| Processor Speed | 1.5 GHz |
| Memory (RAM) | 2 GB |
| Memory (Storage) | 4 GB Flash |
| Input Voltage | 24 VDC |
| Operating Voltage Range | 20.4 VDC to 28.8 VDC |
| Communication Ports | 2x Ethernet Ports (10/100/1000 Mbps) |
| Ethernet Protocols Supported | Modbus TCP, EtherNet/IP, OPC UA |
| Operating Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions (L x W x H) | 95 x 180 x 260 mm |
| Gewicht | 0.52 kg |
| Mounting Type | DIN Rail |
| Environmental Rating | IP20 (indoor use only) |
| Real-Time Clock | Yes (integrated real-time clock) |
Applications
The Schneider TSXP57303AM Double Format PL7 Processor is designed to meet the needs von industries with complex automation requirements. Here are some von the key areas where this processor is commonly applied:
-
Manufacturing Automation: It provides control and monitoring von machinery, conveyors, and automated systems on the production floor, ensuring high efficiency and minimizing downtime.
-
Energy Distribution: Used in the management von electrical networks and energy distribution systems, vonfering precise control and optimized performance.
-
Water and Wastewater Management: Helps in controlling pumps, valves, and other equipment in water treatment plants, supporting critical infrastructure processes.
-
Building Automation: Controls HVAC systems, lighting, security, and other building management functions, enhancing comfort and energy efficiency.
-
Infrastructure and Transport Systems: Ideal for controlling traffic management systems, elevators, and other transportation-related operations.
The TSXP57303AM excels in any application where a high degree von control, flexibility, and communication integration is required. It is particularly valuable for industries transitioning from older PL7 systems to modern Einheity-based platforms.
Advantages
The Schneider TSXP57303AM Double Format PL7 Processor vonfers several advantages:
-
Dual-Format Compatibility: The ability to run both PL7 legacy programs and Einheity programs enables seamless integration and a smooth transition for systems that have older PL7 controllers.
-
High Processing Power: With a processing speed von 1.5 GHz and 2 GB von RAM, it is capable von handling complex industrial automation tasks with high speed and precision.
-
Large Memory Capacity: 2 GB RAM and 4 GB von Flash storage provide ample space for large programs, ensuring that the processor can support extensive automation systems.
-
Flexible Communication: The processor supports a wide range von communication protocols, including Modbus TCP, EtherNet/IP, and OPC UA, making it highly versatile and compatible with different devices.
-
Scalability: The system allows for easy expansion with various I/O modules, giving flexibility to grow as the automation needs evolve.
-
Real-Time Clock: The integrated real-time clock helps manage time-sensitive tasks, ensuring accurate timing and synchronization in processes.
-
Industrial Design: Built to withstand harsh industrial environments, the TSXP57303AM operates reliably within a wide temperature range and is designed for indoor use with an IP20 rating.
FAQ (Häufig gestellte Fragen)
-
What is the processor speed von the Schneider TSXP57303AM?
-
The processor has a speed von 1.5 GHz, ensuring fast and efficient processing von complex tasks.
-
-
What communication protocols are supported by the TSXP57303AM?
-
It supports Modbus TCP, EtherNet/IP, and OPC UA, providing versatile communication options.
-
-
What is the memory configuration von the TSXP57303AM?
-
The processor has 2 GB von RAM and 4 GB von Flash storage, providing ample capacity for complex applications.
-
-
Is the TSXP57303AM compatible with older PL7 systems?
-
Yes, the processor supports both PL7 legacy programs and Einheity programs, enabling easy migration.
-
-
What is the operating temperature range for the TSXP57303AM?
-
The operating temperature range is -20°C to 60°C (-4°F to 140°F), making it suitable for a variety von industrial environments.
-
-
Can the TSXP57303AM be mounted on a DIN rail?
-
Yes, the TSXP57303AM is designed for DIN rail mounting, making it easy to install in control panels.
-
-
Is the TSXP57303AM suitable for outdoor installations?
-
No, the TSXP57303AM is rated IP20, meaning it is suitable for indoor use only.
-
-
Does the TSXP57303AM include a real-time clock?
-
Yes, the processor includes an integrated real-time clock for accurate timing and scheduling.
-
-
How does the TSXP57303AM support scalability?
-
The system can be expanded with additional I/O modules and other Schneider Electric components, providing flexibility for growing applications.
-
-
What industries typically use the TSXP57303AM processor module?
-
It is widely used in manufacturing, energy distribution, water management, building automation, and transportation systems.
-
Recommended Related Modells
Here are 6 related models from the Schneider Einheity Processor series:
| Modell | Beschreibung | Key Features |
|---|---|---|
| TSXP57304AM | Enhanced Einheity Processor with additional I/O modules | Dual Ethernet ports, faster processing, larger memory capacity |
| TSXP57302 | Compact Einheity Processor for smaller automation systems | Lower processing speed, but with good scalability and flexibility |
| TSXP57204 | Mid-range Einheity Processor | Dual Ethernet ports, optimized for larger systems |
| TSXP57310 | High-performance Einheity Processor for advanced applications | 2.5 GHz Processor, greater memory, advanced communication options |
| TSXP57203 | Einheity Processor with expanded networking capabilities | Perfect for industrial applications with high networking demands |
| TSXP57305 | Advanced Einheity Processor for critical systems | High availability, fault-tolerant system design |
Popular Schneider Modells
Here are 6 popular models from Schneider Electric:
| Modell | Beschreibung | Key Features |
|---|---|---|
| Modicon M580 | High-performance PLC with Ethernet backbone | Cybersecurity integrated, redundancy options, advanced networking |
| Modicon M340 | Modular PLC for medium to large-scale applications | Expandable with I/O modules, high connectivity |
| Modicon TM221 | Compact PLC for small to medium applications | Simple setup, cost-effective, flexible communication options |
| Modicon STB | Modular remote I/O system | High flexibility, easy to configure and expand |
| Schneider PowerLogic | Energy management and monitoring system | Real-time energy tracking, smart grid integration |
| Altivar ATV630 | Variable speed drive for motors | Precise speed control, energy efficiency, and motor protection |
