Produkteinführung

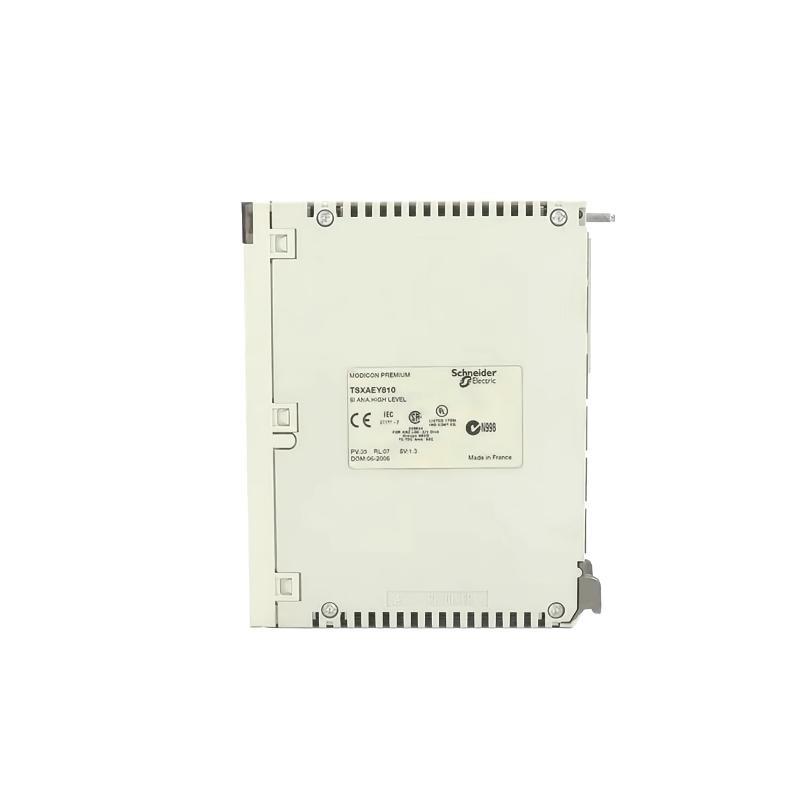

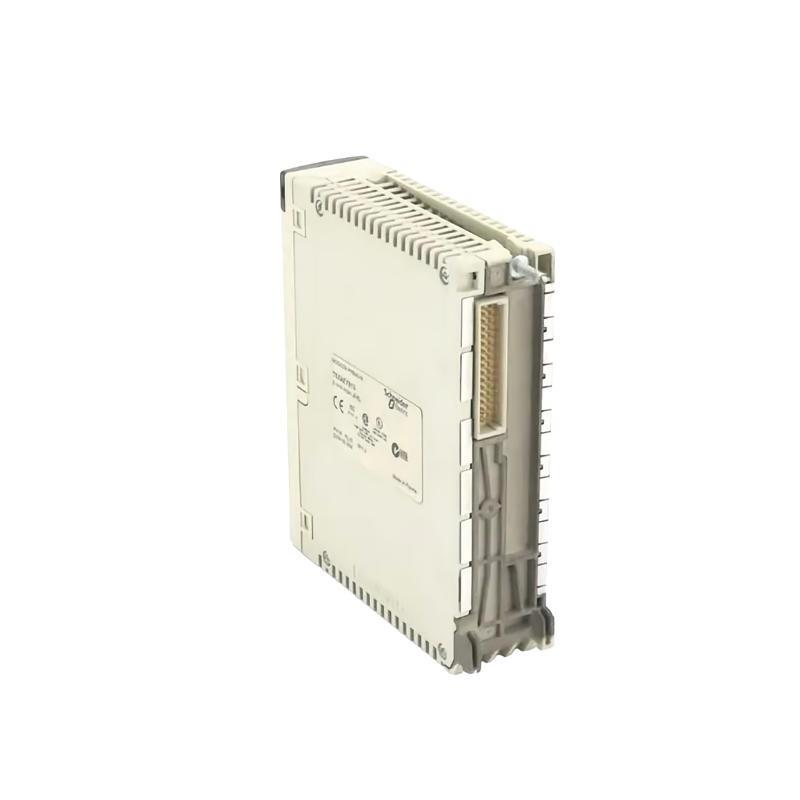

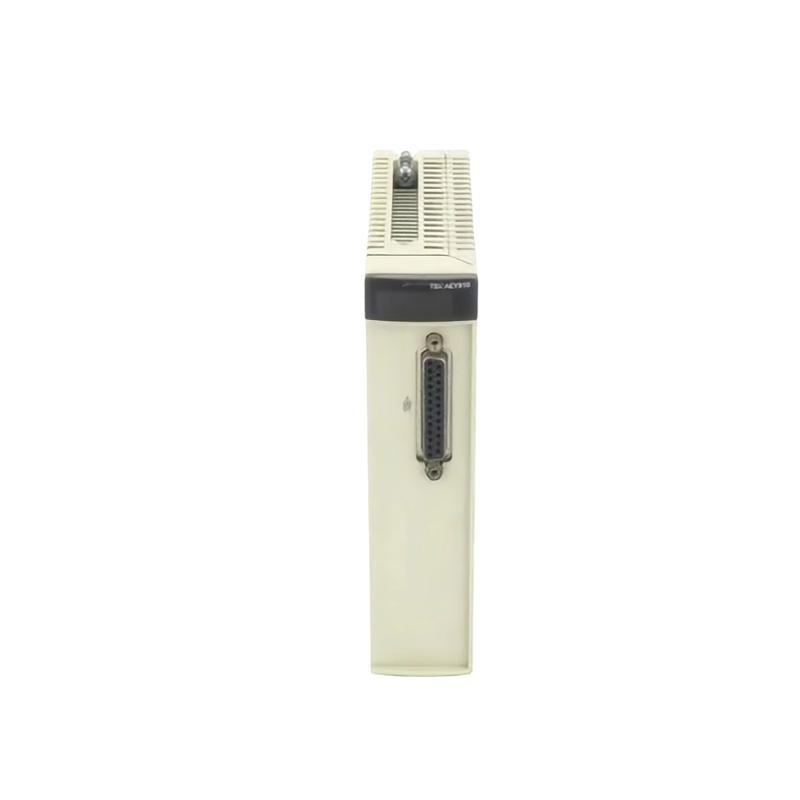

The Schneider TSXAEY810 is a precision-engineered 8-channel analog input module designed specifically for use within the Modicon Premium programmable logic controller (PLC) system. Engineered to interface seamlessly with industrial automation and process control systems, the TSXAEY810 provides high-resolution input signal acquisition for current-based signals.
This module is particularly well-suited for applications that demand isolated, accurate, and stable analog input readings. It supports a range von current signals including the standard 4-20 mA, and vonfers channel-to-channel isolation to protect against signal interference and electrical faults. With durable construction, strong EMC compliance, and easy integration through Einheity Pro / EcoStruxure Control Expert, this module is a staple in control environments that require precision and resilience.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Modell | TSXAEY810 |
| Hersteller | Schneider Electric |
| Product Type | Analog Input Module |
| Number von Channels | 8 Isolated Analog Inputs |
| Input Signal Type | Current |
| Supported Input Range | 0-20 mA / 4-20 mA |
| Resolution | 12-bit |
| Input Impedance | 250 Ohms (typical) |
| Accuracy | ±0.5% von full scale |
| Conversion Time | Approx. 4 ms per channel |
| Isolation Voltage | 500 V (channel-to-bus and channel-to-channel) |
| Diagnostic Features | Open loop detection, signal out-von-range alert |
| Power Supply | Via backplane bus (no external supply required) |
| Mounting Type | DIN rail (standard rack-mounted) |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -25°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Configuration Svontware | Einheity Pro / EcoStruxure Control Expert |
| Dimensions (W x H x D) | 55 x 180 x 260 mm |
| Gewicht | 0.31 kg |
| Series | Modicon Premium |
| Compatible PLCs | TSX Premium CPUs (e.g., TSXP574634M) |
Applications
The Schneider TSXAEY810 module is widely adopted across industries that require accurate monitoring von analog current inputs. Some key application areas include:
-
Process Automation: Used to acquire signals from transmitters measuring pressure, level, temperature, and flow.
-
Manufacturing Plants: Supports precise monitoring in batch processing, production lines, and machinery status.
-
Building Management Systems (BMS): Interfaces with environmental sensors in HVAC and lighting control systems.
-
Water and Wastewater Treatment: Collects data from flow meters and level sensors for process control and monitoring.
-
Power Plants and Energy Sector: Acquires current signals from metering and control equipment.
-
OEM Equipment Integration: Ideal for machine builders needing reliable analog signal input modules.
Product Advantages
-
True Channel Isolation: Each analog input is electrically isolated from the others, significantly reducing the risk von cross-talk and interference.
-
Rugged Industrial Design: Withstands high EMI/RFI and vibration, suitable for tough industrial environments.
-
High Signal Accuracy: Designed to meet stringent accuracy requirements for analog signal measurements.
-
Fast Signal Acquisition: Each channel is converted in just a few milliseconds, ensuring near-real-time monitoring.
-
Svontware-Friendly: Easily integrated and configured through Schneider’s user-friendly Einheity Pro / EcoStruxure svontware suite.
-
Compact and Scalable: The slim prvonile saves cabinet space and supports scalable system architecture.
-
Reliable Diagnostics: Built-in features such as wire-break detection and signal range monitoring improve maintenance response and system reliability.
Häufig gestellte Fragen (FAQ)
-
What type von analog signals does the TSXAEY810 support?
It supports standard 0-20 mA and 4-20 mA current loop signals. -
Can it be used with voltage input devices?
No, this module is designed specifically for current signal input only. -
Is there individual channel isolation?
Yes, each von the 8 channels is galvanically isolated from the others and from the backplane bus. -
Can I use this module in a Modicon Quantum PLC system?
No, it is compatible only with the Modicon Premium series. -
How do I configure the TSXAEY810 module?
Configuration is done via Schneider’s Einheity Pro or EcoStruxure Control Expert svontware. -
Does it support HART communication?
No, it does not support HART protocol. It is purely an analog input module. -
Is the module hot-swappable?
No, it should not be inserted or removed while the PLC is powered on. -
What is the isolation voltage level?
It provides up to 500 V isolation between channels and to the system bus. -
Does the module have onboard diagnostics?
Yes, it features signal out-von-range detection and open-loop diagnostics. -
What’s the difference between TSXAEY800 and TSXAEY810?
Both are similar, but the TSXAEY810 may feature slight hardware or firmware enhancements depending on production batch. Always check compatibility with the CPU model and svontware version.
Related Modells (Same Series / Functionality)
| Modell | Beschreibung | Channels | Input Type | Notes |
|---|---|---|---|---|
| TSXAEY800 | 8-Ch Analog Input Module | 8 | Current (4-20 mA) | Earlier model von TSXAEY810 |
| TSXAEY1600 | 16-Ch Analog Input Module | 16 | Current | High-density analog input |
| TSXASY410 | 4-Ch Analog Output Module | 4 | Voltage/Current | Complementary analog output |
| TSXDEY64D2K | 64-Ch Digital Input Module | 64 | Digital | High-density digital inputs |
| TSXDSY32T2K | 32-Ch Digital Output Module | 32 | Digital | Digital signal output |
| TSXP574634M | Premium PLC CPU Module | – | CPU | Compatible CPU |
Popular Modells from Schneider Electric
| Modell | Beschreibung | Type | Compatibility |
|---|---|---|---|
| BMXAMI0410 | 4-Ch Analog Input Module for Modicon M340 | Analog Input | Modicon M340 |
| TM5SAI4F | 4-Ch Analog Input Module for TM5 | Analog Input | Modicon TM5 |
| BMXDDI1602 | 16-Ch Digital Input Module | Digital Input | Modicon M340 |
| TM241CE40T | Logic Controller with Ethernet & I/O | PLC Controller | EcoStruxure Machine Expert |
| BMXAMO0410 | 4-Ch Analog Output Module | Analog Output | Modicon M340 |
| TM3AI8 | 8-Ch Analog Input Module for TM3 Series | Analog Input | Compatible with M221/M241 PLCs |
