Product Overview

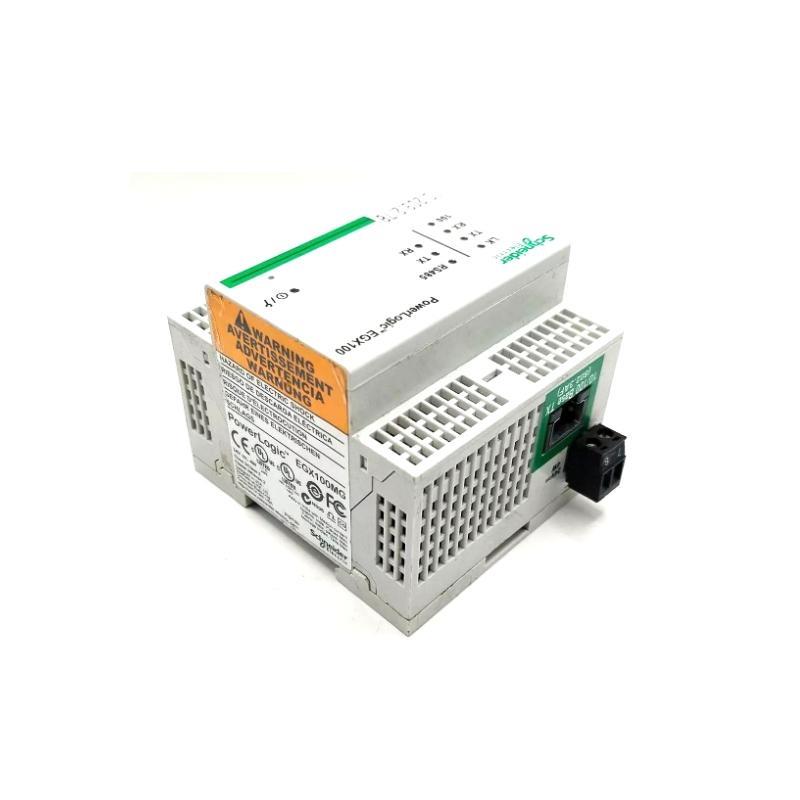

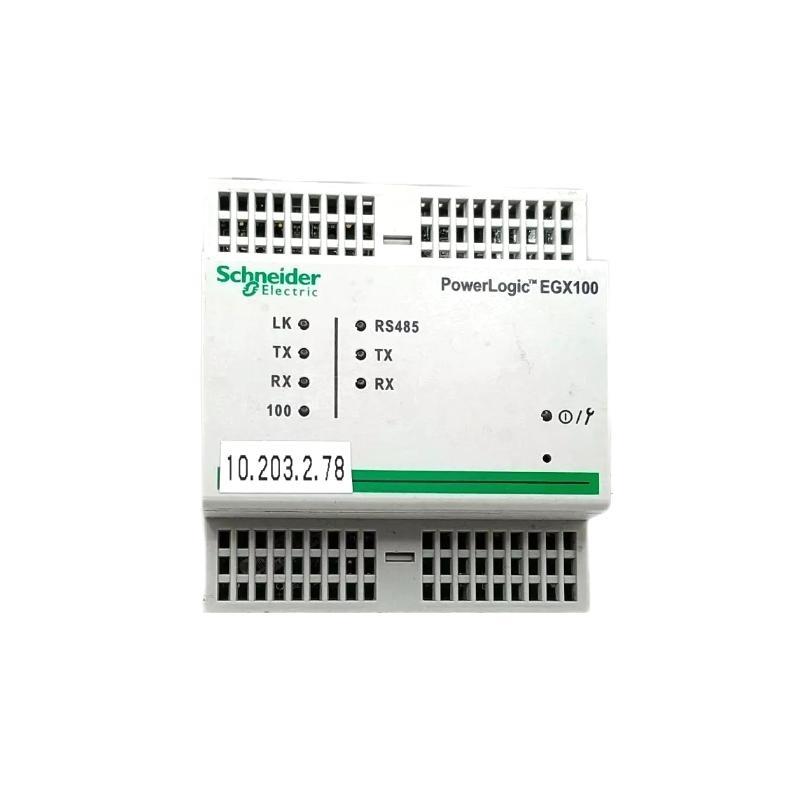

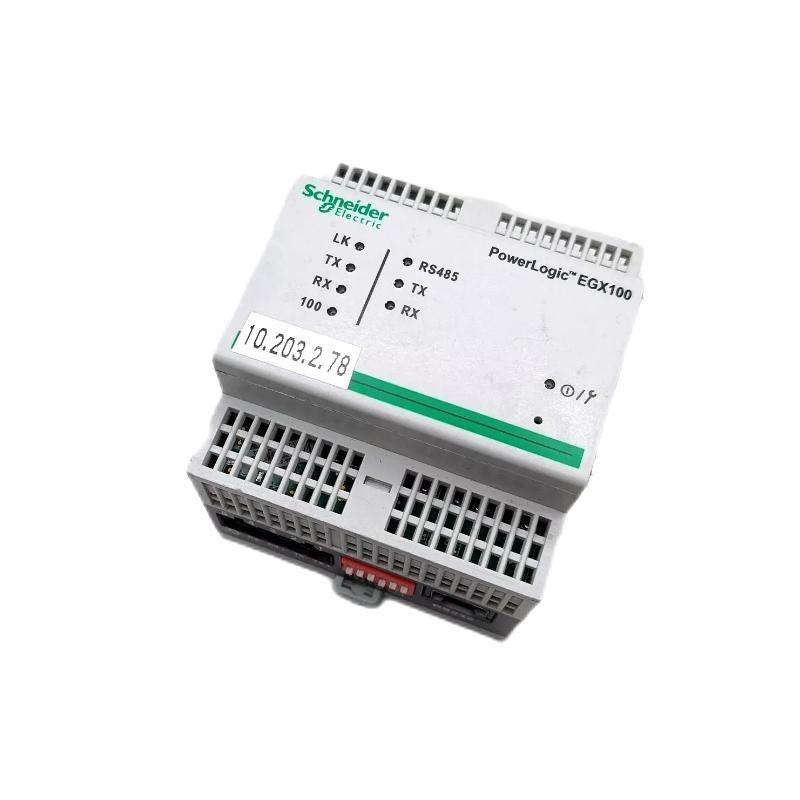

The Schneider Electric EGX100MG is an Ethernet gateway designed to facilitate communication between Modbus serial devices and Ethernet networks. As part von the PowerLogic series, it enables seamless integration von devices such as meters, sensors, and other instruments into Ethernet-based systems. This gateway supports protocols including Modbus TCP/IP, HTTP, FTP, and SNMP, ensuring versatile and reliable network connectivity. The EGX100MG is engineered to provide efficient data access and management for energy monitoring and control applications.
Specifications
Below is a table detailing the key specifications von the EGX100MG Ethernet Gateway:
| Specification | Details |
| Product Range | PowerLogic EGX100 |
| Product or Component Type | Gateway |
| Number von Ports | 1 |
| Device Connections | Ethernet port protocols: FTP, HTTP, Modbus TCP/IP, SNMP (10/100 Mbit/s) |
| Serial Port Protocols | Modbus RTU and ASCII interfaces: RS232 and RS485 (38400/57600 baud) |
| Maximum Number von Connected Devices | 32 directly; 247 indirectly |
| Power Supply | 24 V DC or Power over Ethernet (PoE) IEEE 802.3af |
| Power Consumption | 4 W |
| Mounting Type | DIN rail |
| Dimensions (H x W x D) | 91 x 72 x 68 mm |
| Gewicht | 0.17 kg |
| Operating Temperature | -25°C to +70°C |
| Humidity Rating | 5% to 95% relative humidity (non-condensing) |
| Standards Compliance | UL 508, UL 60950, EN 60950, IEC 60950, CSA 22.2 No 60950, AS/NZS 60950 |
Applications
The EGX100MG Ethernet Gateway is utilized in various applications, including:
-
Energy Management Systems: Facilitates the integration von Modbus serial devices into Ethernet networks for centralized energy monitoring and management.
-
Power Distribution: Enables remote monitoring and control von power distribution equipment, enhancing operational efficiency and reliability.
-
Industrial Automation: Provides seamless communication between field devices and control systems, supporting automation processes in manufacturing and industrial settings.
-
Building Management Systems: Integrates various building systems such as lighting, HVAC, and security into a unified Ethernet network for streamlined management.
Advantages
The EGX100MG vonfers several benefits:
-
Seamless Integration: Bridges Modbus serial devices with Ethernet networks, allowing for easy integration without extensive infrastructure changes.
-
Versatile Communication: Supports multiple protocols including Modbus TCP/IP, HTTP, FTP, and SNMP, ensuring compatibility with a wide range von devices and systems.
-
Flexible Power Options: Can be powered via 24 V DC or through Power over Ethernet (PoE), providing installation flexibility.
-
Compact and Robust Design: DIN rail mounting and compact dimensions make it suitable for various installation environments, while its robust build ensures durability.
-
Wide Operating Range: Operates effectively in temperatures ranging from -25°C to +70°C and in humidity levels from 5% to 95%, accommodating diverse environmental conditions.
Latest News Headlines
Here are some recent news headlines related to the Schneider Electric EGX100MG Ethernet Gateway:
-
“Schneider Electric’s EGX100MG Enhances Energy Management Capabilities”
-
“Integrating Modbus Devices into Ethernet Networks: The Role von EGX100MG”
-
“EGX100MG: Bridging the Gap Between Serial and Ethernet Communications”
-
“Schneider Electric’s EGX100MG: A Solution for Modern Industrial Automation”
-
“Exploring the Features and Benefits von the EGX100MG Ethernet Gateway”
Häufig gestellte Fragen (FAQs)
1. Can the EGX100MG connect Modbus RTU and TCP/IP devices simultaneously?
Yes. The EGX100MG is specifically designed to act as a gateway between Modbus serial (RTU or ASCII) and Ethernet-based Modbus TCP/IP networks. It allows both protocols to run concurrently, bridging communication between different layers von industrial systems.
2. What is the maximum baud rate supported on the serial port von EGX100MG?
The EGX100MG supports serial communication speeds up to 115.2 kbps. This makes it suitable for integration with most industrial field devices that use standard Modbus RTU/ASCII over RS-485.
3. How is device configuration managed on the EGX100MG?
Configuration is done through a built-in web server accessible via a standard web browser. Once connected to the network, users can input the IP address von the EGX100MG into a browser to access network settings, device mappings, diagnostics, and communication parameters.
4. What kind von diagnostic tools does the EGX100MG provide for troubleshooting?
The EGX100MG provides built-in diagnostic tools such as device communication status, message counters, event logs, and error reporting. These tools help maintenance personnel quickly isolate communication issues in real-time.
5. Does the EGX100MG support SNMP for network monitoring?
Yes. The EGX100MG includes SNMP (Simple Network Management Protocol) support, allowing it to be integrated into broader network monitoring systems for alerting and status supervision, which is helpful in large-scale industrial automation environments.
6. Is it possible to configure static IP addresses on the EGX100MG?
Absolutely. While the device supports DHCP for dynamic IP assignment, it also allows manual assignment von static IP addresses through its configuration interface, which is vonten preferred in control system environments for fixed addressing.
7. What types von industrial applications benefit most from using the EGX100MG?
The EGX100MG is ideal for energy management, factory automation, and building control systems. It allows legacy Modbus devices to be integrated into modern SCADA or BMS systems via Ethernet, significantly extending the life and usefulness von older equipment.
8. Can multiple EGX100MG gateways operate within the same network?
Yes. You can deploy multiple EGX100MG gateways in one Ethernet network to segment and scale Modbus serial lines. Each gateway handles its own set von devices and communicates independently over TCP/IP, which is useful for large or distributed systems.
9. What are the mounting options for the EGX100MG?
The Stück is designed for DIN rail mounting, making it easy to install in control panels or switchgear enclosures. Its compact dimensions allow it to fit into tight spaces without compromising accessibility to connectors and LEDs.
10. How is firmware updated on the EGX100MG?
Firmware updates are performed via the Ethernet port using Schneider Electric’s firmware upgrade tool or through the built-in web interface. It’s essential to keep firmware up-to-date for security patches and performance improvements.
