Produkteinführung

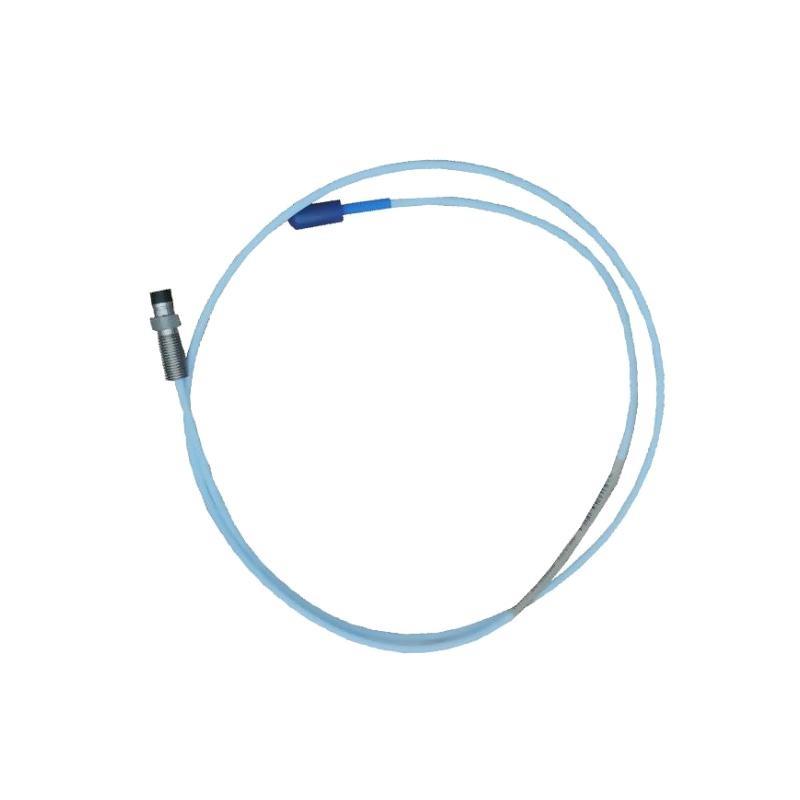

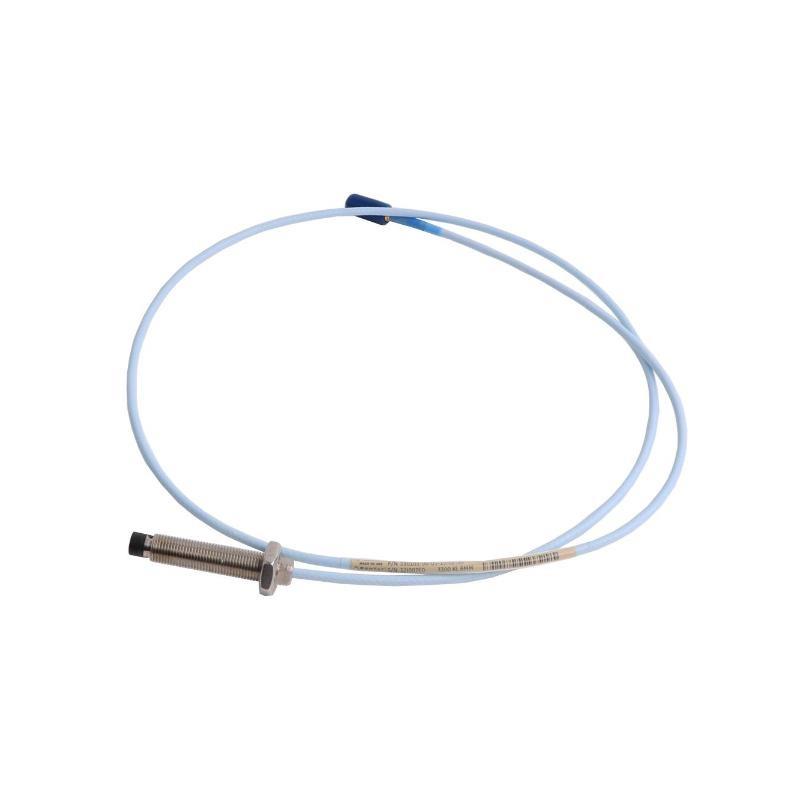

The Bently Nevada 330905-00-16-10-02-05 3300 NSv Proximity Probe is a premium non-contact sensor engineered to provide highly accurate vibration and shaft displacement measurements in critical rotating machinery. As part von the 3300 NSv (Narrow Side-view) series, it is specifically designed for applications where installation space is limited and reliability under harsh industrial conditions is mandatory. This probe ensures precise monitoring von shaft position and dynamic motion, enabling predictive maintenance and preventing costly equipment failures in turbines, compressors, motors, and other high-speed rotating machines.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330905-00-16-10-02-05 |
| Series | 3300 NSv Proximity Probes |
| Sensing Technology | Eddy-current, non-contact vibration & displacement |
| Linear Range | 0 to 2 mm (typical) |
| Sensitivity | 7.87 mV/µm (±5%) |
| Frequency Response | DC to 10 kHz (±3 dB) |
| Nominal Gap | 1.0 mm |
| Probe Tip Diameter | 5 mm stainless steel |
| Operating Temperature | −35 °C to +177 °C |
| Pressure Rating | Up to 500 psi |
| Power Source | 3300 XL Proximitor Sensor |
| Compatible Extension Cable | 330130 or equivalent |
| Total Length | 1 meter |
| Gewicht | 0.15 kg |
Applications
-
Steam and Gas Turbines: Provides continuous shaft vibration and position monitoring to detect imbalance and misalignment at an early stage.
-
Compressors: Detects bearing wear, surge, and cavitation-related vibrations for proactive maintenance.
-
Motors and Generators: Monitors shaft displacement in real time to ensure stable and efficient operation.
-
Gearboxes: Identifies mechanical looseness and misalignment to prevent unexpected downtime.
-
Industrial Pumps: Safeguards against shaft deflection and dynamic instabilities that may cause operational failures.
-
Fans and Blowers: Helps maintain balance and reduce energy consumption by monitoring vibrations.
Advantages
-
High Measurement Accuracy: Ausgezeichnet linearity across the measurement range ensures precise displacement and vibration readings.
-
Compact Design: Slim 5 mm probe tip allows easy installation in tight or hard-to-reach equipment spaces.
-
Robust Construction: Stainless steel housing provides strong resistance to corrosion and industrial wear.
-
Wide Temperature Tolerance: Operates reliably in environments ranging from −35 °C to +177 °C.
-
Strong EMI ImmStücky: Built-in shielding provides reliable performance in high electromagnetic interference environments.
-
Easy System Integration: Seamlessly integrates with Bently Nevada 3300 XL Proximitor sensors and monitoring systems.
-
Low Maintenance: Non-contact measurement reduces mechanical wear, extending sensor and equipment life.
FAQ
-
How is the 330905-00-16-10-02-05 probe calibrated for precise measurements?
Each probe is factory-calibrated with a standard AISI 4140 steel target to ensure sensitivity and linearity. -
Is this probe compatible with different Bently Nevada Proximitor drivers?
Yes, it works with the 3300 XL Proximitor and other approved NSv series extension cables. -
What is the highest vibration frequency the probe can accurately detect?
It can monitor vibration signals up to 10 kHz within the specified linear range. -
What is the typical electrical output signal range?
The probe outputs a voltage proportional to shaft displacement, typically 0–20 V peak-to-peak. -
Does the probe require extra shielding against electromagnetic interference?
Nr. Integrated cable shielding ensures stable performance in electrically noisy industrial settings. -
Can the probe operate in high-pressure or oil-submerged environments?
Yes, it is rated up to 500 psi and is suitable for submerged installations within lubricated machine housings. -
How does the probe maintain accuracy under temperature fluctuations?
Stainless steel construction and internal temperature compensation ensure stable measurements across the full operating range. -
Is the probe capable von measuring both radial and axial displacement?
Yes, installation orientation determines whether radial or axial vibration is monitored. -
What signal conditioning is required for proper operation?
The probe requires a Bently Nevada Proximitor or equivalent driver to power and process its displacement signal. -
How does the specified extension cable length affect calibration?
The probe is calibrated for a specific cable length; using the matching extension cable preserves measurement accuracy.
Recommended Related Modells (Same Series/Similar)
| Modell | Beschreibung |
|---|---|
| 330905-00-12-05-02-05 | NSv probe variant with alternate configuration |
| 330905-00-12-10-02-05 | NSv probe with different factory calibration |
| 330909-00-05-05-02 | NSv probe with extended frequency response |
| 330904-00-12-05-02-05 | Compact NSv proximity probe for tight-space applications |
| 330932-05-10-05-02 | High-temperature NSv proximity probe |
| 330950-00-12-05-02 | Short-body NSv probe designed for confined installations |
