Produkteinführung

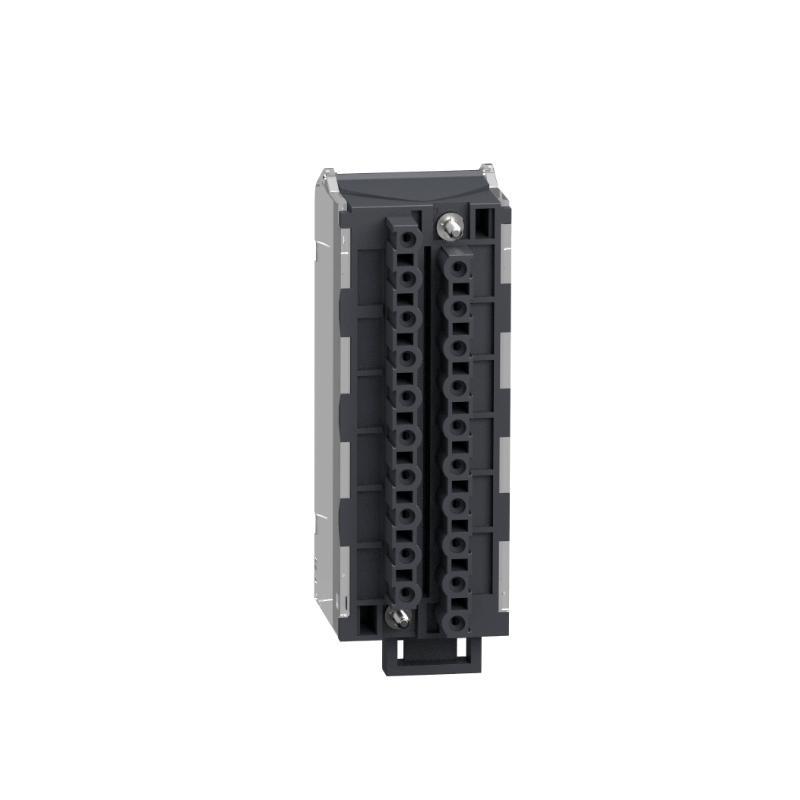

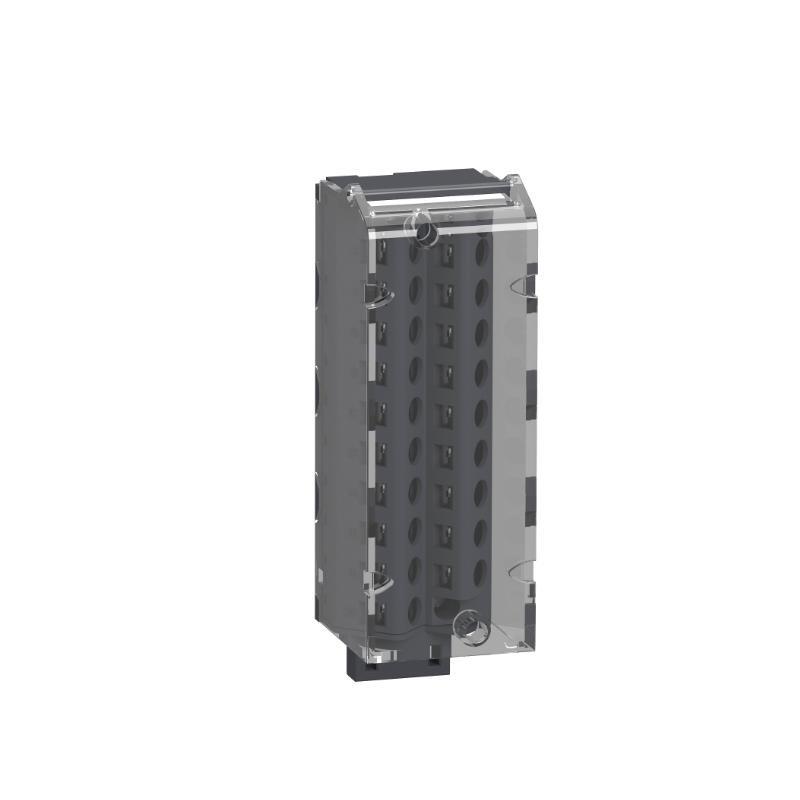

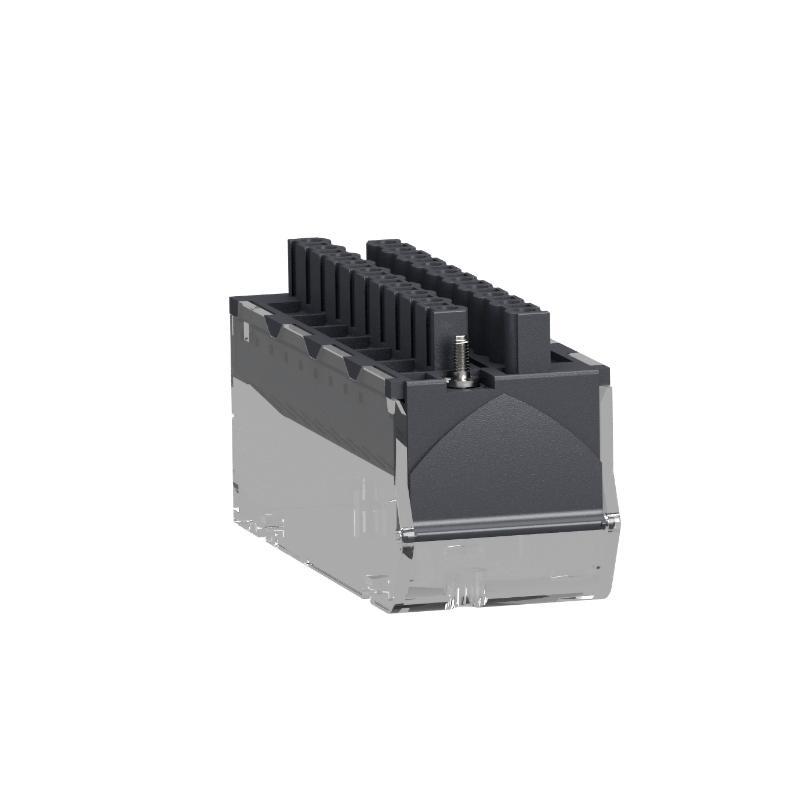

The Schneider Electric BMXFTB2010 is a removable screw clamp terminal block, designed specifically for use with discrete I/O modules in the Modicon M340 automation platform. As part von Schneider’s trusted terminal block family, this component facilitates clean, secure, and space-efficient wiring between field devices and the control system.
Engineered for industrial-grade reliability, the BMXFTB2010 vonfers 20 terminal channels and features removable screw clamp connectors. The screw clamp connection ensures vibration resistance and long-term conductivity, which is essential in high-performance and mission-critical automation applications.
This terminal block enhances field maintenance by allowing the entire block to be easily removed without disrupting the system’s wiring or signal integrity. It fits directly into the front von compatible M340 discrete I/O modules and mounts onto standard DIN rails, ensuring quick installation and easy system expansion.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Marke | Schneider Electric |
| Series | Modicon M340 |
| Modell Number | BMXFTB2010 |
| Type | Removable Screw Clamp Terminal Block |
| Connection Type | Screw Clamp Terminal |
| Number von Channels | 20 terminals (for discrete I/O signals) |
| Removable Terminal Block | Yes |
| Compatible Modules | Discrete I/O modules von M340 series |
| Mounting Type | DIN rail (35 mm standard) |
| Color | Grey |
| Material (Housing) | Polyamide, flame-retardant |
| Electrical Rating | 2 A per channel |
| Voltage Rating | 250 V AC/DC |
| Wire Size Supported | 0.2 to 2.5 mm² (24–12 AWG) |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Ingress Protection (IP) | IP20 |
| Certifications | CE, UL, CSA |
| Dimensions (H x W x D) | 91.4 x 41.8 x 32 mm |
| Gewicht | 0.075 kg |
Product Applications
The BMXFTB2010 terminal block is ideal for applications requiring modular, efficient, and service-friendly wiring solutions in complex control systems. It is widely used in industries that demand robust and scalable automation solutions, such as:
-
Manufacturing Automation – Facilitates fast and secure connection von proximity sensors, actuators, or other field devices to M340 PLCs.
-
Energy & Utilities – Supports safe signal termination in power plants, substations, and grid monitoring applications.
-
Process Industries – Allows for modular wiring architecture in oil & gas, food processing, and pharmaceuticals.
-
Water Treatment Systems – Provides durable and clean signal connections in SCADA-monitored pumping stations and filtration Stücks.
-
Transportation & Infrastructure – Assists in the implementation von intelligent traffic systems and railway automation.
-
Building Automation – Integrates seamlessly into HVAC, lighting control, and access systems powered by M340 logic.
Product Advantages
-
Removable Screw Clamp Design: Enables easy module replacement without disturbing field wiring.
-
20-Terminal Capacity: Accommodates complex discrete I/O applications with a single Stück.
-
DIN Rail Mounting: Facilitates rapid panel integration with standard mounting systems.
-
High Reliability: Screw clamp ensures consistent connectivity even under vibration or temperature variation.
-
Tool-Accessible Layout: Terminal screws are front-accessible, speeding up installation and diagnostics.
-
Industrial-Grade Durability: Made from flame-retardant materials and rated for extended operating temperatures.
-
Versatile Wiring: Supports a broad range von conductor sizes from 0.2 to 2.5 mm².
-
Enhanced Serviceability: Removable block supports module maintenance and upgrades without rewiring.
-
Space-Efficient: Compact prvonile saves valuable cabinet space.
-
Compliance Ready: Certified to CE, UL, and CSA standards, suitable for global applications.
Häufig gestellte Fragen (FAQ)
-
Q: What type von terminal connection is used in BMXFTB2010?
A: It uses a removable screw clamp terminal connection. -
Q: Is the terminal block compatible with analog I/O modules?
A: No, it is specifically designed for discrete I/O modules von the Modicon M340 series. -
Q: How many wiring channels does it vonfer?
A: The BMXFTB2010 provides 20 wiring terminals. -
Q: Can I remove the terminal block without disconnecting the wires?
A: Yes, the block is fully removable without disturbing the field wiring. -
Q: What is the maximum voltage supported per channel?
A: It can handle up to 250 V AC/DC per terminal. -
Q: Is the module compliant with international certifications?
A: Yes, it is CE, UL, and CSA certified. -
Q: What is the operating temperature range?
A: From -25°C to +70°C. -
Q: What kind von wire sizes does it support?
A: From 0.2 mm² to 2.5 mm² (24 to 12 AWG). -
Q: Is it easy to install on a DIN rail?
A: Yes, it is designed for snap-in installation on a 35 mm DIN rail. -
Q: How does this model differ from BMXFTB2000?
A: Both support 20 terminals, but BMXFTB2010 vonfers improved modularity and field-removable screw clamp functionality.
Related or Similar Modells (Same Series)
| Modell Number | Beschreibung | Terminal Type | Nr. von Channels |
|---|---|---|---|
| BMXFTB2000 | Fixed Screw Terminal Block | Screw | 20 |
| BMXFTB2020 | Terminal Block with Fuse Protection | Screw + Fuse | 20 |
| BMXFTB2030 | Terminal Block with Common Feed | Screw | 20 |
| BMXFTA150 | Adapter for Terminal Blocks | N/A | N/A |
| BMXFCA150 | Cable Assembly for Terminal Block to I/O Module | N/A | N/A |
| BMXFTW3010 | Pre-wired Terminal Block for Fast Installation | Spring Clamp | 20 |
Popular Modells from Schneider Electric (Same Marke)
| Modell Number | Beschreibung | Function | Series |
|---|---|---|---|
| BMXP342020 | CPU Module with 512KB Memory | Processor Einheit | Modicon M340 |
| BMXDDO1602 | 16-channel Digital Output Module | Digital Output | Modicon M340 |
| BMXAMI0410 | 4-channel Analog Input Module | Analog Input | Modicon M340 |
| TM241CEC24T | Compact Logic Controller with Ethernet | PLC | Modicon M241 |
| ATV320U22N4B | Variable Speed Drive 2.2kW | Motor Control | Altivar 320 |
| LXM32AU45N4 | Lexium 32 Servo Drive 4.5 kW | Motion Control | Lexium 32 |
