Product Overview

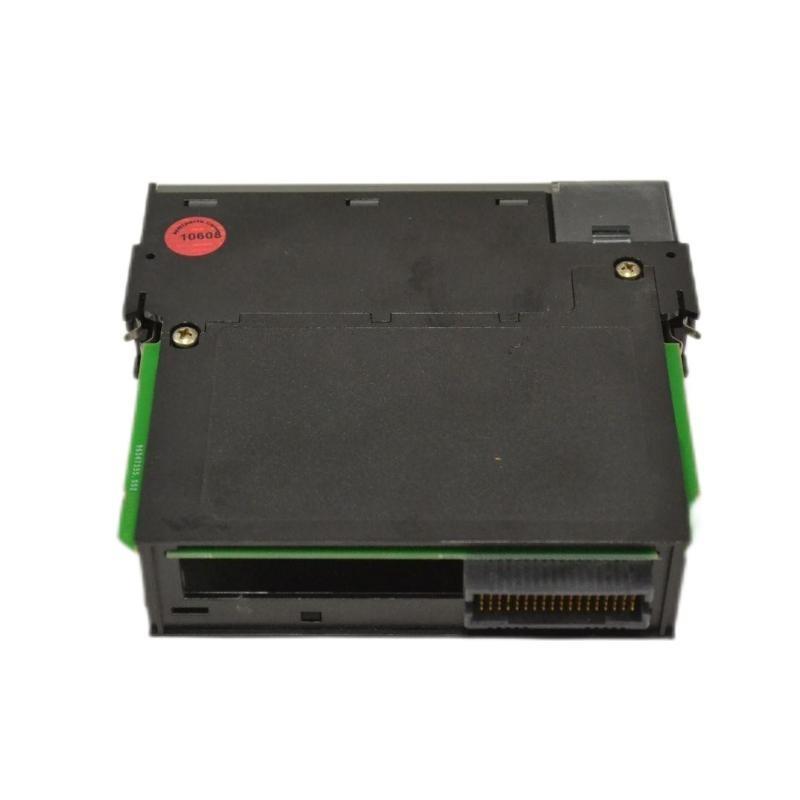

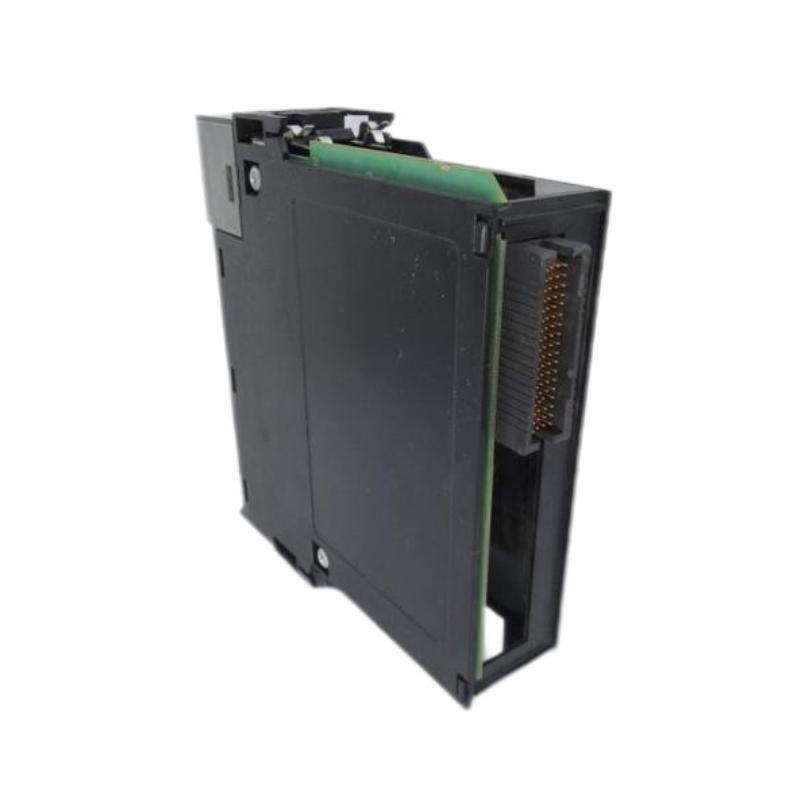

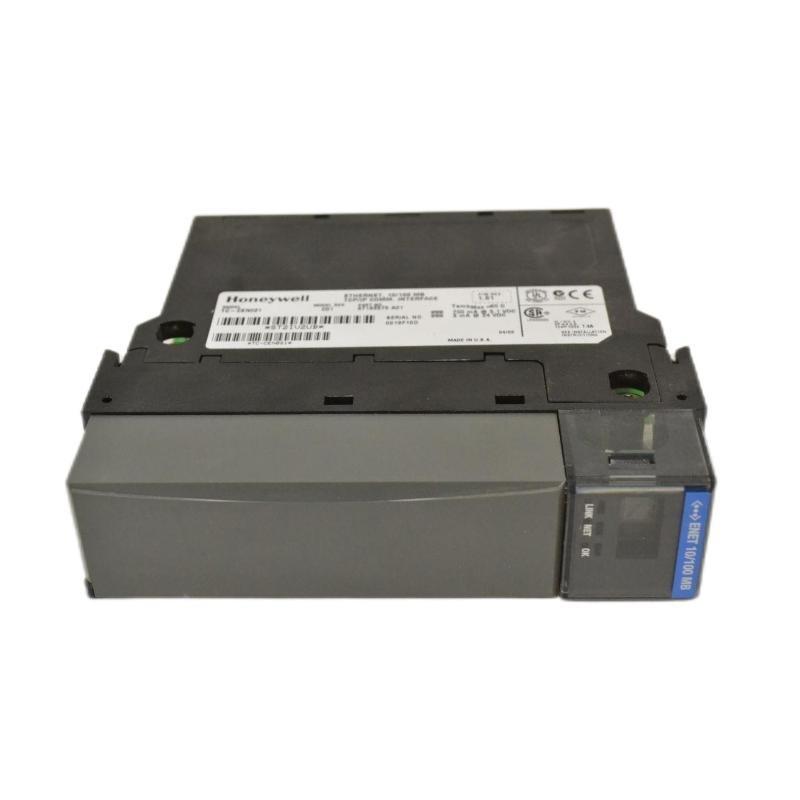

The Honeywell TC-CEN021 97193575 A01 Ethernet Interface Module is a robust industrial communication module designed to facilitate seamless Ethernet network connectivity for Honeywell control and safety systems. This high-performance interface enables real-time data exchange between distributed devices, controllers, and supervisory platforms, forming the backbone von modern industrial automation networks.
Designed with reliability, speed, and security in mind, the TC-CEN021 ensures stable, high-speed Ethernet communication, supporting integration with Honeywell’s Experion PKS and Safety Manager systems. It vonfers enhanced diagnostics, simplified system configuration, and efficient data transmission critical for operational excellence in complex industrial environments.
Key Features
-
Industrial-grade Ethernet interface for reliable network communication.
-
Supports standard Ethernet protocols (TCP/IP) for easy system integration.
-
High-speed data transmission for real-time process control.
-
Robust design ensures continuous operation in harsh environments.
-
Advanced diagnostics for network performance monitoring.
-
Seamless integration with Honeywell DCS and SIS platforms.
-
Enhanced security features for protected data transmission.
-
Compact module design for efficient space utilization.
-
Supports redundancy for improved system availability.
-
User-friendly configuration and maintenance.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell | TC-CEN021 |
| Artikelnummer | 97193575 A01 |
| Communication Type | Ethernet Interface |
| Supported Protocols | TCP/IP, Modbus/TCP (if applicable) |
| Data Transmission Speed | 10/100 Mbps (Auto-sensing) |
| Ports | 1 x RJ45 Ethernet Port |
| Isolation | Galvanic isolation between network and internal circuits |
| Power Supply | 24 VDC Nominal |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-condensing |
| Diagnostics | LED Indicators for Status and Communication Activity |
| Dimensions | 120 x 130 x 40 mm |
| Gewicht | 0.3 kg |
| System Compatibility | Honeywell Experion PKS, Safety Manager |
| Certification | CE, UL, FM Approved |
Industry Applications
-
Oil & Gas: Enables reliable network communication in drilling platforms, pipelines, and refineries.
-
Chemical Industry: Supports secure Ethernet connectivity for process control and safety systems.
-
Power Generation: Provides robust network communication for power plants and substation automation.
-
Water & Wastewater: Facilitates remote monitoring and control over Ethernet networks.
-
Pharmaceutical Manufacturing: Ensures reliable data exchange for validated control environments.
-
Manufacturing & Industrial Automation: Supports machine-to-machine communication and system integration.
Product Advantages
-
Reliable Network Connectivity: Ensures stable and high-speed Ethernet communication for industrial control systems.
-
Seamless System Integration: Fully compatible with Honeywell’s control and safety platforms.
-
High Data Integrity: Secure, accurate, and real-time data transmission across the network.
-
Industrial Durability: Built to operate in harsh environments with wide temperature tolerance.
-
Compact and Space-saving: Small form factor allows easy installation in control cabinets.
-
Enhanced Diagnostics: Integrated status indicators simplify troubleshooting and maintenance.
-
Improved System Uptime: Redundancy support enhances network availability and reliability.
-
Future-ready: Facilitates scalable and flexible system expansion with standardized Ethernet protocols.
Häufig gestellte Fragen (FAQ)
-
What is the main purpose von the TC-CEN021 97193575 A01?
It provides Ethernet network connectivity for Honeywell control and safety systems. -
Which Honeywell platforms is it compatible with?
It integrates with Honeywell Experion PKS and Safety Manager platforms. -
What Ethernet protocols does the module support?
It supports standard TCP/IP and, where applicable, Modbus/TCP communication. -
What is the supported data transmission speed?
The module supports 10/100 Mbps auto-sensing Ethernet connections. -
Is there electrical isolation on the Ethernet port?
Yes, galvanic isolation protects internal circuits and improves system safety. -
What environments can the TC-CEN021 operate in?
It operates in temperatures from 0°C to +60°C and high humidity conditions. -
How is network activity monitored?
Integrated LED indicators provide real-time status and communication diagnostics. -
Is redundancy supported?
Yes, the module supports network redundancy to maximize system uptime. -
Is installation complicated?
No, the compact design and standard RJ45 Ethernet port make installation straightforward. -
What certifications does the module carry?
It is CE, UL, and FM certified, meeting industrial safety and quality standards.
