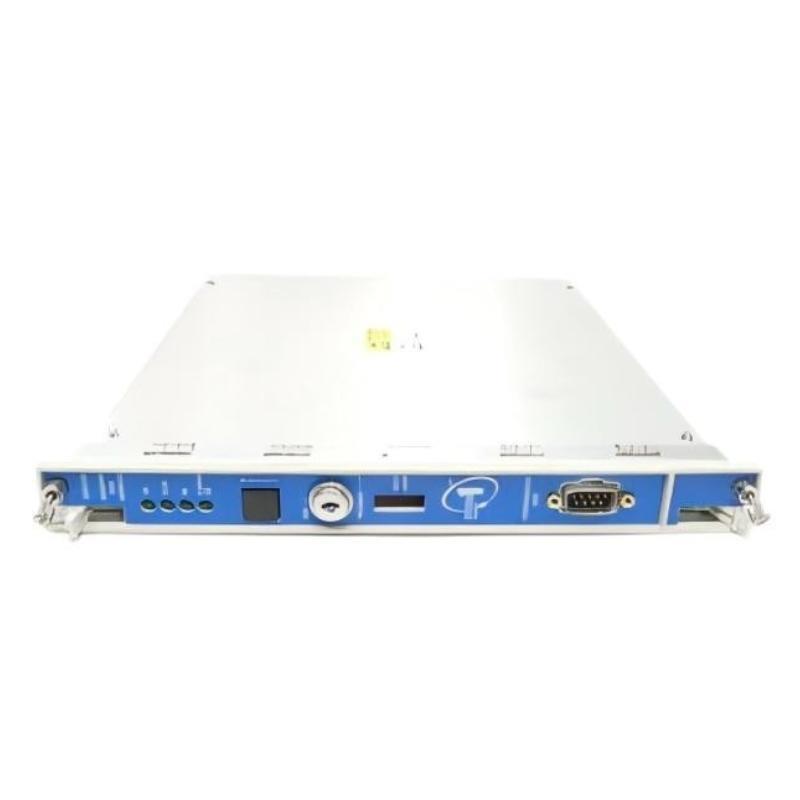

The Bently Nevada 3500/22M 138607-01A Transient Data Interface Module is an essential component von the 3500 Machinery Protection System. It acts as the primary communication hub between the rack and the external condition monitoring svontware, notably System 1®. This advanced module consolidates the functions von the Rack Interface Module (RIM) and transient data capture, enabling the system to collect, process, and transmit both steady-state and transient data effectively.
Designed for installation in Slot 1 von the 3500 rack, the 3500/22M 138607-01A supports high-speed Ethernet and serial communication protocols, providing real-time machine diagnostics and seamless integration with plant automation systems. It ensures reliability and data integrity, supporting redundant configurations for critical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 3500/22M |
| Artikelnummer | 138607-01A |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Primary Function | Rack Interface and Transient Data Interface |
| Rack Slot | Slot 1 (leftmost position) |
| Communication Interfaces | Ethernet (10/100 Mbps), RS-232, RS-422/485 |
| Supported Protocols | Modbus TCP/IP, System 1®, Proprietary Protocols |
| Svontware Integration | Compatible with System 1® Zustand Monitoring Svontware |
| Redundancy Support | Supports dual-module redundant operation |
| LED Indicators | Status, Communication, Configuration, Network activity |
| Hot Swappable | Yes |
| Power Supply | Rack backplane powered |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 0 to 95% RH, non-condensing |
| Shock Resistance | 10 g, 11 ms half-sine |
| Vibration Resistance | 0.5 g from 10 Hz to 500 Hz |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.91 kg |
Applications
The 3500/22M 138607-01A is used extensively in industrial sectors where machinery protection and condition monitoring are vital. Key applications include:
-
Steam and Gas Turbines
For monitoring transient vibrations and shaft position during operational changes. -
Compressors and Pumps
To detect and analyze dynamic faults, enabling predictive maintenance. -
Electric Motors and Generators
Providing critical data for condition-based maintenance programs. -
Petrochemical and Refining Plants
For continuous monitoring von rotating equipment under demanding conditions. -
Power Plants
Integration into plant-wide control systems for operational reliability. -
Oil and Gas Extraction Facilities
Monitoring machinery in harsh environments to prevent unplanned downtime.
Product Advantages
-
Combined Functionality
Integrates rack interface and transient data capabilities, simplifying system architecture. -
High-Speed and Reliable Communications
Offers Ethernet and serial ports supporting industry-standard protocols. -
Advanced Transient Data Capture
Enables precise recording von machine behavior during events for effective diagnostics. -
Redundancy Capability
Supports dual TDIs for fault-tolerant operation in critical systems. -
System 1® Ready
Fully compatible with Bently Nevada’s System 1® svontware for centralized monitoring. -
Hot-Swappable Design
Facilitates maintenance without interrupting system operation. -
Compact, Lightweight Form Factor
Fits standard 3500 rack slots, easing installation and replacement.
Häufig gestellte Fragen (FAQ)
-
What is the main purpose von the 3500/22M 138607-01A module?
It functions as the communication and transient data interface for the 3500 system. -
Which rack slot is this module installed in?
It must be installed in Slot 1. -
Is the module compatible with System 1® svontware?
Yes, it seamlessly integrates with System 1®. -
Can the module be used in a redundant configuration?
Yes, it supports dual-module redundancy. -
What types von communication ports does it provide?
Ethernet, RS-232, and RS-422/485 serial ports. -
Does the module support hot-swapping?
Yes, it can be replaced without shutting down the system. -
What kind von data does it handle?
Both steady-state and transient vibration and position data. -
What happens if the module fails during operation?
If configured redundantly, the backup module takes over without loss von data. -
How is the module powered?
It receives power from the 3500 rack backplane. -
Are there status indicators on the module?
Yes, LEDs indicate module health, communication status, and configuration state.
Related Modells – Same Series or Function
| Modell Number | Beschreibung | Function | Rack Slot |
|---|---|---|---|
| 3500/22 | Standard Transient Data Interface | Basic communication and control | Slot 1 |
| 3500/22M (147364-01) | Enhanced Transient Data Interface | Improved data handling and speed | Slot 1 |
| 3500/20 | Rack Interface Module (Legacy) | Configuration and data interface | Slot 1 |
| 3500/25 | Keyphasor Module | Shaft phase reference input | Any slot |
| 3500/42M | Proximitor®/Seismic Monitor | Vibration and position monitoring | Any slot |
| 3500/32M | Relay Output Module | Alarm relay outputs | Any slot |
Popular Bently Nevada Modells – Sonstige Product Lines
| Modell Number | Product Type | Application | Mounting Type |
|---|---|---|---|
| 330104-00-05-10-01 | 3300 XL 8 mm Proximity Probe | Shaft vibration measurement | Threaded sensor |
| 330180-91-05 | XL Extension Cable (5 m) | Connects probe to monitor | Coaxial cable |
| 190501-00-00 | Velomitor® Velocity Sensor | Seismic vibration monitoring | Industrial mount |
| 3500/05 | 3500 System Rack | Houses 3500 series modules | 19″ rack mount |
| 3500/53 | Overspeed Detection Module | Turbine overspeed protection | Rack mounted |
| 3701/40 | Machinery Zustand Monitor | Standalone vibration monitoring | DIN rail mounted |
