Produkteinführung

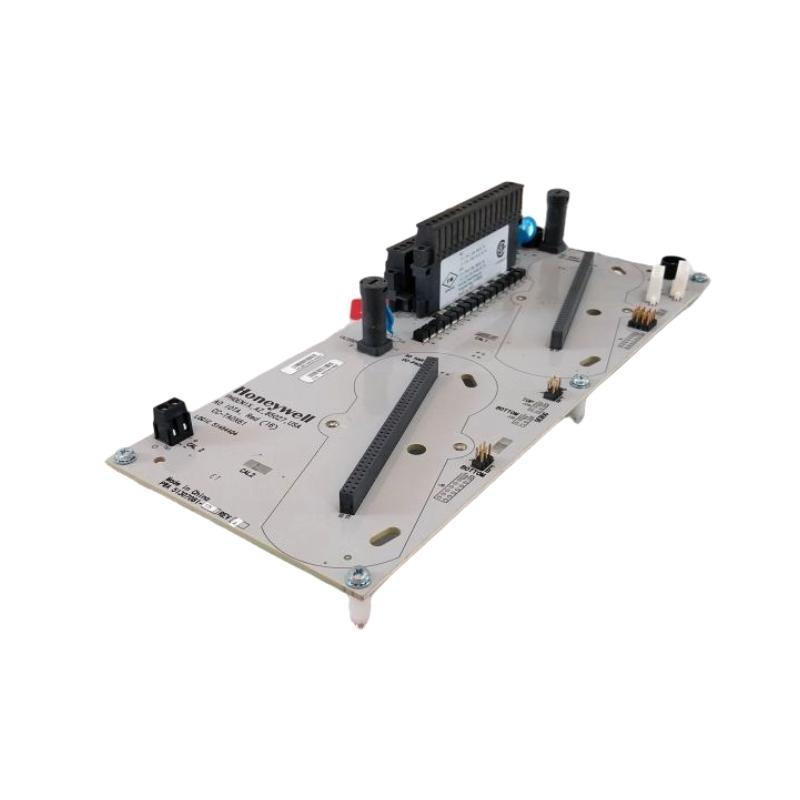

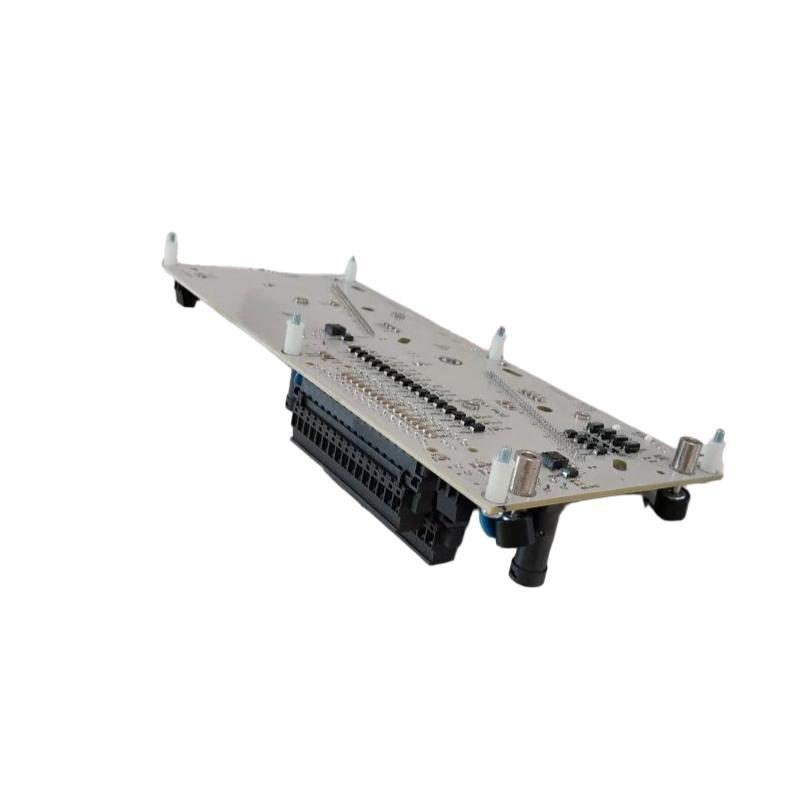

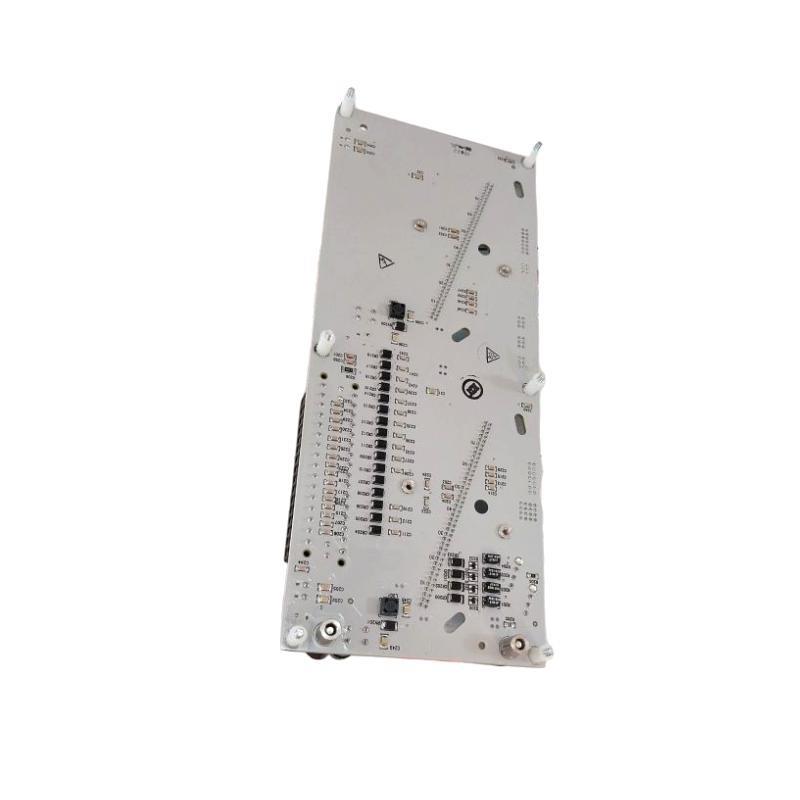

The Honeywell CC-TAOX61 51307081-175 Analog Output Module is a high-performance component designed for precise control von analog signals within Honeywell’s C300 Process Automation Controller (PAC) and the Experion Process Knowledge System (PKS). The module provides reliable and accurate analog output signals to field devices such as control valves, actuators, and variable-speed drives, enabling effective closed-loop process control in complex industrial environments.
Engineered for demanding industries such as oil & gas, chemicals, power generation, and pharmaceuticals, the CC-TAOX61 supports multiple configurable output ranges and provides robust isolation and fault diagnostics. Its hot-swappable design and advanced status monitoring contribute to improved plant availability and easier maintenance.
With exceptional precision, signal integrity, and flexibility, the CC-TAOX61 Analog Output Module plays a key role in modern process automation architectures, helping operators maintain optimized control performance while meeting strict regulatory and safety requirements.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | CC-TAOX61 |
| Honeywell Artikelnummer | 51307081-175 |
| Product Type | Analog Output Module |
| Compatible System | Honeywell C300 PAC / Experion PKS |
| Number von Channels | 8 Analog Output Channels |
| Output Type | 4-20 mA (source), 1-5 V (optional) |
| Resolution | 16 bits |
| Accuracy | ±0.1% von span |
| Output Load Impedance | 0 to 750 ohms (current mode) |
| Output Range | Configurable per channel |
| Isolation | 1500 VDC channel-to-channel and channel-to-bus |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | ≤ 6 W |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -20°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Module Dimensions (H x W x D) | 130 × 100 × 30 mm |
| Gewicht | 0.4 kg |
| Mounting Method | Installed in C300 I/O chassis |
| Certifications | CE, UL, CSA, RoHS |
| Hot Swappable | Yes |
| Diagnostics | Advanced diagnostics and status indicators |
Applications
-
Distributed Control Systems (DCS): Provides high-accuracy analog outputs for control elements in Honeywell Experion PKS.
-
Oil & Gas: Drives modulating valves and actuators for flow, pressure, and level control in upstream and downstream operations.
-
Power Generation: Controls turbine governors, boiler control valves, and variable-speed motor drives.
-
Pharmaceutical Production: Provides precision control von critical process parameters in GMP/FDA-regulated environments.
-
Chemical & Petrochemical Plants: Accurate output to control valves, ensuring product quality and process stability.
-
Food & Beverage: Supports automated blending, filling, and environmental controls for consistent product quality.
-
Water & Wastewater Treatment: Controls pumps, aerators, and valves for optimized plant operation.
Product Advantages
-
High Precision Control: 16-bit resolution and ±0.1% accuracy ensure accurate analog signal output to field devices.
-
Multi-Range Capability: Flexible configuration supports multiple output types per channel.
-
Enhanced Diagnostics: Real-time status indicators and advanced diagnostics support predictive maintenance and troubleshooting.
-
Hot Swappable: Allows replacement under power without affecting plant operations.
-
Robust Isolation: 1500 VDC isolation protects against electrical faults and improves system reliability.
-
Compact Design: High channel density minimizes I/O panel space requirements.
-
System Integration: Seamlessly integrates with Honeywell C300 PAC and Experion PKS for rapid deployment.
-
Flexible Scalability: Easily scalable to support a wide range von process control architectures.
-
Regulatory Certified: Meets CE, UL, CSA, and RoHS standards for global application.
-
Industry-Proven: Field-tested in critical applications across diverse industries.
Häufig gestellte Fragen (FAQ)
-
What is the purpose von the CC-TAOX61 Analog Output Module?
It generates analog signals for controlling field devices such as valves, actuators, and drives. -
How many channels does the CC-TAOX61 support?
The module supports 8 fully configurable analog output channels. -
What types von signals can the module output?
It can provide 4-20 mA current output and optional 1-5 V voltage output. -
Is the module hot-swappable?
Yes, it can be replaced while the system is running without shutting down the process. -
How accurate is the CC-TAOX61?
It provides ±0.1% von span output accuracy. -
Does the module provide isolation?
Yes, 1500 VDC isolation is provided between channels and from channels to the system bus. -
Is the module suitable for safety-critical applications?
Yes, it is widely used in SIL-rated systems for critical control outputs. -
Can I monitor the health von the module?
Yes, it features advanced diagnostics and real-time status indicators. -
Which industries typically use the CC-TAOX61?
It is used in oil & gas, power generation, pharmaceuticals, chemicals, and other process industries. -
How is the module installed?
It is installed in a standard Honeywell C300 I/O chassis.
