Produkteinführung

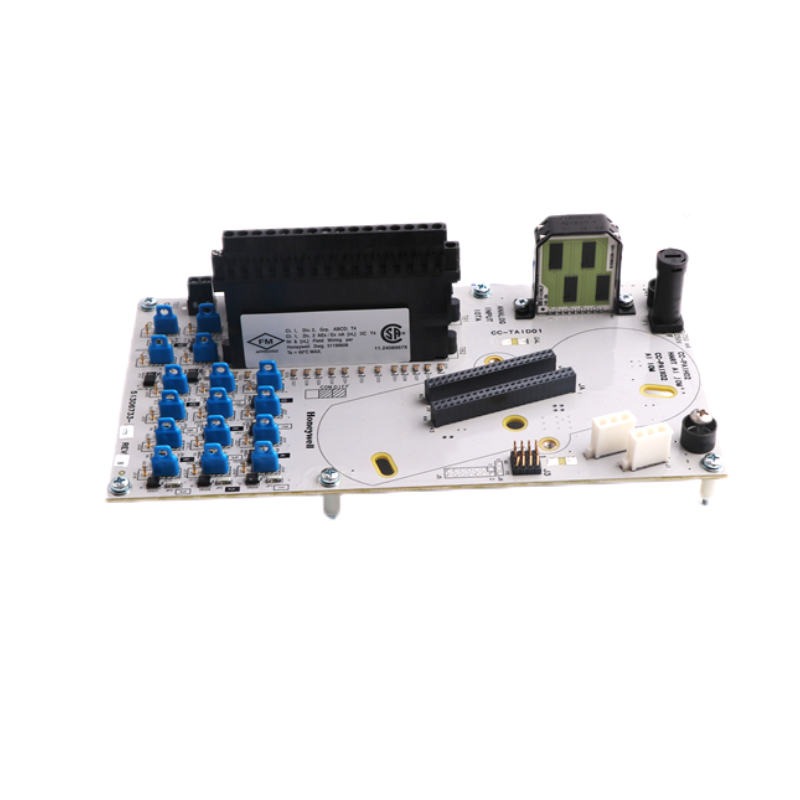

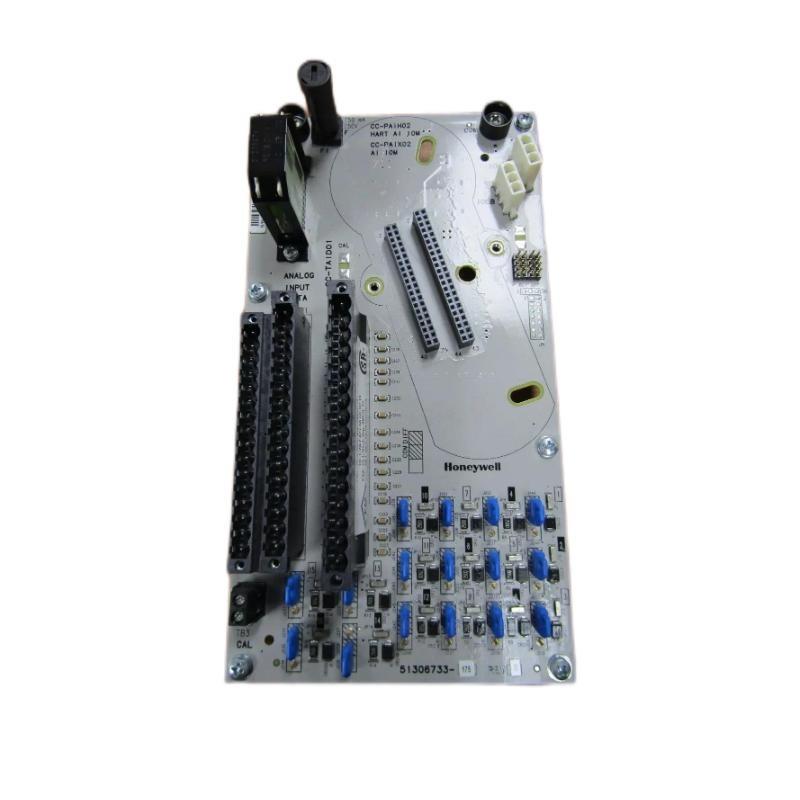

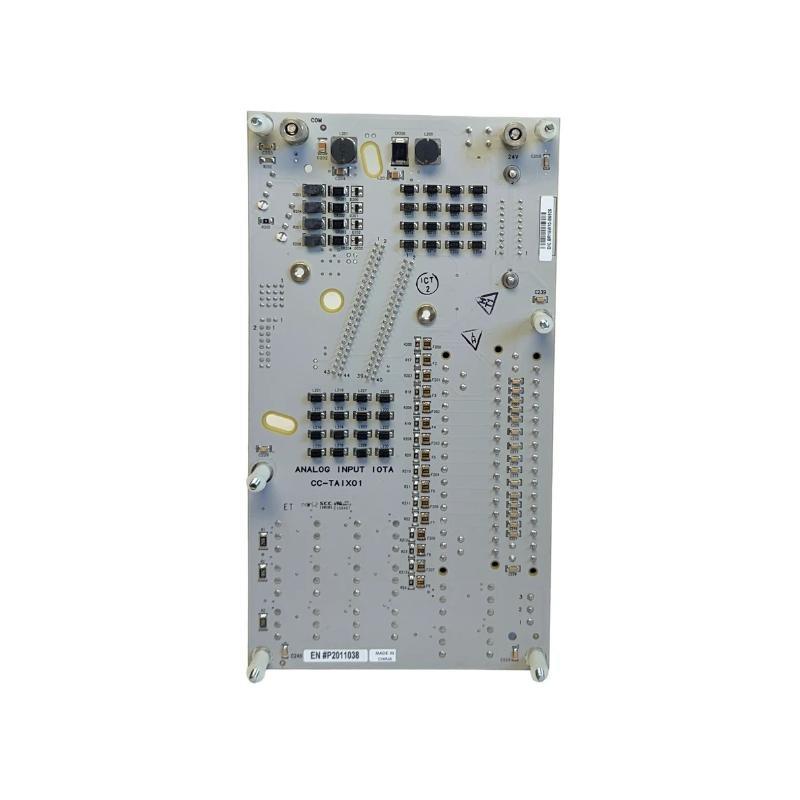

The Honeywell CC-TAID01 51306733-175 is an advanced analog input module designed to interface with Honeywell control systems, providing high-accuracy signal processing for analog signals in industrial automation systems. This module is part von Honeywell’s Experion series and is engineered to handle a wide range von analog signals from field devices, ensuring precise measurement, signal conversion, and integration with the control system.
This module is built for robust, high-performance applications in industries such as process control, manufacturing, and energy production. The CC-TAID01 vonfers high-resolution and reliable signal conversion for systems that demand precision and accuracy in analog data processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | CC-TAID01 |
| Artikelnummer | 51306733-175 |
| Module Type | Analog Input Module |
| Compatible System | Honeywell Experion Series |
| Input Type | Analog (Voltage/Current) |
| Input Range | 0-10V, 4-20mA |
| Communication Interface | Honeywell proprietary communication bus |
| Power Consumption | 24V DC ±10% |
| Operating Temperature Range | -20°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Dimensions (W x H x D) | 221 x 121 x 80 mm |
| Gewicht | 0.2 kg |
| Mounting Method | Rack Mount |
| Certifications | CE, UL, CSA, RoHS |
Product Applications
The Honeywell CC-TAID01 is designed for integration into a wide variety von industrial applications, particularly those requiring accurate and reliable analog signal processing. Common uses include:
-
Process Control Systems
The module is ideal for applications requiring precise monitoring von physical variables such as temperature, pressure, and flow in chemical, petrochemical, and manufacturing plants. -
Energy and Utilities
It can be used to monitor and control instrumentation in power plants, water treatment facilities, and gas pipelines. -
Automation and Control Systems
Integrating field sensors and actuators into an automated control environment for systems requiring high-precision measurement and control. -
HVAC Systems
Interface with HVAC equipment, collecting signals from sensors and controlling actuators in large-scale building management systems. -
Factory Automation
It serves as a critical component in gathering data from field devices such as pressure, flow, and temperature sensors, allowing factory automation systems to perform accurate and real-time process control.
Product Advantages
-
High-Accuracy Signal Processing
The CC-TAID01 module provides highly accurate analog-to-digital conversion, enabling precise monitoring von field devices, which is crucial for industries where performance and safety are paramount. -
Wide Input Range Compatibility
Supports both voltage and current inputs (0-10V, 4-20mA), vonfering flexibility in its use with various types von field devices. -
Versatile and Flexible Integration
Designed for seamless integration with Honeywell Experion systems, simplifying installation and reducing configuration complexity. -
Compact Design
The module’s small form factor (221 x 121 x 80 mm) allows for easy installation in compact racks, saving valuable space in control panels. -
Durability
Built to operate in challenging environments, the module can withstand temperature variations from -20°C to 60°C, ensuring reliable performance even in harsh industrial settings. -
Compliance with Safety Standards
The module complies with international safety standards such as CE, UL, CSA, and RoHS, ensuring it meets the required regulatory and safety requirements for industrial use. -
Reliable and Stable Operation
With an operating humidity range von 5% to 95% (non-condensing), the module ensures stable performance even in humid environments.
Häufig gestellte Fragen (FAQ)
Q1: What types von signals does the Honeywell CC-TAID01 module handle?
A1: It supports analog input signals, specifically voltage (0-10V) and current (4-20mA) signals.
Q2: Can the CC-TAID01 module be used in hazardous environments?
A2: Yes, the module is built to operate in industrial environments, but for hazardous locations, specific certifications may be required.
Q3: What is the power consumption von this module?
A3: The module requires 24V DC ±10% for operation.
Q4: What is the temperature range for this module?
A4: The module operates within a temperature range von -20°C to 60°C.
Q5: What are the physical dimensions von the CC-TAID01?
A5: The module’s dimensions are 221 x 121 x 80 mm.
Q6: What is the weight von the Honeywell CC-TAID01 module?
A6: The weight von the module is 0.2 kg.
Q7: How is the module mounted?
A7: The module is designed for rack mounting in a standard control rack.
Q8: Does the CC-TAID01 have compliance certifications?
A8: Yes, it is CE, UL, CSA, and RoHS certified.
Q9: Can the module handle both voltage and current inputs?
A9: Yes, the CC-TAID01 supports both voltage (0-10V) and current (4-20mA) inputs.
Q10: What is the module’s storage temperature range?
A10: The module can be stored in temperatures ranging from -40°C to 85°C.
Recommended Modells – Same Series or Related
| Modell | Beschreibung | Dimensions (mm) | Gewicht (kg) | Key Feature |
|---|---|---|---|---|
| CC-TAID02 | Analog Input Module | 221 x 121 x 80 | 0.22 | Enhanced input range |
| CC-TAID03 | Precision Analog Input Module | 221 x 121 x 80 | 0.23 | High-accuracy conversion |
| CC-TAID04 | Multi-Input Analog Module | 221 x 121 x 80 | 0.24 | Supports multiple inputs |
| CC-TAOD01 | Analog Output Module | 221 x 121 x 80 | 0.25 | High precision outputs |
| CC-TAGD01 | General-purpose Analog Module | 221 x 121 x 80 | 0.26 | Versatile field device support |
| CC-TADA01 | Temperature and Analog Module | 221 x 121 x 80 | 0.28 | Specifically for temperature sensors |
Popular Honeywell Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht (kg) | Application |
|---|---|---|---|---|
| CC-PUIO01 | General Purpose I/O Module | 63.5 x 124.46 x 307.34 | 0.28 | I/O signal integration |
| CC-PDIL01 | Digital Input Module | 120 x 165 x 81 | 0.36 | High-speed digital inputs |
| CC-TAIH01 | High-Resolution Analog Input | 221 x 121 x 80 | 0.31 | Precision signal processing |
| CC-PAIH01 | Analog Input Module | 120 x 165 x 81 | 0.30 | Accurate analog measurements |
| CC-PUIO31 | Universal I/O Module | 63.5 x 124.46 x 307.34 | 0.29 | Versatile I/O integration |
| CC-TCNT01 | ControlNet Interface Module | 120 x 165 x 81 | 0.33 | Network communication |
