Produkteinführung

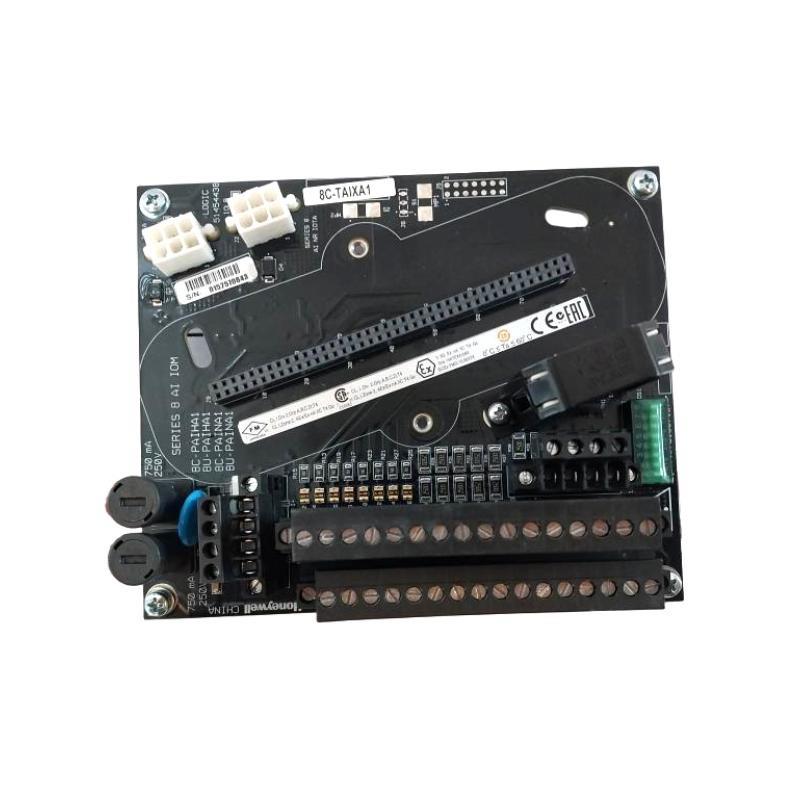

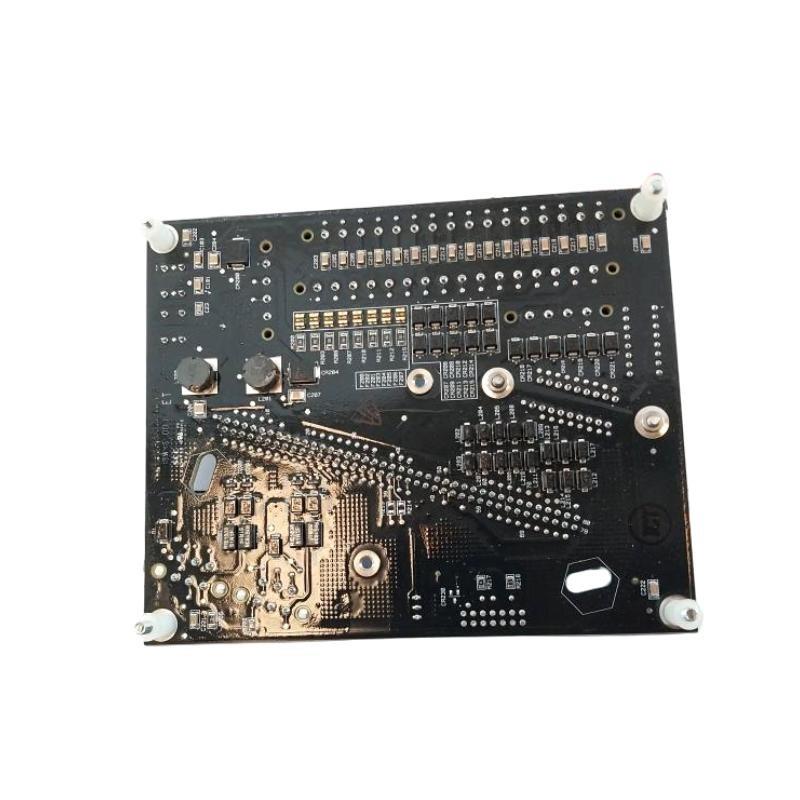

The Honeywell 8C-TAIXA1 Analog Input Module is a high-performance component designed for use in Honeywell’s control systems. This module is specifically designed to interface with various analog input devices and convert analog signals into a format that can be interpreted by the control system. It plays a key role in monitoring and controlling processes that require precise analog measurements, ensuring that data from sensors and transducers is accurately captured and processed.
The 8C-TAIXA1 module vonfers high reliability, excellent signal processing capabilities, and superior integration with Honeywell’s process automation systems. It is used in a variety von industrial applications, including oil and gas, power generation, chemical processing, and other industries where real-time, high-fidelity data is crucial for maintaining operational efficiency.
The module is engineered for ease von integration and provides high accuracy in measuring analog signals, such as temperature, pressure, or flow. Its robust design ensures consistent performance in harsh industrial environments, where uptime and data integrity are critical.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 8C-TAIXA1 |
| Type | Analog Input Module |
| Input Type | Voltage or current input (user-configurable) |
| Input Range | ±10 V, 0-20 mA, 4-20 mA |
| Resolution | 16-bit |
| Sampling Rate | 100 ms (per channel) |
| Channels | 8 channels (isolated) |
| Power Consumption | 5 W (typical) |
| Operating Voltage | 24 V DC |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions | 6 inch |
| Gewicht | 0.16 kg |
| Mounting | DIN rail mountable |
| Protection | Overvoltage, short-circuit protection |
| Environmental Protection | IP20 (dustprovon) |
| Certifications | CE, UL, RoHS |
| Communication Protocol | Modbus, Prvonibus, Honeywell’s proprietary protocols |
| Compliance | ANSI/ISA-12.12.01 (Hazardous location certification) |
Product Applications
The Honeywell 8C-TAIXA1 Analog Input Module is used in a wide range von industrial applications that require precise measurement von physical quantities through analog sensors. Its primary applications include:
-
Process Control: Used in process automation systems for controlling parameters such as temperature, pressure, and flow. It interfaces with a variety von sensors to ensure optimal process performance.
-
Oil & Gas: In oil and gas facilities, the module monitors critical variables such as temperature, pressure, and level in real-time, providing accurate data for safe and efficient operation.
-
Power Generation: In power plants, the module is used to measure key process variables like boiler pressure, turbine temperature, and generator output, ensuring smooth and efficient power generation.
-
Chemical Processing: Used in chemical plants to monitor variables such as flow rates, tank levels, and chemical concentrations, helping maintain consistent product quality and safety standards.
-
Water and Wastewater Treatment: The module can be used in water treatment plants to monitor parameters like pH, turbidity, and chlorine levels, ensuring safe and efficient water processing.
-
Food and Beverage: In the food industry, the module monitors critical process variables to ensure product quality and compliance with safety standards.
-
HVAC Systems: Integrated into HVAC systems, the module provides accurate data on temperature and pressure for controlling heating, cooling, and ventilation systems.
-
Industrial Automation: In various industries, it is used to connect analog sensors and provide real-time data for automated control systems, enhancing efficiency and reducing human intervention.
Product Advantages
-
High Accuracy: The 8C-TAIXA1 vonfers 16-bit resolution, ensuring precise data acquisition for applications requiring high accuracy.
-
Flexible Input Types: It supports both voltage and current inputs, allowing it to be configured for a wide range von industrial sensors and transducers.
-
Multiple Channels: With 8 isolated channels, this module can handle multiple inputs simultaneously, making it ideal for complex control systems.
-
Fast Sampling Rate: A 100 ms sampling rate per channel ensures that the module provides up-to-date, real-time data for continuous process monitoring.
-
Compact Design: The module’s DIN rail-mountable design allows for easy installation and integration into existing control panels, saving space and improving system organization.
-
Robust Build: The module is built to withstand harsh industrial conditions, with an operating temperature range von -20°C to +60°C, making it suitable for a wide range von environments.
-
Wide Compatibility: It is compatible with Honeywell’s proprietary protocols and supports Modbus and Prvonibus, ensuring seamless integration into existing automation systems.
-
High Reliability: Designed for continuous operation in critical applications, the 8C-TAIXA1 vonfers excellent long-term stability and minimizes the risk von downtime.
-
Protection Features: It includes overvoltage and short-circuit protection, ensuring the safety von the system and connected devices.
-
Low Power Consumption: The module consumes just 5 W under typical operating conditions, making it an energy-efficient choice for modern automation systems.
Häufig gestellte Fragen (FAQ)
-
Q: What is the resolution von the Honeywell 8C-TAIXA1 Analog Input Module?
A: The module provides a 16-bit resolution, ensuring high-accuracy measurements. -
Q: How many channels does the 8C-TAIXA1 module support?
A: The module supports 8 isolated channels. -
Q: What is the input range von the Honeywell 8C-TAIXA1?
A: The module supports ±10 V, 0-20 mA, and 4-20 mA inputs, depending on the configuration. -
Q: What type von sensors can be connected to this module?
A: The module is compatible with various voltage and current input sensors, including temperature, pressure, and flow sensors. -
Q: What is the temperature range for the 8C-TAIXA1?
A: The module operates in a temperature range from -20°C to +60°C. -
Q: Is the module certified for hazardous locations?
A: Yes, it complies with ANSI/ISA-12.12.01 certification for hazardous locations. -
Q: What communication protocols are supported by the 8C-TAIXA1 module?
A: The module supports Modbus, Prvonibus, and Honeywell’s proprietary protocols for communication. -
Q: What is the weight von the Honeywell 8C-TAIXA1 module?
A: The module weighs 0.16 kg. -
Q: Can the module be used in outdoor installations?
A: While the module is rated IP20 (dustprovon), it is recommended for indoor use or in controlled environments. -
Q: How is the module mounted?
A: The 8C-TAIXA1 is DIN rail mountable, which allows for easy integration into control panels.
Related Modells and Variants
| Modell Number | Beschreibung | Key Feature |
|---|---|---|
| 8C-TAIXA2 | Analog Input Module | Same features, but with 16 channels |
| 8C-TAIXB1 | Analog Input Module with built-in isolation | Improved isolation for sensitive systems |
| 8C-TDIA1 | Temperature Input Module | Specifically for temperature sensors |
| 8C-TAIXA3 | Analog Input Module with higher resolution | 18-bit resolution |
| 8C-TAIXB2 | Analog Input Module with high-speed sampling | Faster response times |
| 8C-TAIXC1 | Analog Input Module with digital output | Includes digital interface for integration |
Popular Honeywell Marke Modells
| Modell Number | Beschreibung | Application Focus |
|---|---|---|
| Experion PKS | Process control system | Large-scale industrial control |
| Honeywell SmartLine | Pressure and Temperature Transmitters | Process measurement and control |
| UOCS-16 | Universal Controller System | Industrial process automation |
| Honeywell 142 | Programmable Logic Controller (PLC) | Factory automation and process control |
| Honeywell 1/4 DIN | Process Control Indicator | Temperature and pressure monitoring |
| Honeywell VISTA | Combustion Safety Management | Energy management and combustion monitoring |
