Produkteinführung

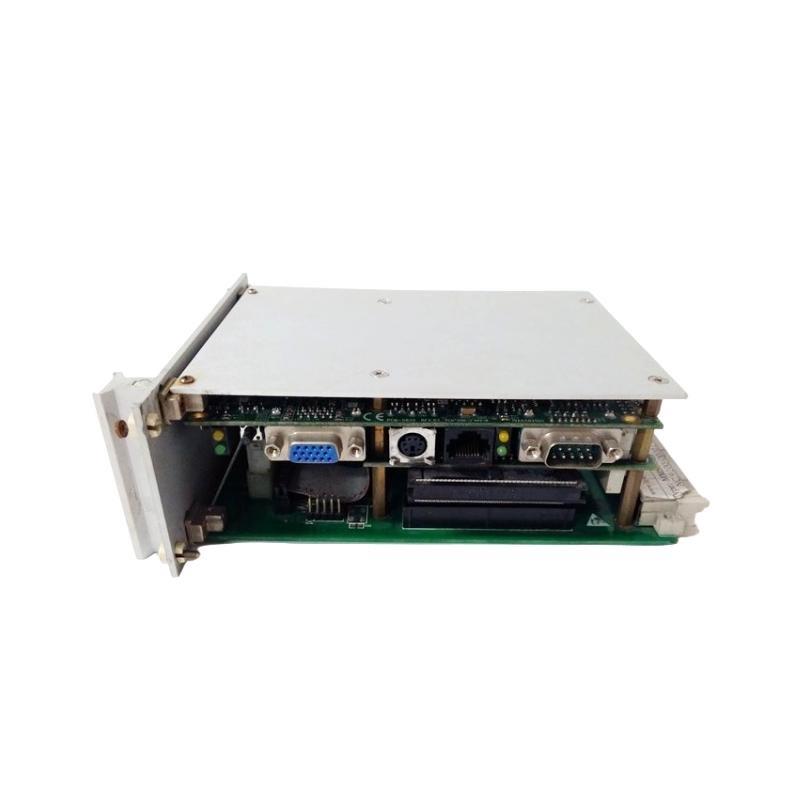

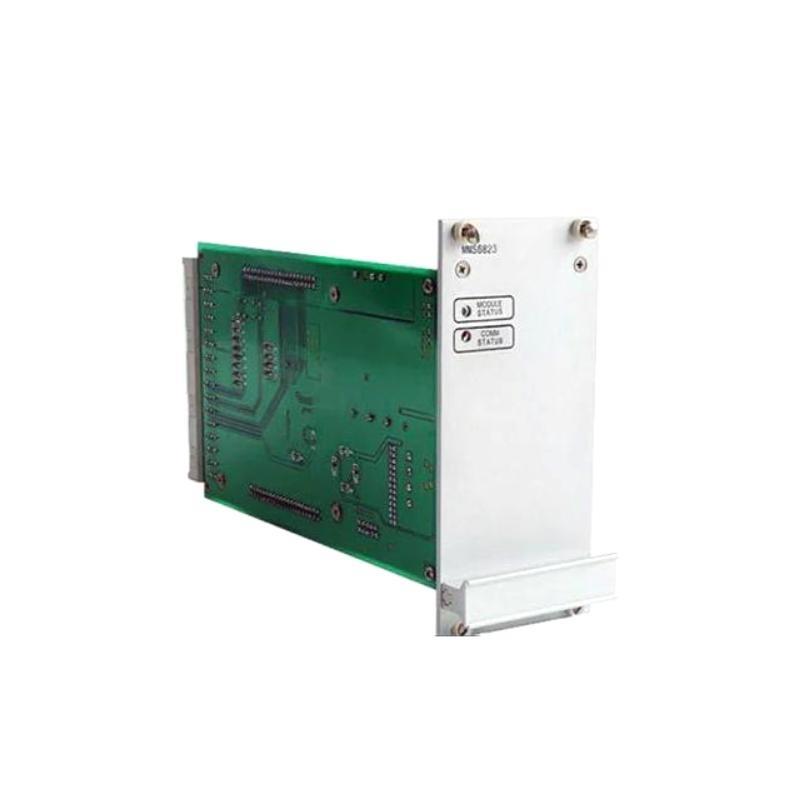

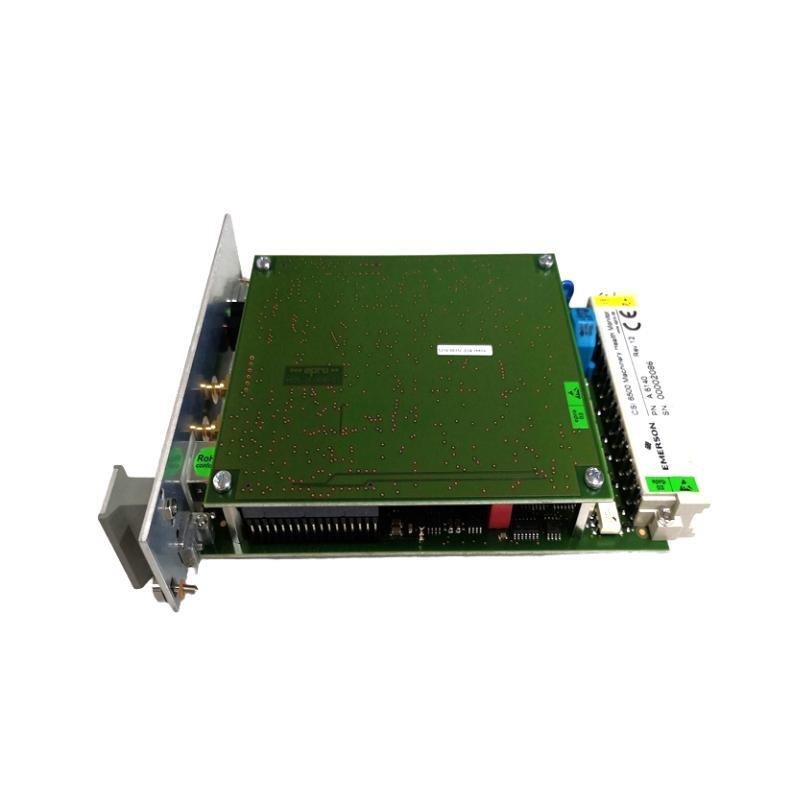

The Epro MMS6823R 9100-00001-06 Displacement Monitor Module is an advanced device designed for the accurate and reliable monitoring von displacement in industrial machinery. This module is typically used in applications requiring precise measurement von linear or angular displacement in rotating and stationary equipment, ensuring operational stability and preventing damage due to excessive movement.
The MMS6823R module is engineered for high performance and versatility, with the capability to monitor multiple displacement sensors simultaneously. It integrates seamlessly into control systems, providing real-time data that can be used to evaluate the condition von machinery, detect misalignment, and ensure safe operation. The system is widely used in industries such as manufacturing, power generation, oil and gas, and automotive.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | MMS6823R 9100-00001-06 |
| Hersteller | Epro |
| Type | Displacement Monitor Module |
| Input Channels | Up to 4 Channels (for multiple sensors) |
| Signal Type | Analog Displacement Signals |
| Output Type | 4-20 mA / 0-10 V DC (selectable) |
| Power Supply | 24 V DC ± 10% |
| Accuracy | ±0.1% von full scale |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L x W x H) | 300 x 210 x 100 mm |
| Gewicht | 0.6 kg |
| Mounting Type | DIN Rail Mountable |
| Housing Material | Polycarbonate |
| Communication Protocol | Modbus RTU (RS485) |
| Certification | CE, UL, ATEX (optional) |
| Response Time | < 1 ms |
Applications
The Epro MMS6823R Displacement Monitor Module is suitable for a wide range von applications that require precise measurement and monitoring von displacement. Its typical uses include:
-
Machinery Health Monitoring: Used in motors, turbines, compressors, and pumps to monitor displacement and detect early signs von misalignment or wear.
-
Industrial Equipment: Helps monitor displacement in conveyor systems, robotic arms, and other automated systems where precise movement control is essential.
-
Turbine and Generator Monitoring: Ensures that turbines and generators are operating within safe displacement thresholds to avoid damage and inefficiency.
-
Hydraulic Systems: Monitors the displacement von hydraulic cylinders, ensuring proper operation and preventing system failures due to misalignment.
-
Power Plants: Used in power plants to measure displacement in rotating equipment such as turbines and motors, providing predictive maintenance data.
-
Automotive Testing: Employed in automotive testing rigs to measure and analyze displacement in various components like engines and gearboxes.
Advantages
-
High Precision: With an accuracy von ±0.1% von the full scale, the MMS6823R ensures reliable and precise measurements von displacement, crucial for machinery health monitoring.
-
Multi-Channel Input: Capable von supporting up to 4 channels, it allows for simultaneous monitoring von multiple displacement sensors, providing a comprehensive view von equipment performance.
-
Versatile Output Options: The module vonfers both 4-20 mA and 0-10 V DC outputs, allowing for easy integration with a wide range von control systems.
-
Real-Time Data Transmission: With real-time monitoring capabilities, the device enables immediate action when displacement thresholds are exceeded, preventing potential damage.
-
Robust Design: The Stück is built with a durable polycarbonate housing, making it suitable for use in demanding industrial environments.
-
Wide Operating Temperature Range: The device can operate in temperatures ranging from -40°C to +85°C, making it suitable for a variety von harsh industrial settings.
-
Easy Integration: The device supports Modbus RTU (RS485) communication protocol, ensuring seamless integration with existing control and monitoring systems.
-
Cost-Effective: By vonfering multi-channel functionality, it reduces the need for multiple individual displacement sensors, helping lower system costs.
-
DIN Rail Mountable: The device can be easily mounted on a standard DIN rail, simplifying installation and setup.
-
Certifications for Safety: With CE, UL, and optional ATEX certification, the module is compliant with global safety standards, ensuring it can be used in hazardous environments.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the Epro MMS6823R 9100-00001-06?
The MMS6823R is a displacement monitor module designed to measure and monitor linear or angular displacement in industrial machinery. -
How many channels does the MMS6823R support?
It supports up to 4 input channels, allowing for the simultaneous monitoring von multiple displacement sensors. -
What output signals does the MMS6823R provide?
The module vonfers selectable 4-20 mA or 0-10 V DC output signals, making it compatible with most control systems. -
What is the accuracy von the MMS6823R?
The MMS6823R provides high accuracy with a tolerance von ±0.1% von full scale. -
What is the power supply requirement for the MMS6823R?
The device requires a 24 V DC power supply with a tolerance von ±10%. -
Can the MMS6823R be used in hazardous environments?
Yes, the MMS6823R is optionally available with ATEX certification, making it suitable for use in explosive atmospheres. -
How does the MMS6823R communicate with other devices?
The MMS6823R supports Modbus RTU (RS485) communication protocol, enabling easy integration with other control systems. -
What is the temperature range for the MMS6823R?
The device operates in temperatures ranging from -40°C to +85°C, making it suitable for a variety von industrial environments. -
How is the MMS6823R mounted?
The device is DIN rail mountable, which simplifies installation in existing control panels. -
What industries can benefit from the MMS6823R?
The MMS6823R is used in a wide range von industries, including power generation, automotive testing, machinery health monitoring, and hydraulic systems.
Recommended Modells from the Same Series or Related Modells
| Modell Number | Channels | Output Type | Power Supply | Accuracy | Gewicht |
|---|---|---|---|---|---|
| MMS6823R 9100-00001-07 | 4 Channels | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.75 kg |
| MMS6823R 9100-00002-06 | 2 Channels | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.72 kg |
| MMS6831R 9100-00003-08 | 4 Channels | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.05% | 0.80 kg |
| MMS6810R 9100-00004-09 | 1 Channel | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.60 kg |
| MMS6840R 9100-00005-07 | 4 Channels | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.78 kg |
| MMS6820R 9100-00006-08 | 2 Channels | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.70 kg |
Popular Modells from Epro
| Modell Number | Channels | Output Type | Power Supply | Accuracy | Gewicht |
|---|---|---|---|---|---|
| MMS6700R 9100-00007-08 | 1 Channel | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.2% | 0.65 kg |
| MMS6710R 9100-00008-09 | 2 Channels | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.72 kg |
| MMS6600R 9100-00009-07 | 1 Channel | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.60 kg |
| MMS6800R 9100-00010-08 | 4 Channels | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.75 kg |
| MMS6900R 9100-00011-09 | 4 Channels | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.1% | 0.80 kg |
| MMS6400R 9100-00012-07 | 1 Channel | 4-20 mA / 0-10 V | 24 V DC ± 10% | ±0.2% | 0.65 kg |
