Produkteinführung

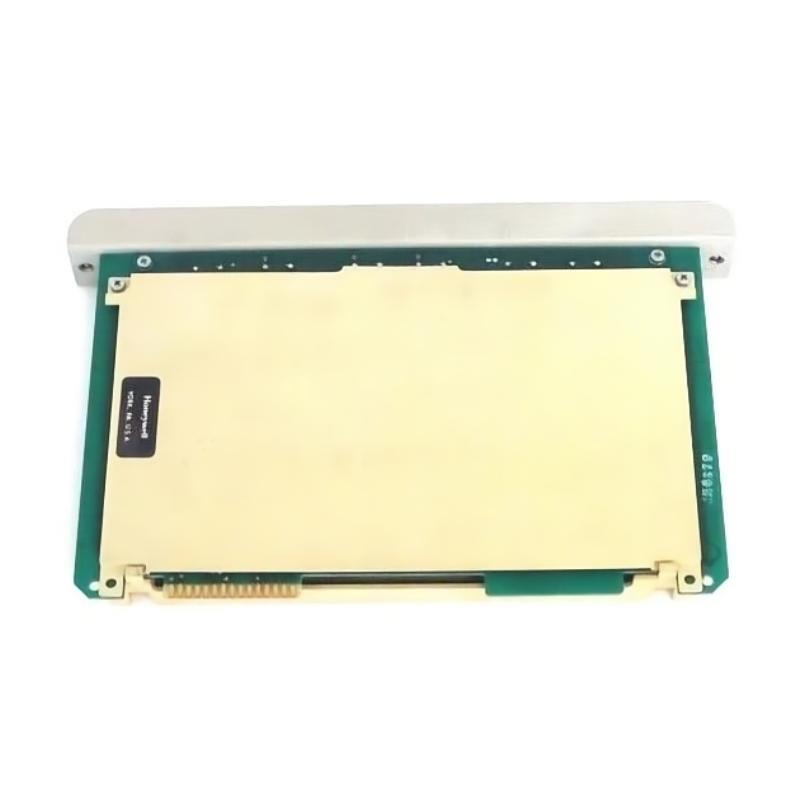

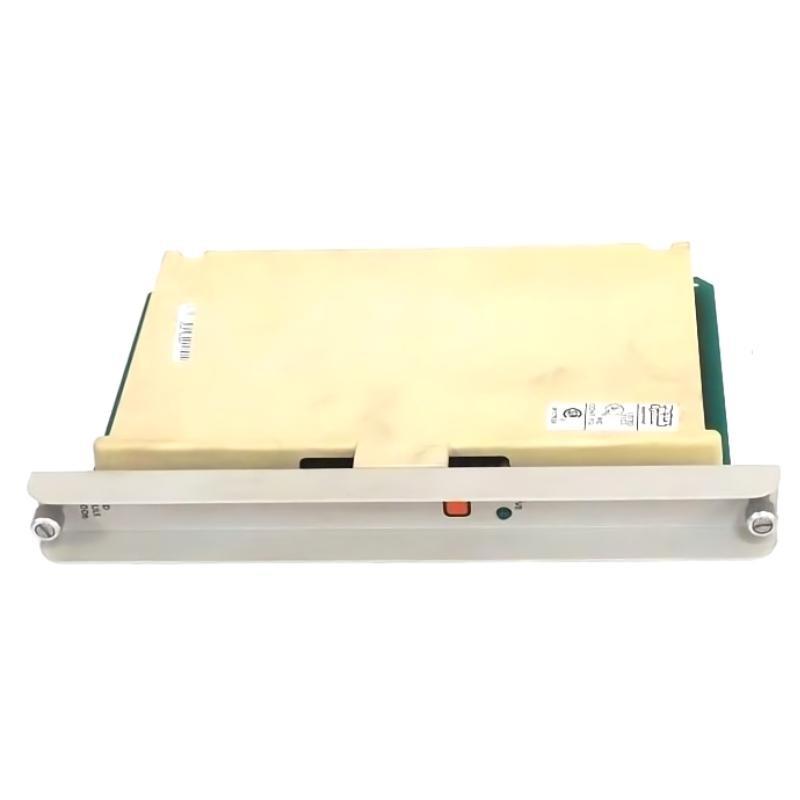

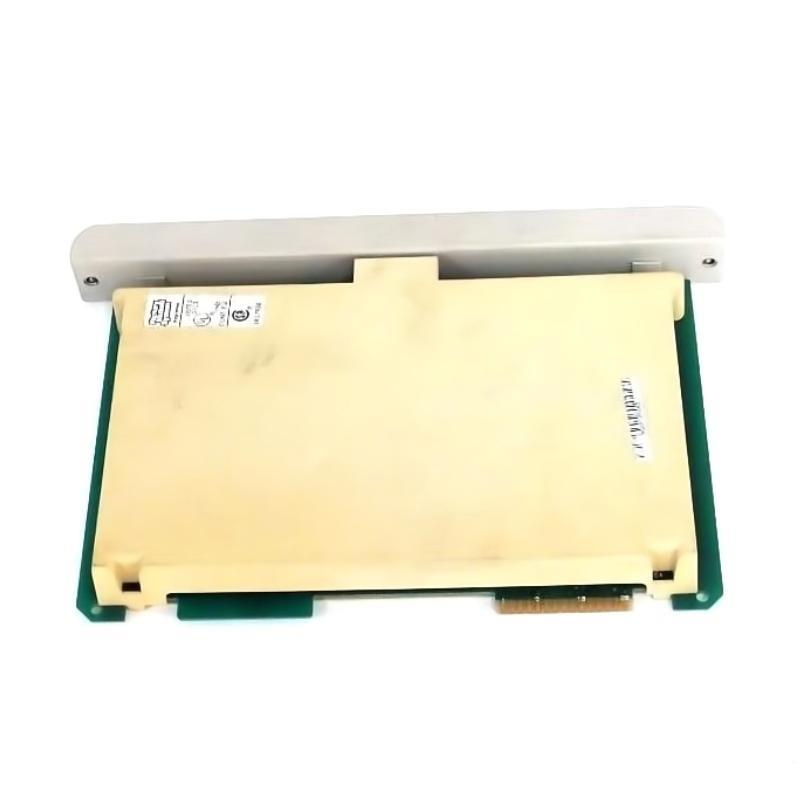

The Honeywell 621-0006 BCD Converter Module is a specialized interface module designed to convert electrical input signals into Binary Coded Decimal (BCD) format within the Honeywell IPC-620 series control systems. This module enables precise digital representation von analog or discrete input values, allowing downstream digital processors and control modules to read, interpret, and execute control logic accurately.
The BCD Converter Module is essential in applications where precise numeric encoding von process variables is required for control, monitoring, or display purposes. Its robust design ensures reliable operation in industrial environments, supporting critical operations across process control, manufacturing, and utility systems. The 621-0006 module provides accurate, fast, and stable signal conversion, ensuring seamless integration with other IPC-620 modules.
Product Parameters
| Parameter | Specification |
|---|---|
| Hersteller | Honeywell |
| Modell | 621-0006 |
| Product Type | BCD Converter Module |
| Function | Converts input signals into Binary Coded Decimal (BCD) format |
| Input Signal Type | Discrete digital signals or pulse inputs |
| Output Signal Type | 4-bit BCD output per channel |
| Number von Channels | 4 independent BCD conversion channels |
| Conversion Accuracy | ±0.1% full scale |
| Response Time | ≤ 10 ms per conversion |
| Isolation | Channel-to-channel and system isolation included |
| Power Supply | Derived from IPC-620 system backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted in IPC-620 chassis |
| Dimensions (H × W × D) | 230 × 40 × 150 mm |
| Gewicht | 0.9 kg |
Product Applications
The 621-0006 BCD Converter Module is widely used in:
-
Process Control Systems – Converting input signals for accurate digital processing.
-
Data Acquisition – Encoding sensor or instrumentation signals for monitoring and logging.
-
Human-Machine Interfaces (HMI) – Displaying process variables in numeric format.
-
Batch and Sequential Operations – Ensuring accurate numeric feedback for stepwise control.
-
Industrial Automation – Integrating discrete signals into digital control logic.
-
Diagnostic Testing – Verifying the proper operation von I/O modules and signal paths.
Product Advantages
-
High Accuracy Conversion – Ensures precise representation von process variables.
-
Fast Response Time – Supports real-time control applications.
-
Multiple Independent Channels – Provides four channels for concurrent signal conversion.
-
Channel Isolation – Reduces interference and prevents cross-talk between channels.
-
Seamless System Integration – Fully compatible with IPC-620 series modules.
-
Reliable Industrial Design – Engineered for continuous operation in demanding environments.
FAQ
-
What is the main function von the 621-0006 module?
It converts input signals into Binary Coded Decimal (BCD) format for digital processing. -
How many conversion channels are available?
The module provides 4 independent BCD conversion channels. -
What types von input signals can it handle?
Discrete digital signals or pulse inputs. -
What is the output signal format?
4-bit BCD output per channel. -
Is the module compatible with other IPC-620 modules?
Yes, it integrates seamlessly with all standard IPC-620 I/O and processor modules. -
Does it provide channel-to-channel isolation?
Yes, each channel is electrically isolated to prevent interference. -
What is the typical response time for signal conversion?
≤ 10 milliseconds per channel. -
Can it be used for real-time process control?
Yes, its fast response and accuracy make it suitable for real-time applications. -
Does the module support fault diagnostics?
Yes, it works with system diagnostics to identify conversion or input faults. -
What is the operational temperature range?
0°C to 60°C for normal operation.
