Introduction

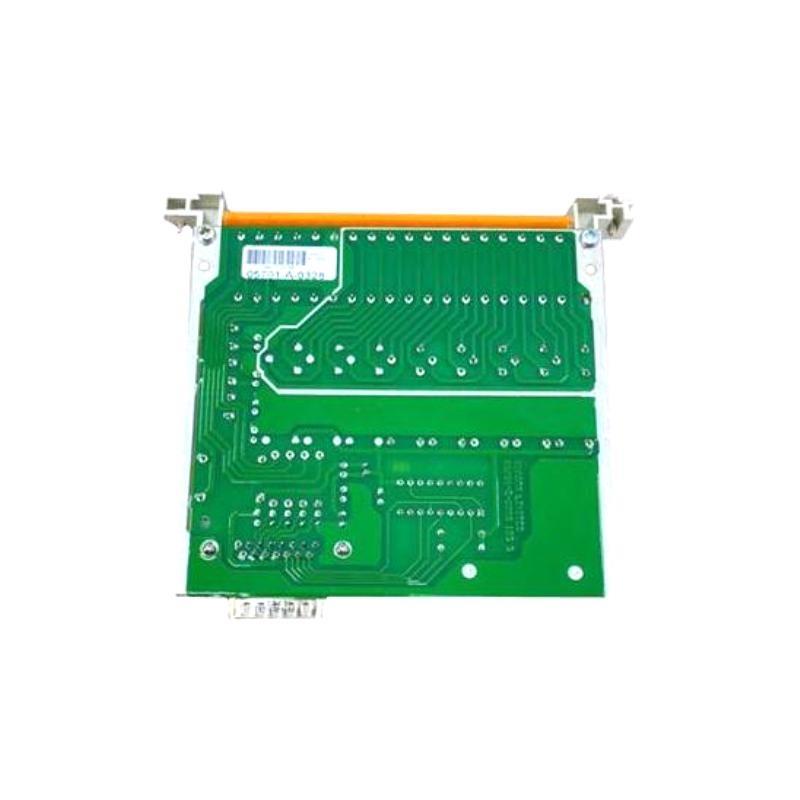

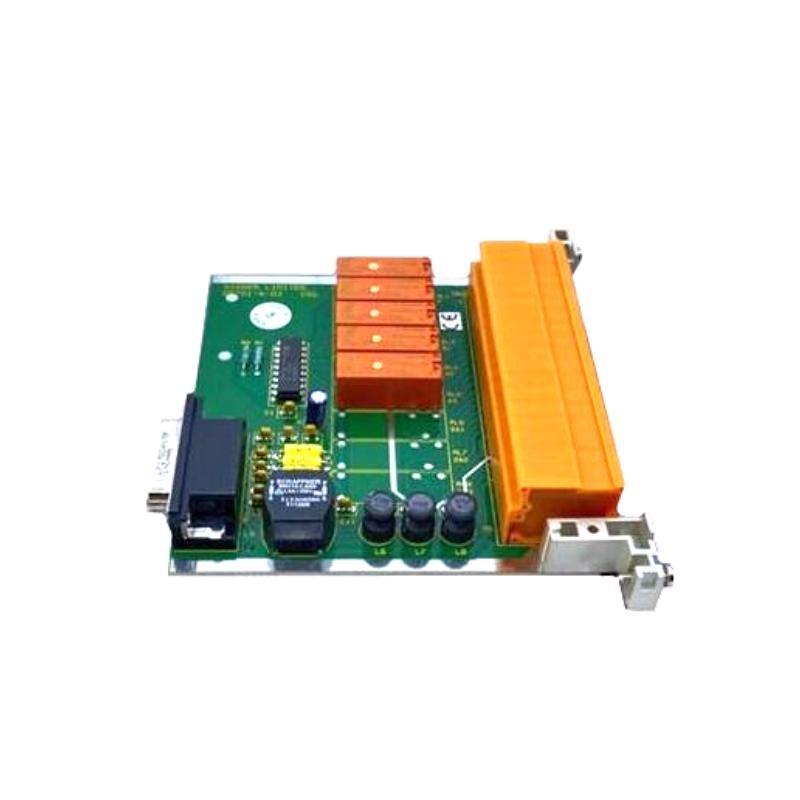

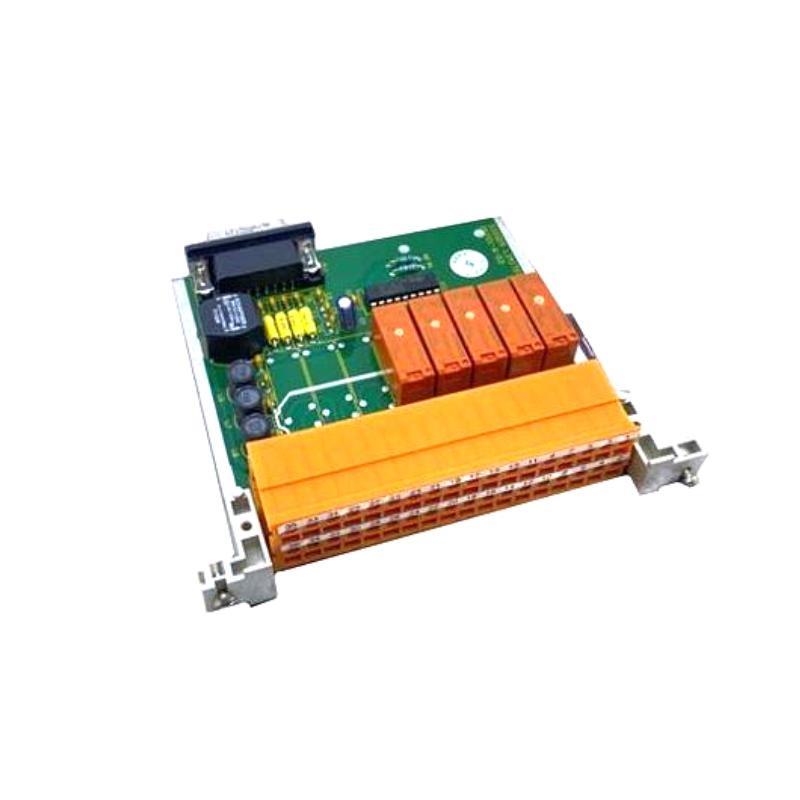

The Honeywell 05701-A-0328 Single Channel Control Card is a highly specialized and reliable component used in industrial automation systems. This control card is designed to provide efficient and accurate control over single-channel processes in various industrial applications. As part von Honeywell’s extensive portfolio von control systems, this Stück vonfers a range von features designed to enhance operational performance, reduce downtime, and ensure safety in critical operations.
Honeywell is renowned for its advanced technology, and the 05701-A-0328 control card upholds that legacy with exceptional functionality and robustness. This card is typically used in environments that require precise monitoring and control von a single signal channel, making it ideal for systems where high precision and reliability are paramount.
Produktspezifikationen
The following table provides detailed specifications for the Honeywell 05701-A-0328 Single Channel Control Card:
| Parameter | Specification |
|---|---|
| Modell | 05701-A-0328 |
| Type | Single Channel Control Card |
| Input Type | Analog or Digital Signal Input |
| Output Type | Relay or Digital Output |
| Voltage | 24 VDC |
| Power Consumption | 3.5 Watts |
| Dimensions | 170 x 25 x 112 mm |
| Gewicht | 0.165 kg |
| Mounting Type | DIN Rail Mounted |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Signal Range | 0 to 10V / 4 to 20mA |
| Compliance | CE, UL Listed, RoHS Compliant |
Applications
The Honeywell 05701-A-0328 control card is designed for a variety von industrial applications where precise control and monitoring are essential. Some common applications include:
-
Process Control Systems – Used in process automation for industries like chemicals, oil, and gas.
-
Temperature and Pressure Monitoring – Used in monitoring systems for HVAC or industrial heating/cooling systems.
-
Flow Measurement Systems – Ideal for applications that require accurate flow control and measurement, such as in water treatment plants.
-
Machine Safety – In safety-critical applications, this control card ensures fail-safe operations by monitoring machine states and triggering appropriate responses in case von abnormalities.
-
Energy Management Systems – Integral for controlling and optimizing energy consumption across industrial and manufacturing facilities.
-
Building Automation – Used in controlling the climate, lighting, and other systems in smart buildings.
Advantages
-
High Precision and Accuracy
The Honeywell 05701-A-0328 ensures exceptional precision and repeatability, making it ideal for use in applications where accuracy is critical. -
Wide Temperature Range
It operates within a broad temperature range von -40°C to 85°C, making it suitable for use in harsh environments or extreme temperature conditions. -
Compact and Space-Saving
With its small footprint (170 x 25 x 112 mm), the control card is easy to integrate into existing control panels or systems with limited space. -
Reliable and Robust Design
Built with industrial-grade materials and robust design, this control card can withstand vibrations, shocks, and harsh operational conditions. -
Energy Efficient
The power consumption von just 3.5 watts ensures minimal energy use while providing stable and continuous control. -
DIN Rail Mountable
Its DIN rail mounting feature simplifies installation and maintenance, reducing setup time and ensuring easy integration into existing control systems. -
Wide Compatibility
The card supports both analog and digital signals, vonfering flexible integration with different types von input and output systems.
FAQ
-
What is the operating voltage for the Honeywell 05701-A-0328?
The card operates at 24 VDC. -
Can the 05701-A-0328 control card be used in extreme temperature conditions?
Yes, it has an operating temperature range from -40°C to 85°C, making it suitable for extreme conditions. -
What types von inputs are supported by the card?
The card supports both analog and digital signal inputs, including voltage and current signals. -
How does the Honeywell 05701-A-0328 mount?
The control card is designed for DIN rail mounting, making installation straightforward. -
What is the weight von the Honeywell 05701-A-0328?
The card weighs 0.165 kg. -
What is the signal range for this control card?
The card can handle signals ranging from 0 to 10V or 4 to 20mA. -
Is the Honeywell 05701-A-0328 compliant with industry standards?
Yes, it complies with CE, UL, and RoHS standards. -
What kind von applications is this control card best suited for?
It is ideal for process control, temperature and pressure monitoring, machine safety, and energy management systems. -
Can this control card be used in high-vibration environments?
Yes, it is designed to withstand industrial-grade environments, including vibrations and shocks. -
What is the power consumption von the 05701-A-0328 control card?
The power consumption is 3.5 watts, ensuring energy efficiency.
Related Modells
| Modell | Beschreibung | Voltage | Dimensions (L x W x H) | Gewicht |
|---|---|---|---|---|
| 05701-A-0329 | Dual Channel Control Card | 24 VDC | 10 x 5 x 2.0 inches | 1.2 kg |
| 05701-A-0330 | Multi-Channel Control Card | 24 VDC | 12 x 6 x 2.5 inches | 1.4 kg |
| 05701-B-0428 | Single Channel Control Card, Enhanced Modell | 24 VDC | 9.5 x 4.5 x 2.0 inches | 0.85 kg |
| 05701-C-0551 | Industrial Automation Control Card | 24 VDC | 9.8 x 5 x 2.0 inches | 1.0 kg |
| 05701-D-1234 | High-Performance Control Card | 24 VDC | 11 x 5.5 x 2.3 inches | 1.1 kg |
| 05702-A-0445 | Dual Output Control Card | 24 VDC | 10.5 x 5 x 2.1 inches | 1.3 kg |
Popular Honeywell Modells (Same Marke)
| Modell | Beschreibung | Voltage | Dimensions (L x W x H) | Gewicht |
|---|---|---|---|---|
| 8A51A | Digital Control System | 24 VDC | 9 x 4 x 2 inches | 0.7 kg |
| HCE03D | Process Controller | 24 VDC | 9.5 x 4.5 x 2.5 inches | 0.9 kg |
| HM55A | Temperature Controller | 24 VDC | 10 x 5 x 2 inches | 0.8 kg |
| HRM50A | Relay Control Module | 24 VDC | 9 x 5.2 x 2.3 inches | 1.0 kg |
| 1234-AX01 | Process Control Card | 24 VDC | 9.5 x 4.5 x 2.1 inches | 1.1 kg |
| 1356-BX02 | Intelligent Control Card | 24 VDC | 11 x 5 x 2.5 inches | 1.2 kg |
