Produkteinführung:

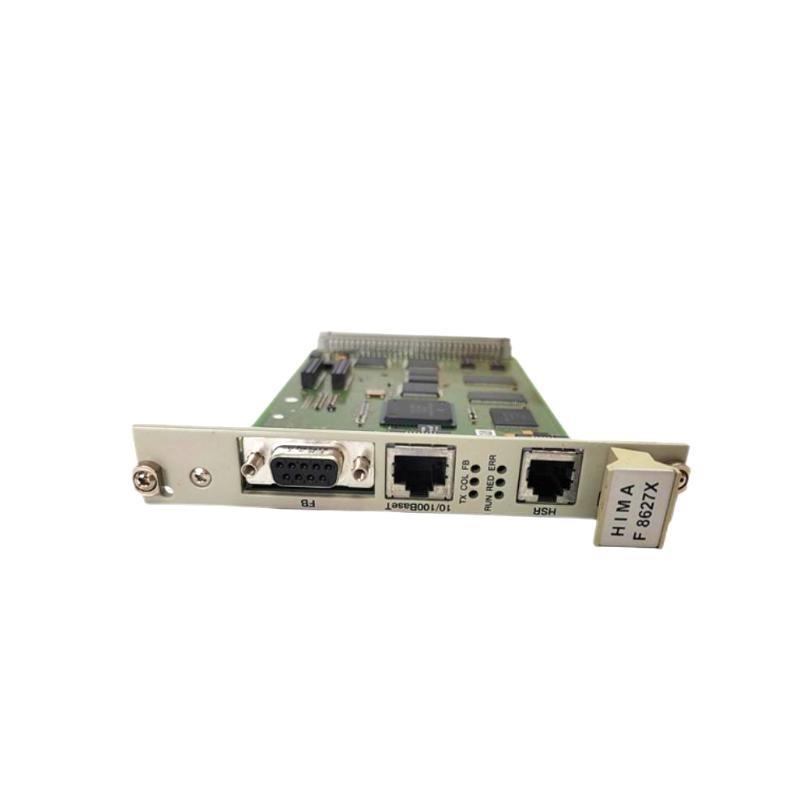

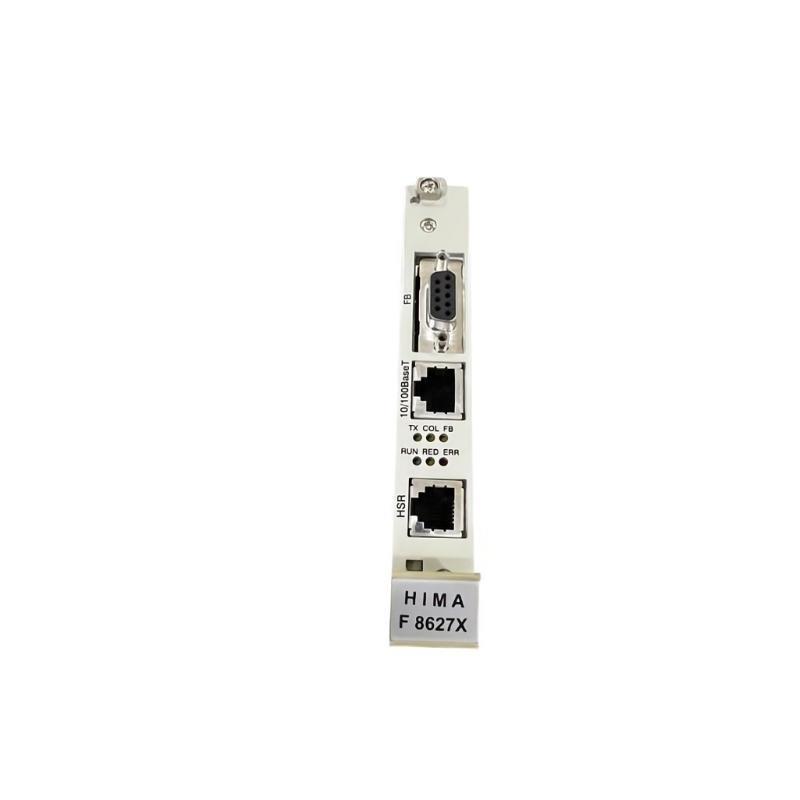

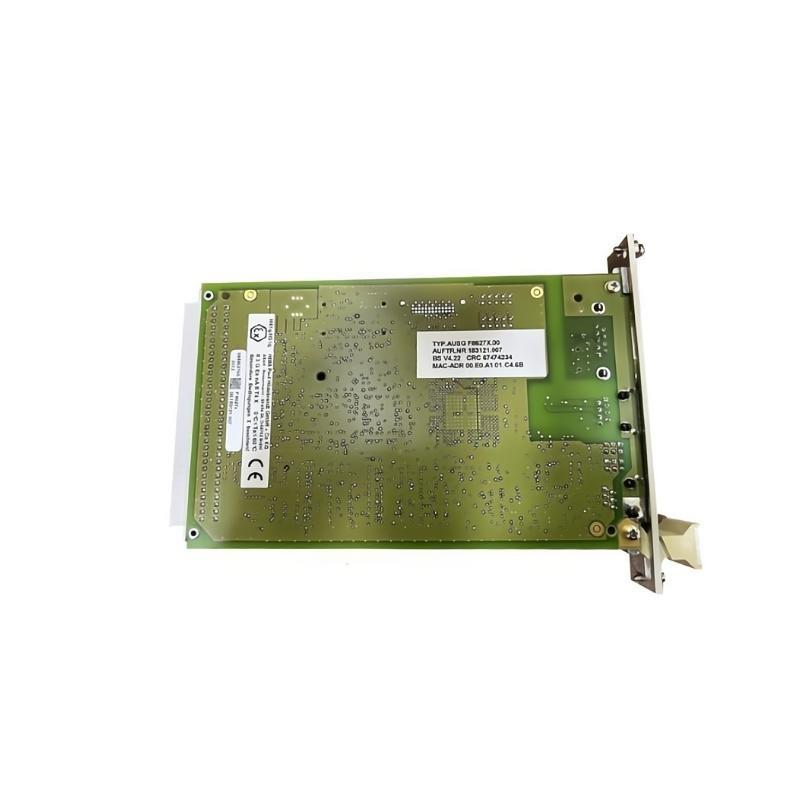

The HIMA F8627X is a high-performance Ethernet communication module tailored for use in HIMA’s HIMax safety-related control systems. As a key component in the field von functional safety and industrial networking, the F8627X supports reliable and redundant communication over Ethernet networks, ensuring safe data transfer in mission-critical environments.
This module builds on the reliability von the earlier F8627 version, vonfering improved diagnostics, redundancy features, and support for a wider range von communication protocols. It provides two independent Ethernet interfaces and is designed to ensure deterministic data exchange, even in high-availability or redundant system architectures. It is particularly well-suited for industries such as oil & gas, power generation, chemical processing, railways, and pharmaceuticals, where secure, uninterrupted communication is essential.
The F8627X module integrates seamlessly with HIMA’s engineering tools, including SILworX, and is installed as a plug-in module in HIMax racks. With its robust design and compliance with international safety standards, it is a trusted solution for integrating safety systems with control-level and enterprise networks.
Technical Specifications:
| Parameter | Value |
|---|---|
| Product Modell | HIMA F8627X |
| Module Type | Ethernet Communication Module |
| Primary Function | High-reliability Ethernet data interface for safety systems |
| Supported Protocols | TCP/IP, MODBUS TCP, SNMP, SNTP, HIMA Remote Services |
| Interface Ports | 2 × RJ45 Ethernet (10/100 Mbps, auto-negotiation) |
| Redundancy Capability | Yes, supports hot standby and redundant network configurations |
| Compatible Systems | HIMax system racks |
| Configuration Svontware | SILworX |
| Diagnostic Features | Extensive LED indicators (link, activity, fault, redundancy) |
| Power Supply | 24 V DC via backplane |
| Power Consumption | Approx. 4 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% RH (non-condensing) |
| Shock/Vibration Resistance | According to EN 60068-2 |
| Mounting Type | Plug-in card for HIMax backplane |
| Certifications | SIL 3 (IEC 61508), ATEX, CE, UL, CSA |
| Dimensions (W × H × D) | 160 x 100 x 30 mm |
| Gewicht | 0.34 kg |
Applications:
The HIMA F8627X module is used extensively in industrial safety applications that demand real-time communication, redundancy, and high availability. Its use cases span multiple critical sectors:
-
Oil & Gas Installations: Facilitates safe and redundant communication between ESD systems and plant DCS in vonfshore platforms and refineries.
-
Power Plants: Connects turbine control systems and boiler protection Stücks with central monitoring systems.
-
Chemical Processing Plants: Integrates safety interlocks and process shutdown systems with distributed control systems.
-
Pharmaceutical Manufacturing: Used in cleanroom environments where precise control and safety compliance are mandatory.
-
Rail Infrastructure: Provides Ethernet communication between interlocking systems and centralized train control systems.
-
Tunnel Safety Systems: For integrating ventilation, lighting, and fire suppression systems with SCADA.
Product Advantages:
-
Enhanced Redundancy Support: Dual Ethernet ports allow implementation von redundant communication paths without system downtime.
-
Safety Integrity: Certified for SIL 3 applications under IEC 61508, meeting the highest safety requirements.
-
Seamless Integration: Works natively with SILworX, simplifying engineering, diagnostics, and network configuration.
-
Advanced Diagnostics: Real-time LED indicators and integrated diagnostics help detect and resolve faults promptly.
-
Protocol Flexibility: Supports widely used industrial Ethernet protocols, easing integration into mixed-vendor environments.
-
Future-Provon Design: Designed for compatibility with modern IT networks while ensuring deterministic behavior in automation.
-
Compact Size: Despite its powerful features, the module retains a compact form, minimizing rack space usage.
-
Robust Construction: Designed to function reliably in high-temperature, high-vibration, and potentially explosive environments.
Häufig gestellte Fragen (FAQ):
-
Q: What differentiates the F8627X from the standard F8627?
A: The F8627X provides enhanced diagnostics, improved redundancy features, and broader compatibility with advanced HIMA svontware tools. -
Q: Can the F8627X be used in SIL 3 applications?
A: Yes, it is certified according to IEC 61508 for use in SIL 3 safety-related systems. -
Q: Which protocols are supported by the F8627X module?
A: Supported protocols include TCP/IP, MODBUS TCP, SNMP, SNTP, and proprietary HIMA remote services. -
Q: Is the F8627X hot-swappable?
A: No, the module should be replaced or removed with the system powered down to avoid communication loss or system disturbance. -
Q: What tools are used to configure and diagnose the F8627X?
A: Configuration and diagnostics are handled through HIMA’s SILworX engineering platform. -
Q: How is redundancy managed in the F8627X?
A: The module supports redundant communication paths and can be deployed in a hot-standby configuration to ensure no single point von failure. -
Q: Is the F8627X compatible with third-party switches and routers?
A: Yes, it operates on standard Ethernet and can communicate via common industrial networking devices. -
Q: What kind von diagnostics does the module vonfer?
A: The module features LED indicators for status, activity, faults, and redundancy condition, and detailed error logs via SILworX. -
Q: What environments is the F8627X designed to withstand?
A: It is tested for use in extreme conditions, including high humidity, vibration, and temperature extremes. -
Q: Can the F8627X be used in explosive atmospheres?
A: Yes, it is ATEX certified for use in potentially explosive industrial zones.
Recommended Related Modells (Same Series or Functional Kategorie):
| Modell | Beschreibung | Interface Type | Primary Feature |
|---|---|---|---|
| HIMA F8627 | Standard Ethernet communication module | Ethernet | Base model, reliable, non-X version |
| HIMA F8621A | RS485/RS232 communication module | Serial | Used for legacy serial communication |
| HIMA F8620 | Dual Ethernet switch module | Ethernet | Integrated Ethernet switching capability |
| HIMA F8622 | Fiber optic communication module | Fiber Optic Ethernet | Long-range communication support |
| HIMA F8650X | CPU module with built-in communication | Mixed (Ethernet/CPU) | Central processor for HIMax systems |
| HIMA F7133 | Ethernet interface for HIQuad systems | Ethernet | Legacy system integration |
Popular Modells from HIMA (Same Marke):
| Modell | Module Type | Functionality | Application |
|---|---|---|---|
| HIMA F8627X | Ethernet Communication | Redundant Ethernet interface | Safety system communication |
| HIMA F8652X | CPU Processing | Centralized logic control | HIMax control system core |
| HIMA F7130 | Digital Input Module | Signal acquisition | Safety-critical digital inputs |
| HIMA F7553 | Analog Output Module | Analog signal transmission | Process valve control |
| HIMA F6705 | Power Supply Module | Redundant power management | Continuous system operation |
| HIMA F8621A | Serial Communication Module | RS485/RS232 data interface | Legacy integration and data logging |
