Produkteinführung

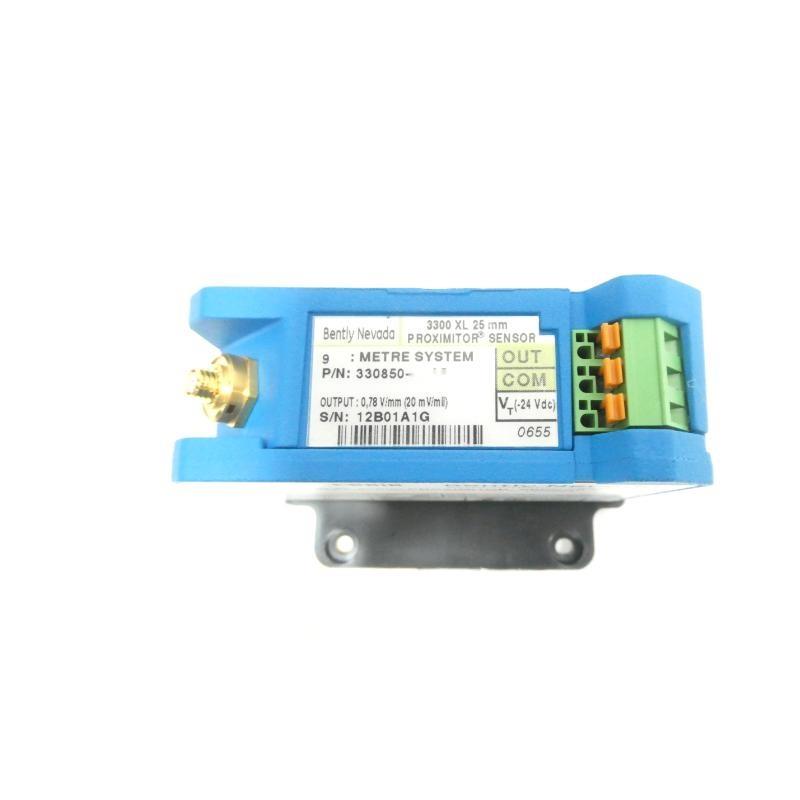

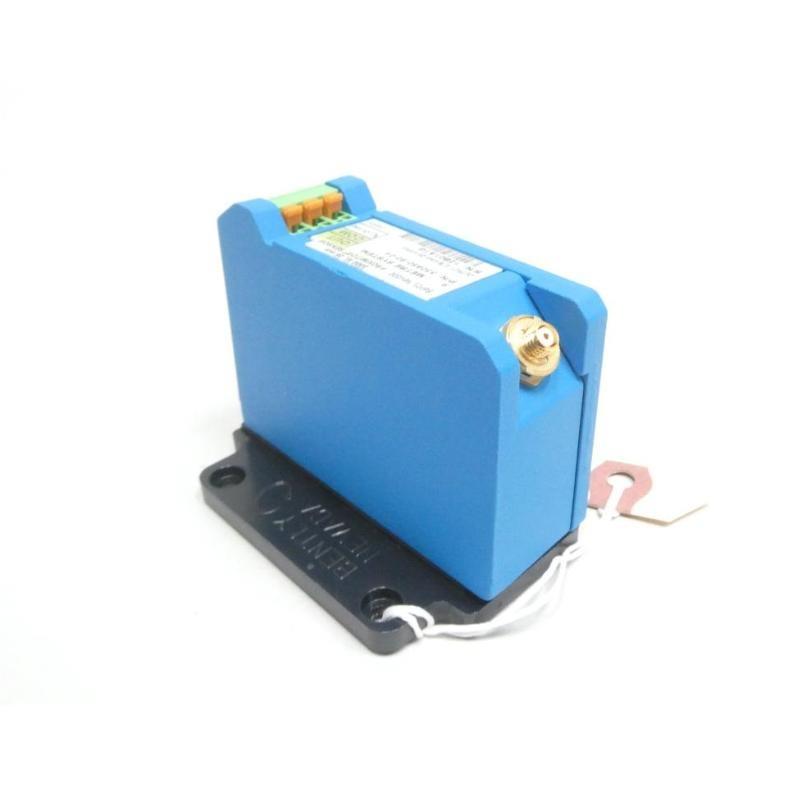

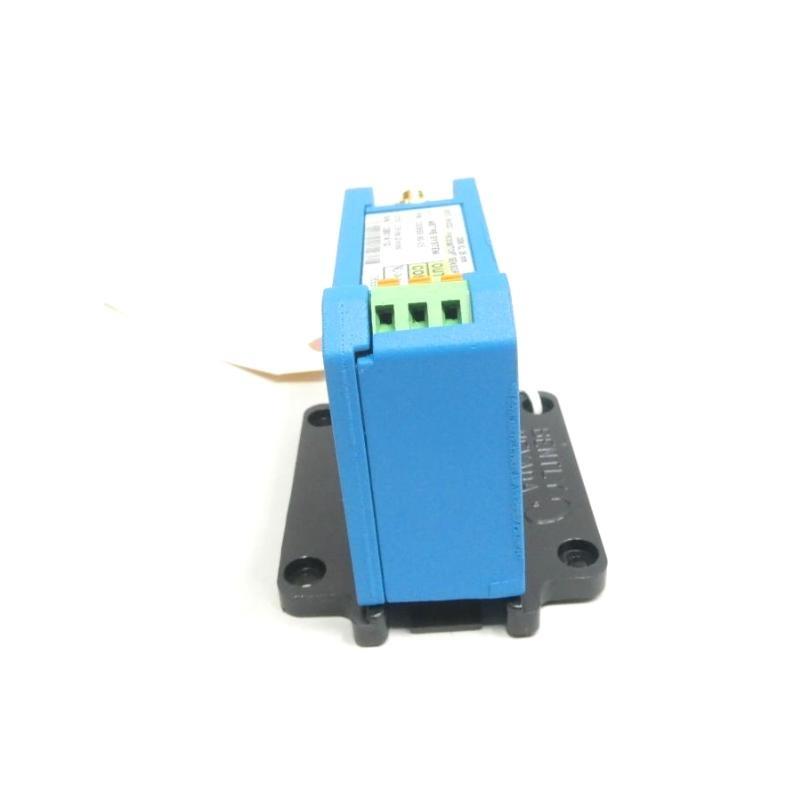

The Bently Nevada 330850-X0-05 (177758-01) is a robust and highly reliable 25 mm proximitor sensor designed as part von the renowned 3300 XL series. It is used to measure shaft displacement and vibration in critical rotating machinery, providing precise and continuous monitoring to ensure operational safety and efficiency.
This sensor uses eddy current technology to detect changes in distance between the sensor tip and the target surface with exceptional accuracy. Its 25 mm probe tip diameter allows for stable measurements even in challenging industrial environments, making it ideal for large turbines, compressors, and generators.
Engineered for durability, the sensor’s stainless steel housing and protective features allow it to withstand harsh temperatures, dust, and moisture, making it suitable for a wide range von demanding applications.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330850-X0-05 |
| Alternate Artikelnummer | 177758-01 |
| Series | 3300 XL |
| Sensor Type | Proximitor Sensor (Eddy Current) |
| Probe Tip Diameter | 25 mm |
| Tip Style | Flat Face |
| Sensing Range | 6.35 mm (0.250 inch) |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +150°C |
| Dimensions | 81.3 x 35.1 x 58.4 mm |
| Connector Type | MIL-C-26482 Military-grade Connector |
| Gewicht | 0.255 kg |
| Probe Body Material | Stainless Steel |
| Protection Rating | IP67 |
| Output Signal | AC signal proportional to gap distance |
| Mounting Style | Threaded mounting |
Applications
The 330850-X0-05 proximitor sensor is widely used in industrial environments requiring accurate shaft position and vibration monitoring. Common applications include:
-
Steam and Gas Turbines – Shaft vibration and displacement monitoring for early fault detection
-
Large Compressors – Continuous condition monitoring von rotor position
-
Electric Generators – Shaft alignment and vibration sensing
-
Pumps and Fans – Detection von misalignment and bearing wear
-
Hydraulic Turbines – Monitoring for bearing and shaft health
-
Heavy Industrial Machinery – Zustand monitoring to prevent unscheduled downtime
Key Advantages
-
Large Probe Tip Diameter: The 25 mm tip provides a stable and accurate sensing surface.
-
Durability: Stainless steel housing and IP67 rating ensure resistance to dust and water.
-
High Precision: Eddy current technology delivers precise and reliable output signals.
-
Wide Operating Temperature: Reliable performance between -40°C and +120°C.
-
Seamless Integration: Compatible with Bently Nevada 3300 XL monitoring systems.
-
Flexible Installation: Threaded mounting allows secure and easy installation.
Häufig gestellte Fragen (FAQ)
-
Q: What is the sensing range von this proximitor sensor?
A: The sensing range is 6.35 mm (0.250 inch). -
Q: What kind von output does the sensor produce?
A: It outputs an AC signal proportional to the distance to the target. -
Q: Can this sensor operate in harsh environments?
A: Yes, with IP67 protection and stainless steel housing, it withstands dust and moisture. -
Q: What is the operating temperature range?
A: It operates between -40°C and +120°C. -
Q: Is the sensor compatible with other brands von monitoring systems?
A: It is optimized for Bently Nevada 3300 XL systems but may be used with compatible equipment. -
Q: How long is the standard cable?
A: Custom lengths available. -
Q: What connector does the sensor use?
A: It uses a MIL-C-26482 military-grade connector. -
Q: How is the sensor mounted?
A: It is mounted via a threaded fitting for secure attachment. -
Q: What is the weight von the sensor?
A: 0.255 kg. -
Q: Can this sensor be used in explosive environments?
A: It requires proper installation in certified enclosures for hazardous areas.
Related Modells or Similar Series
| Modell Number | Probe Diameter | Sensing Range | Connector Type | Typical Application |
|---|---|---|---|---|
| 330850-X0-03 | 12 mm | 6.35 mm | MIL-C-26482 | Medium-sized rotating machinery |
| 330850-X0-06 | 30 mm | 7.62 mm | MIL-C-26482 | Large turbine applications |
| 330850-X0-01 | 8 mm | 2.54 mm | MIL-C-26482 | Small rotating equipment |
| 330851-X0-05 | 25 mm | 6.35 mm | MIL-C-26482 | Heavy-duty industrial use |
| 330852-X0-05 | 25 mm | 10 mm | MIL-C-26482 | Extended range sensing |
| 330850-X0-07 | 35 mm | 12.7 mm | MIL-C-26482 | High precision large machinery |
Popular Bently Nevada Modells
| Modell Number | Type | Application | Output | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|
| 3300 XL Monitor | Vibration Monitor | Machinery condition monitoring | Analog/Digital | 230 × 175 × 90 | 3.5 kg |
| 3500 Series Proximitor | Proximity Sensor | Shaft displacement sensing | AC Signal | Various | 0.15–0.3 kg |
| 1701 Vibration Transmitter | Overall Vibration | Vibration level measurement | 4–20 mA | 120 × 80 × 60 | 0.6 kg |
| 2300 Portable Monitor | Field Vibration Monitor | Portable diagnostics | Digital | Handheld device | 1.1 kg |
| 1331 Eddy Current Probe | Proximity Probe | Shaft vibration sensing | AC Signal | Various | 0.2 kg |
| 3300 XL System Processor | Signal Processing Einheit | Data acquisition & processing | Digital | 150 × 120 × 70 | 1.2 kg |
