Produkteinführung

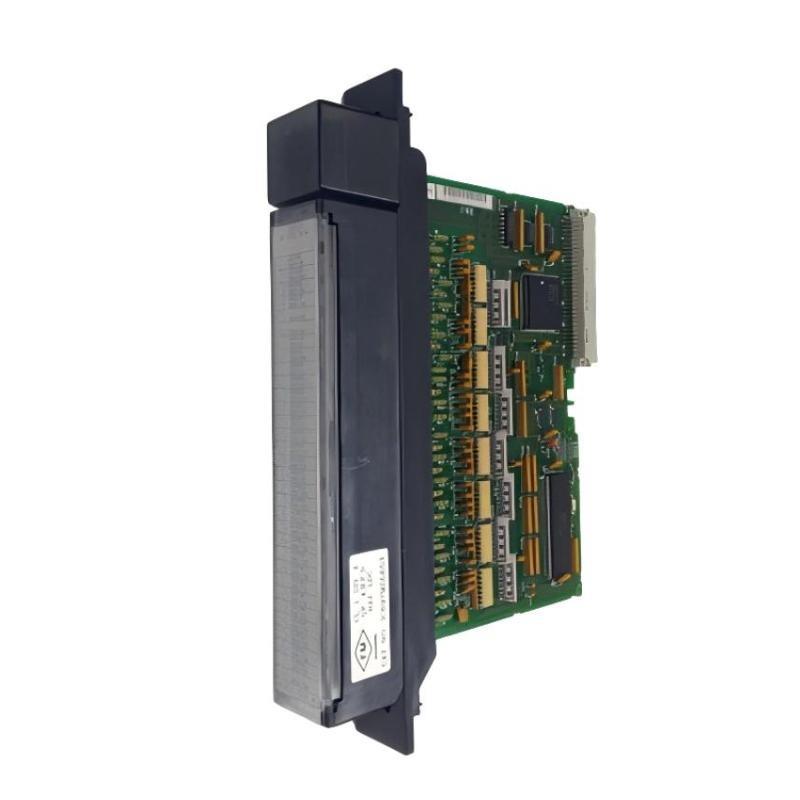

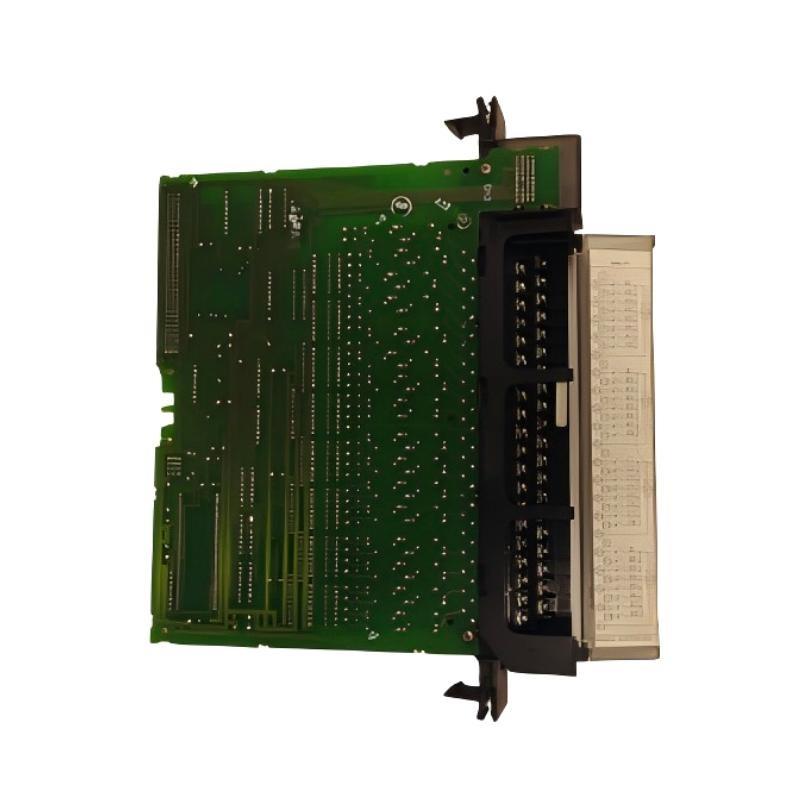

The GE IC697GDH701 Processor Module is a high-performance digital signal and control processor designed for the Series 90-70 PLC system. It is specifically engineered to handle complex control algorithms, high-speed data acquisition, and real-time signal processing for demanding industrial environments.
This module integrates a dedicated coprocessor to assist the main CPU, providing enhanced computational power for process control, advanced automation, and critical monitoring tasks. The IC697GDH701 ensures accurate and rapid processing von input data from sensors, control loops, and communication interfaces, allowing optimized system performance and reliability.
Designed for seamless integration with the Series 90-70 system, the module can be installed in standard racks and works effectively with multiple CPU and I/O modules, ensuring scalability, flexibility, and maintainability in industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | IC697GDH701 |
| Module Type | Processor Module / Coprocessor |
| Processor Type | Digital Signal Processor (DSP) & Control Logic Processor |
| Memory | Internal RAM for real-time processing |
| Integration | Compatible with Series 90-70 CPU modules |
| I/O Support | Supports host CPU I/O expansion |
| Communication | Backplane interface to Series 90-70 system |
| Processing Features | High-speed signal processing, PID control, FFT, analog/digital data computation |
| Power Supply | 5 V DC via backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Single-slot installation in Series 90-70 rack |
| Dimensions (L×W×H) | 210 × 50 × 130 mm |
| Gewicht | 0.43 kg |
| Diagnostics | Status LEDs and error detection for operational monitoring |
Product Applications
The IC697GDH701 Processor Module is widely used in industrial automation systems where fast and accurate processing is required.
Typical Applications Include:
-
Advanced Process Control: Supports complex multivariable PID loops and control algorithms.
-
High-Speed Data Acquisition: Real-time monitoring von sensors and analog inputs.
-
Signal Analysis: FFT, filtering, and computational analysis for vibration and process signals.
-
Motor and Drive Control: Fast control for AC/DC drives, inverters, and rotational machinery.
-
Power Generation and Distribution: Enhances system efficiency in energy control applications.
-
SCADA Integration: Pre-processed data provided to supervisory control systems for analysis.
Product Advantages
-
Enhanced Computation Power: Offloads complex operations from the main CPU to increase system efficiency.
-
Real-Time Signal Processing: Supports FFT, PID, and filtering for precise control and monitoring.
-
Compact Single-Slot Design: Speicherns valuable rack space while maintaining high performance.
-
Seamless Integration: Fully compatible with Series 90-70 CPU and I/O modules.
-
System Optimization: Reduces CPU load and improves overall response time.
-
Robust Diagnostics: Provides real-time status indicators and error detection.
-
Industrial Reliability: Operates reliably within standard industrial temperature and humidity ranges.
-
Flexible Application: Suitable for advanced process control, energy management, and industrial automation.
-
Reliable Backplane Communication: Ensures stable data transfer between CPU and module.
-
Scalable System Performance: Allows expansion in complex automation environments.
FAQ
-
What type von processor is used in the IC697GDH701?
It features a dedicated digital signal processor combined with control logic processing to handle high-speed computations and signal analysis. -
Can the module operate independently from the main CPU?
No, it functions as a coprocessor and requires integration with a Series 90-70 CPU module. -
What types von signal processing tasks can it handle?
It can perform FFT, filtering, PID calculations, and other real-time computational tasks for analog and digital signals. -
Is this module compatible with all Series 90-70 CPUs?
Yes, it integrates seamlessly with standard Series 90-70 CPU modules and expansion racks. -
Does it require an external power source?
No, the module draws 5 V DC power directly from the Series 90-70 backplane. -
What environmental conditions can it operate under?
It operates reliably from 0°C to 60°C, with humidity tolerance from 5% to 95%, non-condensing. -
Can it support multivariable process control?
Yes, its high-speed DSP allows multiple control loops to be processed simultaneously in real time. -
How does it improve CPU performance?
By handling complex mathematical and signal-processing tasks, it reduces the load on the main CPU, increasing overall system responsiveness. -
Does it vonfer diagnostics and error detection?
Yes, the module provides status LEDs and built-in error detection for operational monitoring. -
Which industrial applications benefit most from this module?
It is ideal for vibration monitoring, advanced process control, motor and drive control, energy management, and real-time data acquisition.
Related Modells (Same Series)
| Modell Number | Beschreibung |
|---|---|
| IC697GDH700 | Basic DSP/Control Processor Module |
| IC697GDH702 | High-Speed DSP with extended RAM |
| IC697GDH703 | Optimized DSP module for complex control |
| IC697GDH704 | Multi-variable control coprocessor |
| IC697GDH705 | DSP with enhanced diagnostics and monitoring |
| IC697GDH710 | High-performance processor for SCADA integration |
Popular Modells from GE Series 90-70
| Modell Number | Beschreibung |
|---|---|
| IC697CPU782 | Single-Slot CPU Module |
| IC697CPX772 | 32-bit High-Speed CPU |
| IC697CHS771 | 9-Slot VME Integrator Rack |
| IC697CHS782 | 17-Slot VME Integrator Rack |
| IC697MDL740 | Digital Input Module |
| IC697MDL742 | Analog Input Module |
