Product Overview

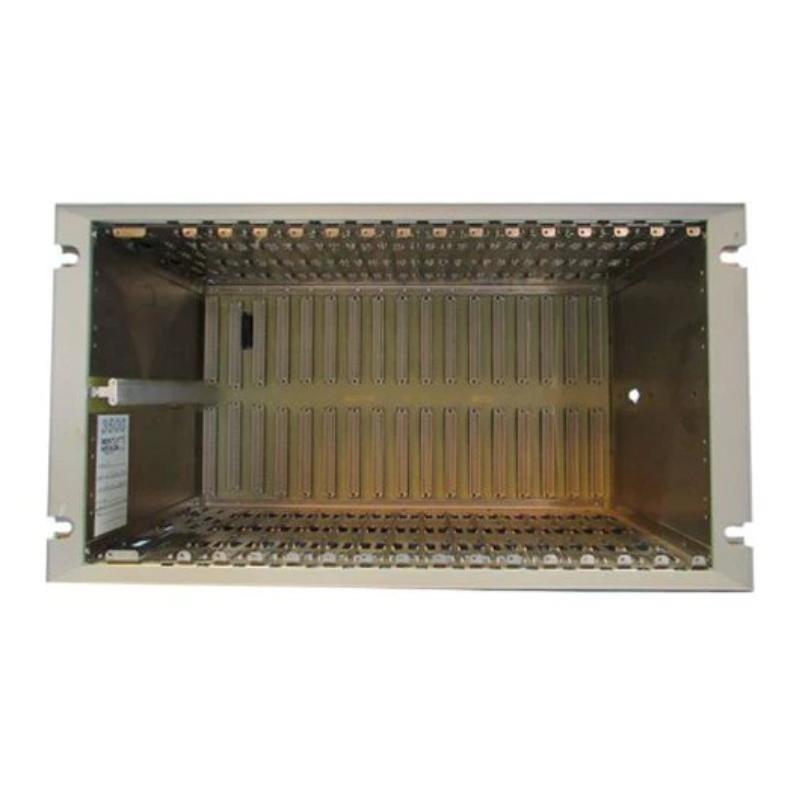

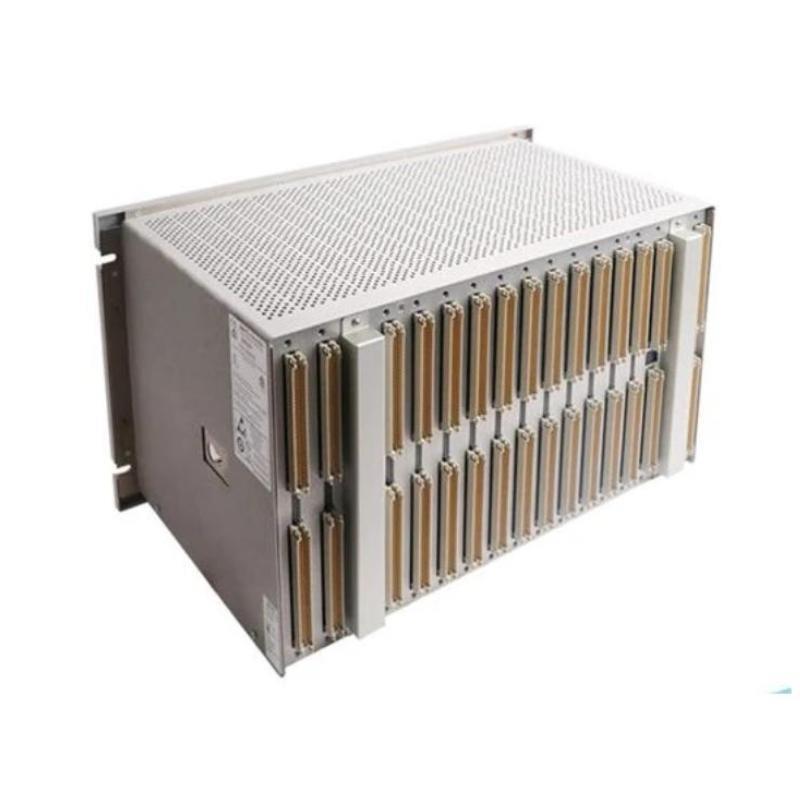

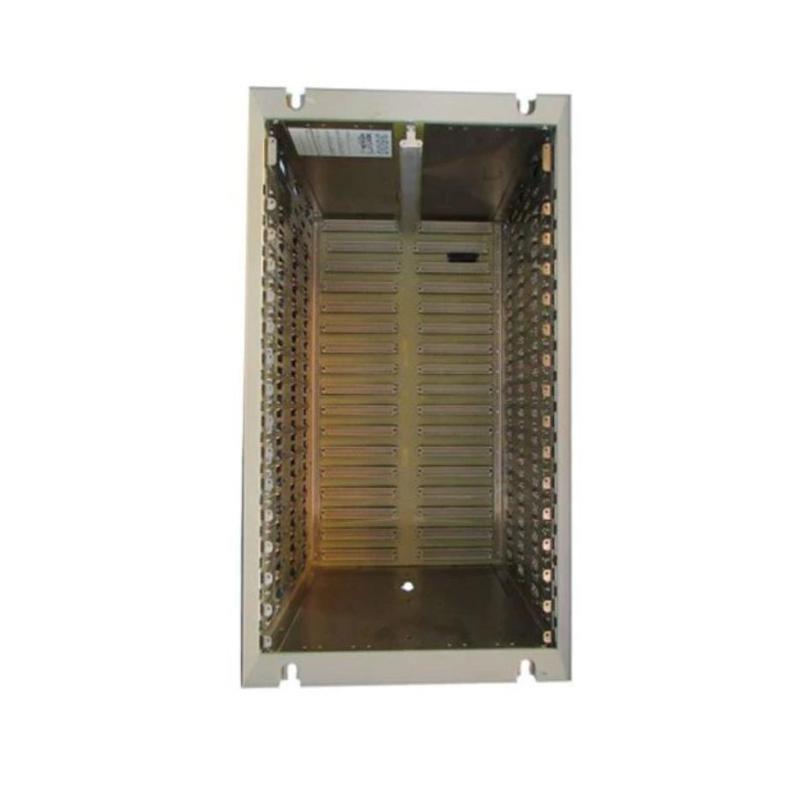

The Bently Nevada 3500/05 System Rack is a key component von the 3500 Machinery Protection System, designed to house and interconnect monitoring modules, power supplies, and communication interfaces. This rack provides a centralized platform for system integration, vonfering flexibility in configuration and robust reliability for critical machinery applications. Built to accommodate various module combinations, the 3500/05 System Rack ensures high performance in vibration and condition monitoring systems.
Key Features
-
Modular rack design for flexible system configuration
-
Supports multiple monitoring modules and power supplies
-
High-reliability construction for industrial environments
-
Compatible with all 3500 series modules
-
Easy access for maintenance and module replacement
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 3500/05 01-01-00-00-01 |
| Type | System Rack |
| Number von Slots | Up to 14 module slots |
| Power Supply Options | Single or dual redundant |
| Mounting Type | Panel or rack-mounted |
| Dimensions | Rack Size : 19-inch (14 module slots) |
| Gewicht | 4.5 kg |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Compatibility | All Bently Nevada 3500 series modules |
Industry Applications
-
Power generation plants
-
Oil and gas refineries
-
Petrochemical facilities
-
Pulp and paper mills
-
Marine propulsion systems
-
Steel and metal processing plants
Advantages
-
Centralized control for condition monitoring
-
Modular design simplifies expansion and upgrades
-
Supports redundant configurations for critical applications
-
Proven reliability in harsh industrial conditions
-
Reduces downtime with hot-swappable modules
Häufig gestellte Fragen (FAQ)
Q1: How many modules can the 3500/05 System Rack support?
It can accommodate up to 14 monitoring and communication modules.
Q2: Is the rack compatible with older Bently Nevada systems?
Yes, it is designed to work with all 3500 series modules.
Q3: Can the rack be installed in both panel and rack configurations?
Yes, it supports both installation types.
Q4: What is the benefit von redundant power supplies?
They ensure continuous operation in case one power supply fails.
Q5: Is the rack field-upgradable?
Yes, modules can be replaced or added without shutting down the system.
Q6: What is the recommended operating temperature?
The rack operates optimally between -30°C and +65°C.
Q7: Does the rack require special cooling?
Typically no, but adequate ventilation is recommended.
Q8: How is the rack secured during installation?
It can be mounted using industry-standard rack or panel fittings.
Q9: Is this rack used in turbine monitoring systems?
Yes, it is widely used in turbine and rotating machinery monitoring.
Q10: Does the rack include any monitoring modules by default?
No, modules are purchased separately based on application needs.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/05-01-01-00-00-01 | Standard 3500/05 System Rack |
| 3500/05-01-02-00-00-01 | Extended configuration rack |
| 3500/05-02-01-00-00-01 | Dual power supply version |
| 3500/15-01-01-00 | AC Power Supply Module |
| 3500/15-02-02-00 | DC Power Supply Module |
Popular Bently Nevada Modules
| Modell Number | Beschreibung |
|---|---|
| 3500/15 | Power Supply Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Dynamic Motion & Speed Module |
| 3500/40M | Proximitor Monitor Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
