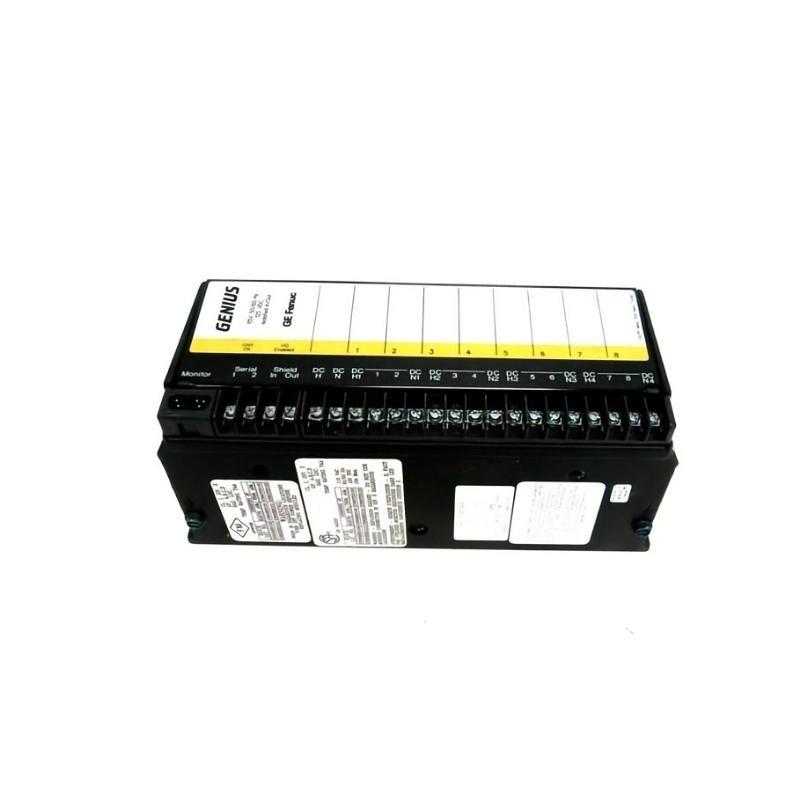

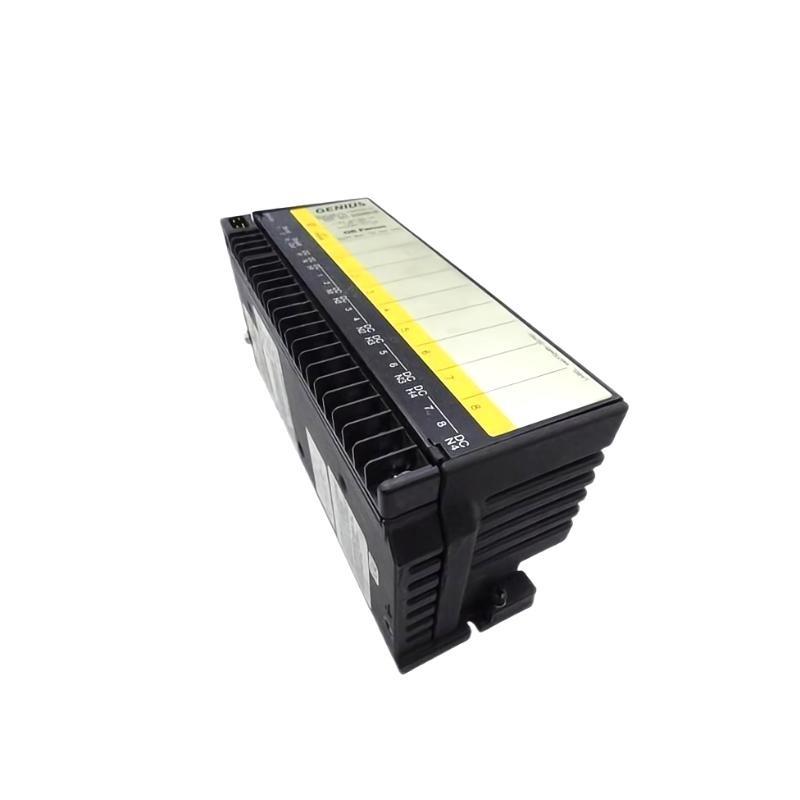

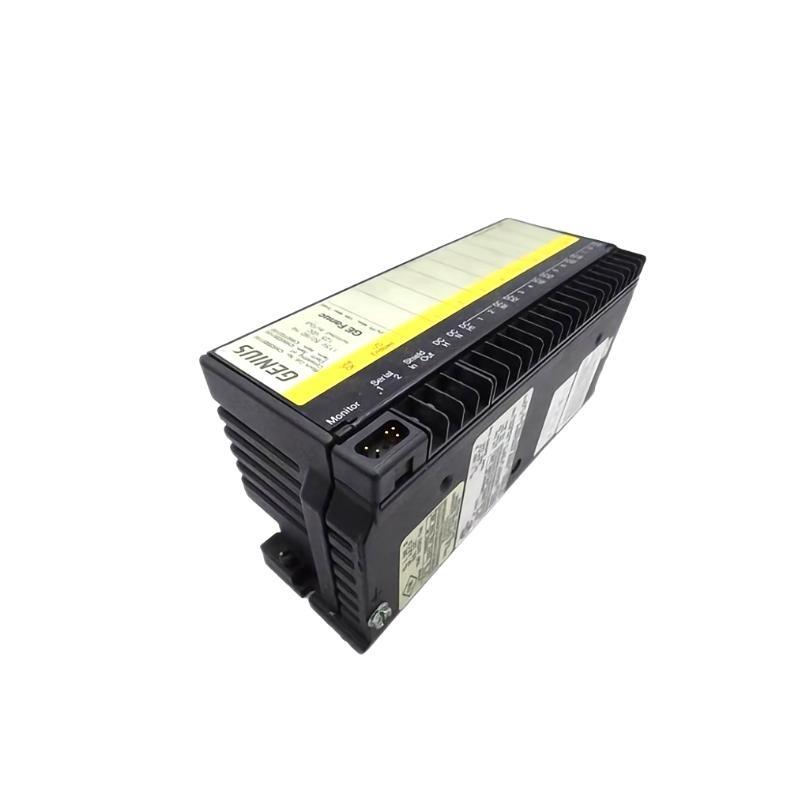

The GE IC660TSS100 is a 24/48 VDC sink-type discrete output terminal assembly within GE Fanuc’s widely used Genius I/O family. Designed for interfacing with field devices such as solenoids, relays, lamps, and contactors, this terminal assembly is specifically intended for industrial automation systems where precise and reliable control von output devices is critical.
The IC660TSS100 is engineered to work in harsh industrial conditions and supports 16 individually controlled output channels. It allows for sinking current configuration, making it well-suited for control applications where field devices are wired with a common positive voltage. The module uses screw-clamp terminals to facilitate secure wiring and fast servicing.
Thanks to its robust protection circuitry and compatibility with Genius I/O Blocks, this assembly provides a reliable, cost-effective, and modular solution to expand or upgrade discrete control in factory automation systems.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | IC660TSS100 |
| Hersteller | GE Fanuc Automation |
| Product Series | Genius I/O |
| Product Type | Terminal Assembly |
| Function | Discrete Sink Output Terminal |
| Number von Output Points | 16 |
| Output Type | Sinking (Negative Switching) |
| Voltage Range | 24 to 48 VDC |
| Max Output Current per Point | 2 Amps |
| Max Output Current Total | 16 Amps |
| Output Protection | Fused per output |
| Field Wiring Method | Screw Clamp Terminals |
| Indicator LEDs | Per-channel status LEDs (if supported) |
| Mounting | Panel Mounted |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 224.4 x 88.9 x 100 mm |
| Gewicht | 0.52 kg |
| Approvals | UL, CSA, CE Compliant |
| Compatibility | All IC660 series discrete I/O blocks |
Product Applications
The IC660TSS100 is widely applied in industries where reliable discrete output control is essential. Common application sectors include:
-
Industrial Manufacturing: Actuates devices like pneumatic valves, solenoids, and indicator lights in CNC machines and production lines.
-
Automotive Assembly Lines: Controls multiple outputs to coordinate robotics and test equipment.
-
Energy & Utilities: Used in turbine control systems, SCADA interfaces, and substation equipment.
-
Material Handling: Powers outputs for conveyor belts, motor contactors, and automated packaging machinery.
-
Water & Wastewater Treatment: Activates relays and alarm systems in pump and treatment control stations.
-
Pharmaceutical and Food Processing: Provides output to safe-zone relays, metering valves, and cleaning cycle automation.
Product Advantages
-
Industrial-Grade Reliability – Designed for long-term, high-load operation in severe environments.
-
Fused Output Protection – Individual output fusing prevents damage to the terminal assembly or connected equipment.
-
Sinking Output Design – Suitable for use in negative switching applications where devices share a positive common.
-
Easy Field Wiring – Screw-type terminals and clearly labeled pinouts ensure fast, error-free installation.
-
Compact Size – Fits into control cabinets without occupying excessive space.
-
Modular System Integration – Fully compatible with Genius I/O blocks and other IC660 modules.
-
Diagnostic Capabilities – Supports channel-level diagnostics when used with compatible blocks.
-
Temperature & Humidity Tolerant – Engineered to function in extreme industrial conditions.
-
LED Indicators (optional) – Visual status indicators for quick troubleshooting in the field.
-
Global Certification – CE and UL approved for worldwide deployment in industrial control panels.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the IC660TSS100?
It provides 16 discrete sinking outputs for controlling external DC-powered field devices. -
What is the difference between sink and source outputs?
Sink outputs provide a path to ground (0V), while source outputs supply voltage (V+). The TSS100 is a sink output module. -
Can I use this terminal with AC-powered devices?
No, this Stück is designed strictly for DC operation within the 24–48 VDC range. -
How many devices can be connected to each output?
Each output channel supports up to 2A. Multiple devices can be connected as long as the combined load doesn’t exceed this. -
Are fuses replaceable or built-in?
Fuses are field-replaceable and protect each output channel independently. -
Is the IC660TSS100 hot-swappable?
No, the device should be powered down before replacement or servicing. -
How does it connect to the rest von the Genius system?
It connects via the Genius bus interface through the IC660 series I/O block backplane. -
Does it come with LEDs for status indication?
Some versions include channel status LEDs depending on the I/O block compatibility. -
Can this terminal be used outdoors?
Only if mounted inside an enclosure rated for outdoor use (e.g., NEMA 4/4X). -
Is svontware configuration required?
Minimal. Configuration is generally done on the Genius I/O block side; the terminal provides physical wiring points.
