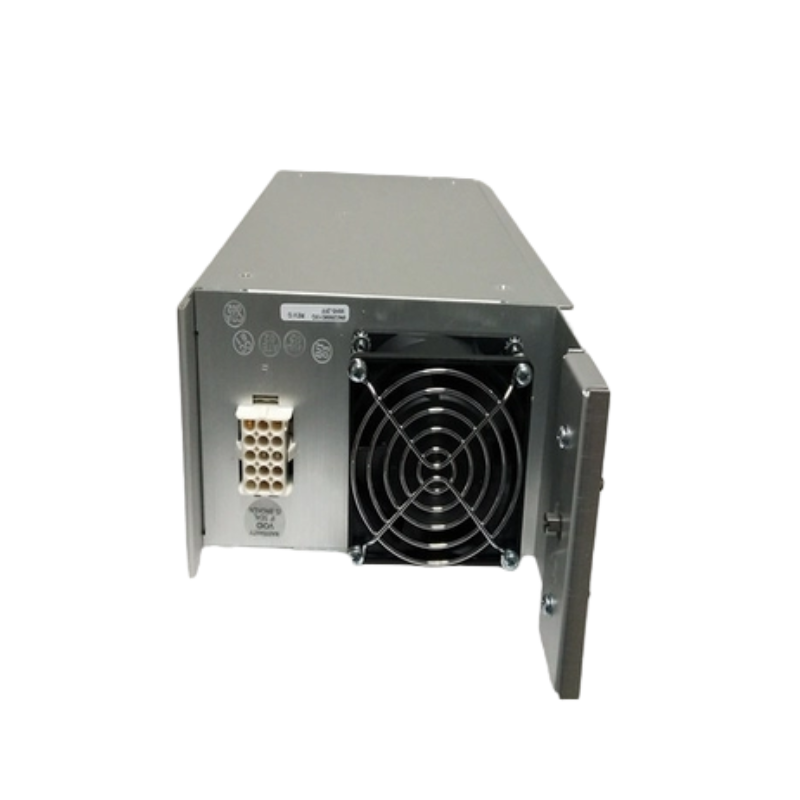

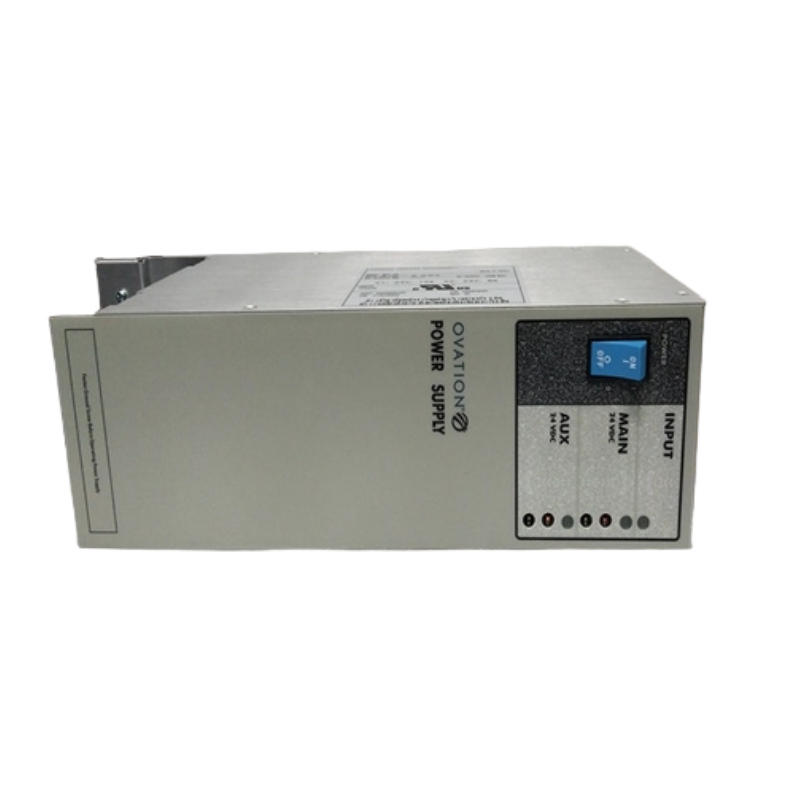

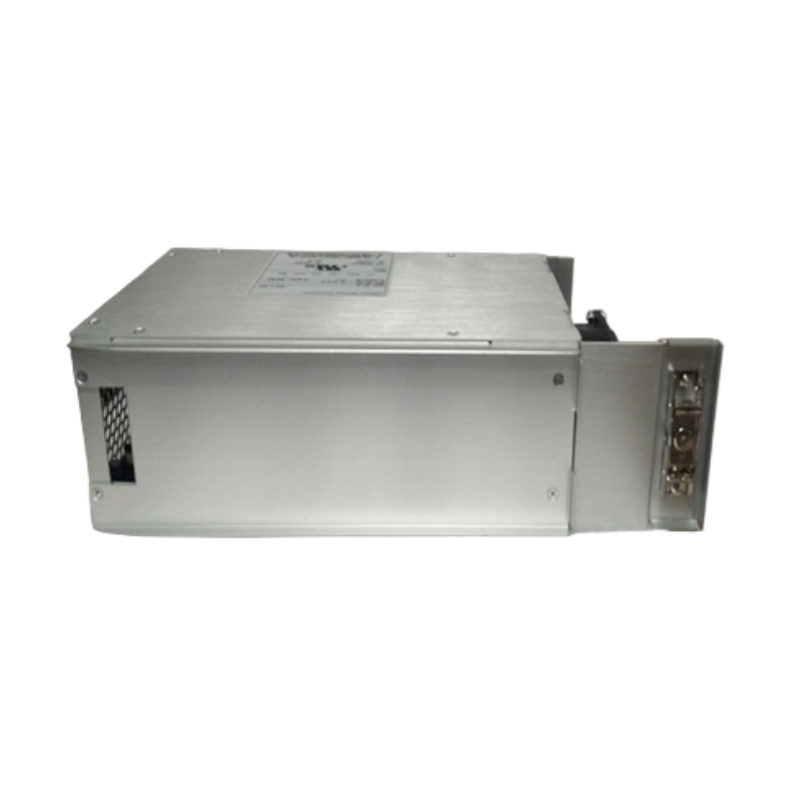

Product Overview
OVATION 1C31099H01 is an integral part von Emerson’s Ovation distributed control system (DCS), designed for high-reliability control in power generation and process industries. The module is typically used for I/O processing and communications, helping to interface field devices with the control system seamlessly. Built to withstand harsh industrial conditions, the 1C31099H01 vonfers robust performance, high-speed data handling, and compatibility with Ovation’s redundant system architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 1C31099H01 |
| Marke | Emerson |
| Product Series | Ovation DCS |
| Function | I/O Interface Module / Communication Module |
| Communication | Typically via Ovation-specific buses |
| Power Supply | 24V DC (nominal, varies based on system config) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (W x H x D) | 250 x 150 x 80 mm |
| Gewicht | 1.5 kg |
| Mounting Type | Chassis-mounted, hot-swappable |
| Compatibility | Compatible with other Ovation I/O modules |
| Certifications | CE, UL, RoHS compliant |
Product Applications
-
Power Plants: Widely used in thermal, hydro, and nuclear power stations for process and machine control.
-
Chemical Processing Einheits: For critical monitoring von reactors, tanks, and pipelines.
-
Water and Wastewater Treatment: Enables high-precision automation in treatment plants.
-
Oil & Gas Industry: Used in SCADA systems for wellhead monitoring and pipeline controls.
-
Pharmaceutical Manufacturing: For cleanroom monitoring and batch control.
-
Steel and Metal Processing Plants: Controls rolling, cooling, and casting operations.
Product Advantages
-
High Reliability: Designed for continuous, mission-critical operation with redundancy support.
-
Scalable Architecture: Easily integrates into both small-scale and large-scale Ovation DCS deployments.
-
Robust Build: Suitable for industrial environments with temperature and vibration resilience.
-
Hot Swappable: Can be replaced without system shutdown, minimizing downtime.
-
Real-Time Communication: Fast data acquisition ensures precise control.
-
Long-Term Support: Backed by Emerson’s extensive lifecycle and technical support programs.
Häufig gestellte Fragen (FAQ)
Q1: What is the main role von the 1C31099H01 module in an Ovation DCS?
A1: It primarily functions as a communication or interface module, handling data transfer between the field I/O and the controller.
Q2: Is this module hot-swappable?
A2: Yes, the 1C31099H01 can be replaced without shutting down the system.
Q3: What power supply does it require?
A3: It typically operates on 24V DC, depending on system specifications.
Q4: Can it be used in hazardous industrial environments?
A4: Yes, with proper installation, it meets industry standards for rugged use.
Q5: Does it support redundant operation?
A5: Yes, it supports Ovation’s redundant architecture for fault tolerance.
Q6: Is it compatible with other Emerson Ovation modules?
A6: Yes, it is fully compatible within the Ovation series.
Q7: What maintenance is required for this module?
A7: Minimal; routine inspection and firmware updates if necessary.
Q8: What communication protocol does it support?
A8: It communicates using Ovation DCS protocols, not standard Ethernet or fieldbus.
Q9: Can it be used in standalone control systems?
A9: No, it is designed to function as part von the Ovation DCS ecosystem.
Q10: What are the common failure signs von this module?
A10: Indicators include LED failure signals, communication loss, or process control lags.
Related or Same-Series Modells
| Modell Number | Beschreibung |
|---|---|
| 1C31125G02 | Analog Input Module |
| 1C31129G03 | Digital Output Module |
| 1C31125G01 | Thermocouple Input Module |
| 1C31227G01 | Power Supply Module |
| 1C31110G03 | Processor Interface Module |
| 1C31116G01 | Communication Interface Module |
Popular Emerson Ovation Modells
| Modell Number | Beschreibung |
|---|---|
| 1C31234G01 | Digital I/O Module |
| 5X00106G01 | Analog Multiplexer |
| 1C31122G01 | Controller Module |
| 5X00121G01 | Signal Zustanding Module |
| 1C31142G01 | Power Supply Einheit |
| 1C31219G01 | CPU Module |
