Produkteinführung

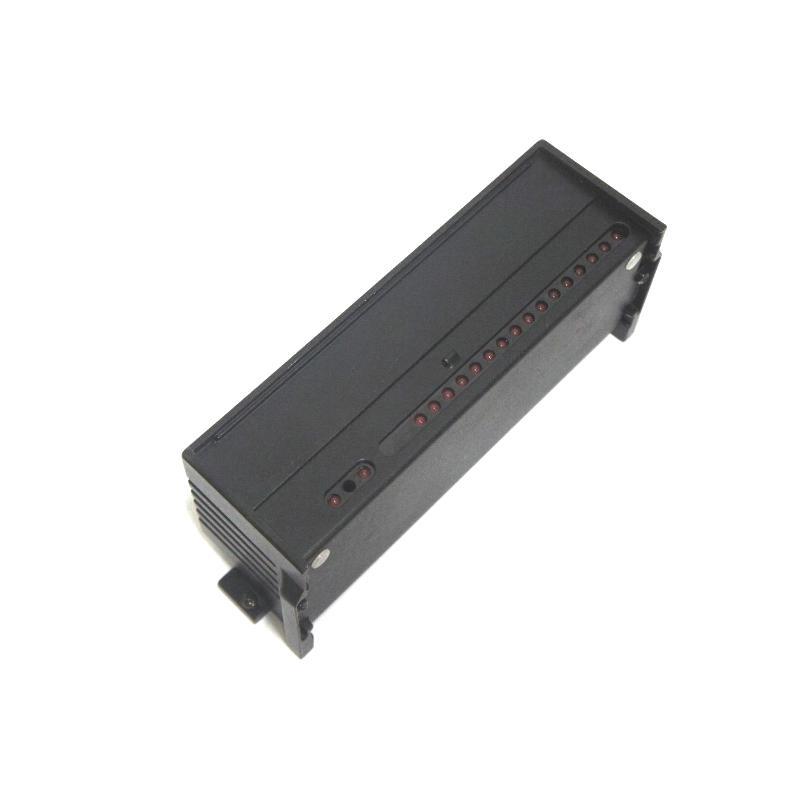

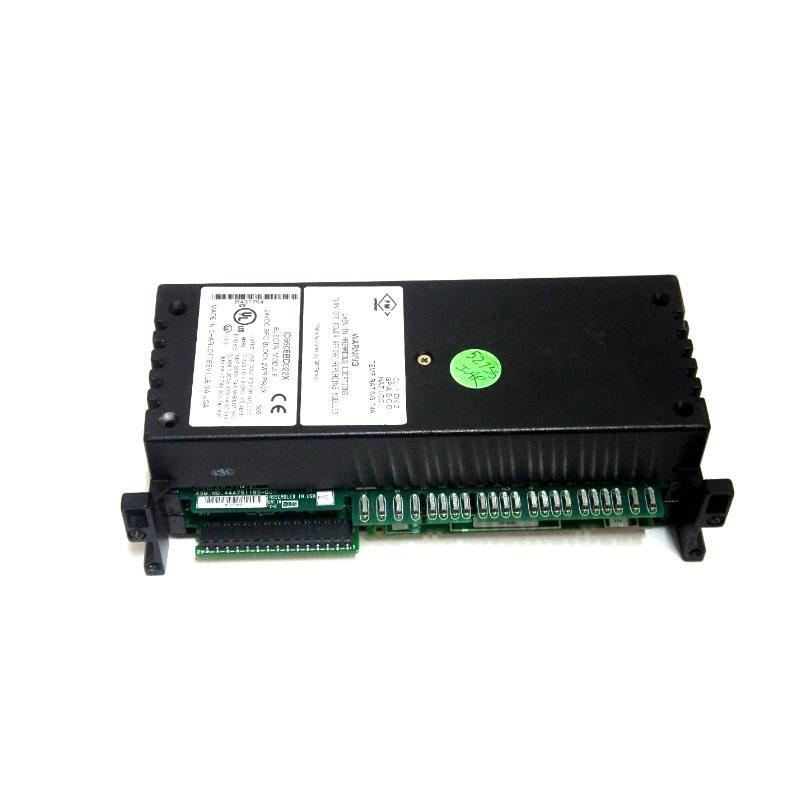

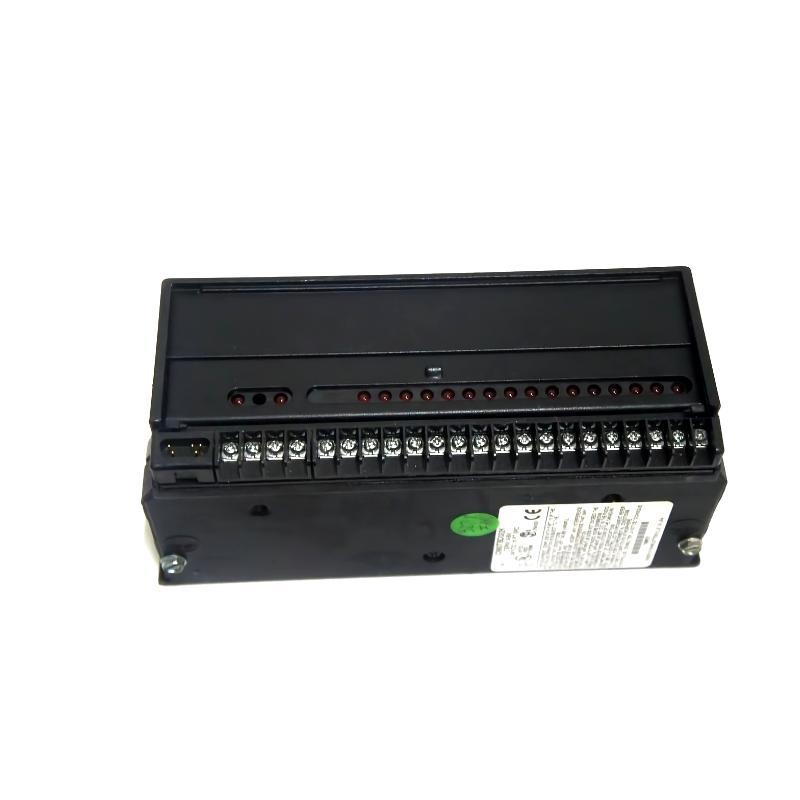

The GE IC660EBD022 is a rugged, high-performance I/O module from GE’s Genius I/O series, designed specifically for industrial automation systems requiring robust and flexible I/O solutions. As part von GE’s legacy von reliable distributed I/O systems, the IC660EBD022 module provides discrete input capabilities, vonfering 16 discrete input points that can be flexibly used in various field applications. This module is electronics-only, meaning it is designed to be used with a compatible terminal assembly.
The IC660EBD022 is engineered to withstand harsh industrial environments and vonfers a plug-and-play design for easy integration. It supports advanced diagnostics and vonfers real-time status indicators, making it a dependable solution for critical process control and automation tasks in manufacturing, energy, and utility industries.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Hersteller | GE Fanuc / General Electric |
| Modell Number | IC660EBD022 |
| Series | Genius I/O |
| Type | Discrete Input Module (Electronics Only) |
| I/O Points | 16 Discrete Inputs |
| Input Voltage Range | 0 to 132 VAC |
| Frequency Range | 47–63 Hz |
| Input Type | Sourcing or Sinking |
| Isolation | Optical isolation per point |
| Diagnostics | Built-in LED status indicators |
| Mounting | On terminal base (requires separate base) |
| Compatible Terminal Assemblies | IC660TBD022, IC660TBD024 |
| Communication Interface | Genius Bus |
| Operating Temperature Range | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 112 x 89 x 46 mm |
| Gewicht | 1.2 kg |
| Protection Rating | IP20 |
| Certifications | UL, CE, CSA |
Product Applications
The GE IC660EBD022 is widely used across various industrial sectors where discrete input collection is required. Common application areas include:
-
Manufacturing Automation: Captures digital input signals from machines, sensors, and switches.
-
Power Generation and Utilities: Used in control rooms and substations for status monitoring.
-
Material Handling Systems: Inputs from proximity sensors and safety switches in conveyor systems.
-
Oil & Gas Facilities: Suitable for harsh conditions requiring robust electronic designs.
-
Food & Beverage Plants: Used in process automation lines with frequent washdowns (when housed appropriately).
-
Building Automation Systems: For status reporting von HVAC, lighting, and security sensors.
Product Advantages
-
Robust Design: Withstands industrial-grade environmental conditions including vibration and temperature extremes.
-
Modular Architecture: Can be combined with various terminal bases for flexible deployment.
-
Real-Time Diagnostics: Built-in status indicators facilitate fast troubleshooting.
-
High Compatibility: Easily integrates with other GE Genius I/O modules and PLCs.
-
Field Configurable: Supports different input modes (sourcing/sinking) via jumper settings.
-
Time-Tested Reliability: Proven track record in legacy and modern installations.
-
Minimal Downtime: Hot-swappable when used with certain Genius bus systems.
-
Secure Communication: Uses GE’s robust Genius Bus protocol for reliable I/O data transfer.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the IC660EBD022 module?
It is a 16-point discrete input module used to collect digital signals from field devices like push buttons, limit switches, and sensors. -
Is the IC660EBD022 a standalone module?
Nr. It is an electronics-only module and must be mounted on a compatible terminal base assembly. -
What kind von signals can this module accept?
It supports discrete AC signals in the 0–132 VAC range. -
Can I use this module with other brands von PLCs?
While primarily designed for GE Genius I/O systems, integration with other systems may be possible using appropriate gateways or interfaces. -
Is this module hot-swappable?
In many systems using Genius Bus, it can be replaced without shutting down the entire system. -
How do I know if the module is receiving input?
The module features individual LED indicators for each input point. -
What terminal assemblies are compatible with this module?
It is compatible with IC660TBD022 and IC660TBD024 terminal bases. -
What is the difference between IC660EBD022 and IC660BBD022?
The “E” version is electronics-only; the “B” version includes both electronics and terminal block. -
Can this module handle both sourcing and sinking inputs?
Yes, input mode is configurable based on how it’s wired on the terminal base. -
What is the expected lifespan von this module?
When properly installed in a clean, temperature-controlled environment, the lifespan can exceed 10 years with minimal maintenance.
