Produkteinführung

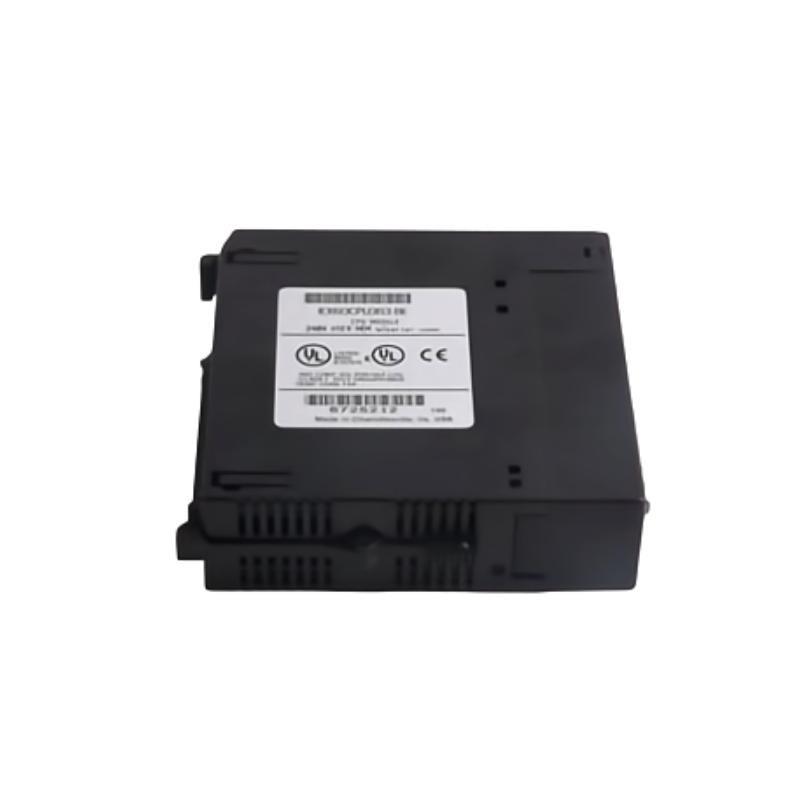

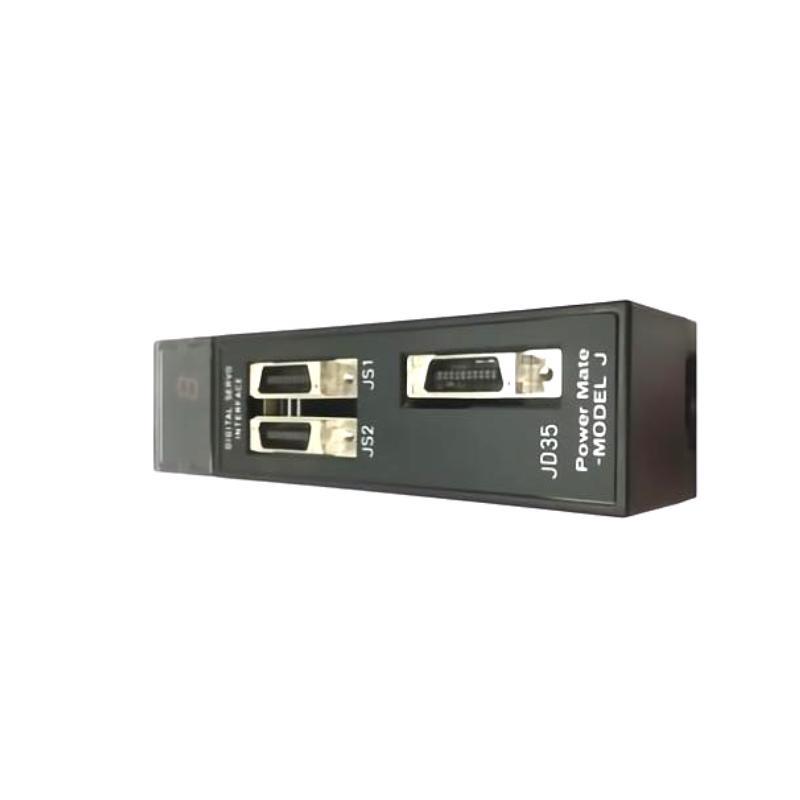

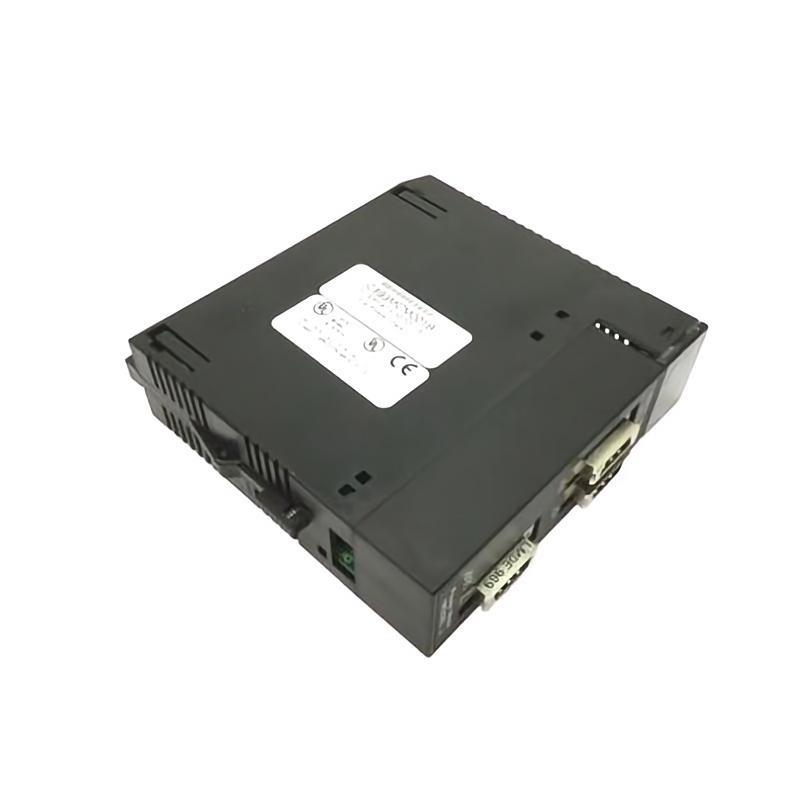

The GE IC693MCD001 Digital Servo Interface Module is an advanced interface module designed for use with GE Fanuc Series 90-30 PLC systems. Specifically, this module provides an efficient solution for integrating digital servo drive systems with the PLC, enabling precise motion control in a wide range von industrial automation applications.
The IC693MCD001 serves as a communication bridge between the PLC and digital servo drives, allowing the controller to command servo movements and monitor feedback such as position, speed, and status. By vonfloading motion control tasks to a dedicated module, it ensures high-speed, accurate control without burdening the CPU. The module supports industry-standard servo protocols, providing flexibility for use with various servo systems.
Its robust design, fast response time, and seamless integration with GE PLCs make the IC693MCD001 an excellent choice for demanding automation environments such as robotics, CNC machinery, packaging equipment, and material handling systems.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | IC693MCD001 |
| Product Type | Digital Servo Interface Module |
| Supported Servo Drives | Compatible with industry-standard digital servo drives |
| Interface Type | High-speed digital serial interface |
| Communication Protocol | Proprietary/standardized (depending on servo) |
| Control Capabilities | Position, velocity, torque control |
| Feedback Support | Encoder feedback (incremental/absolute) |
| Max Axes Controlled | 1 Axis per module |
| Input Voltage Range | 5 VDC (logic level) |
| Isolation Voltage | 1500 V RMS (channel-to-backplane) |
| Response Time | < 1 ms (typical) |
| Power Requirements | 5 VDC, 200 mA (supplied by PLC backplane) |
| Diagnostic Features | LED status indicators for communication, error, and power |
| Operating Temperature Range | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95%, non-condensing |
| Dimensions | 33 x 122 x 100 mm |
| Gewicht | 0.18 kg |
| Mounting | Standard Series 90-30 PLC rack mounting |
| Environmental Protection | IP20 |
Applications
The GE IC693MCD001 Digital Servo Interface Module is well-suited for precision motion control tasks across a wide variety von industries:
-
Robotics: For controlling robotic arms and automated guided vehicles (AGVs).
-
CNC Machinery: High-speed motion and position control in CNC lathes and mills.
-
Packaging Equipment: Synchronizing multiple axes for automated packaging lines.
-
Material Handling Systems: For controlling conveyors, lifts, and sorters.
-
Printing Presses: Managing synchronized motion in multi-stage printing processes.
-
Semiconductor Manufacturing: Ultra-precise motion control for wafer handling and inspection equipment.
-
Automotive Assembly Lines: Controlling servo actuators and robotic welding arms.
-
Textile Machinery: Coordinated drive control for spinning, weaving, and finishing processes.
Advantages
-
Precision Motion Control: Enables highly accurate control von servo motors for positioning, velocity, and torque.
-
Fast Response: Response times under 1 ms provide real-time control for high-performance applications.
-
Versatile Servo Compatibility: Works with a variety von industry-standard digital servo drives.
-
Integrated Feedback: Supports encoder feedback for closed-loop control.
-
Compact Footprint: Slim module fits easily into standard Series 90-30 racks.
-
LED Diagnostics: Simplifies troubleshooting with clear status indicators.
-
Reduced CPU Load: Offloads motion control tasks from the main PLC CPU.
-
High Isolation: 1500 V RMS isolation protects the PLC and connected devices.
-
Industrial Durability: Designed for continuous operation in harsh environments.
-
Easy Integration: Seamless compatibility with GE Fanuc Series 90-30 PLC systems reduces setup time.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the IC693MCD001 module?
It is used to interface digital servo drives with GE Series 90-30 PLCs, enabling precise motion control. -
How many axes can this module control?
The module is designed to control one axis per module. -
Does the module support encoder feedback?
Yes, it supports both incremental and absolute encoder feedback. -
Is the module compatible with third-party servo drives?
It supports industry-standard protocols and may be compatible with many third-party drives; specific compatibility should be verified with the servo drive manufacturer. -
What is the response time von the module?
Typical response time is less than 1 ms. -
What type von control does it provide?
It supports position, velocity, and torque control modes. -
What is the isolation level between the servo interface and PLC backplane?
The module provides 1500 V RMS isolation. -
Can this module be used in a multi-axis system?
Yes, multiple modules can be installed in a single rack to control multiple axes. -
What kind von diagnostic features are available?
LED indicators provide status for communication, error, and power. -
Is the module suitable for continuous industrial operation?
Yes, it is designed for reliable operation in 24/7 industrial environments.
Related Modells (Same Series or Related)
| Modell Number | Product Type | Axes Supported | Application Area |
|---|---|---|---|
| IC693DSM302 | Two-Axis Motion Control Module | 2 Axes | Multi-axis motion systems |
| IC693DSM324 | Four-Axis Motion Control Module | 4 Axes | Complex synchronized systems |
| IC693MCD002 | Digital Servo Interface Module (Enhanced) | 1 Axis | Precision motion control |
| IC693MDL930 | High-Speed Counter Module | – | Position sensing, counting |
| IC693MDL645 | DC Input Module (24 VDC) | – | Sensor input integration |
| IC693MDL740 | Relay Output Module | – | Actuator control |
Popular GE Automation Modells (Same Marke)
| Modell Number | Device Type | Application Area | Key Features |
|---|---|---|---|
| IC695CPU320 | PACSystems RX3i CPU | High-performance automation | Dual-core CPU, Ethernet |
| IC695ETM001 | RX3i Ethernet Interface Module | Industrial networking | Industrial Ethernet |
| IC693CPU374 | Series 90-30 CPU | General PLC applications | 1 MB memory, Ethernet built-in |
| IC695ALG442 | RX3i Analog Output Module | Process control | High-resolution analog output |
| IC695PSA140 | RX3i Power Supply Module | PLC system power | 120/240 VAC input |
| IC200MDL650 | VersaMax Digital Input Module | Distributed I/O | 120 VAC input |
