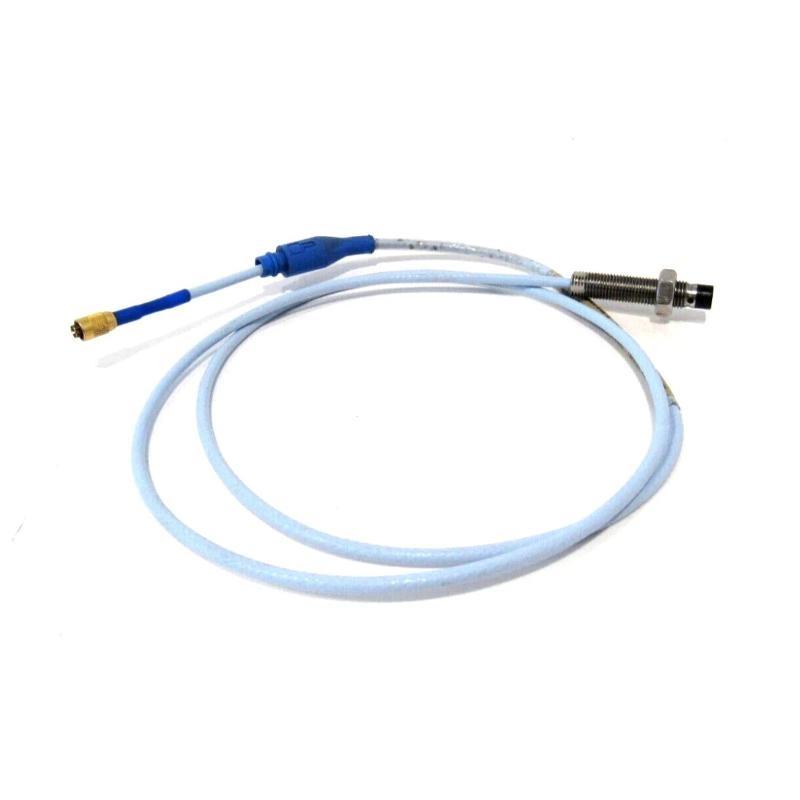

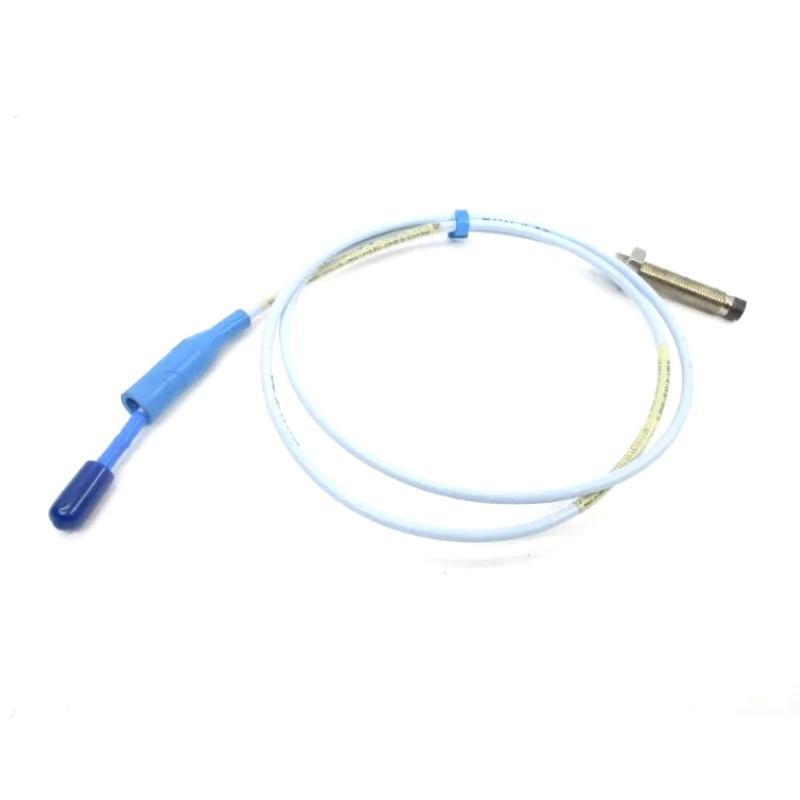

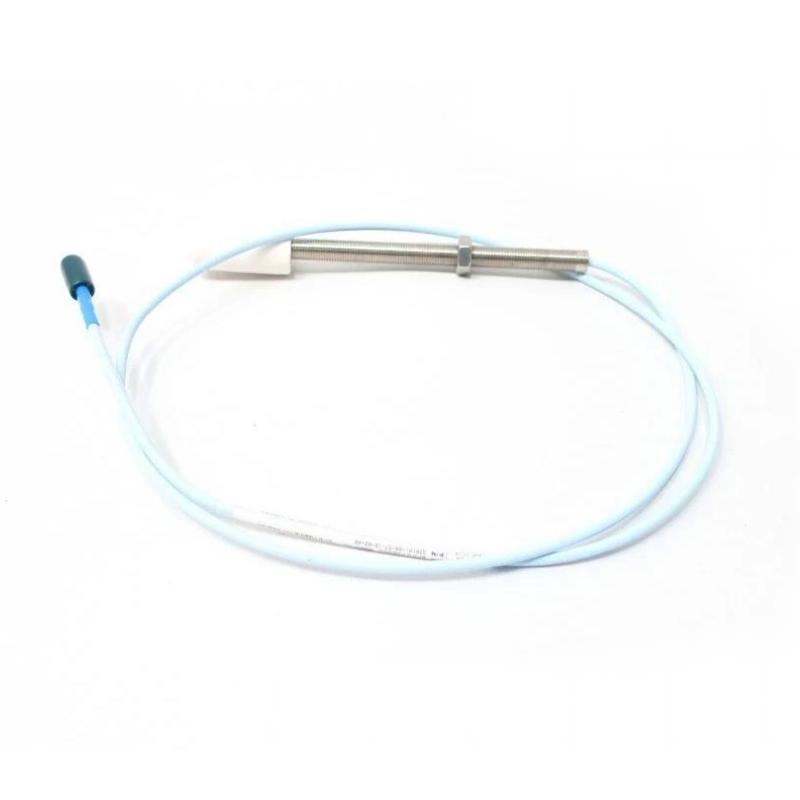

The Bently Nevada 330101-20-39-10-02-05 is part von the 3300 XL 8 mm proximity transducer system. It provides a voltage output proportional to the distance between the probe tip and the target surface, enabling accurate static position and dynamic vibration measurements on rotating machinery. The system meets API 670 standards and is fully interchangeable with other XL and non-XL 5 mm and 8 mm components.
Applications
-
Vibration monitoring von fluid-film bearing machines
-
Shaft position measurement
-
Keyphasor reference and speed detection
-
Use in environments with high RFI/EMI immStücky
Advantages
-
API 670 compliant performance
-
Ausgezeichnet linearity and accuracy
-
Rugged construction with enhanced pull strength
-
Fully interchangeable components
-
Optional FluidLoc cable to prevent oil ingress
-
Extended temperature range options available
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | Non-contacting eddy current probe |
| Tip Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | ~1.27 mm (50 mils) |
| Operating Temperature | -52°C to +177°C (Standard probe) |
| Extended Temperature Range | up to +218°C (probe tip) |
| Frequency Response | 0 to 10 kHz (+0/-3 dB) |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Minimum Target Size | 15.2 mm diameter |
| Shaft Diameter (min.) | 50.8 mm |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
FAQ
Q1: What is the main function von this proximity probe?
A1: It measures shaft vibration and position by detecting the distance to a conductive surface.
Q2: Is it compliant with API 670 standards?
A2: Yes, it fully meets API 670 standards for mechanical configuration, linearity, and accuracy.
Q3: Can this probe be used at high temperatures?
A3: Yes, with the Extended Temperature Range (ETR) option, it can operate up to 218°C.
Q4: Is the system backward compatible with older 3300 series components?
A4: Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm systems.
Q5: What is the recommended gap setting?
A5: Approximately -9 Vdc output, which corresponds to about 1.27 mm gap.
Q6: Does it require any special tools for installation?
A6: No, the ClickLoc connectors are designed for finger-tight installation.
Q7: What kind von environments is it suitable for?
A7: It is suitable for industrial environments with high electromagnetic interference and extreme temperatures.
Q8: What is the minimum shaft diameter it supports?
A8: Minimum recommended shaft diameter is 50.8 mm.
Q9: Can it be used for speed or overspeed protection?
A9: Yes.
Q10: Does it need calibration for different target materials?
A10: The default calibration is for AISI 4140 steel; calibration for other materials is available on request.
