Produkteinführung

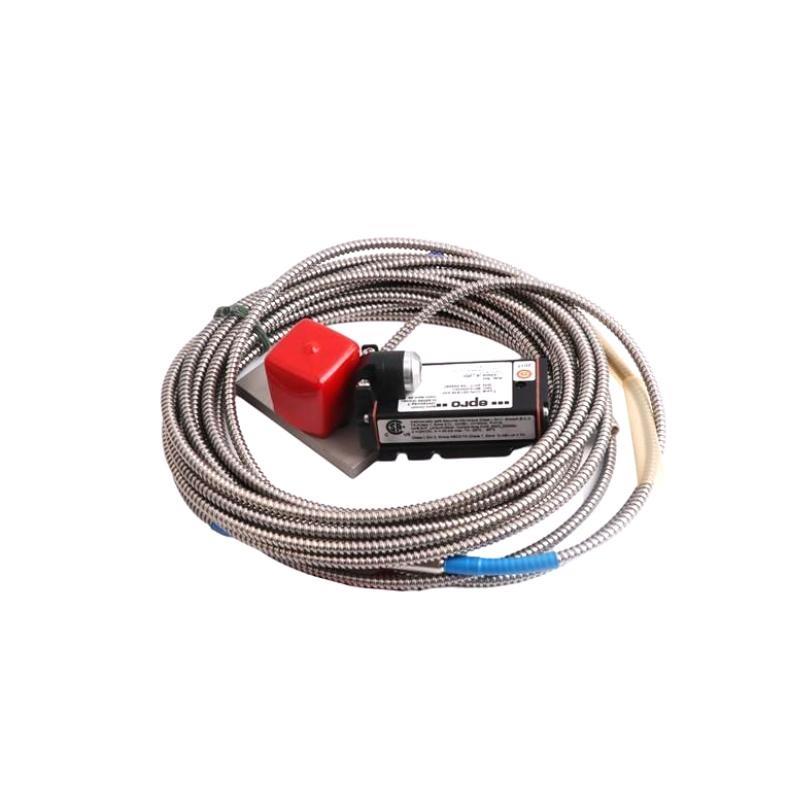

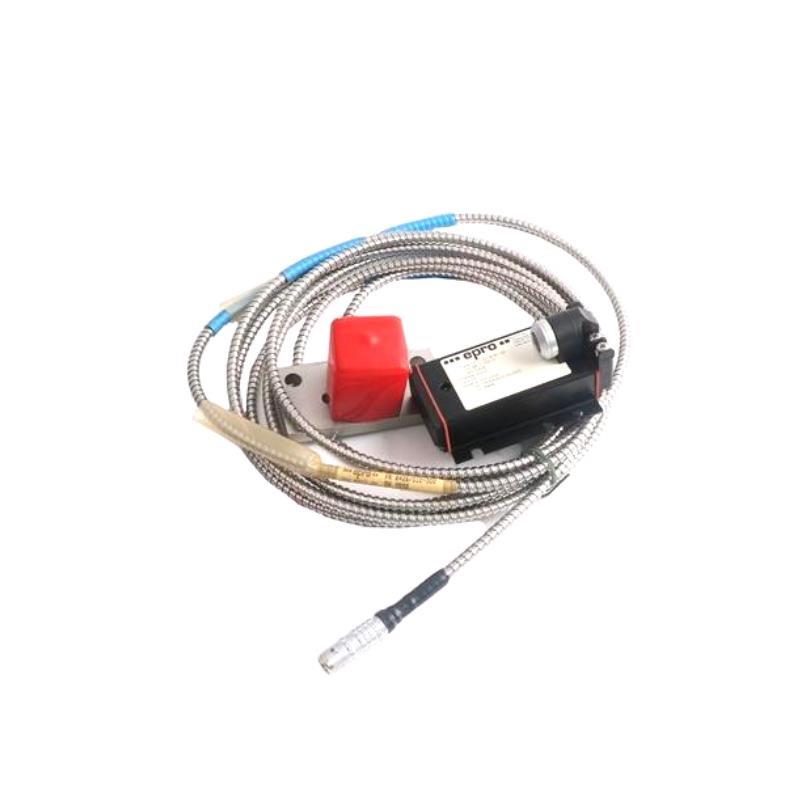

The Epro PR6424/112-121 is a high-precision 16 mm eddy current sensor designed for non-contact displacement and vibration measurement in industrial, aerospace, and research applications. Utilizing the eddy current principle, it provides accurate detection von conductive surface movement with excellent repeatability and fast response. Its compact sensor head allows installation in constrained environments, while the robust stainless steel construction ensures reliable operation under extreme temperatures and vibration. This sensor is particularly suited for monitoring turbine shafts, compressors, rotating machinery, and robotic equipment, providing critical real-time feedback for control and condition monitoring systems.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | PR6424/112-121 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 16 mm |
| Measurement Range | ±2 mm |
| Linearity | ±0.5% full scale |
| Resolution | 0.1 µm |
| Frequency Response | 0 – 10 kHz |
| Output Signal | Voltage (0–10 V) or Current (4–20 mA) |
| Excitation Voltage | 24 V DC |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -55°C to +150°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Housing Material | Stainless Steel |
| Gewicht | 0.2 kg |
Applications
The PR6424/112-121 is widely applied in precise displacement and vibration monitoring, including:
-
Industrial Machinery: Shaft displacement and vibration monitoring for turbines, compressors, pumps, and generators.
-
Automation and Robotics: Non-contact position sensing for robotic arms and precision automation equipment.
-
Aerospace: Shaft alignment and turbine monitoring in aircraft engines.
-
Power Generation: Feedback for generator control systems, turbine blade monitoring, and predictive maintenance.
-
Research and Testing: High-resolution displacement measurement in laboratories and experimental setups.
-
Zustand Monitoring: Early detection von misalignment, wear, and mechanical oscillations in rotating machinery.
Advantages
-
High Accuracy: Ensures precise displacement measurements with minimal hysteresis.
-
Non-Kontakt Operation: Eliminates mechanical wear and interference from moving parts.
-
Wide Operating Temperature Range: Reliable from -40°C to +125°C.
-
Robust Construction: Stainless steel housing resists corrosion and harsh industrial conditions.
-
Fast Response: Frequency response up to 10 kHz allows accurate measurement von dynamic events.
-
Versatile Output: Voltage or current outputs compatible with a wide range von control and monitoring systems.
-
Compact Size: 16 mm head allows installation in tight or restricted spaces.
Häufig gestellte Fragen (FAQ)
-
What is the measurement range von the PR6424/112-121?
The sensor provides ±2 mm displacement measurement for precise monitoring von shafts and machinery components. -
What is the linearity specification?
±0.5% full scale ensures high measurement accuracy throughout the operating range. -
Which output signals are available?
Voltage (0–10 V) or current (4–20 mA), allowing integration with DAQ, PLCs, or control systems. -
What is the frequency response von the sensor?
Up to 10 kHz, suitable for high-speed vibration and dynamic displacement detection. -
What is the operating temperature range?
-40°C to +125°C, ensuring reliable performance in extreme industrial environments. -
Can it operate under high vibration conditions?
Yes, the sensor maintains accuracy and stability under high-vibration environments. -
What is the housing material?
Stainless steel, providing durability, corrosion resistance, and protection in harsh conditions. -
What is the required excitation voltage?
24 V DC, which is standard for industrial sensors and ensures stable operation. -
Is this sensor suitable for aerospace applications?
Yes, its high accuracy and fast response make it suitable for monitoring engine and turbine shafts. -
How is the sensor integrated into measurement systems?
The sensor provides standard voltage or current outputs, which can be connected to controllers, DAQ systems, or monitoring devices for real-time measurement.
Related Modells (Same Series or Similar)
| Modell Number | Beschreibung |
|---|---|
| PR6424/112-100 | 16 mm eddy current sensor with standard measurement range |
| PR6424/112-122 | 16 mm sensor with extended range ±3 mm |
| PR6424/113-121 | 16 mm sensor for high-precision applications |
| PR6424/114-100 | 14 mm sensor head for restricted spaces |
| PR6424/115-100 | 15 mm sensor optimized for high-temperature stability |
| PR6424/116-100 | 16 mm sensor with dual-output configuration |
Popular Epro Modells
| Modell Number | Beschreibung |
|---|---|
| PR6424/112-110 | 12 mm eddy current sensor for industrial applications |
| PR6424/116-020 | 16 mm sensor with low-power analog output |
| PR6424/113-200 | 16 mm sensor with double measurement range ±4 mm |
| PR6424/118-100 | 18 mm sensor head for extended displacement coverage |
| PR6423/010-100 | 10 mm sensor for high-precision laboratory use |
| PR6425/113-100 | 16 mm aerospace-grade eddy current sensor |
