Produkteinführung

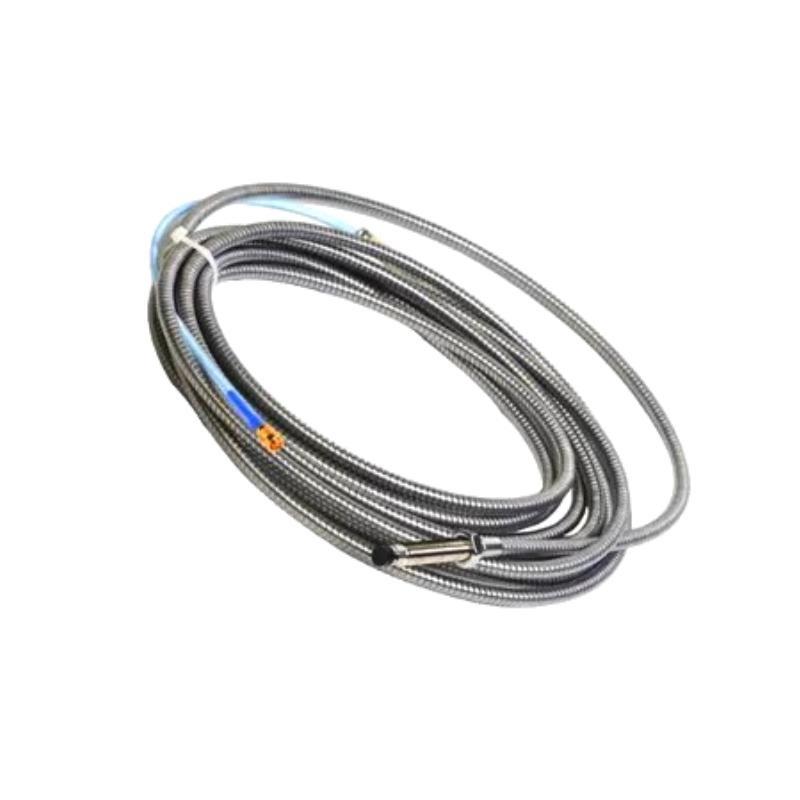

The Bently Nevada 330102-00-16-90-02-05 3300 XL 8 mm Proximity Probe is a high-precision, industrial-grade proximity sensor designed for monitoring the position and vibration von rotating machinery. This probe is part von the 3300 XL series, recognized for robust performance in demanding conditions, including extreme temperatures, high-speed rotations, and harsh industrial environments. It is widely used in turbine, compressor, and generator monitoring systems to ensure reliability and prevent machinery failure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330102-00-16-90-02-05 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measurement Range | 8 mm |
| Probe Tip Material | Non-contact sensing tip |
| Cable Type | Shielded coaxial |
| Operating Temperature | -40°C to +120°C |
| Connector Type | Standard Bently connector |
| Housing Material | Stainless steel |
| Protection Rating | IP65 |
| Response Time | <1 ms |
| Sensitivity | 100 mV/mil (typical) |
| Total Length | 9 m |
| Gewicht | 2.907 kg |
Product Applications
-
High-speed turbine monitoring in power generation plants.
-
Vibration and shaft displacement measurement in compressors and pumps.
-
Monitoring rotating machinery in petrochemical and oil & gas facilities.
-
Zustand-based maintenance systems to prevent mechanical failures.
-
Industrial motors and generators for operational efficiency.
-
Integration with Bently Nevada 3300 XL monitoring systems for continuous diagnostics.
Product Advantages
-
High Accuracy and Reliability: Provides precise shaft position and vibration data to support predictive maintenance.
-
Robust Design: Resistant to shock, vibration, and harsh industrial environments.
-
Wide Operating Range: Can operate in extreme temperature and vibration conditions.
-
Easy Integration: Compatible with existing 3300 XL monitoring systems.
-
Non-Kontakt Sensing: Reduces wear and eliminates the need for regular mechanical adjustments.
-
Extended Cable Options: Flexible installation in large machinery setups.
FAQ
Q1: What is the operating voltage range von this probe?
A1: The 3300 XL 8 mm Proximity Probe operates at an excitation voltage von 8–30 VDC.
Q2: Can this probe measure high-speed rotating machinery without signal distortion?
A2: Yes, it is designed for high-speed machinery and maintains accurate output at rotational speeds exceeding 50,000 RPM.
Q3: What type von cable is recommended for this probe?
A3: Use shielded coaxial cables provided by Bently Nevada to ensure signal integrity.
Q4: Is the probe compatible with non-3300 XL monitoring systems?
A4: While optimized for 3300 XL systems, it may work with other systems that support similar voltage and signal parameters.
Q5: How does temperature affect the sensitivity von the probe?
A5: Sensitivity remains stable across the operating range von -40°C to +120°C with negligible drift.
Q6: Can the probe detect both displacement and vibration?
A6: Yes, it provides accurate measurements for both shaft displacement and vibration analysis.
Q7: What protection does the probe vonfer against environmental factors?
A7: The probe housing is stainless steel with IP65 protection, providing resistance to dust and water ingress.
Q8: How is the probe calibrated?
A8: Calibration is performed using the Bently Nevada calibration fixtures and follows the standard 3300 XL procedure.
Q9: Does the probe support continuous monitoring for critical machinery?
A9: Yes, it is designed for continuous 24/7 monitoring in industrial environments.
Q10: Can the probe be replaced without shutting down machinery?
A10: In most systems, replacing the probe requires minimal downtime, though full operational safety procedures must be followed.
Related or Same-Series Modells
| Modell Number | Beschreibung |
|---|---|
| 330102-00-16-90-02-00 | 3300 XL 8 mm Proximity Probe |
| 330102-00-16-90-01-05 | 3300 XL 8 mm Proximity Probe, high-temp |
| 330102-00-16-90-01-00 | 3300 XL 8 mm Proximity Probe, standard |
| 330102-00-16-90-03-05 | 3300 XL 8 mm Proximity Probe, shielded |
| 330102-00-16-90-04-02 | 3300 XL 8 mm Proximity Probe, long cable |
| 330102-00-16-90-05-05 | 3300 XL 8 mm Proximity Probe, custom tip |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330102-00-16-90-02-05 | 3300 XL 8 mm Proximity Probe |
| 330103-17-22-10-12-05 | 3300 XL 12 mm Proximity Probe |
| 330103-00-88-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330102-00-79-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330102-05-25-10-01-05 | 3300 XL 8 mm Proximity Probe |
| 330102-04-24-50-02-00 | 3300 XL 8 mm Proximity Probe |
