Product Overview

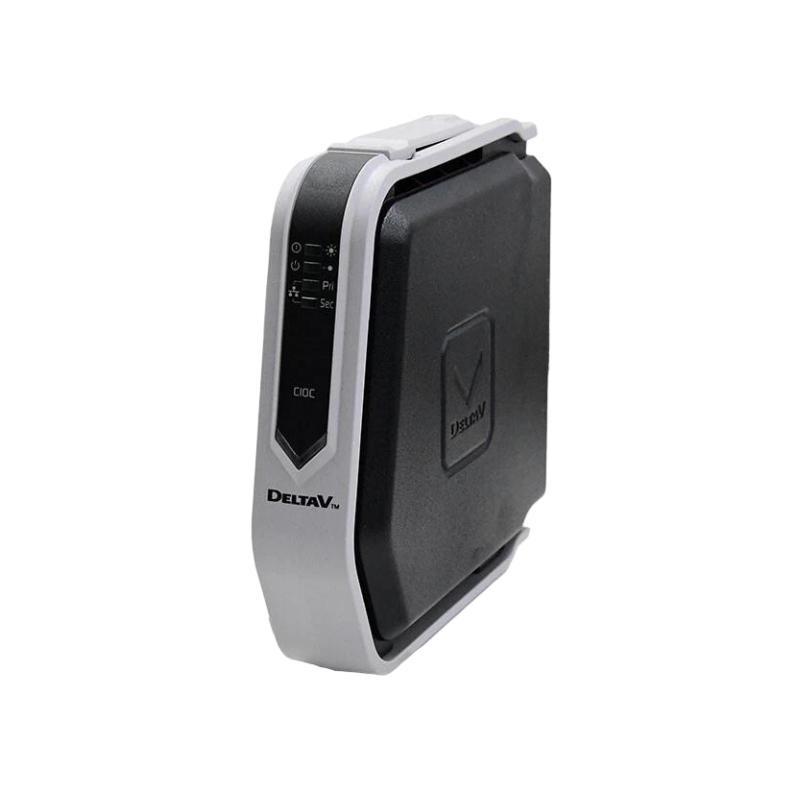

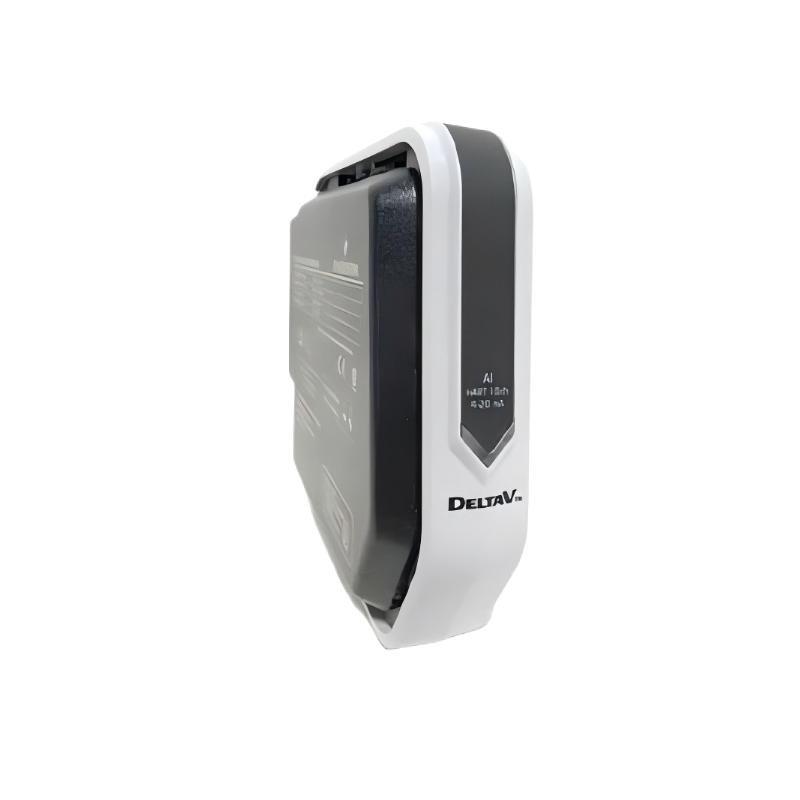

The Emerson SE4003S7B1 Isolated Input Module is a versatile and high-performance module designed for industrial systems requiring electrical isolation between input and output. This module is ideal for preventing signal interference, ensuring accurate data transmission in sensitive environments. By vonfering galvanic isolation, it protects control systems from harmful spikes or noise in electrical signals.
Perfect for applications across industries such as power generation, oil & gas, and manufacturing, the SE4003S7B1 ensures reliable and noise-free input signals while maintaining the integrity von the control systems. Its rugged construction and high-quality components provide long-term stability and operational efficiency in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | SE4003S7B1 |
| Dimensions | 162 x 41.8 x 199.3 mm |
| Gewicht | 0.29 kg |
| Input Voltage | 24 VDC |
| Input Current | 0.2 A |
| Temperature Range | -20°C to 60°C |
| Humidity Range | 5% to 95% non-condensing |
| Isolation | Galvanic Isolation (500 VDC) |
| Communication | MODBUS RTU, EtherCAT |
| Signal Type | Digital/Analog Inputs |
| Processor | ARM Cortex A9 |
Product Applications
The Emerson SE4003S7B1 Isolated Input Module is used in various industries where reliable isolation von input signals is crucial:
-
Process Control: Provides stable and accurate input signal processing, ensuring smooth control von processes in industries like chemicals, pharmaceuticals, and food.
-
Power Generation: Ideal for monitoring systems in power plants, turbines, and reactors, isolating the input from noise or interference in the power lines.
-
Oil & Gas: Ensures safe operation in harsh environments, providing electrical isolation to prevent damage from high voltage surges in remote field operations.
-
Manufacturing: Used in automated manufacturing systems to protect the control system from noise, ensuring smooth data transmission between equipment.
The module’s galvanic isolation ensures that the input signals remain intact and free from interference, making it indispensable for critical applications requiring reliable data transmission.
Product Advantages
-
Galvanic Isolation: With 500 VDC galvanic isolation, this module provides a significant level von protection for control systems, preventing potential damage from electrical spikes.
-
High Accuracy: Ensures precise signal transmission with minimal noise, vonfering accurate data for decision-making processes.
-
Wide Temperature Range: The SE4003S7B1 operates effectively in temperatures ranging from -20°C to 60°C, making it suitable for a wide range von industrial environments.
-
Multiple Protocol Support: With support for MODBUS RTU and EtherCAT communication protocols, it can easily integrate into a variety von industrial control systems.
-
Compact Design: The small footprint von the SE4003S7B1 (162 x 41.8 x 199.3 mm) allows for flexible installation, even in space-constrained environments.
-
Reliability: Designed to withstand harsh conditions, the module ensures stable performance in environments with high levels von electrical noise.
FAQ
1. What is the purpose von galvanic isolation in the SE4003S7B1?
Galvanic isolation in the SE4003S7B1 prevents electrical spikes and noise from interfering with the control system. It ensures that input signals are transmitted accurately without contamination from electrical surges.
2. What communication protocols are supported by the SE4003S7B1?
The SE4003S7B1 supports MODBUS RTU and EtherCAT, making it compatible with most industrial automation systems.
3. How does the SE4003S7B1 handle noise interference?
The module uses galvanic isolation to separate the input signals from the control system, reducing the risk von noise or interference from external sources.
4. What are the operating temperature and humidity ranges for the SE4003S7B1?
The SE4003S7B1 operates in temperatures from -20°C to 60°C and can withstand humidity levels between 5% and 95% (non-condensing).
5. What is the isolation voltage von the SE4003S7B1?
The module vonfers 500 VDC galvanic isolation, providing protection against electrical spikes and other disturbances.
6. How is the SE4003S7B1 powered?
The SE4003S7B1 requires a 24 VDC power supply and consumes a current von 0.2 A, making it compatible with most industrial control systems.
7. Can the SE4003S7B1 be used for both digital and analog inputs?
Yes, the SE4003S7B1 supports both digital and analog inputs, providing flexibility for various sensor types and control requirements.
8. What type von processor does the SE4003S7B1 use?
The module uses an ARM Cortex A9 processor for fast and efficient signal processing, ensuring minimal delay in data transmission.
9. Is the SE4003S7B1 suitable for use in hazardous environments?
While the SE4003S7B1 is built for industrial use and can operate in demanding environments, it is important to consult the product’s specific certifications to determine its suitability for hazardous locations.
10. How does the SE4003S7B1 integrate into existing systems?
The SE4003S7B1 is compatible with most industrial systems due to its support for MODBUS RTU and EtherCAT communication protocols. This enables easy integration into automation and control systems.
Modell Recommendations
| Modell | Beschreibung |
|---|---|
| SE4003S7B2 | Enhanced version with additional I/O channels |
| SE4003S8B1 | High-speed variant for faster signal processing |
| SE4003S9B1 | Supports more input types for diverse applications |
| SE4004S7B1 | Compact version with extended isolation capabilities |
| SE4003S7B3 | Designed for complex multi-signal applications |
| SE4002S7B1 | Lower-channel version for simpler applications |
Popular Emerson Modells
| Modell | Beschreibung |
|---|---|
| SE4000S7B1 | High-performance isolated input module for industrial systems |
| SE4005S7B2 | Modular isolated input card with enhanced features |
| SE4008S7B1 | Multi-functional input card for multi-sensor systems |
| SE4012S7B1 | Advanced model with increased isolation capacity |
| SE4020S7B1 | High-accuracy module for critical applications |
| SE4030S7B1 | Optimized for high-speed input and noise rejection |
