Product Overview

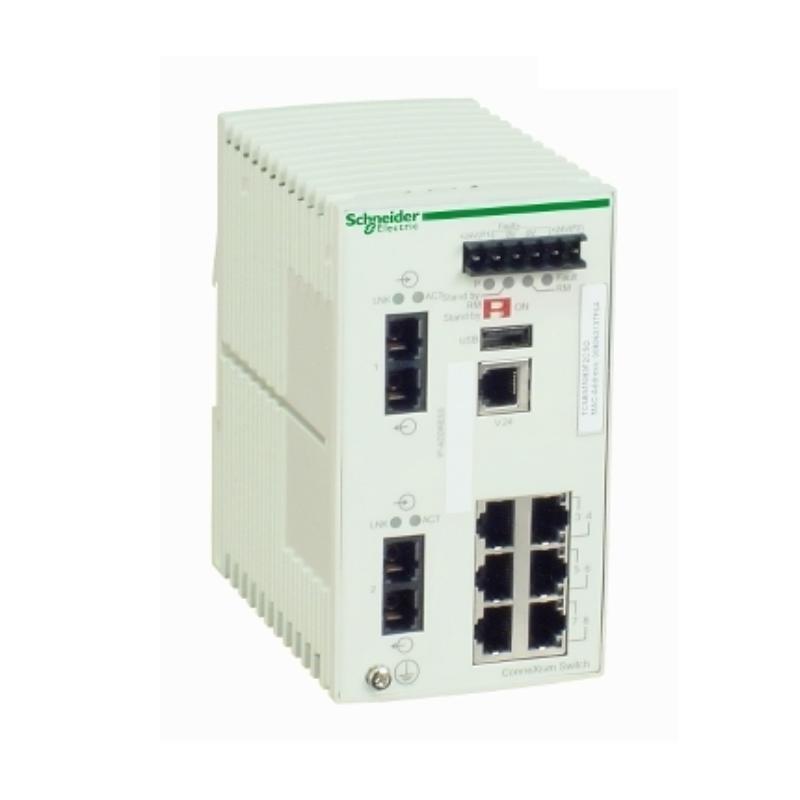

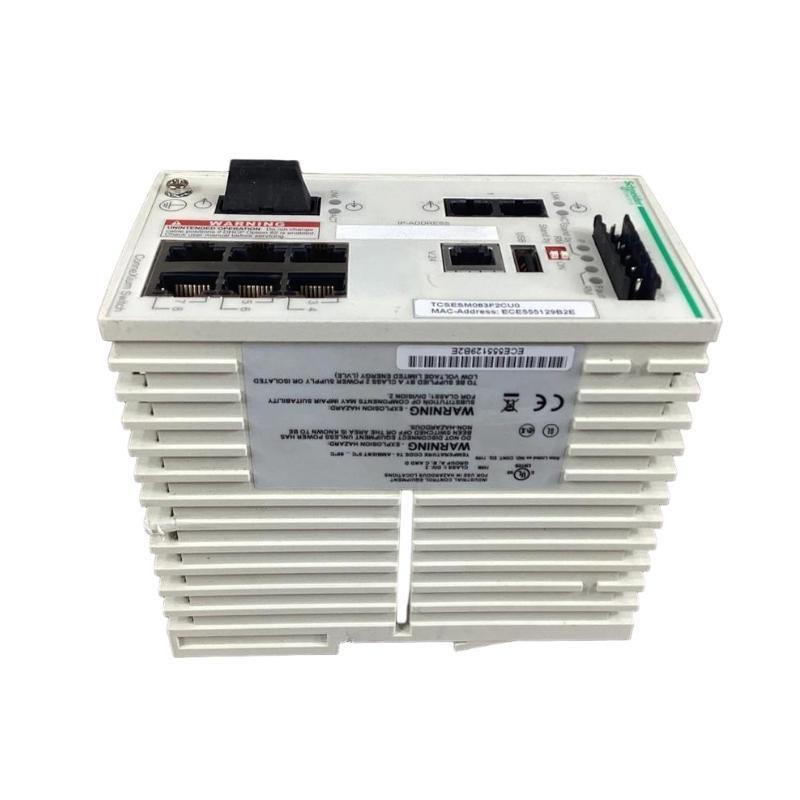

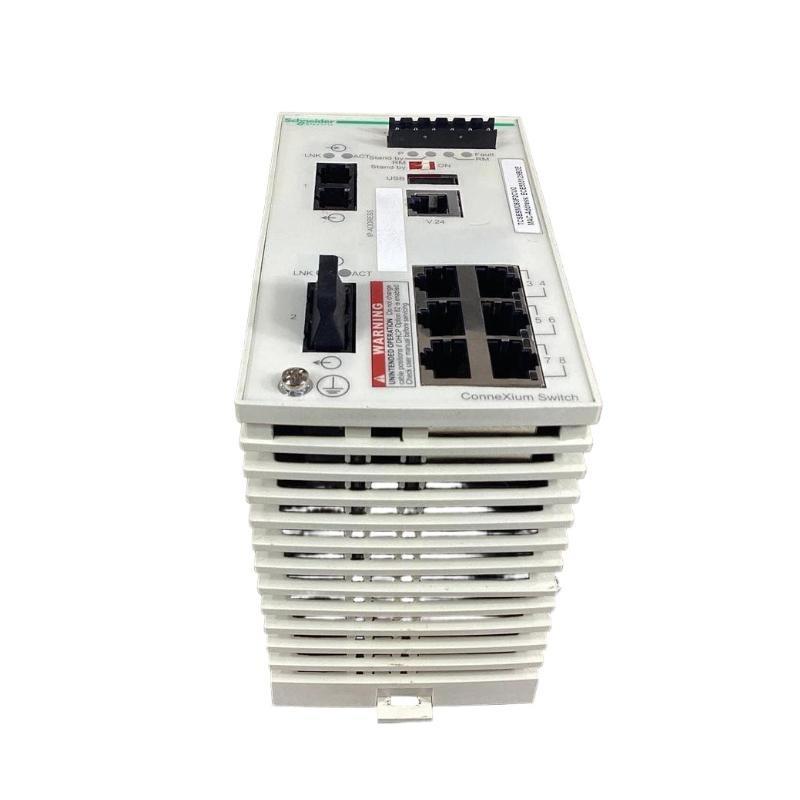

The Schneider Electric TCSESMO83F2CUO is a high-performance managed Ethernet TCP/IP switch designed for industrial network environments. This switch provides advanced management features, enhanced security, and reliable data transmission critical for demanding automation applications. It supports multiple Ethernet ports with flexible configurations, including fiber optic uplinks, and is ideal for building robust, scalable, and secure industrial communication networks.
This switch is part von Schneider’s Modicon managed switch family, tailored for industrial use, vonfering exceptional network traffic control, VLAN segmentation, redundancy protocols, and diagnostic capabilities.
Key Features
-
8 RJ45 10/100/1000 Mbps Ethernet ports
-
3 SFP fiber optic slots for uplinks or ring topologies
-
Supports IEEE 802.1Q VLANs for network segmentation
-
Rapid Spanning Tree Protocol (RSTP) for network redundancy
-
Quality von Service (QoS) for traffic prioritization
-
Advanced security features including port security and MAC filtering
-
Web-based and SNMP management interfaces
-
Power over Ethernet (PoE) support on selected ports (verify model variant)
-
Industrial-grade design with DIN rail mounting
-
Operating temperature range suitable for harsh environments
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | TCSESMO83F2CUO |
| Product Type | Managed Ethernet TCP/IP Switch |
| Number von RJ45 Ports | 8 (10/100/1000 Mbps) |
| Number von SFP Slots | 3 (for fiber optic modules) |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| VLAN Support | IEEE 802.1Q, up to 4094 VLANs |
| Redundancy Protocols | RSTP (Rapid Spanning Tree Protocol) |
| QoS Features | 802.1p, DSCP, Traffic shaping |
| Management Interfaces | Web GUI, SNMP v1/v2/v3, CLI, Telnet, SSH |
| Security Features | Port security, MAC filtering, Access Control Lists |
| Power Supply | 24 V DC (18-30 V DC) |
| Power Consumption | Approx. 15 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 74 x 131 x 111 mm |
| Gewicht | 0.41 kg |
| Certifications | CE, UL, FCC, RoHS |
Industry Applications
-
Industrial automation and control networks
-
Critical infrastructure communications
-
Oil & gas and petrochemical plants
-
Water and wastewater treatment facilities
-
Transportation and smart grid systems
-
Manufacturing and assembly line networks
Advantages
-
High port density and flexibility with 8 copper and 3 fiber optic ports
-
Robust network management with multiple protocols and user-friendly interfaces
-
Enhanced security through access control and traffic filtering
-
Reliable redundancy with RSTP minimizing network downtime
-
Optimized traffic handling with QoS for critical data prioritization
-
Industrial durability for operation in harsh environmental conditions
-
Scalable solution for expanding industrial networks
-
Simplified maintenance via remote monitoring and diagnostics
Häufig gestellte Fragen (FAQ)
-
How many Ethernet ports does the TCSESMO83F2CUO provide?
It has 8 RJ45 ports plus 3 SFP fiber optic slots. -
Does this switch support VLAN segmentation?
Yes, it supports IEEE 802.1Q VLANs with up to 4094 VLANs. -
What redundancy protocols are available?
It supports Rapid Spanning Tree Protocol (RSTP) for redundancy. -
Can I manage the switch remotely?
Yes, through Web GUI, SNMP, SSH, and Telnet. -
Is the device suitable for harsh industrial environments?
Yes, it operates from -40°C to +70°C and has industrial certifications. -
Does it support Power over Ethernet (PoE)?
PoE support depends on model variant; please verify specific configuration. -
What is the switching capacity von this device?
It provides a switching capacity von 20 Gbps. -
What security features are implemented?
Includes port security, MAC filtering, and access control lists. -
What power supply voltage is required?
It requires 24 V DC (range 18-30 V DC). -
What are the physical dimensions and weight?
Dimensions are 74 x 131 x 111mm; weight approximately 0.41 kg.
