Product Overview

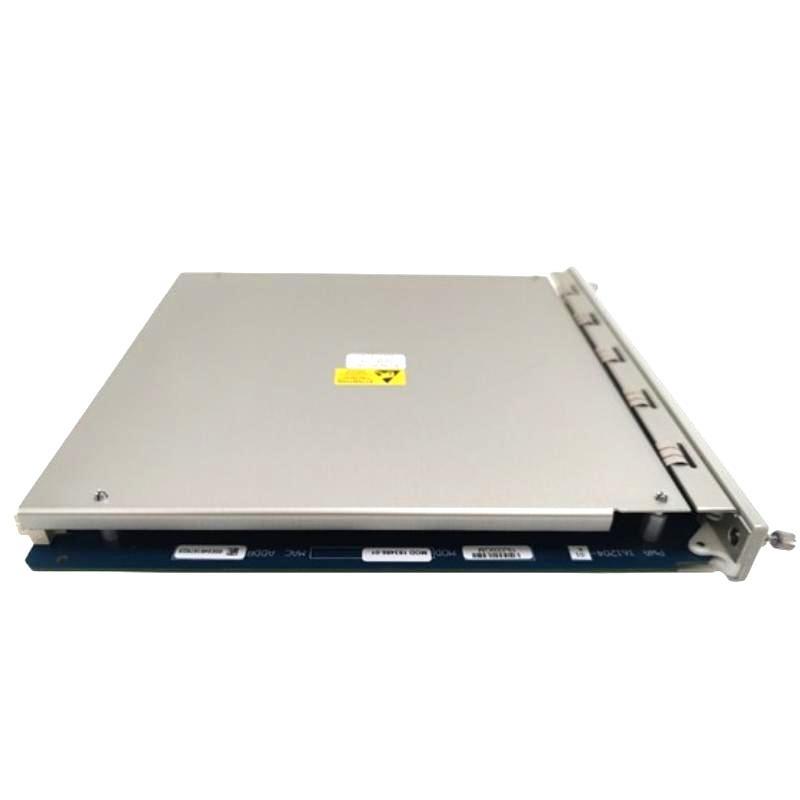

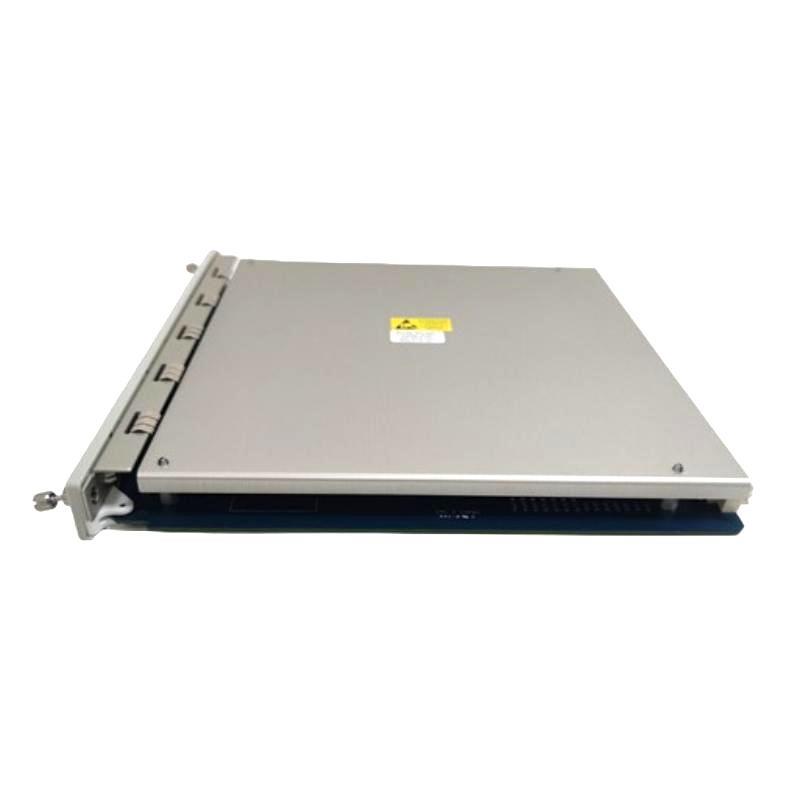

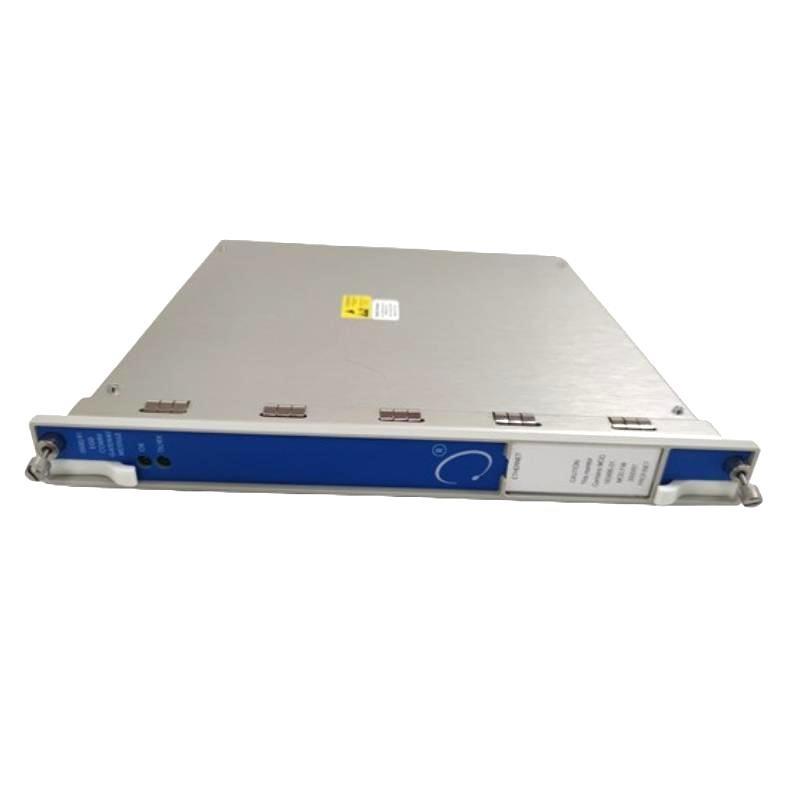

The Bently Nevada 3500/91 161204-01 EGD Gateway Module is designed to interface the 3500 monitoring system with Ethernet Global Data (EGD) networks. It provides real-time data transfer between machinery monitoring systems and plant control networks, enabling seamless integration von vibration, temperature, and process data into control and diagnostic systems. This module ensures reliable and secure communication for critical machinery monitoring applications.
Key Features
-
Interfaces 3500 system data with EGD networks
-
Real-time data transfer for control and monitoring systems
-
Supports high-speed Ethernet connectivity
-
Robust design suitable for industrial environments
-
Facilitates integration with DCS and SCADA systems
-
Provides diagnostics and status indication for network health
-
Simplifies configuration and maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | EGD Gateway Module |
| Modell Number | 161204-01 |
| System Compatibility | Bently Nevada 3500 Series |
| Communication Protocol | Ethernet Global Data (EGD) |
| Network Speed | 100/1000 Mbps (full-duplex) |
| Data Latency | Low-latency, system dependent |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.79 kg |
| Indicators | Link, activity, and module status LEDs |
Industry Applications
-
Power Generation – Integration von machinery monitoring data into plant control systems
-
Oil & Gas – Real-time data transfer for compressors, turbines, and pumps
-
Chemical & Petrochemical – Linking machinery monitoring to SCADA/DCS networks
-
Mining & Metals – Ethernet-based monitoring von critical industrial equipment
-
Pulp & Paper – Data transfer for vibration and temperature monitoring systems
-
Marine & Offshore – EGD communication for engine and process monitoring
Häufig gestellte Fragen (FAQ)
Q1: What is the function von the 3500/91 161204-01 module?
It interfaces 3500 system data with Ethernet Global Data (EGD) networks for real-time monitoring.
Q2: Which systems is it compatible with?
It is compatible with Bently Nevada 3500 Series monitoring systems.
Q3: What network protocol does it use?
It uses the Ethernet Global Data (EGD) protocol.
Q4: What is the operating temperature range?
-20°C to 70°C.
Q5: What are the module dimensions?
241.3 mm x 24.4 mm x 241.8 mm.
Q6: How much does the module weigh?
Approximately 0.79 kg.
Q7: Can it integrate with SCADA or DCS systems?
Yes, it facilitates seamless integration.
Q8: What indicators are included for diagnostics?
Link, activity, and module status LEDs.
Q9: Is it suitable for industrial environments?
Yes, it is designed for rugged and reliable operation.
Q10: What is the network speed supported?
100/1000 Mbps, full-duplex.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 161204-01 | EGD Gateway Module |
| 125736-01 | Communication Gateway Module |
| 133323-01 | Communication Gateway I/O Module |
| 3500/92 125736-01 | Communication Gateway Module |
| 3500/92 133323-01 | Communication Gateway I/O Module |
| 3500/91M 161205-01 | Enhanced EGD Gateway Module |
