Product Beschreibung

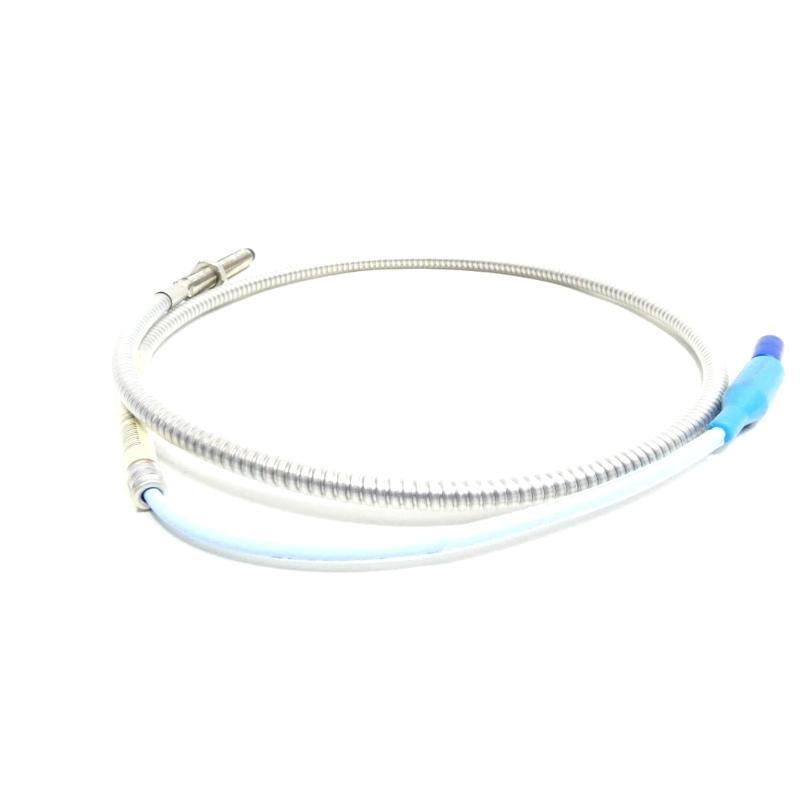

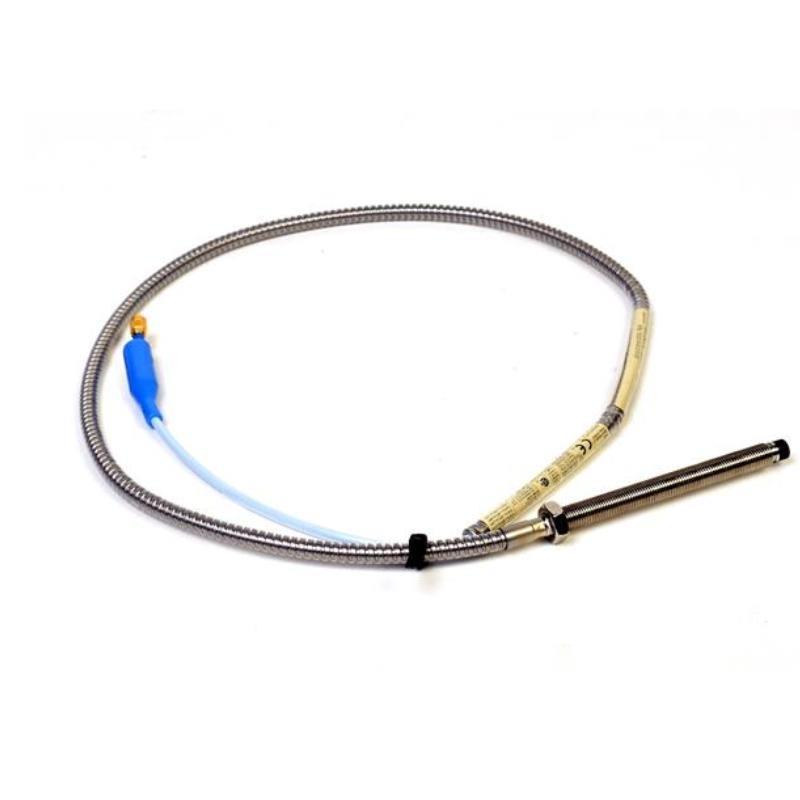

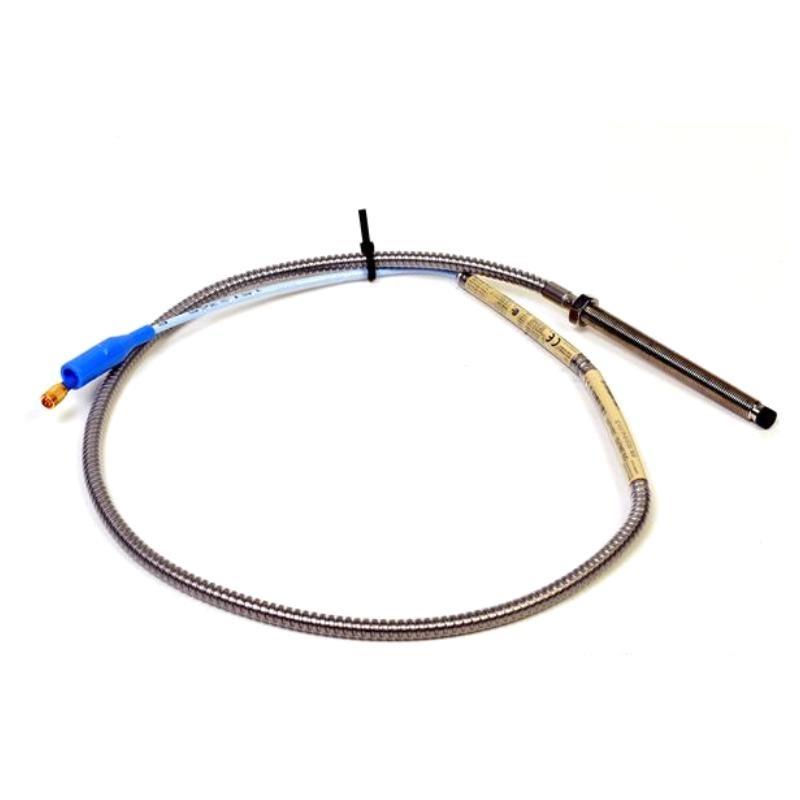

The Bently Nevada 330102-03-28-10-02-00 is a robust 3300 XL 8 mm Proximity Probe with armored cable and ClickLoc connector. Designed for machinery condition monitoring, it measures shaft vibration and position by detecting the distance to a conductive surface. Its armored construction ensures durability in harsh environments, and it fully complies with API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored, standard triaxial |
| Connector Type | Miniature coaxial ClickLoc |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Linear Range | 0.25 to 2.3 mm |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C |
| Minimum Target Size | 15.2 mm diameter flat target |
| Recommended Shaft Diameter | ≥76.2 mm |
| Compliance | API 670, CE, FCC, RoHS, SIL2/SIL3 |
Applications
-
Shaft vibration monitoring in turbines, compressors, and motors
-
Axial and radial position monitoring
-
Keyphasor reference signal generation
-
Speed and overspeed protection
-
Suitable for use in fluid-film bearing machines
Advantages
-
Complies with API 670 for critical machinery protection
-
Fully interchangeable components, no need for matched calibration
-
Armored cable for enhanced durability
-
ClickLoc connectors simplify installation and maintenance
-
Resistant to RFI/EMI for reliable measurements
-
Supports high-density DIN-rail or panel mounting
FAQ
Q1: What is the linear measurement range von this probe?
A1: The linear range is from 0.25 mm to 2.3 mm.
Q2: Does the probe comply with API 670?
A2: Yes, it fully meets API 670 standards for mechanical configuration and accuracy.
Q3: Is the probe interchangeable with older 3300 series components?
A3: Yes, it is backward compatible and interchangeable with non-XL 3300 series 5 mm and 8 mm components.
Q4: What is the recommended shaft diameter for accurate readings?
A4: A minimum shaft diameter von 76.2 mm is recommended.
Q5: Can it operate in high-temperature environments?
A5: Yes, the standard probe operates up to +177°C, with an extended temperature range option available.
Q6: Does the armored cable improve performance?
A6: Armoring protects the cable mechanically, improving durability in harsh environments.
Q7: How is the connector secured?
A7: The ClickLoc connector ensures a secure, tool-free connection that clicks when properly tightened.
Q8: What kind von target material is it calibrated for?
A8: Factory calibration is for AISI 4140 steel; calibration for other materials is available.
Q9: What certifications does it carry?
A9: CE, FCC, RoHS, SIL2/SIL3, ATEX, and IECEx certifications.
Q10: What is the weight von the 1-meter probe?
A10: The 1-meter probe weighs approximately 0.323 kg.
Recommended Related Modells
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe, unarmored | 1.0 m | 0.290 kg |
| 330103-00-02-10-02-05 | 3300 XL 8 mm Metric Probe, armored | 1.0 m | 0.323 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Metric Probe, armored | 1.5 m | 0.450 kg |
| 330105-02-12-10-02-00 | 3300 XL 8 mm Reverse Mount, armored | 1.0 m | 0.330 kg |
| 330140-00-10-10-02-00 | 3300 XL 8 mm Smooth Case, unarmored | 1.0 m | 0.280 kg |
| 330192-00-10-10-02-05 | 3300 XL 8 mm ETR Probe, armored | 1.0 m | 0.325 kg |
Popular Bently Nevada Modells
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330104-00-06-10-02-00 | 3300 XL 8 mm Metric Probe, armored | 1.5 m | 0.450 kg |
| 330180-10-05 | 3300 XL Proximitor Sensor, panel mount | 1.0 m | 0.246 kg |
| 330130-030-00 | 3300 XL Extension Cable, standard | 3.0 m | 0.102 kg |
| 330106-05-30-05-02-00 | 3300 XL 8 mm Reverse Mount, metric | 0.5 m | 0.300 kg |
| 330141-00-10-10-02-00 | 3300 XL 8 mm Smooth Case, armored | 1.0 m | 0.330 kg |
| 330190-030-00 | 3300 XL ETR Extension Cable | 3.0 m | 0.110 kg |
