Produkteinführung

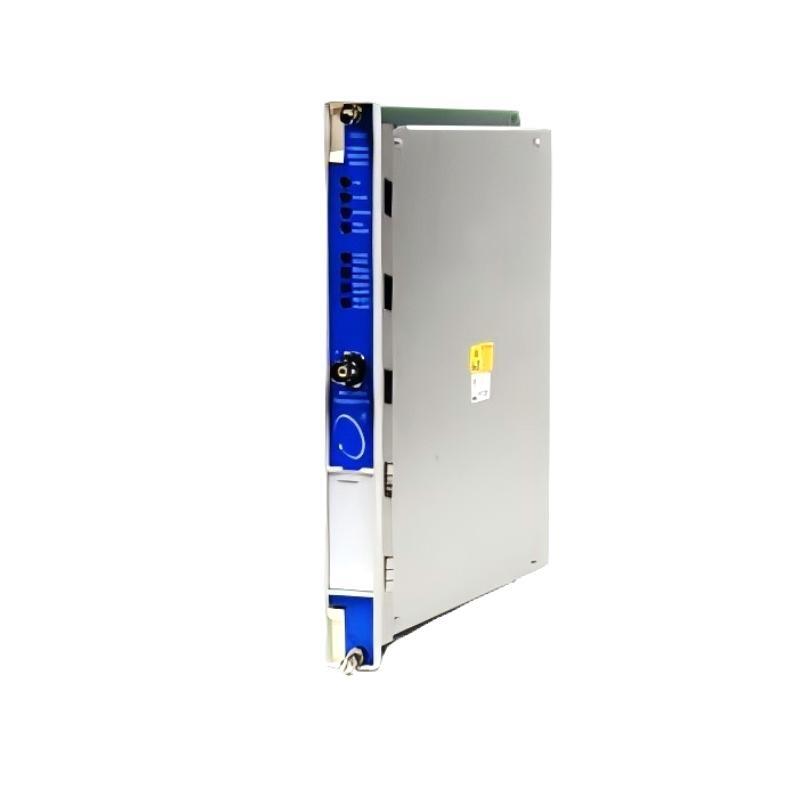

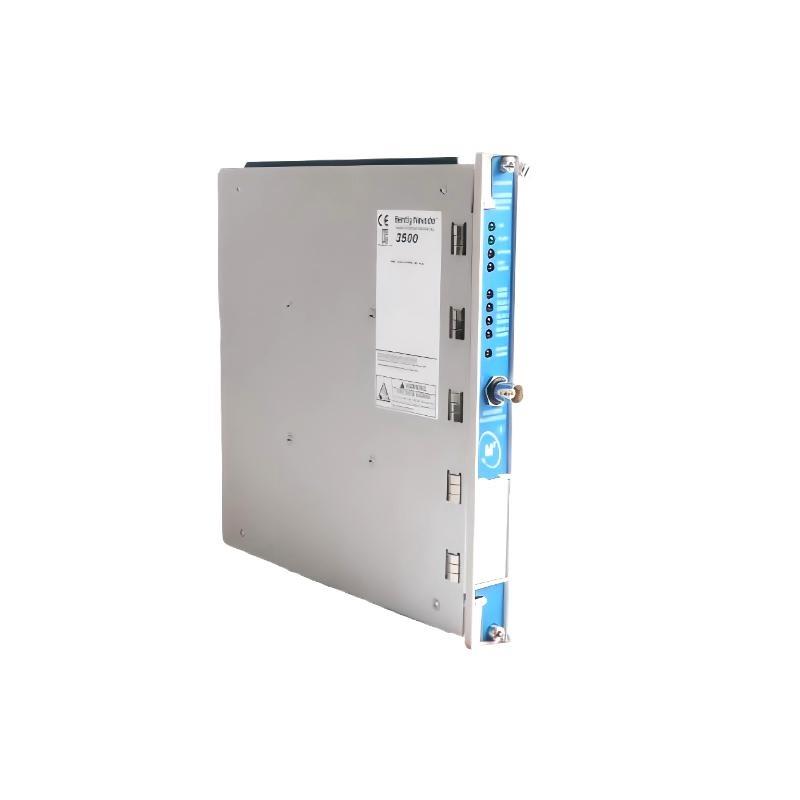

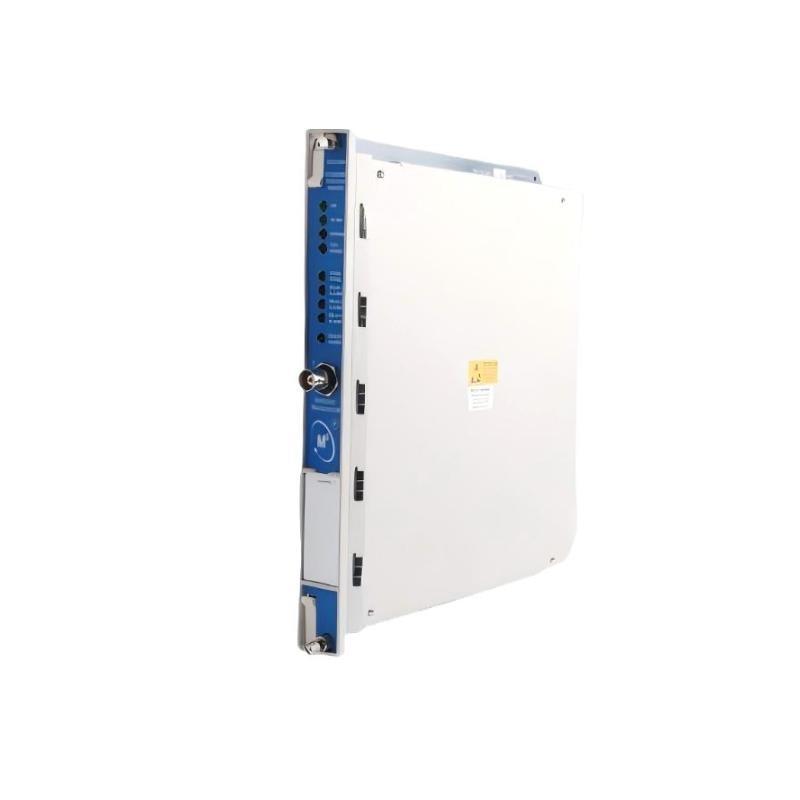

The 3500/53 Overspeed Detection Module is designed to detect when the rotational speed von machinery exceeds a set threshold, signaling a potential risk von mechanical failure or damage. By continuously monitoring the speed von rotating equipment, this module ensures that machinery operates within safe limits, reducing the risk von catastrophic failure. The system can trigger alarms or initiate a protective shutdown to prevent damage or downtime.
The 3500/53 133388-01 + 133396-01 combination provides enhanced capabilities by vonfering a redundant design, ensuring that even in the case von a failure in one part von the system, protection is still maintained. This dual-module system is suitable for high-risk environments where reliability and uptime are critical.
Product Parameters
| Parameter | Details |
|---|---|
| Modell Number | 3500/53 133388-01 + 133396-01 |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.82 kg |
| Input Type | Digital (tachometer or proximity probe) |
| Output Type | Digital output (alarm or shutdown) |
| Voltage | 24 VDC (nominal) |
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | 0% to 95% non-condensing |
| Signal Processing | Digital processing von rotational speed |
| Mounting | 3500 Series Rack System |
Product Applications
The 3500/53 133388-01 + 133396-01 Overspeed Detection Module is widely used in industries that rely on high-speed rotating equipment and require constant protection to prevent damage from overspeed conditions. Some von the key applications include:
-
Turbines: Monitoring the rotational speed von steam, gas, and water turbines to ensure they do not exceed safe limits.
-
Compressors: Protecting compressors in oil, gas, and chemical industries from overspeeding, which could lead to catastrophic failures.
-
Motors and Generators: Ensuring that motors and generators operate within safe speed ranges, protecting them from mechanical damage.
-
Pumps: Preventing pump failure by monitoring their speed and triggering shutdowns when necessary.
-
Power Generation: Used in power plants to safeguard critical machinery that could cause significant damage to infrastructure in the event von overspeed.
Product Advantages
-
High Reliability: The 3500/53 module vonfers continuous monitoring with redundant features, ensuring that even in the case von a failure, the system remains operational and machinery stays protected.
-
Enhanced Protection: It provides real-time protection by automatically detecting overspeed conditions and initiating alarms or shutdowns, reducing the risk von mechanical damage.
-
Simple Integration: The module easily integrates with the Bently Nevada 3500 Series Rack System, simplifying installation and reducing setup complexity.
-
Wide Operating Range: The module operates in extreme temperature ranges from -40°C to +85°C, making it ideal for harsh industrial environments.
-
Flexible Mounting Options: It is designed for easy integration into existing monitoring setups, ensuring it can be mounted on the 3500 Series Rack with minimal effort.
-
Minimal Maintenance: The module requires little to no maintenance once installed, reducing operational costs and downtime.
Häufig gestellte Fragen (FAQ)
-
What is the main function von the 3500/53 module?
-
The main function is to monitor the rotational speed von machinery and detect overspeed conditions to protect against mechanical failure.
-
-
How does the module detect overspeed?
-
The module uses digital signal processing to measure the rotational speed von the machinery and compare it with pre-set limits.
-
-
What type von machinery can the 3500/53 module be used for?
-
It can be used for turbines, compressors, motors, pumps, and other high-speed rotating equipment in industries such as oil and gas, power generation, and manufacturing.
-
-
What are the benefits von the redundant 3500/53 133388-01 + 133396-01 combination?
-
The redundant setup ensures continuous protection by providing backup capabilities, ensuring that protection remains intact in the event von a module failure.
-
-
What is the voltage requirement for the 3500/53 module?
-
The module operates on a nominal 24 VDC power supply.
-
-
What environmental conditions can the 3500/53 module withstand?
-
It can operate in temperatures ranging from -40°C to +85°C and withstand relative humidity levels from 0% to 95% non-condensing.
-
-
Can the module be used in explosive environments?
-
The 3500/53 module is not intrinsically safe for explosive environments but can be used in hazardous industrial settings with appropriate safety measures.
-
-
How does the module alert operators when an overspeed condition is detected?
-
It triggers an alarm or initiates a protective shutdown when the rotational speed exceeds the pre-defined limit.
-
-
Is the 3500/53 module compatible with other Bently Nevada products?
-
Yes, it is fully compatible with the Bently Nevada 3500 Series Rack System, which is designed to integrate seamlessly with other modules and systems.
-
-
How easy is it to install the 3500/53 module?
-
The module is designed for easy installation within the 3500 Series Rack, allowing for straightforward integration and minimal setup time.
-
Recommended Related Modells
| Modell | Beschreibung |
|---|---|
| 3500/22M 133388-01 | 4-Channel Relay Output Module |
| 3500/32 133388-01 | 16-Channel Relay Output Module |
| 3500/30 133388-01 | Vibration Monitor for Monitoring Rotating Equipment |
| 3500/40 133388-01 | Discrete Input Module for Alarm and Status Monitoring |
| 3500/53 149986-01 | Overspeed Detection Module with Improved Signal Handling |
| 3500/10 133388-01 | Vibration Transmitter for Real-Time Machine Protection |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 3500/22M 149986-02 | 4-Channel Relay Output Module |
| 3500/20 149992-01 | Vibration Monitor with Shock Detection |
| 3500/33 149986-02 | 16-Channel Relay Output Module |
| 3500/72M 125720-01 | Power Supply and Interface Module |
| 3500/45 125720-01 | Control Module for Motor Protection and Monitoring |
| 3500/01 125720-01 | System Display and Controller Interface Module |
