Product Overview

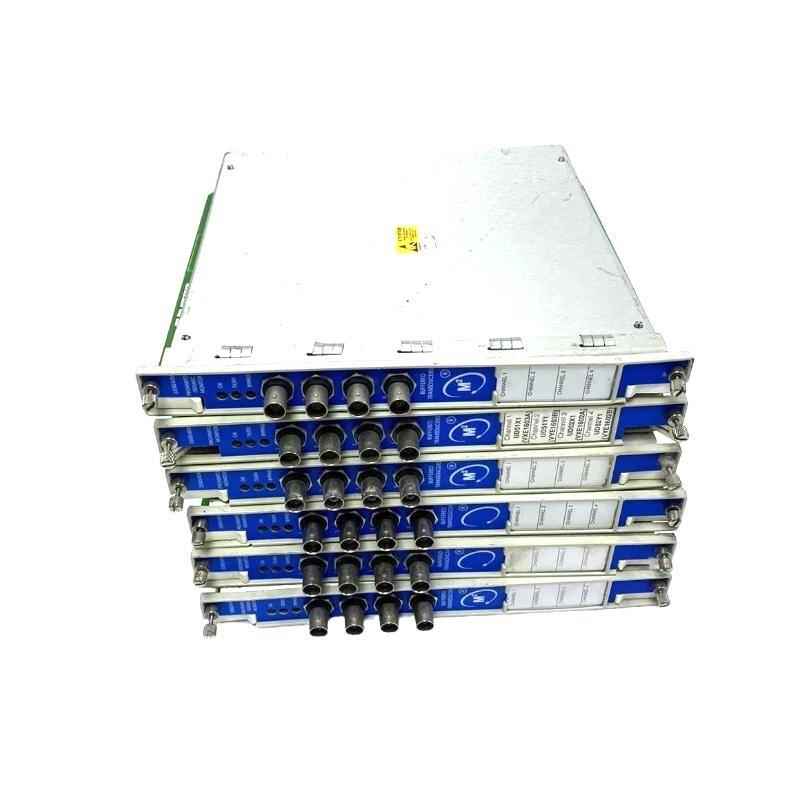

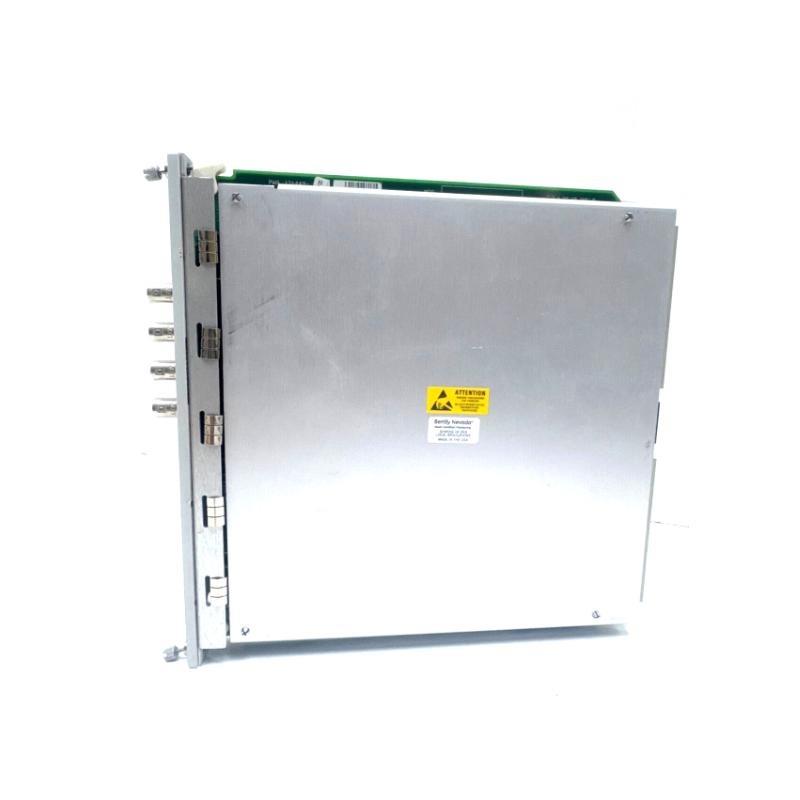

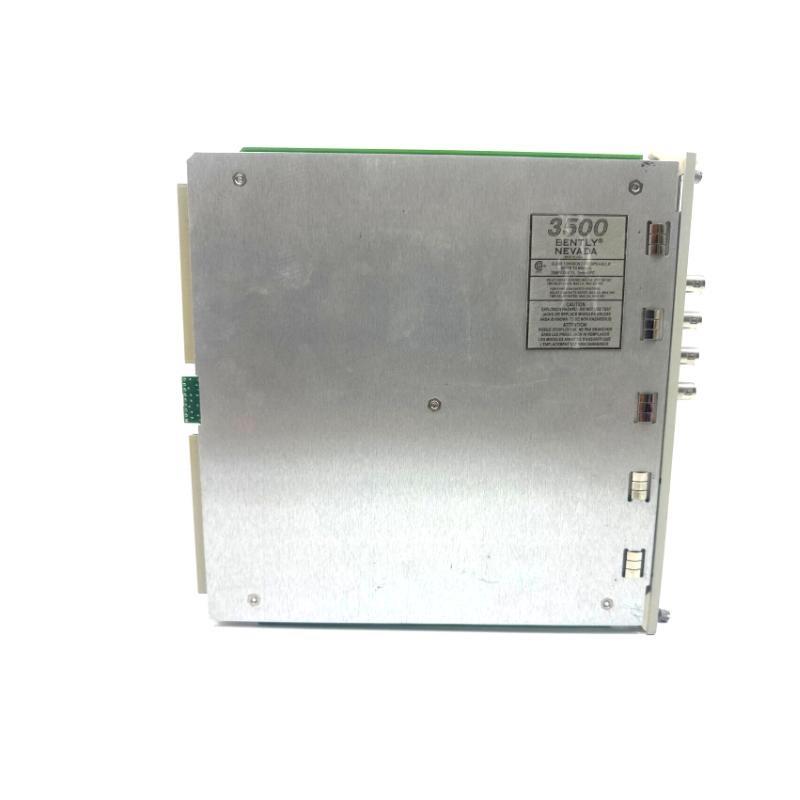

The Bently Nevada 3500/42-06-RU Proximitor Seismic Monitor is a high-performance module designed for continuous machinery vibration and position monitoring in critical rotating equipment. This monitor interfaces with proximity transducers to detect and measure shaft vibration, position, and phase reference, providing essential data for predictive maintenance and machinery protection.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 3500/42-06-RU |
| Function | Proximitor Seismic Monitoring |
| Input Channels | 2 independent channels |
| Input Types | Proximity probes, seismic transducers |
| Signal Processing | True RMS, Peak, and Filtered values |
| Power Supply | Via 3500 rack backplane |
| Communication | Compatible with 3500 rack system & svontware |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.91 kg |
| Operating Temperature | -30°C to +65°C |
| Humidity | 95% non-condensing |
| Certifications | CE, CSA, ATEX, IECEx |
Applications
-
Continuous monitoring von compressors, turbines, pumps, and generators
-
Critical machinery protection in power generation, oil & gas, and petrochemical industries
-
Predictive maintenance programs to reduce unplanned downtime
-
Integration with plant DCS/SCADA systems for centralized monitoring
Advantages
-
High Accuracy: Precise vibration and displacement measurement for early fault detection
-
Flexible Configuration: Supports various proximity probe types and measurement modes
-
Modular Integration: Works seamlessly with the Bently Nevada 3500 rack system
-
Robust Design: Industrial-grade reliability in harsh environments
-
Regulatory Compliance: Certified for hazardous locations and meets global safety standards
FAQ
-
Q: What types von transducers can be connected to the 3500/42-06-RU?
A: It supports Bently Nevada proximity probes and seismic transducers. -
Q: Can it monitor both radial vibration and axial position?
A: Yes, it is designed for multiple measurement modes, including radial vibration, axial position, and phase reference. -
Q: How many channels does this monitor have?
A: It features two independent channels. -
Q: Is it compatible with all 3500 rack systems?
A: Yes, it integrates with standard 3500 racks and System 1 svontware. -
Q: Can it operate in hazardous areas?
A: Yes, it holds ATEX, CSA, and IECEx certifications. -
Q: What is the main advantage over older 3300 series monitors?
A: Enhanced processing capability, better integration, and improved diagnostics. -
Q: Does it require calibration?
A: Calibration is recommended during installation and periodically for accuracy assurance. -
Q: What is the lifespan von the Stück?
A: With proper operation and maintenance, it can exceed 10 years von service life. -
Q: Can I configure alarms directly from the module?
A: Alarm settings are configured through the 3500 rack svontware interface. -
Q: Is firmware upgradable?
A: Yes, firmware updates can be applied through the rack system.
