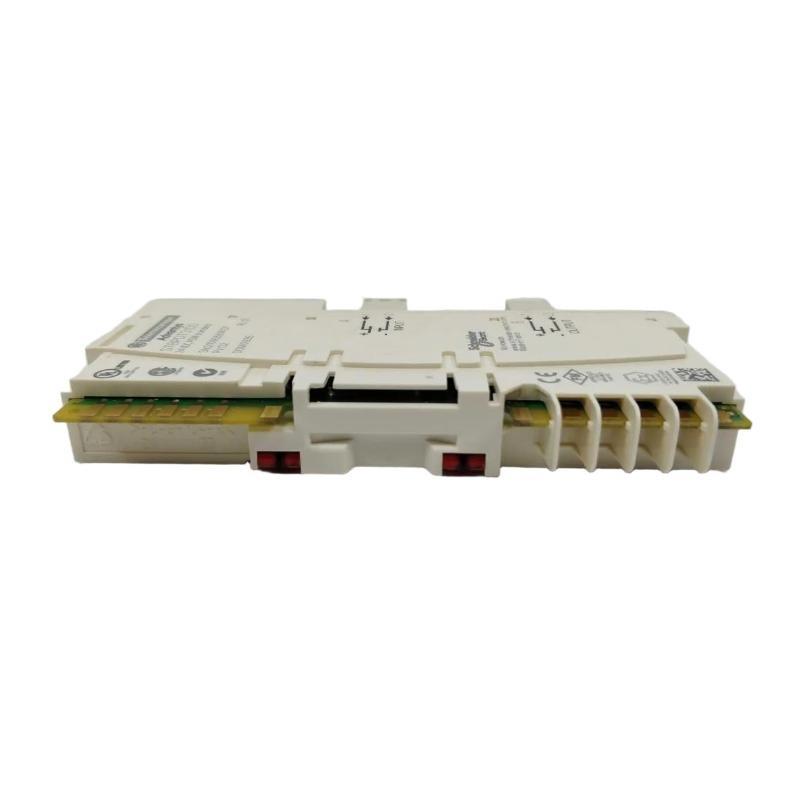

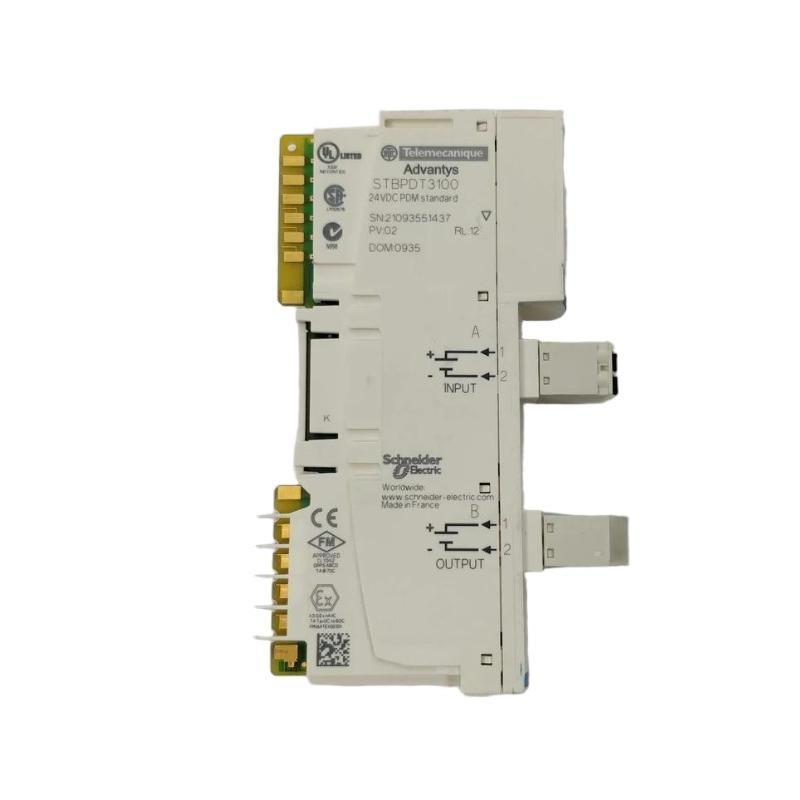

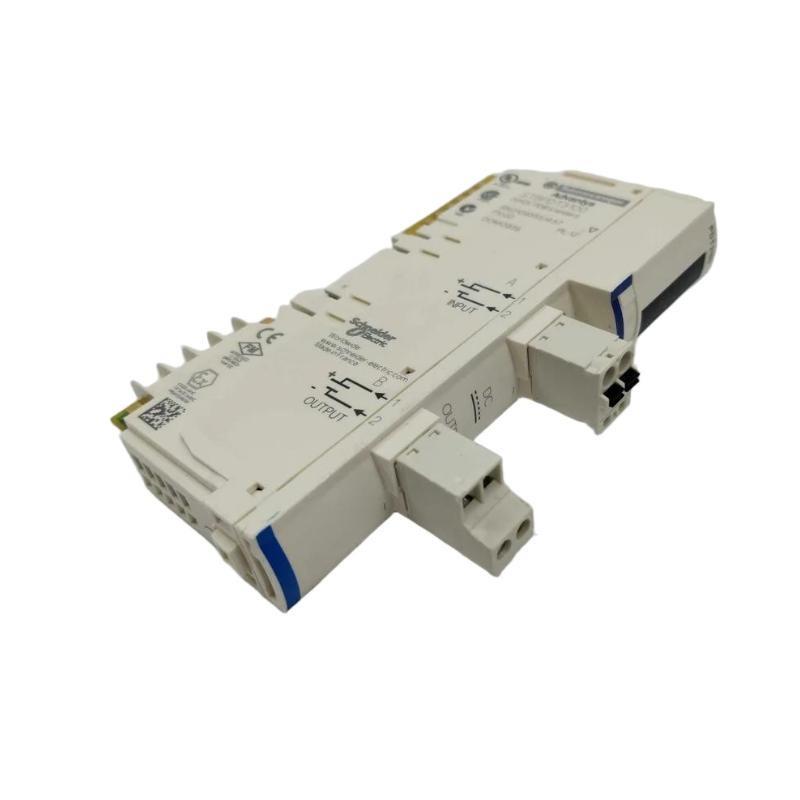

Product Overview
The Schneider Electric STBPDT3100 is a standard power distribution module designed for use in the Advantys STB distributed I/O system. This module plays a critical role by supplying power to the I/O bases and I/O modules on an STB island, enabling flexible, modular, and decentralized automation architectures.
Engineered for demanding industrial applications, the STBPDT3100 ensures safe and reliable power delivery within the island. It simplifies field wiring, minimizes downtime, and supports rapid integration and diagnostics, making it ideal for OEMs and integrators building scalable control systems.
Key Features
-
Distributes 24 V DC power to STB I/O modules
-
Supports both logic and sensor power for standard STB islands
-
Designed for Advantys STB modular I/O system
-
Hot-swappable to minimize system downtime
-
Integrated diagnostics via status indicators
-
Compact DIN rail-mountable housing
-
Supports island segmentation for optimized power management
-
Operates reliably in harsh industrial environments
-
Facilitates modular expansion and simplified wiring
-
Complies with global industrial standards
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | STBPDT3100 |
| Function | Standard Power Distribution Module |
| System Compatibility | Advantys STB I/O system |
| Input Voltage | 24 V DC ±20% |
| Output Channels | Supplies logic and sensor power to the island |
| Module Type | Standard power distributor |
| Power Segmentation | Supports power segment isolation and distribution |
| Short-Circuit Protection | Yes (via external protection components) |
| Mounting Type | DIN rail (35 mm symmetrical) |
| Status Indicators | LED indicators for power status |
| Cooling Method | Passive (fanless) |
| Dimensions | 18.4 x 125mm |
| Gewicht | 0.13 kg |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certifications | CE, UL, CSA, RoHS |
Industry Applications
-
Material Handling: Motorized conveyors, sorters, and distribution systems
-
Packaging Equipment: Sensor-powered packaging lines and modular stations
-
Automotive: Assembly lines and robotic interfaces
-
Food and Beverage: Modular control in batching and bottling systems
-
Pharmaceutical: GMP-compliant automated control panels
-
Process Industries: Distributed control in chemical and water treatment plants
Product Advantages
-
Compact Footprint: Slim prvonile saves space in crowded panels
-
Reliable Power Distribution: Ensures stable logic and sensor power to I/O modules
-
Hot-Swappable Design: Allows live replacement without interrupting system operation
-
Simplified Wiring: Reduces installation time and wiring errors
-
Diagnostic Visibility: Integrated LED indicators show module and power status
-
Flexible Island Configuration: Enables segmentation von STB islands for greater reliability
-
Global Compatibility: CE, UL, CSA, and RoHS certified for international use
-
Rugged Construction: Suitable for high-vibration industrial environments
-
Easy Integration: Seamlessly works with STB NIP, STB CPU, and STB IO modules
-
Low Maintenance: No moving parts, no active cooling, reduced wear
Häufig gestellte Fragen (FAQ)
-
Q: What is the primary role von the STBPDT3100?
A: It distributes 24 V DC power to I/O modules within an STB island. -
Q: Can the STBPDT3100 be hot-swapped during operation?
A: Yes, it supports hot-swapping for uninterrupted system availability. -
Q: Is it compatible with other Schneider SPSs?
A: It is designed specifically for use within the Advantys STB I/O system, which can interface with various PLCs via STB NIP network interfaces. -
Q: How is it mounted in a control panel?
A: It mounts on a standard 35 mm DIN rail. -
Q: Does it include built-in circuit protection?
A: No, external fuses or breakers should be used for short-circuit protection. -
Q: What is the width von the module?
A: It is only 12 mm wide, making it very compact. -
Q: Can it be used to power both logic and field devices?
A: Yes, it distributes both logic and sensor power for the island. -
Q: Does the module include diagnostics?
A: Yes, via onboard LED indicators. -
Q: Is it suitable for harsh industrial environments?
A: Yes, it is designed for high humidity and a wide temperature range. -
Q: Does it support segmenting the power supply in the STB system?
A: Yes, it enables logical segmentation within the I/O island.
